IEM-3160 Single Board Computer

  • Intel® Atom N3350/N4200/J3455/J3455
  • LPDDR4 up to 8GB memory
  • 3 independent display: DP, VGA, eDP/ LVDS
  • 2 LAN (2 x Intel i225-V)
  • 1 x USB2.0, 3 x USB 3.0
  • 1 RS-232/422/485, 1 RS-232
  • Supports 4G/5G, Wi-Fi module expansion
  • Supports PCIe X1/USB2.0/GPIO/TTL/HDA expansion via BTB connector
  • 8 GPIO
  • DC 9 to 36V, Optional UPS module
  • 146 x 102mm (L x W)
Get a quote
Download datasheet
  • Product Details
  • Specification
  • Application
  • Download

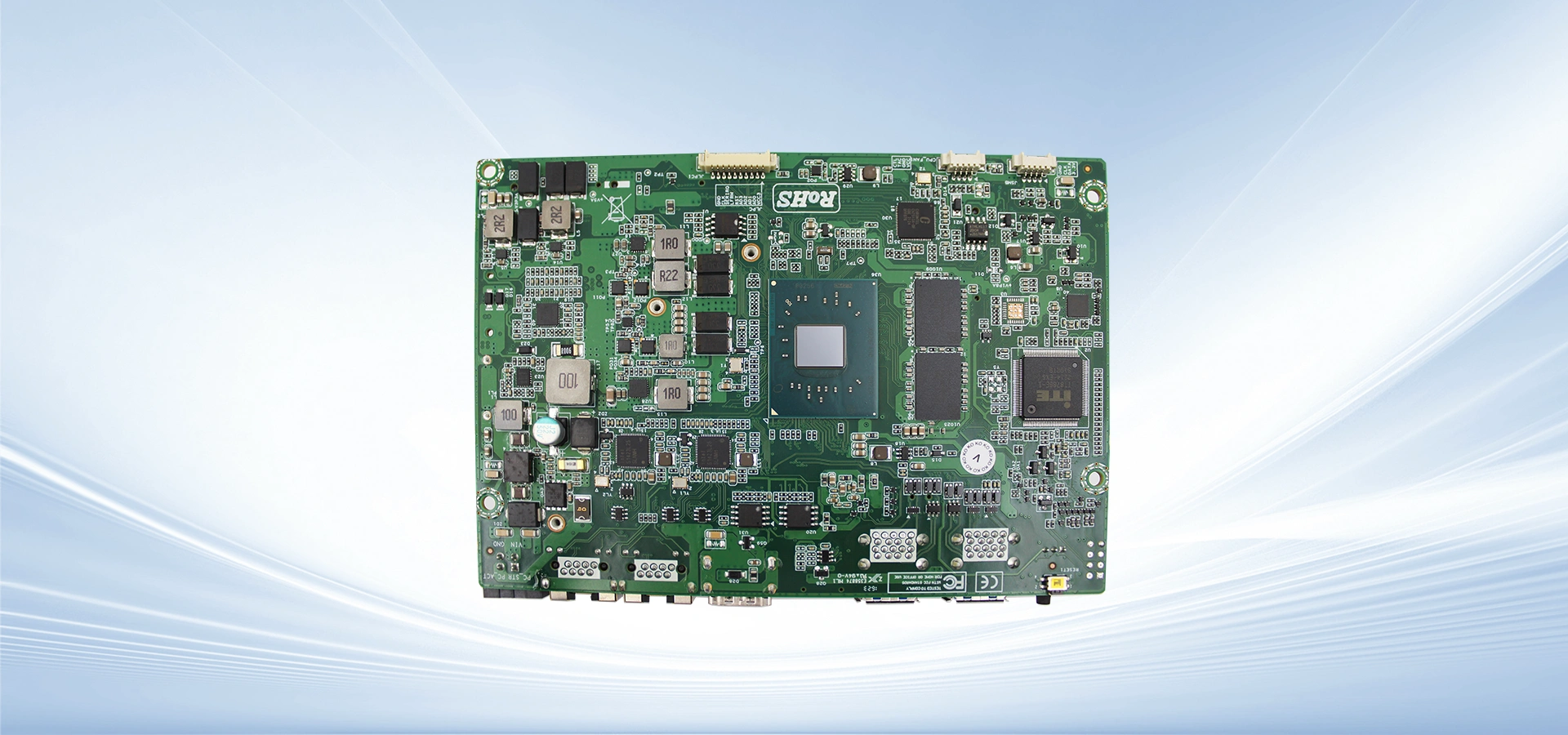

1

Scalable Intel Atom Processing on a 3.5-Inch Single-Board Computer

The IEM-3160 delivers Intel Atom® and Celeron® processing across J4205, J3455, N4200, and N3350 processor options on a 146 x 102mm 3.5-inch single-board computer, fitting directly into embedded chassis without a carrier board. LPDDR4 memory up to 8 GB pairs with M.2 M-Key and SATA3.0 dual storage paths, covering the local data throughput requirements of standard control and visualization workloads. Three independent display outputs spanning HDMI, VGA, and eDP/LVDS support simultaneous multi-screen configurations from a single board.

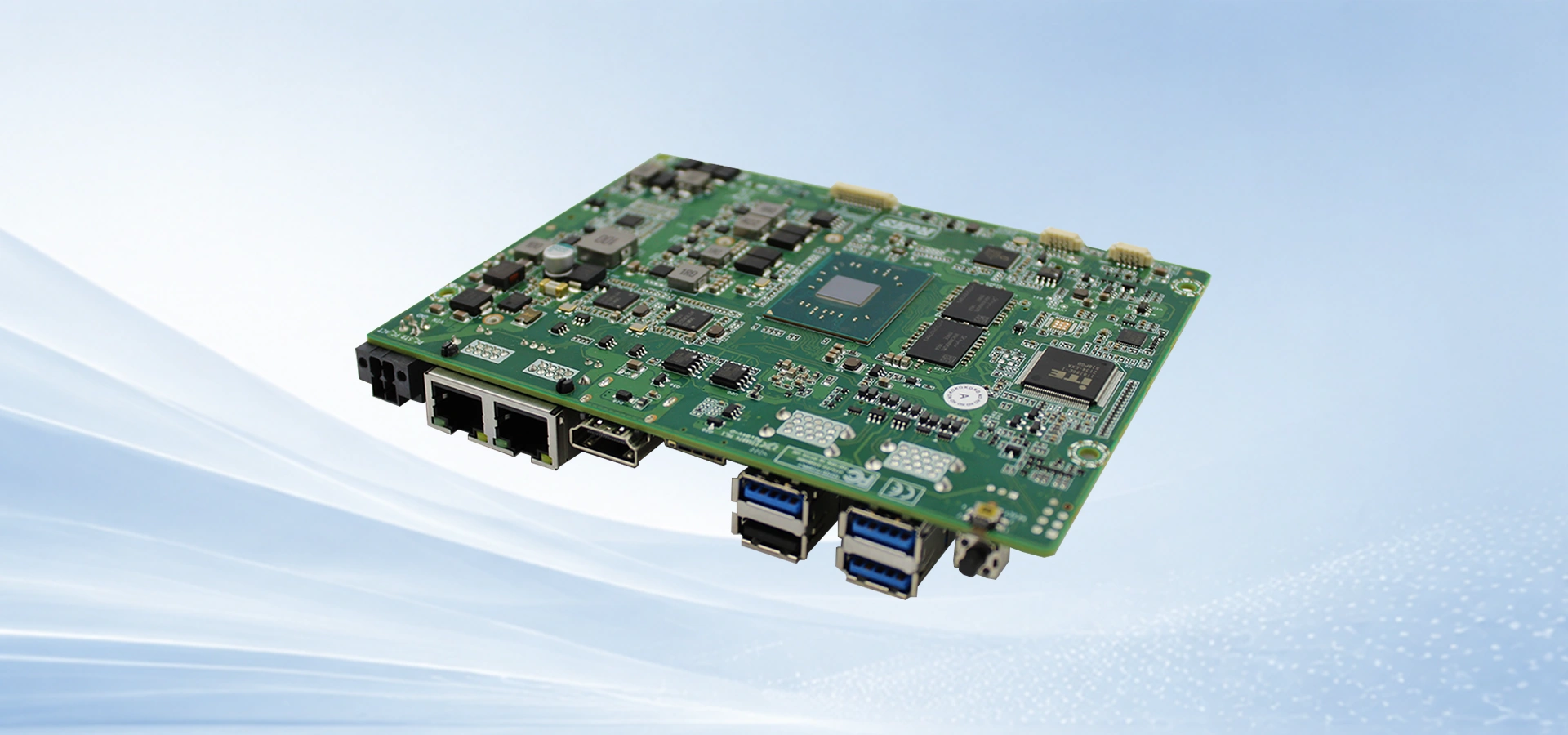

2

Direct I/O Access and Flexible Wireless Expansion

Standard industrial connectivity is available directly on the board, covering GbE LAN with optional PoE, USB, COM ports across RS-232/422/485 protocols, and 8-bit GPIO without an external hub or expander. A BTB connector provides additional PCIe, USB 2.0, TTL, and HDA expansion for custom integration, while internal M.2 E-Key and B-Key slots accommodate Wi-Fi and 4G/5G modules without adding cables to the enclosure.

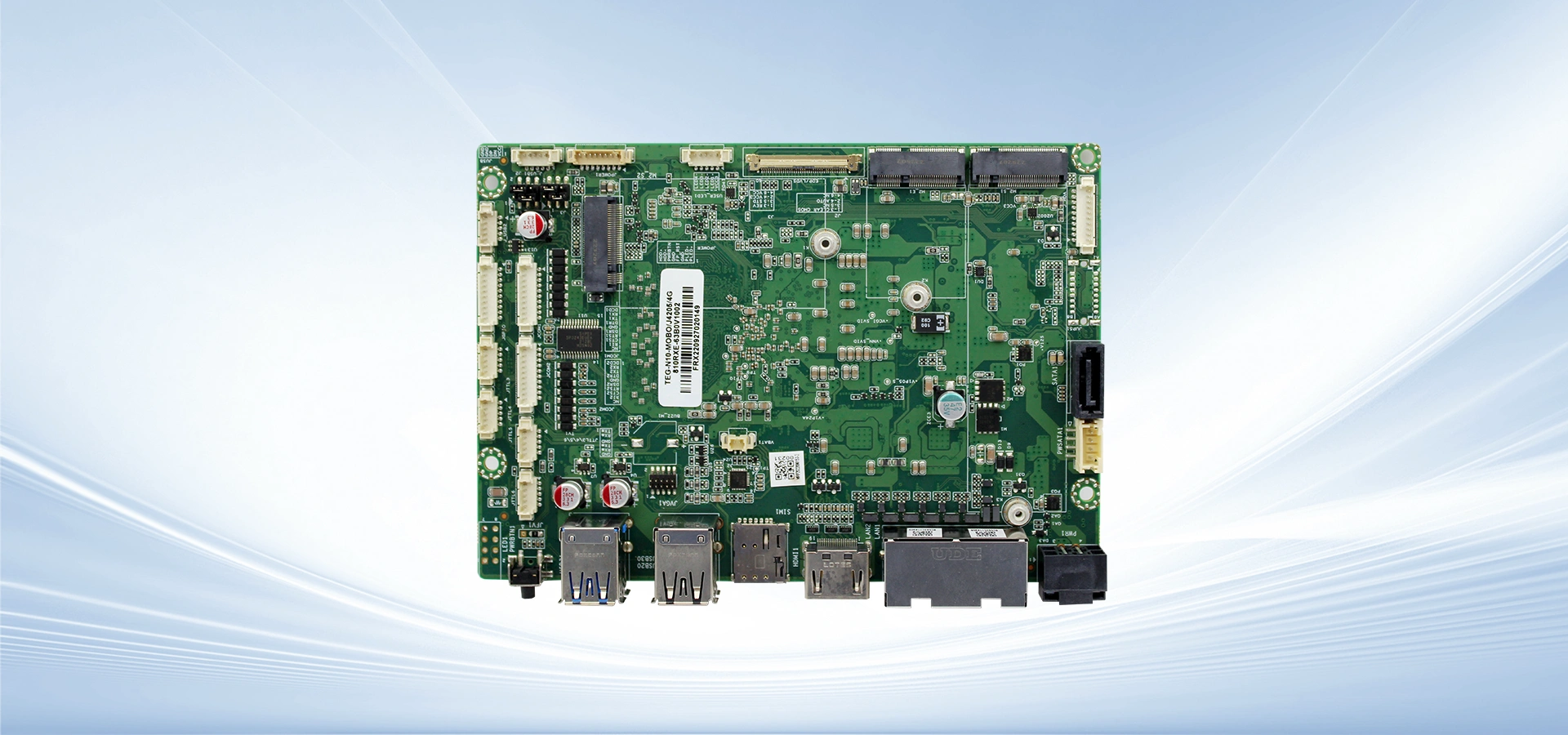

1

Industrial-Grade Reliability for Embedded Deployments

The board accepts 9 to 36V DC input and operates across 0 to 60°C with a 65,536-level programmable watchdog timer and optional UPS module, supporting continuous operation through factory power fluctuations and unattended software faults. CE and FCC Class B certification covers deployment in regulated industrial environments.

Specifications

Item Discription
Processor System​ CPU​ J4205 J3455 N4200 N3350
Core/Thread 4C/4T 4C/4T 4C/4T 2C/2T
Base Frequency 1.50 GHz 1.50 GHz 1.10 GHz 1.10 GHz
Turbo Frequency 2.60 GHz 2.30 GHz 2.50 GHz 2.40 GHz
TDP 10W 10W 6W 6W
Graphics​ Controller Intel Gen9 Graphic Engine
Feature DirectX 12.0, OpenGL 4.3, OpenCL 2.0,HW Decode: H.264, MPEG2, VC-1, WMV9, H.265/HEVC, VP8, JPEG/MJPEG
Memory​ Technology LPDDR4
Max. capacity 8GB
Storage​ M.2 M-Key 1 x M.2 2280 SATA3.0
SATA 1 x SATA3.0
External I/O HDMI 1 x HDMI, resolution up to 3840 x 2160 @ 30Hz
Ethernet 2x Intel i225-V 2.5GbE LAN
USB 3 x USB 3.0, 1 x USB2.0
SIM 1 x SIM
Power Connector 4-pin Phoenix terminal, supports remote switch
Switch Power Button 1 x Power Button
Reset 1 x Reset
Inside Connectors Internal USB2.0 2 x Internal USB2.0 (PIN-Out)
VGA 1 x VGA, resolution up to 1920 x 1200@60Hz
Serial Port 1 x RS-232/422/485, 1 x RS-232
TTL 4 x TTL (TX/RX/CTS/RTS/GND)
GPIO 8-bit GPIO
Audio 1 x HDA
LED Power, HDD, User-defined 1, User-defined 2
SMBus 1 x SMBus
LPC 1 x LPC
CPU FAN 1 x CPU FAN
UPS 1 x UPS (Optional)
Expansion M.2 E-Key 1 x M.2 E-Key 2230 supports Wi-Fi
M.2 B-Key 1 x M.2 B-Key 3052 supports 4G/5G
Power Supply Power Input DC 9-36V
Max. consumption 35W
Type AT/ATX
Others​ Watchdog 65536 levels, 0 to 65535 second
Environment​ Operating Temperature 0 to 60 °C(32 to 140°F)
Storage Temperature -40°C to 85°C(-40 to 185°F)
Operating Humidity 95% @ 40 °C (Non-condensing)
Storage Humidity 95% @ 60 °C (Non-condensing)
Physical characteristics​ Dimension 146 x 102 mm (L x W x H)
Certification​ EMC CE, FCC
OS​ OS Windows 10/11, CentOS 7/8, Ubuntu 18.04/20.04/22.04

    Dimensions

1675474361411743

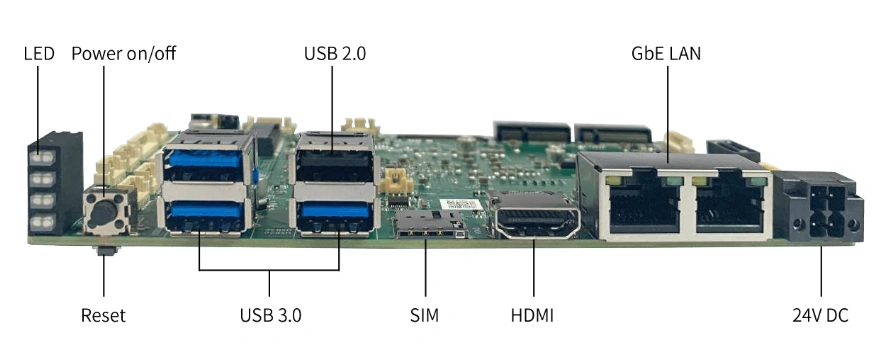

Interfaces

1675474561825604

1676364866472765

IEM 3160 Series Single Board Computer Datasheet

Size: 2 MB
Download
