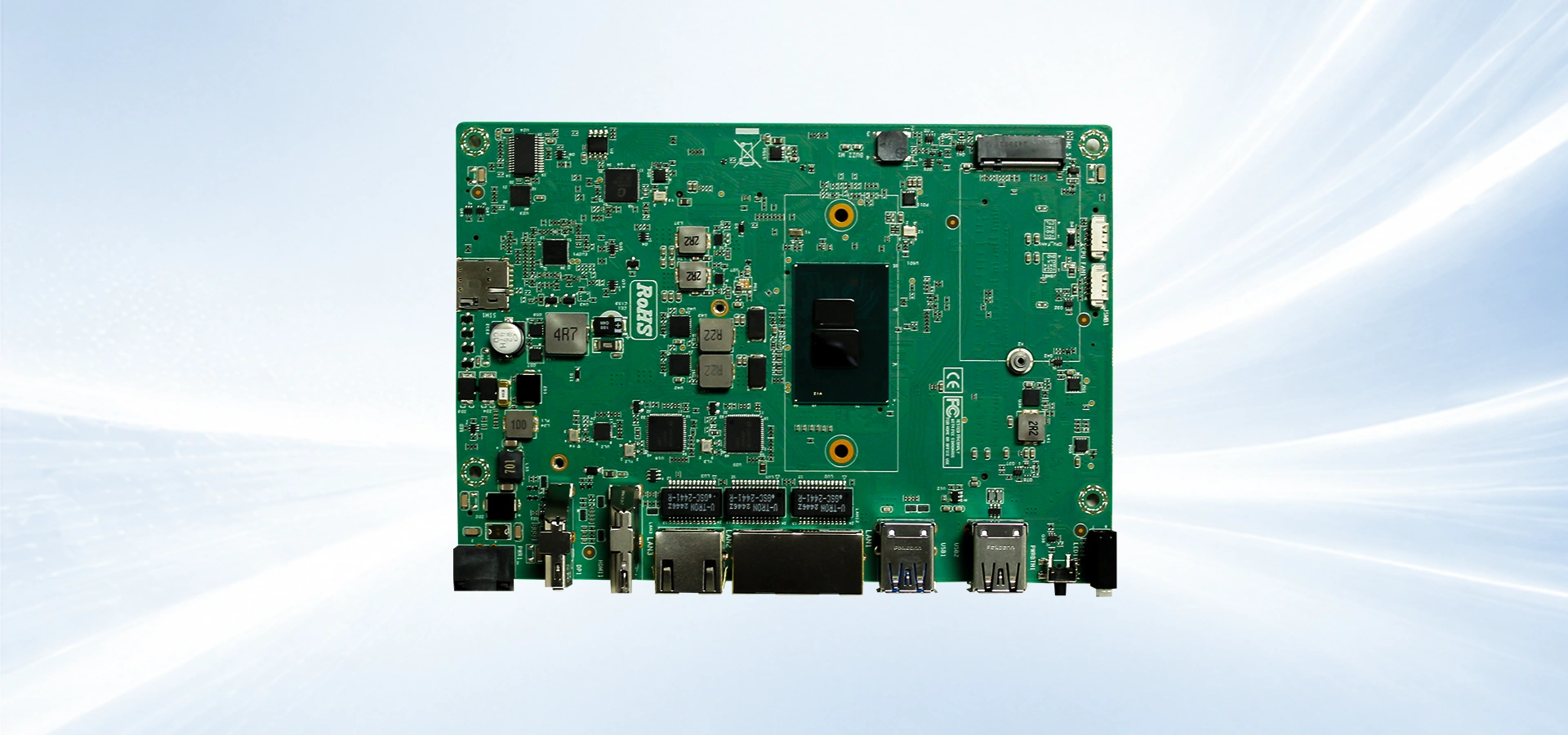

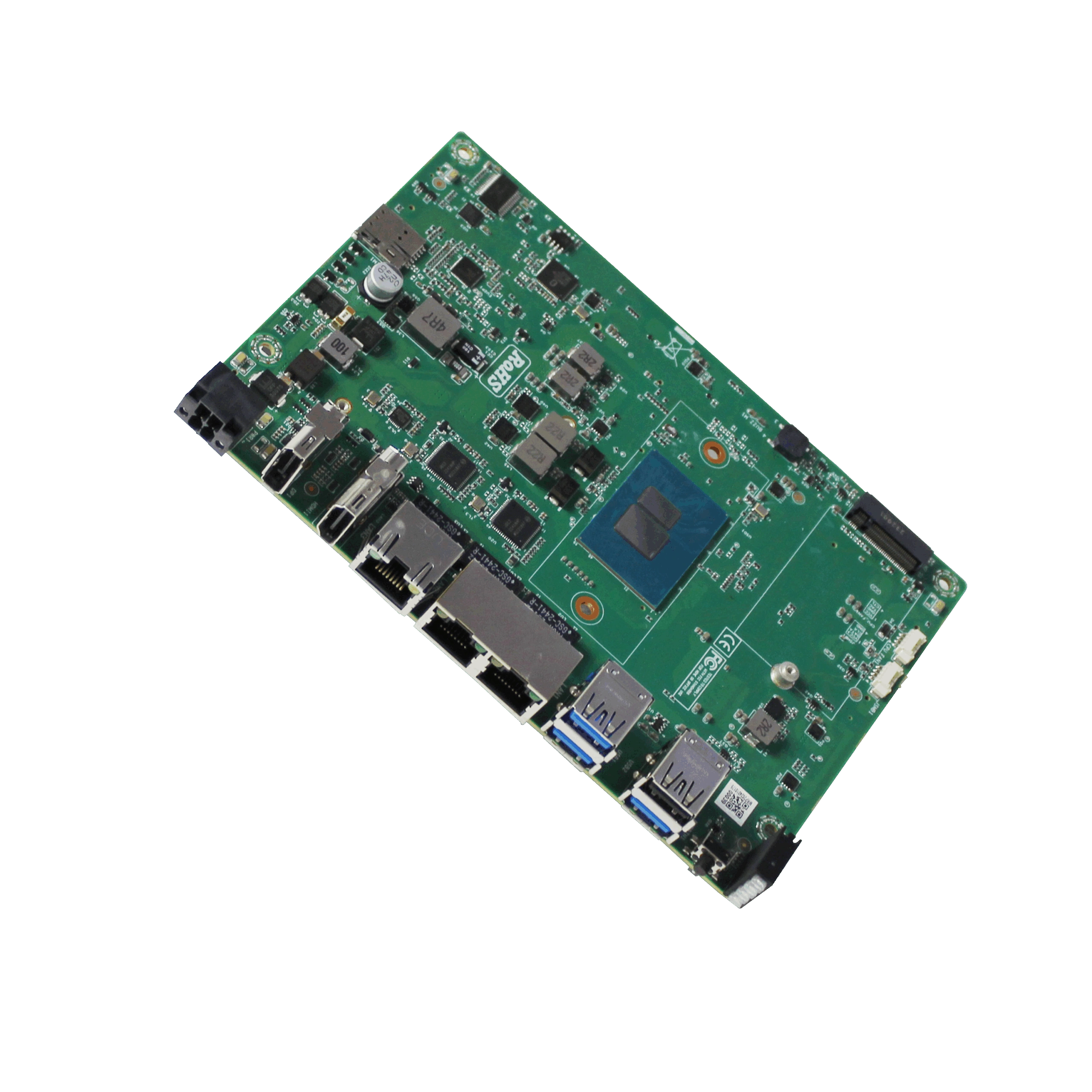

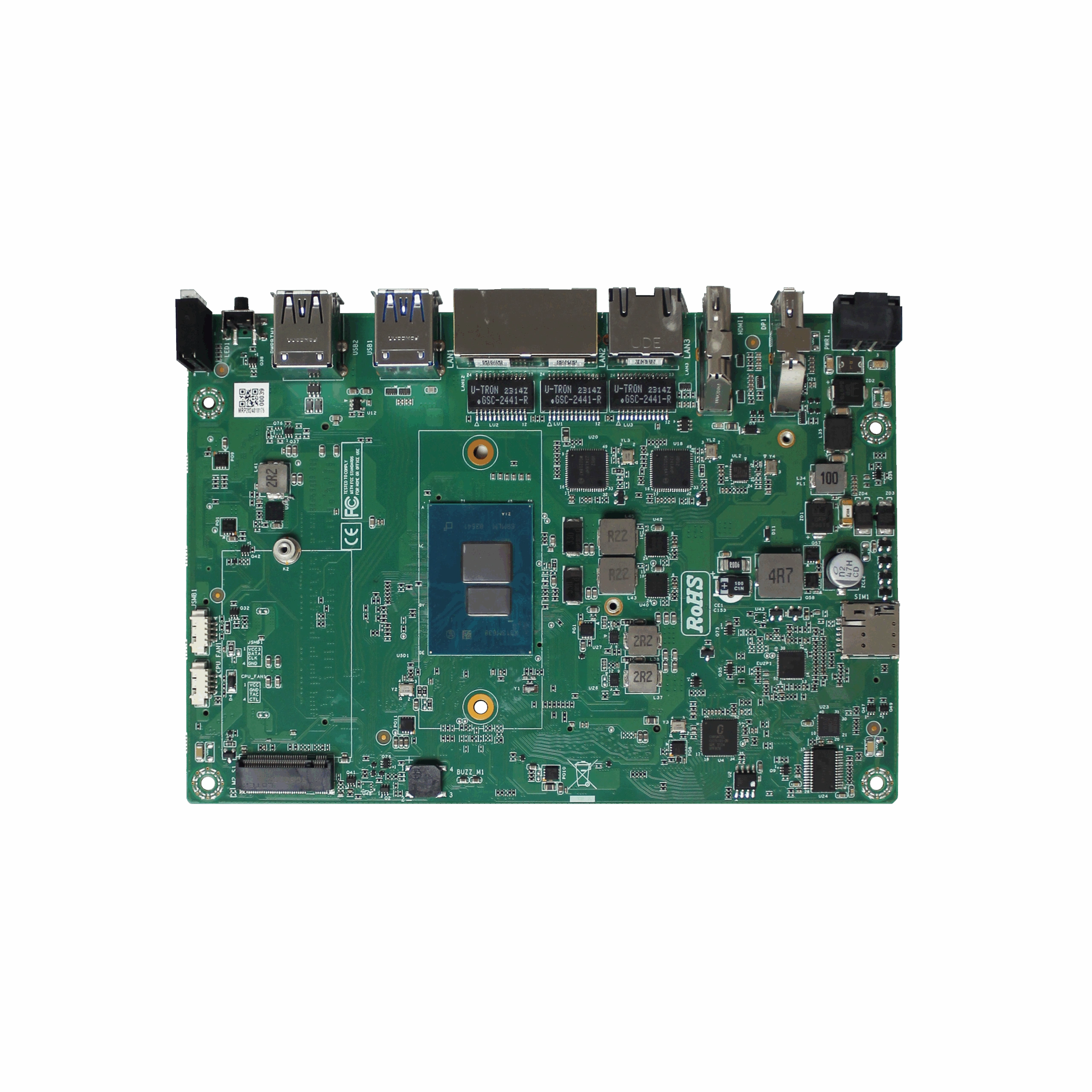

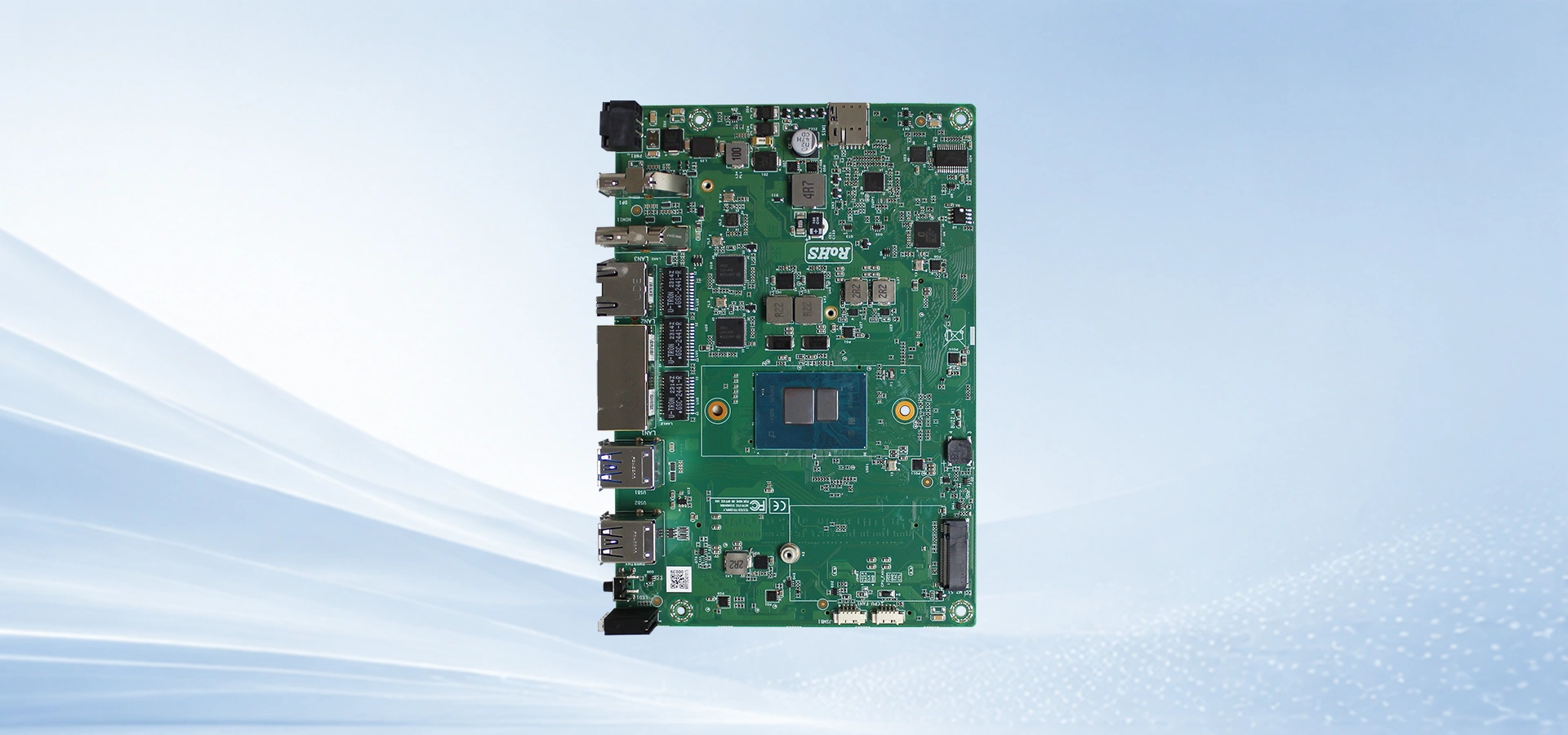

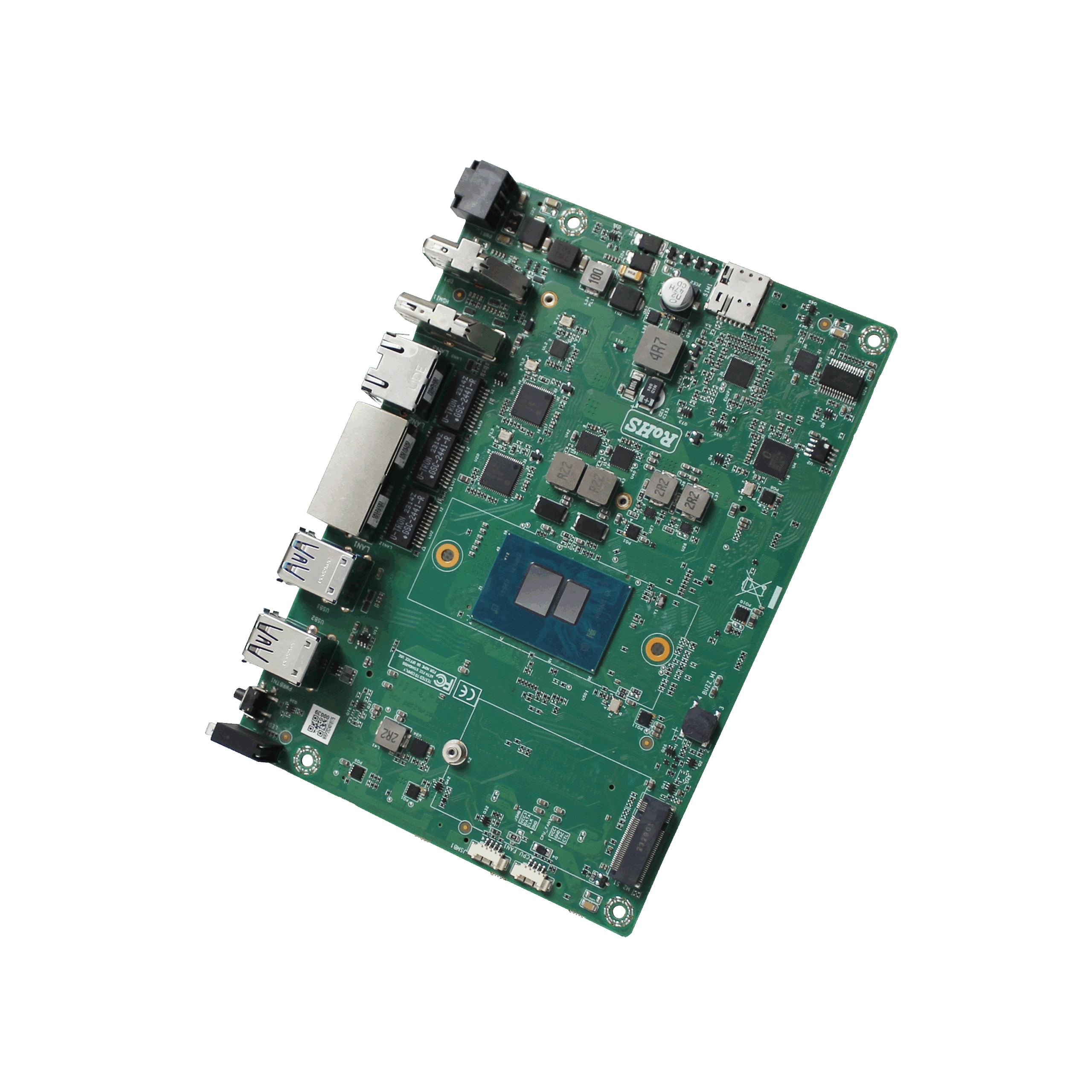

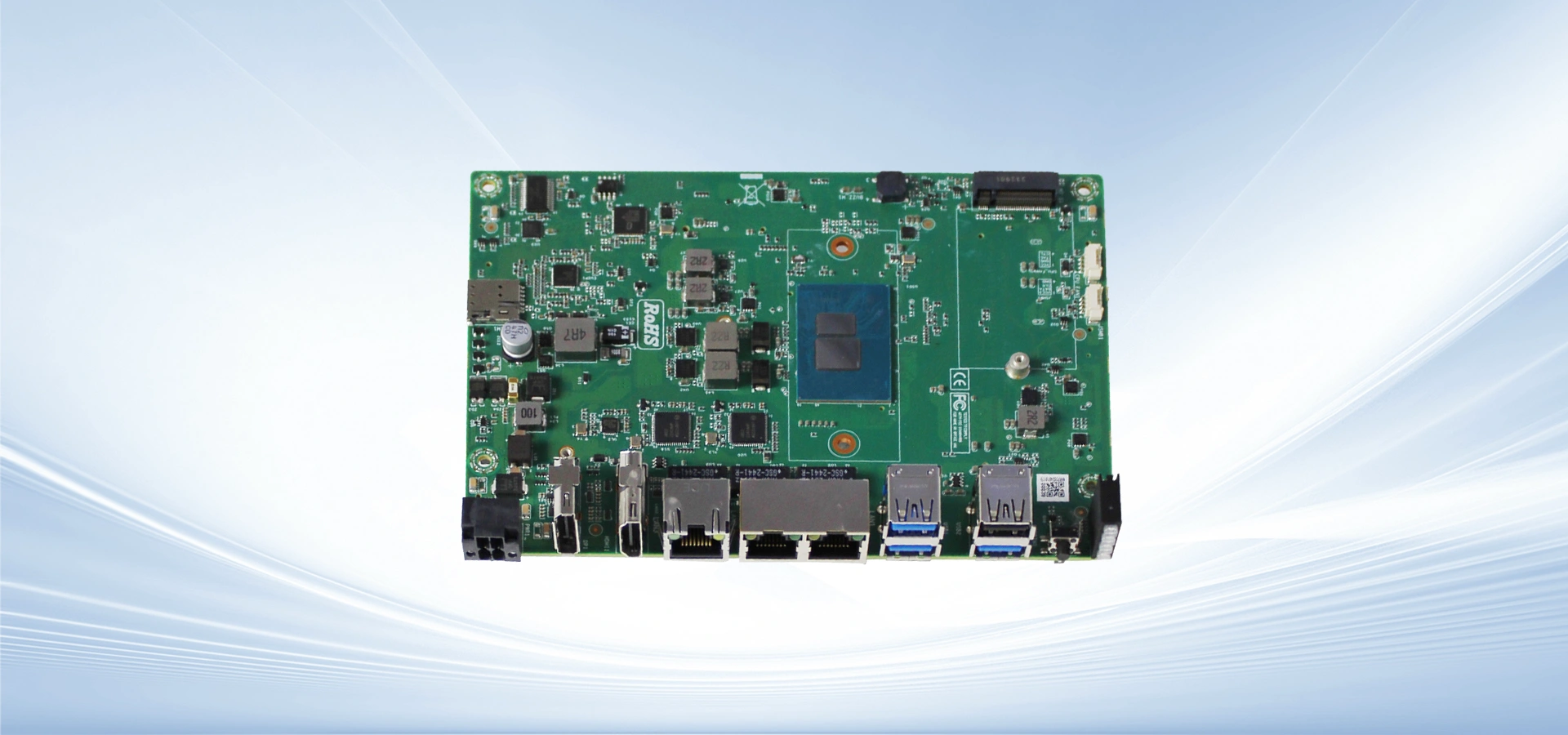

IEM-5170
- Intel® Alder Lake-N N50, N97, N200, i3-N305
- Single channel DDR5-4800 up to 16GB memory
- 3 independent display: DP, HDMI, eDP/ LVDS(BIOS control)
- 3 LAN (2 x Intel i210 supports PoE function, 1 x Realtek RTL8111H)
- 3 USB3.0, 1 USB2.0
- 2 COM (1 RS-232/422/485, 1 RS-232)
- Supports 4G/5G, Wi-Fi module expansion
- Supports PCIe X1/USB2.0/GPIO/TTL/HDA expansion via BTB connector
- 8GPIO, 1eSPI
- Product Details
- Specification
- Application
- Download
Alder Lake-N and DDR5 on a 4-Inch Single-Board Computer
The IEM-5170 brings the Intel Alder Lake-N platform to the 165 x 115mm 4-inch single-board computer form factor, spanning N50, N97, N200, and i3-N305 processor options across a 6W to 15W TDP range. Intel Gen12 UHD Graphics and single-channel DDR5 memory up to 16 GB deliver the generational improvement in graphics and memory bandwidth that the Elkhart Lake-based IEM-5160 cannot match, while maintaining the same physical footprint for drop-in platform upgrades. Three independent display outputs spanning DP, HDMI, and eDP/LVDS cover multi-screen visualization requirements directly on the board.

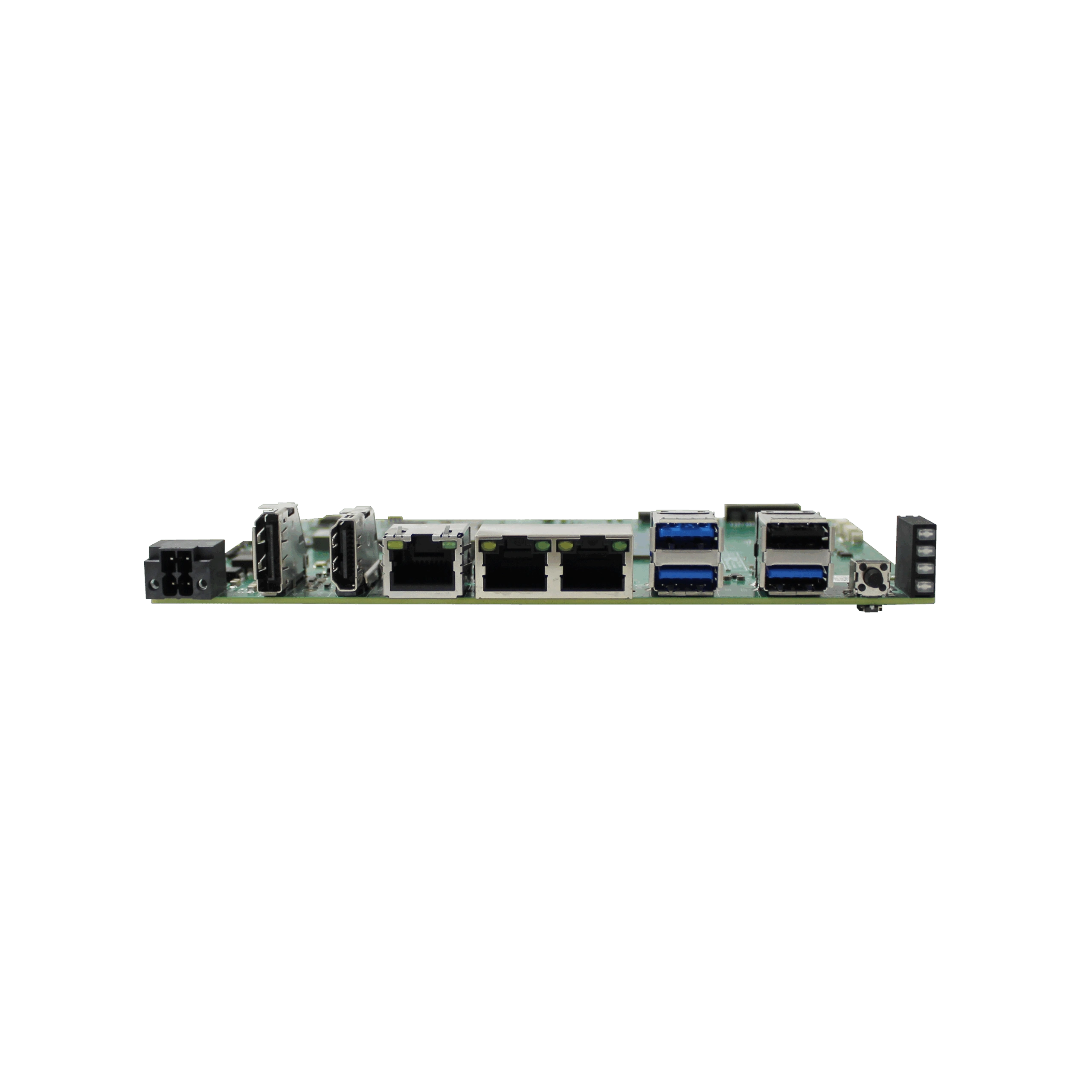

Direct I/O Access and Flexible Wireless Expansion
Standard industrial connectivity is available directly on the board, covering GbE LAN with optional PoE, USB, COM ports across RS-232/422/485 protocols, and 8-bit GPIO without an external hub or expander. A BTB connector provides additional PCIe, USB 2.0, TTL, and HDA expansion for custom integration, while internal M.2 E-Key and B-Key slots accommodate Wi-Fi and 4G/5G modules without adding cables to the enclosure.
Industrial-Grade Reliability for Embedded Deployments
The board accepts 9 to 36V DC input and operates across 0 to 60°C with a 65,536-level programmable watchdog timer and optional UPS module, supporting continuous operation through factory power fluctuations and unattended software faults. CE and FCC Class B certification covers deployment in regulated industrial environments.
Specifications
| Item | Description | |
| Processor System | CPU | Intel® Alder Lake-N Series N50/ N97/ N200/ i3-N305 |
| TDP | 15W MAX | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | DDR5 SO-DIMM |
| Max. Capacity | 16 GB | |
| Graphics | Controller | Intel Gen12 UHD Graphics Engines (SoC integrated) |
| Graphic Features | DX12, Open GL 4.6, Vulkan 1.2 | |
| Storage | M.2 M-Key | 1 x M.2 2280 SATA3.0 |
| External I/O | DP | 1 x DP1.4, resolution up to 4096 x 2160 @ 60Hz |
| HDMI | 1 x HDMI2.0b, resolution up to 4k x 2k @60Hz | |
| Ethernet | 2 x Intel i210 GbE LAN (PoE optional), 1 x Realtek RTL8111H GbE LAN | |
| USB | 3 x USB 3.0, 1 x USB2.0 | |
| Power Connector | 4-pin Phoenix terminal, supports remote switch | |
| LED & Switch | LED | Power, HDD, User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Clear CMOS | 1 x Clear CMOS | |
| Inside Connectors | USB2.0 | 1 x Internal USB2.0 (PIN-Out) |
| LCD | 1 x eDP/LVDS dual channel 18/24-bit, resolution up to 1920 x 1200 | |
| Serial Port | 1 x RS-232/422/485 (BIOS control), 1 x RS-232 | |
| GPIO | 8-bit GPIO | |
| Audio | 1 x HDA | |
| eSPI Bus/SMBus | 1 x eSPI Bus, 1 x SMBus | |
| Invertor | 1 x Invertor | |
| FAN | 1 x CPU FAN, 1 x SYS FAN | |
| SIM | 1 x Nano SIM | |
| UPS | 1 x UPS (Optional) | |
| Expansion | M.2 E-Key | 1 x M.2 2230 support Wi-Fi (CNVI) |
| M.2 B-Key | 1 x M.2 3052 support 4G/5G | |
| BTB Connector | 1 x PCIe x 1/2 x USB2.0/1 x I2C/1 x eSPI/4 x TTL (TX/RX/CTS/RTS/GND) | |
| Power Supply | Power Input | DC 9~36V ±10% |
| MAX. Consumption | 30W (N50, N97, N200) /45W (i3-N305) | |
| Power Management | AT/ATX | |
| Others | Watchdog | 65536 level, 0 to 65535 second |
| TPM | TPM 2.0 (Optional) | |
| Environment | Operational Temperature | 0~ 60° C (32~140°F) |
| Storage Temperature | -40° C ~ 85° C (-40~185°F) | |
| Operating Humidity | 95% @ 40 °C (non-condensing) | |
| Storage Humidity | 95% @ 60 °C (non-condensing) | |
| Physical Characteristics | Dimensions | 165 x 115mm (L x W) |
| Certification | EMC | CE, FCC |
| OS Support | OS | Windows 10/11, centos 8 ubuntu 20.04/22.04 |

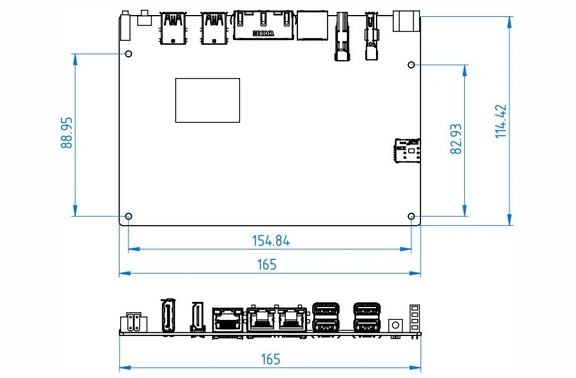

Dimensions

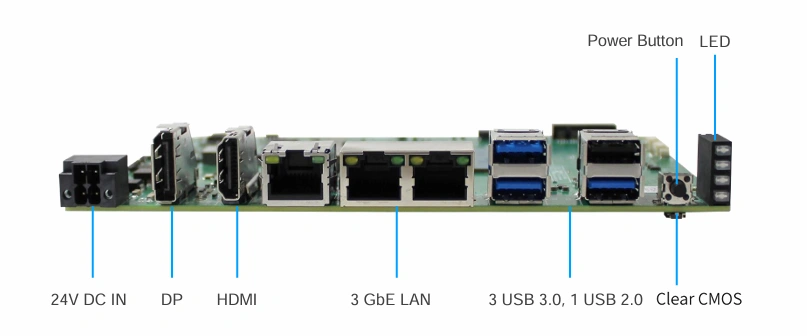

Interfaces
