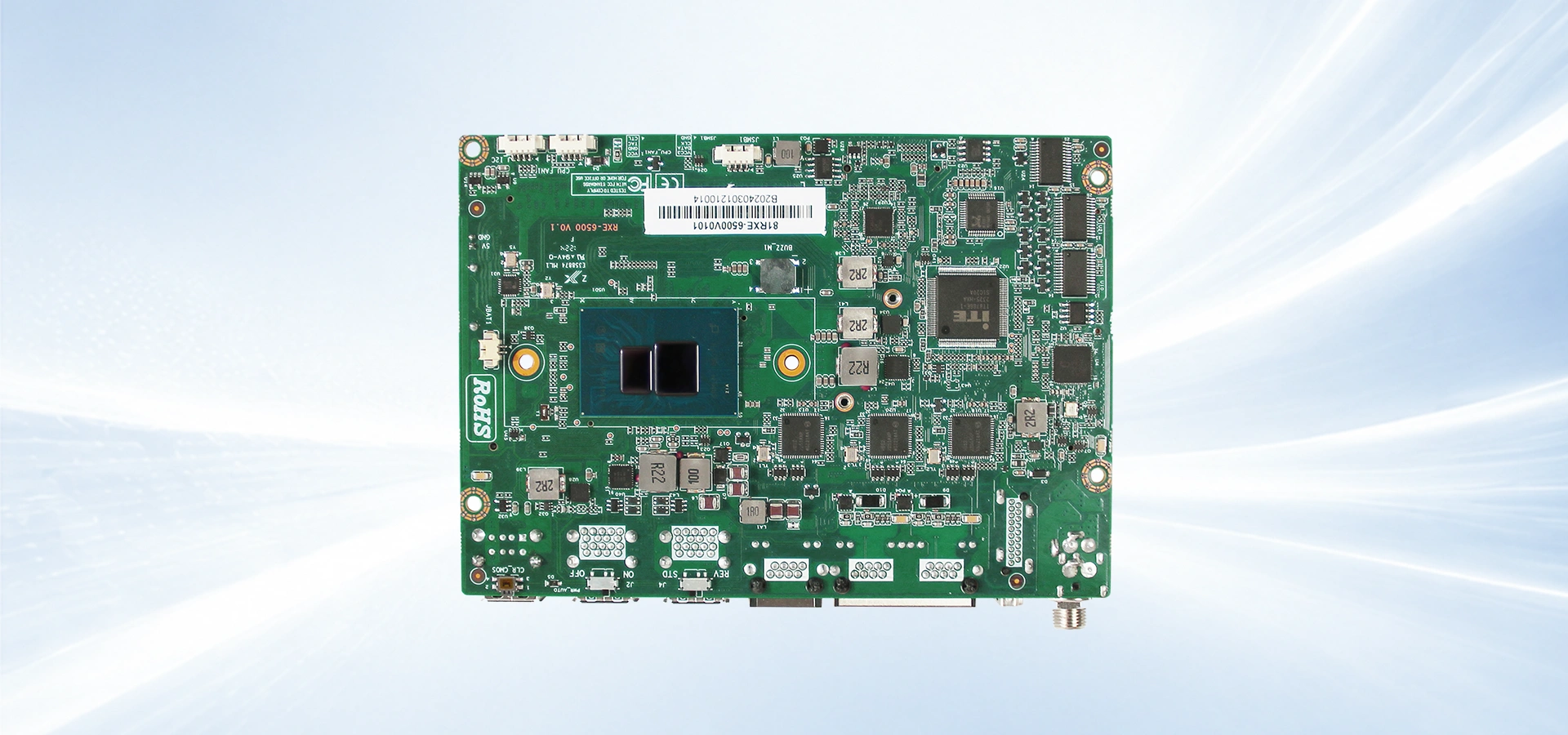

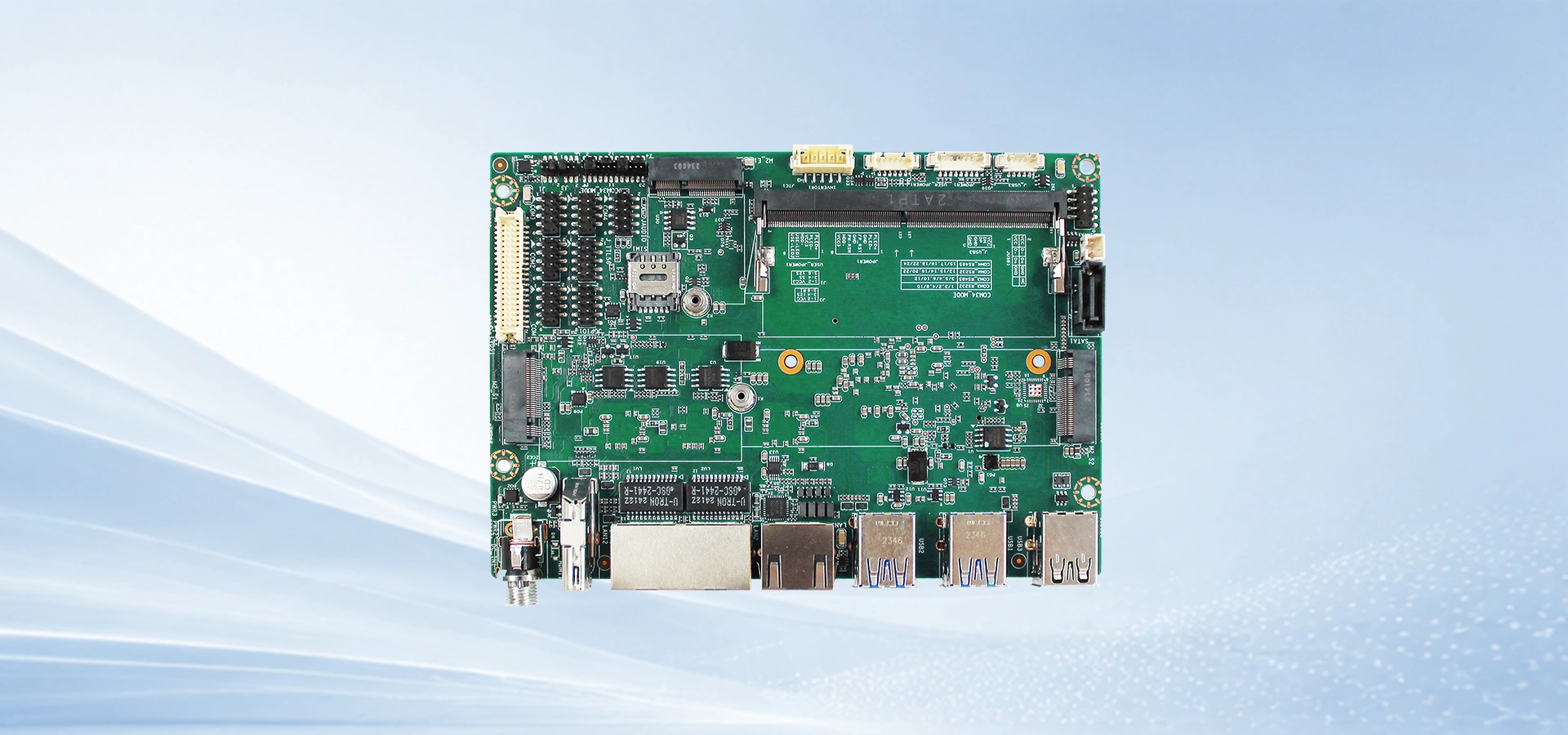

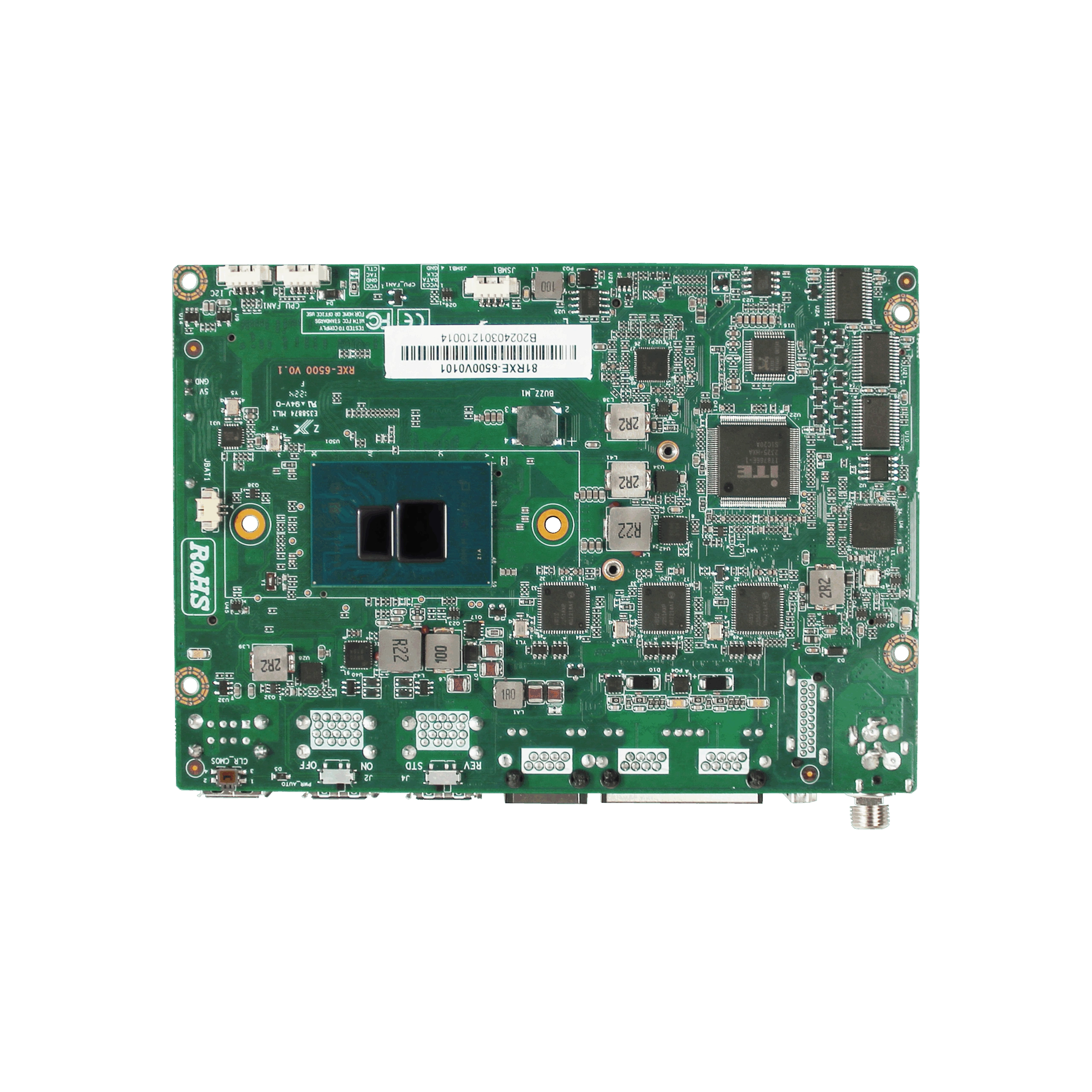

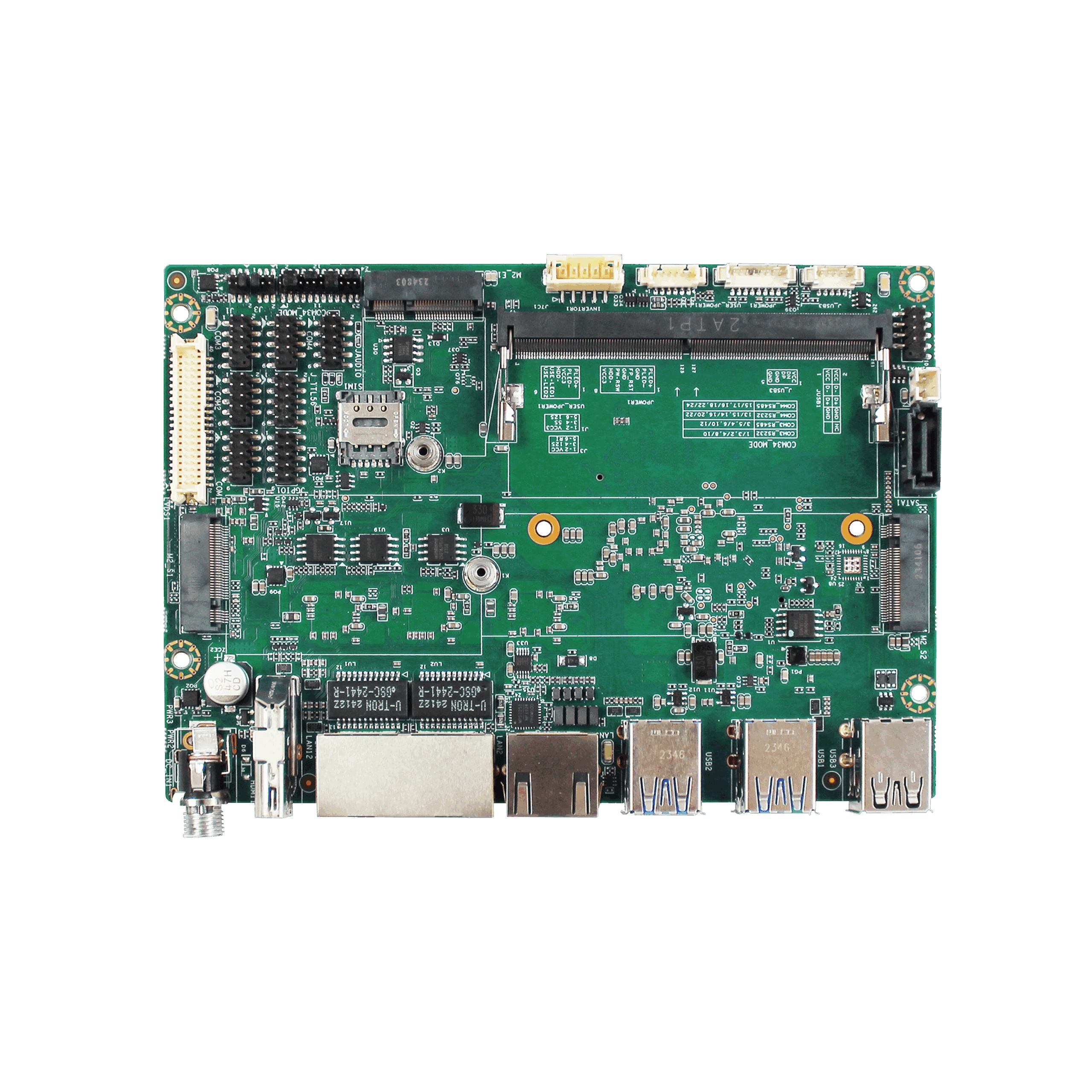

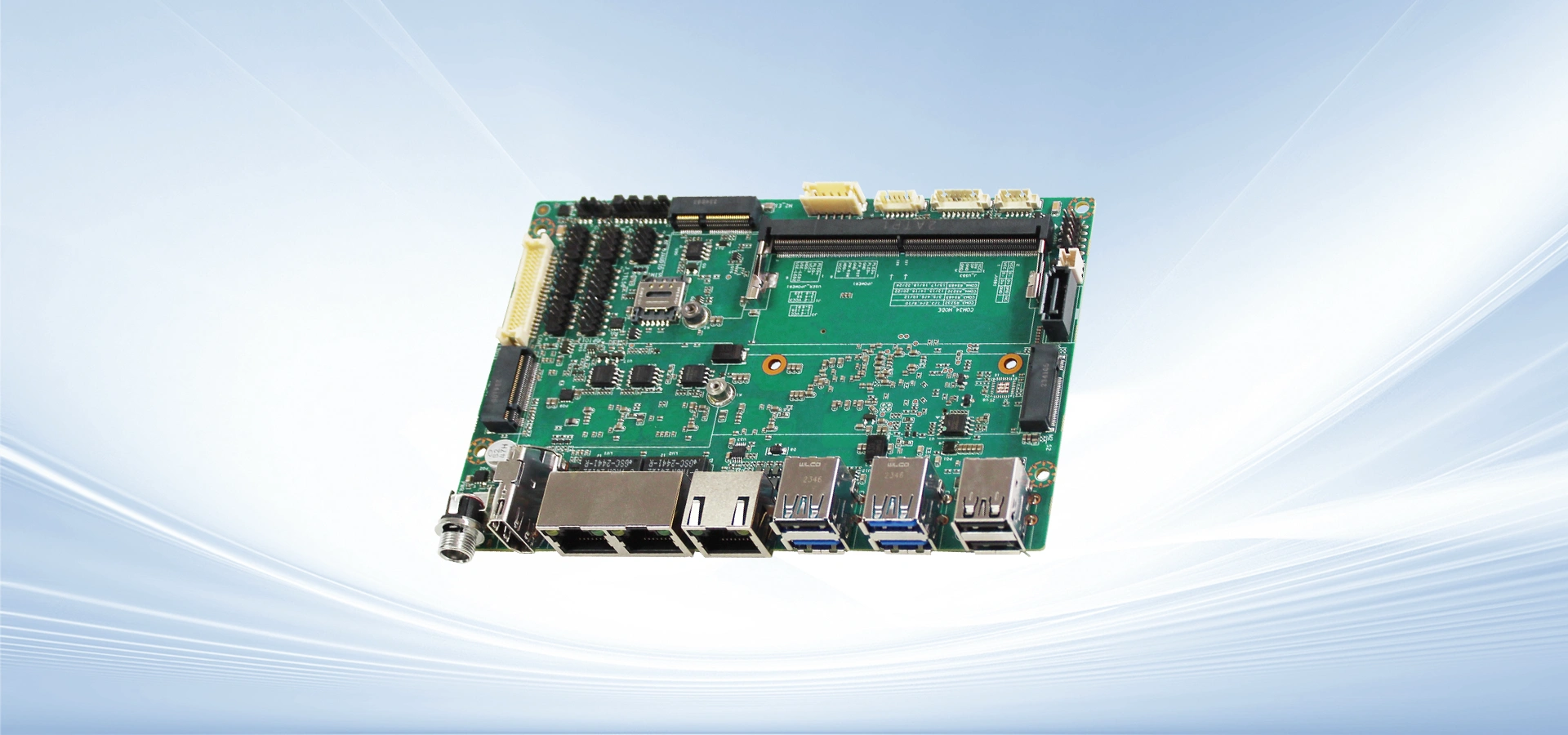

IEM-3170
- Intel® Alder Lake-N Series N50/ N97/ N200/ i3-N305
- Single channel DDR5,Max. capacity16GB
- HDMI, eDP/ LVDS (BIOS control)
- 3 LAN (3 x Intel i210,supports 2 PoE)
- 3 USB 3.0, 3 USB 2.0
- 2 RS-232/485, 2 RS-232, 2 TTL
- supports 4G/5G, WiFi Expansion
- 8 GPIO, 1 Audio, 1 SATA3.0, 1 I2C, 1 SMBus
- DC 12-24V
- 146 x 102mm (L x W)
- Windows 10/11, Centos 8, Ubuntu 20.04/22.04
- Product Details
- Specification
- Application
- Download
Alder Lake-N and DDR5 on a 3.5-Inch Single-Board Computer
The IEM-3170 brings the Intel Alder Lake-N platform to the 3.5-inch single-board computer form factor, spanning N50, N97, N200, and i3-N305 processor options across a 6W to 15W TDP range. Intel Gen12 UHD Graphics and single-channel DDR5 memory up to 16 GB deliver a generational improvement in graphics bandwidth and memory throughput over the DDR4-based IEM-3160, while maintaining the same 146 x 102mm footprint. Three independent display outputs spanning HDMI and eDP/LVDS support multi-screen configurations, with 3 LAN ports including 2 optional PoE channels handling network connectivity directly on the board.
Direct I/O Access and Flexible Wireless Expansion
Standard industrial connectivity is available directly on the board, covering GbE LAN with optional PoE, USB, COM ports across RS-232/422/485 protocols, and 8-bit GPIO without an external hub or expander. A BTB connector provides additional PCIe, USB 2.0, TTL, and HDA expansion for custom integration, while internal M.2 E-Key and B-Key slots accommodate Wi-Fi and 4G/5G modules without adding cables to the enclosure.
Industrial-Grade Reliability for Embedded Deployments
The board accepts 12-24V DC input and operates across 0 to 60°C with a 65,536-level programmable watchdog timer and optional UPS module, supporting continuous operation through factory power fluctuations and unattended software faults. CE and FCC Class B certification covers deployment in regulated industrial environments.
Specifications

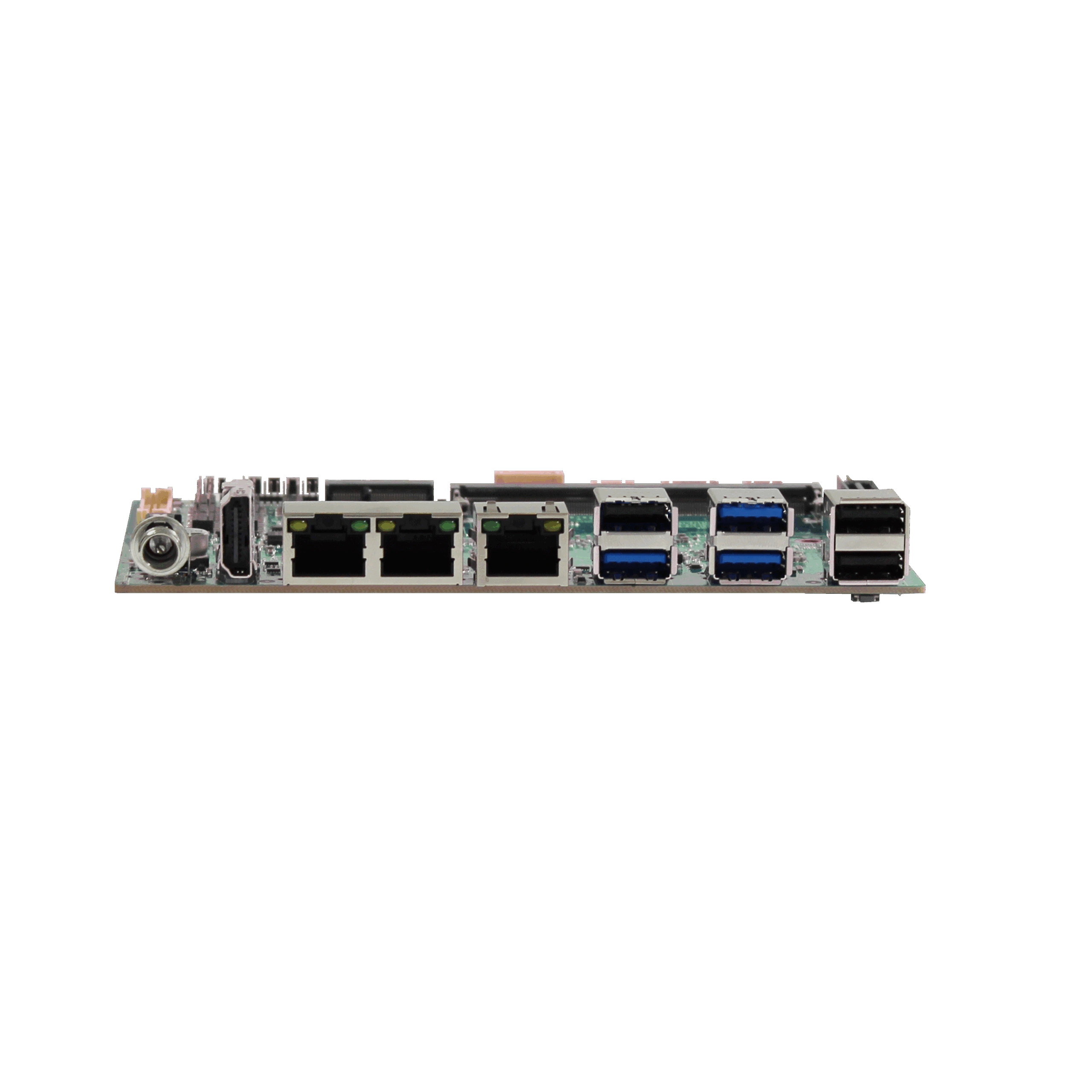

| Item | Specification | |
| CPU | CPU | Intel® Alder Lake-N Series N50 / N97 / N200 / i3-N305 |
| TDP | 15W | |
| BIOS | AMI 128MB SPI Flash | |
| Memory | Technology | Single channel DDR5 SO-DIMM |
| Max. capacity | 16GB | |
| Storage | Controller | Intel Gen12 UHD Graphics Engines (SoC integrated) |
| Feature | DX 12, OpenGL 4.6, Vulkan 1.2 | |
| Graphics | HDMI | 1 x HDMI2.0b resolution uo to 4Kx2K@60Hz |
| LCD1 | 1 x eDP/ LVDS Dual channel 18/24-bit resolution up to1920x1200 | |
| External I/O | HDMI | 1 x HDMI2.0b resolution uo to 4Kx2K@60Hz |
| LAN | 3 x Intel i210 1GbE LAN (supports 2 PoE) | |
| USB | 3 x USB3.0, 3 x USB2.0 | |
| Power | DC-Jack | |
| Internal I/O | USB 2.0 | 3 x Internal USB2.0 (PIN-Out) |
| Serial Port | 2 x RS-232/485, 2 x RS-232, 2 x TTL | |
| SATA 3.0 | 1 x SATA 3.0 | |
| GPIO | 8-bit general purpose input/output | |
| Audio | 1 x Mic in/Line out | |
| LCD | 1 x eDP/LVDS Dual channel 18/24-bit(resolution up to 1920x1200) | |
| Invertor | 1 x eDP/LVDS Inverter | |
| LED | Power, SSD, User-defined 1, User-defined 2 | |
| I2C | 1 x I2C | |
| SMbus | 1 x SMbus | |
| SIM | 1 x Nano SIM | |
| CPU FAN | 1 x CPU FAN | |
| Expansion | M.2 E-Key | 1 x M.2 2230 supports Wi-Fi (supports CNVi protocol) |
| M.2 B-Key | 1 x M.2 3042/3052 supports 4G/5G | |
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | |
| Others | Watchdog Timer | 65536 level, 0 to 65535 second |
| TPM | TPM 2.0 (Optional) | |
| Power | Power Input | DC 12-24V ± 10% |
| Power Management | AT/ATX | |
| Max. Consumption | 30W (N50 / N97 / N200), 45W (N95-N305) | |
| Environment | Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40°C to 85°C (-40 to 185°F) | |
| Operating Humidity | 95% @ 40°C (Non-condensing) | |
| Storage Humidity | 95% @ 60°C (Non-condensing) | |
| Physical Characteristics | Dimension | 146 x 102mm (L x W) |
| OS | OS | Windows 10/11, CentOS, Ubuntu 20.04/22.04 |

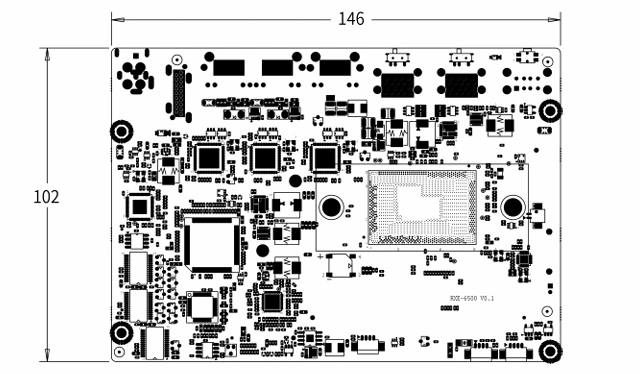

Dimensions

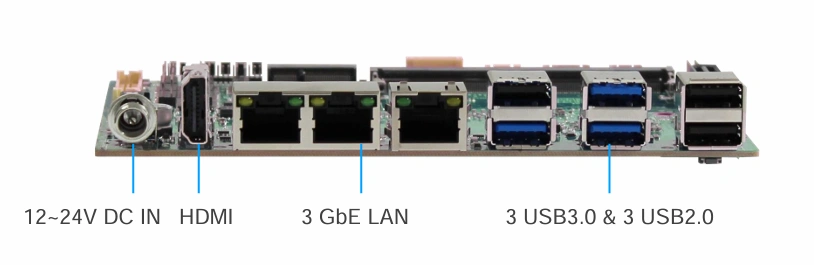

Interfaces
