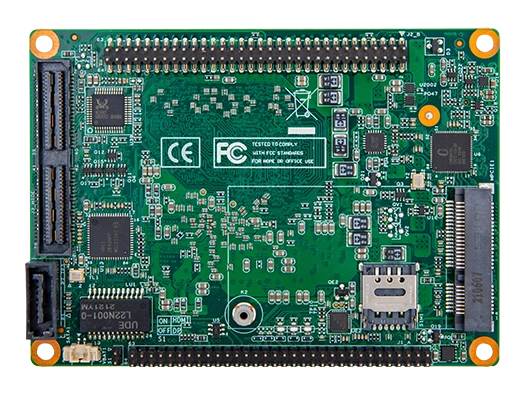

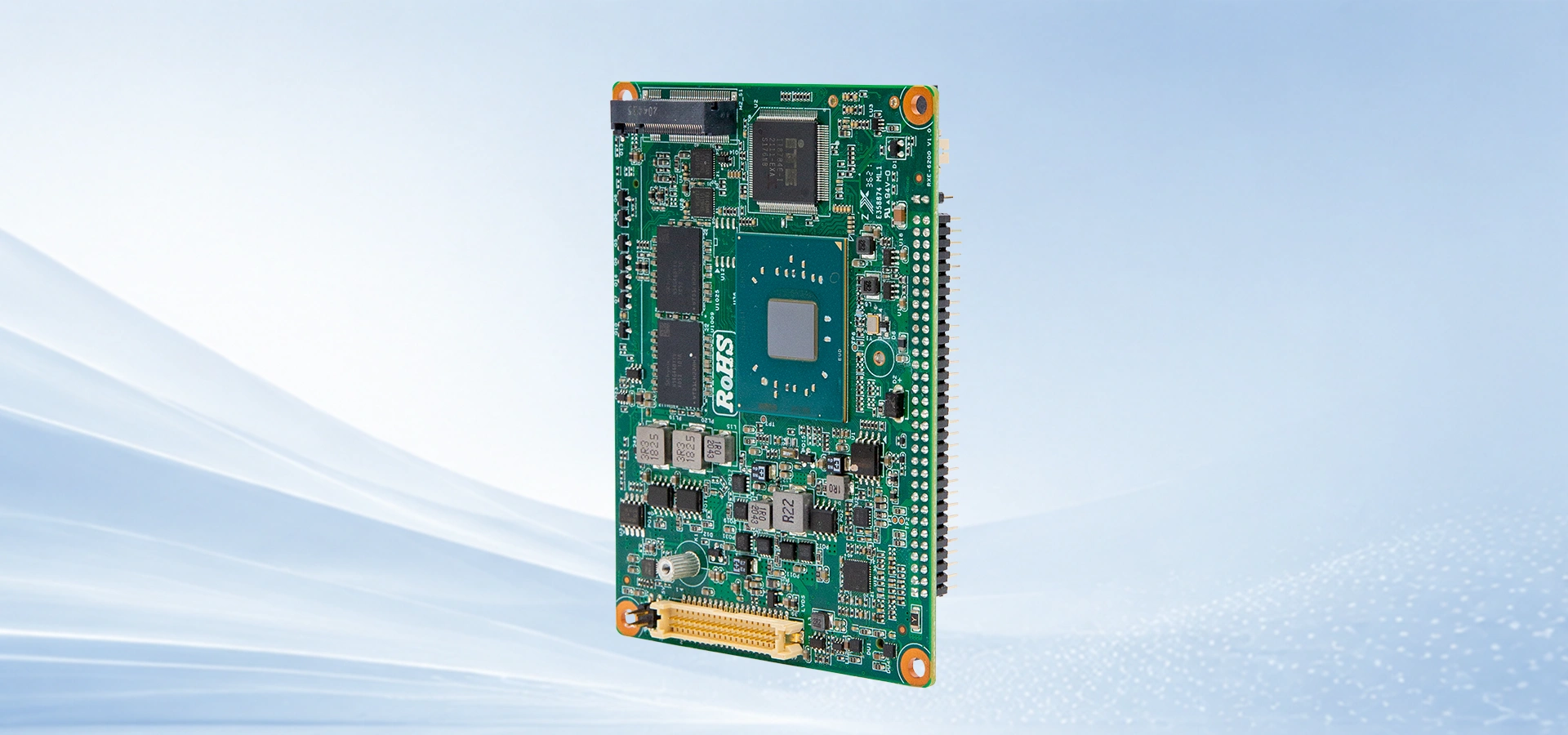

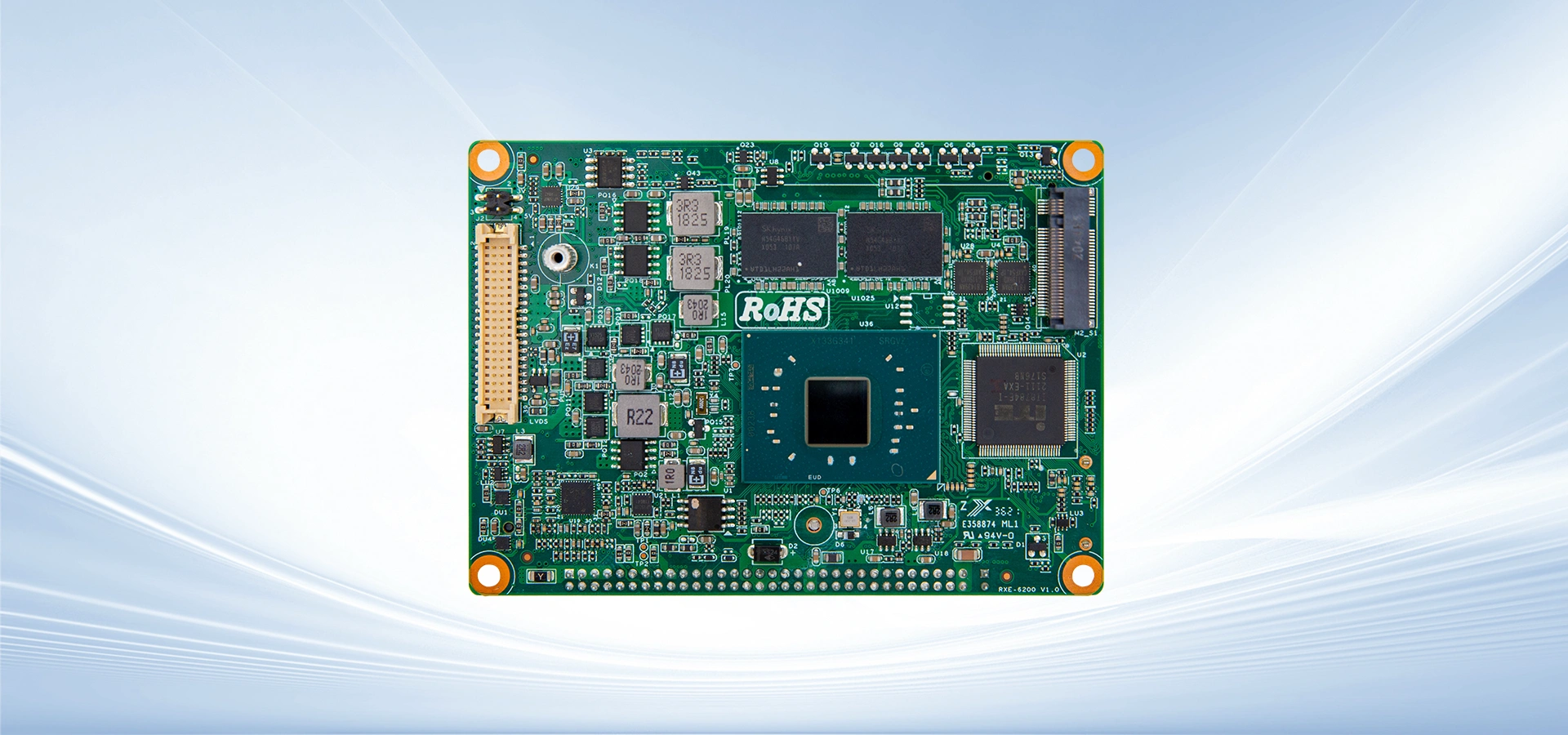

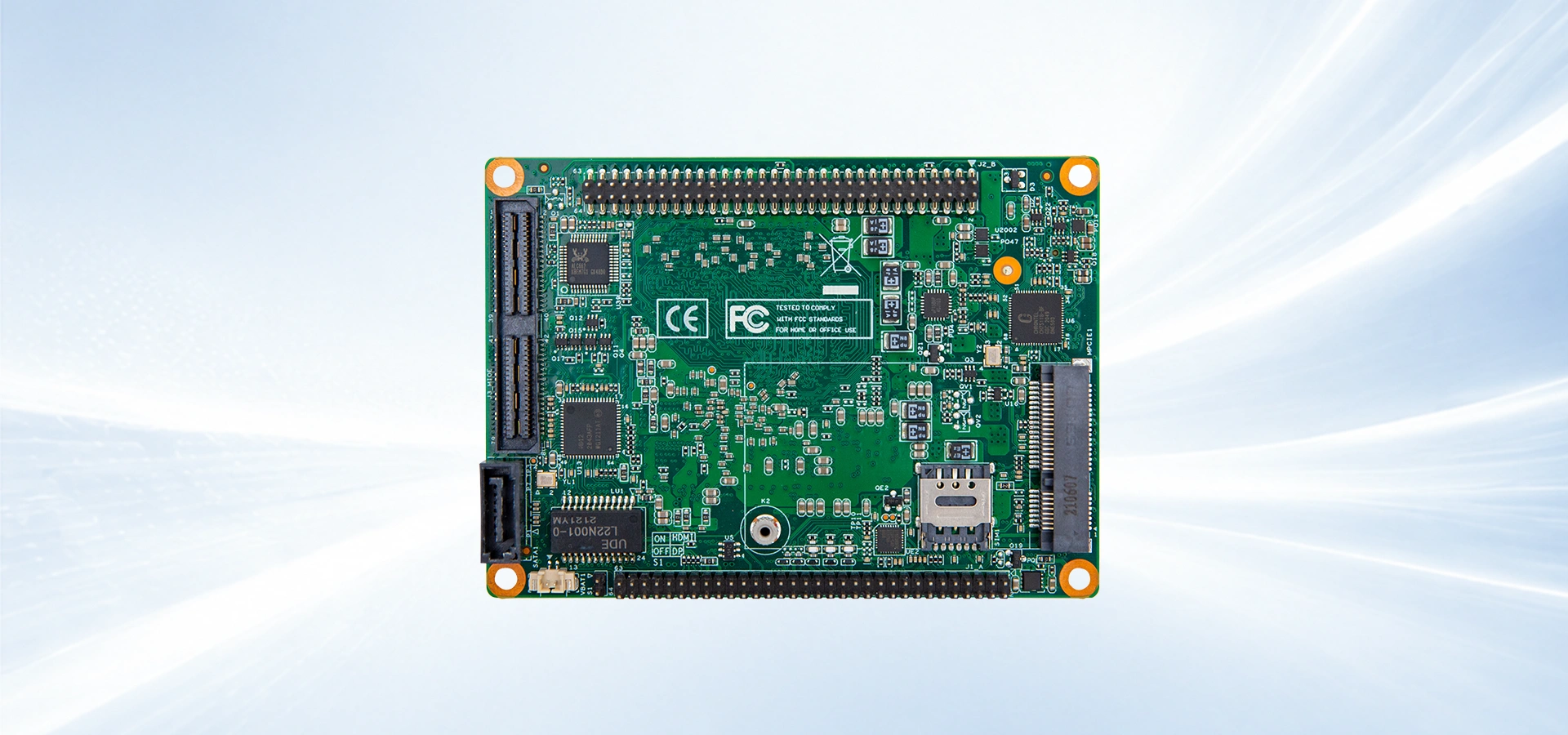

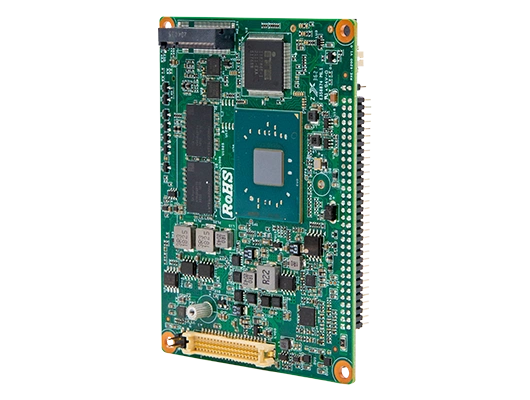

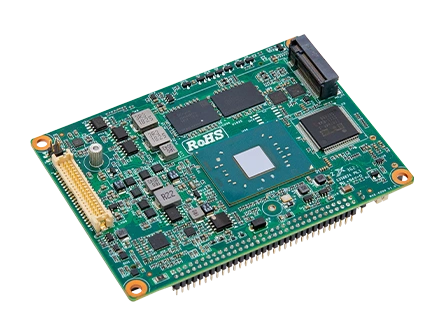

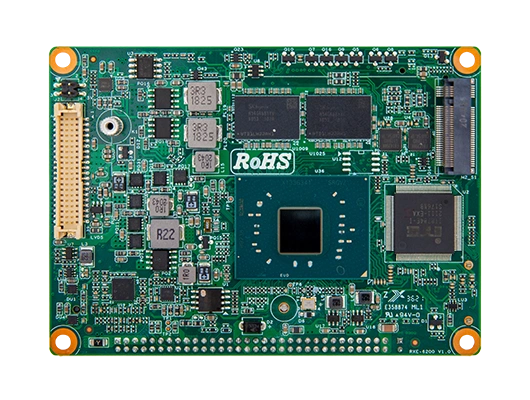

IEM-2160
- Intel Apollo Lake N3350/N4200/J3355/J3455/J4205 SoC
- LPDDR4 up to 8GB memory
- 2 x 64 Pin Connectors
- Dual Independent Display: 48-bit LVDS, VGA, DP/HDMI
- 2 x COM, 1 x SATA, 1 x M.2, 5 x USB, 1 x GbE LAN
- 1 x Board to Board Connector supports 4 PCIe x1/1 USB3.0/LPC/SMBus
- CE/FCC Class B, ESD 8KV/15KV
- Windows 10/11, Centos 7/8, Ubuntu 18.04/20.04/22.04
- Product Details
- Specification
- Application
- Download
Maximum Compute Density in a 100 x 72mm Module Footprint
The IEM-2160 delivers Intel Atom® and Celeron® processing across N3350, J3355, J3455, and N4200 processor options in a 100 x 72mm COM footprint, allowing system designers to match compute performance precisely to the application. LPDDR4 memory up to 8 GB covers the data requirements of standard visualization and control workloads, while the onboard M.2 M-Key slot and SATA3.0 interface provide flexible local storage configuration without adding board area. Three independent display outputs spanning DP/HDMI, VGA, and LVDS support simultaneous multi-screen configurations directly from the module.
Flexible I/O Expansion via High-Density Board Connectors
The module exposes its full I/O capability through high-density board-to-board connectors, giving carrier board designers access to display outputs, USB, PCIe, serial interfaces, GPIO, and audio without additional chips on the module. This architecture gives system integrators the full bandwidth of the underlying platform without routing constraints, enabling carrier boards tailored to specific application requirements across machine vision, edge AI, and motion control use cases.
Industrial-Grade Reliability for Embedded Deployments
The module operates continuously across 0 to 60°C with a programmable watchdog timer protecting embedded applications against unattended software faults. Internal M.2 slots accommodate Wi-Fi and 4G/5G expansion where wireless connectivity is required. CE and FCC Class B certification covers deployment in regulated industrial environments.
Specifications
| Item | Sub-Items | Description |
| Processor System | CPU | Intel Apollo Lake N3350/N4200/J3355/J3455/J4205 SoC |
| TDP | 10W | |
| BIOS | AMI UEFI BIOS at 64 Mbit SPI | |
| Memory | Technology | LPDDR4 (-40°C-95°C Optional) |
| Capacity | 4 GB | |
| Graphics | Controller | Intel HD Graphics |
| Display | DP/HDMI(Optional) | 1 (Resolution up to 4096 x 2304 @ 60 Hz) |
| LVDS | 1 (Resolution up to 1920 x 1200 @ 60 Hz) | |
| VGA | 1 (Resolution up to 1920 x 1200 @ 60 Hz) | |
| Dual-Display | DP+LVDS or DP+VGA or LVDS+VGA | |
| Ethernet | Interface | 10/100/1000 Mbps |
| Controller | GbE LAN1: Intel I211-AT or I210-AT | |
| Audio | Controller | ALC662-VD0-GR (Co-lay ALC897) |
| Storage | M.2 | 2280 Support >1T SSD |
| SATA | 1 (600M/S) | |
| Expansion | 64-Pin connector 1 | 12V DC input/Inverter/VGA/2XUSB2.0/1GbE/LED |
| 64-Pin connector 2 | SMBus/I2C/ Power/Reset button/HDD/Power LED/2 x USB2.0/8-bit GPIO/ HD Audio Line-in/ Line out/ Mic-in/ 2 x RS-232/422/485 | |
| BTB Connector | SMBus/USB3.0/LPC/4 x PCIe x1/Line out/DisplayPort/HDMI*/+5 Vsb/+12 Vsb power/Power On/Reset | |
| Mini-PCIe | 1 x Full-size | |
| Power Requirement | Test Environment | Intel Apollo lake N4200 LPDDR4 2GB X2 |
| Environment | Temperature | Operating 0 ~ 60 °C (32 ~ 140 °F) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
| Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing |
|
| Physical Characteristics | Dimensions (L x H) | 100 x 72 mm |
Dimensions
Interfaces
