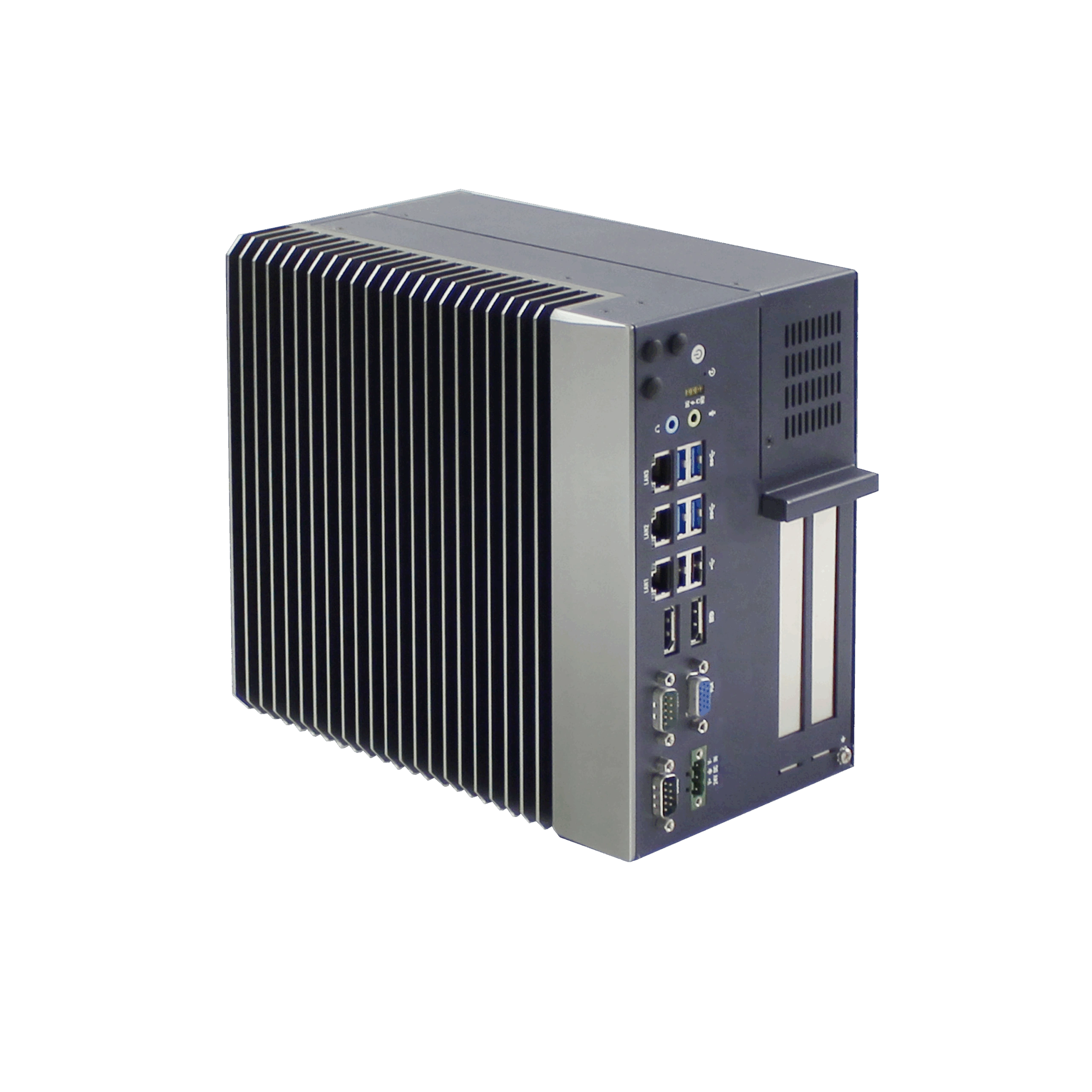

E55N
- Intel® 6th to 9th generation Core™i3/ i5/ i7 Processor
- 3 LAN (2 x Intel i210, 1 x Intel i219)
- 3 independent display via 2 DP and 1 VGA
- 4 USB 3.0, 2 USB 2.0
- 1 RS-232, 1 RS-232/422/485
- 1 PCIe Gen3 x16, 1 PCIe Gen2 x4 (x2 signal) or PCI slot
- Supports 4G/5G, Wi-Fi module expansion
- Product Details
- Specification
- Application
- Download
High-Bandwidth Expansion for Demanding Workloads
Industrial deployments often require specialized hardware accelerators from day one. The E55N integrates a PCIe Gen3 x16 and a PCIe Gen2 x4 slot directly into its architecture, providing the immediate high-speed bandwidth necessary to drive external GPUs, frame grabbers, or advanced protocol cards. Three GbE LAN ports, 4 USB 3.0, and 2 COM ports establish a robust baseline for core connectivity, while an internal M.2 slot enables cable-free 4G/5G and Wi-Fi integration.
Solid Computational Foundation for Heavy-Duty Integration
When standard automation tasks evolve into complex data handling and real-time HMI rendering, the E55N provides the essential computational bandwidth to drive demanding add-on cards. Harnessing Intel Core processors from i3 up to the 8-core i7-9700 at 4.70GHz, this architecture ensures that high-speed data ingested from external modules is processed seamlessly, preventing system bottlenecks.
Wall-Mount Ready, 3 Displays Supported
The E55N installs directly on the control cabinet wall without requiring a rack enclosure. Two DP outputs and 1 VGA port support 3 independent displays simultaneously, allowing operators to run HMI, process monitoring, and diagnostics on separate screens from a single centralized unit.
High Reliability
The E55N accepts DC 24V input with an optional UPS module. The cable-free modular internal architecture and watchdog timer ensure continuous, rock-solid operation through power fluctuations and software faults alike.
Specifications
| Items | Descriptions | |
| Processor System | CPU | 6th~9th generation Intel® Core™ Series CPU |
| TDP | Max 65W | |
| Socket | LGA1151 | |
| Chipset | H110 | |
| BIOS | AMI 64MB UEFI BIOS | |
| Memory | Technology | Dual channel 260-PIN DDR4 SO-DIMM |
| Capacity | Max 64GB | |
| External I/O | DP | 2 x DP, resolution up to 4096 x 2304@60 Hz |
| VGA | 1 x VGA, resolution up to 1920 x 1080@60 Hz | |
| Ethernet | 2 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN | |
| USB | 4 x USB 3.0, 2 x USB 2.0 | |
| Serial Port | COM 1: RS-232, COM 2: RS-232/422/485 | |
| Audio | 1 x Line-out, 1 x Mic-in (Realtek ALC 662) | |
| Power Input Connector | 3 PIN Phoenix terminal | |
| Expansion Slots | PCIe / PCI | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4 (x2 signal) or 1 x PCI |
| LED & Switch | LED | Memory, Stand by, SSD, Watchdog |
| Power Button | 1 x Power Button | |
| Clear CMOS | 1 x Clear CMOS | |
| Internal Connectors | Mini PCIe | 1 x full size Mini PCIe, support WLAN/WAN module |
| M.2 | 1 x M.2 B-Key 2280 | |
| SATA 3.0 | 1 x SATA 3.0 | |
| USB 2.0 | 1 x USB 2.0 Type-A | |
| Power Supply Others | Power Input | 24V DC (9-36V configuration is optional) |
| Watchdog | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec | |
| Material | Aluminum | |
| Physical Characteristics | Size | 220 x 226 x 136mm (L x W x H) |
| Weight | 4.0 Kg | |
| Installation | Wall mounting | |
| Environment | Operating Temperature | 0~50 °C (32~122°F) with airflow 0.7 m/s |
| Storage Temperature | -40~85 °C (-40~185°F) | |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | |
| Storage Humidity | 95% @ 60 °C (Non-condensing) | |
| Certification OS | EMC | CE, FCC |
| Operation System | Windows 7 (Only Gen 6th), Windows 10, centos 7/8, ubuntu 18.04~24.04, etc | |

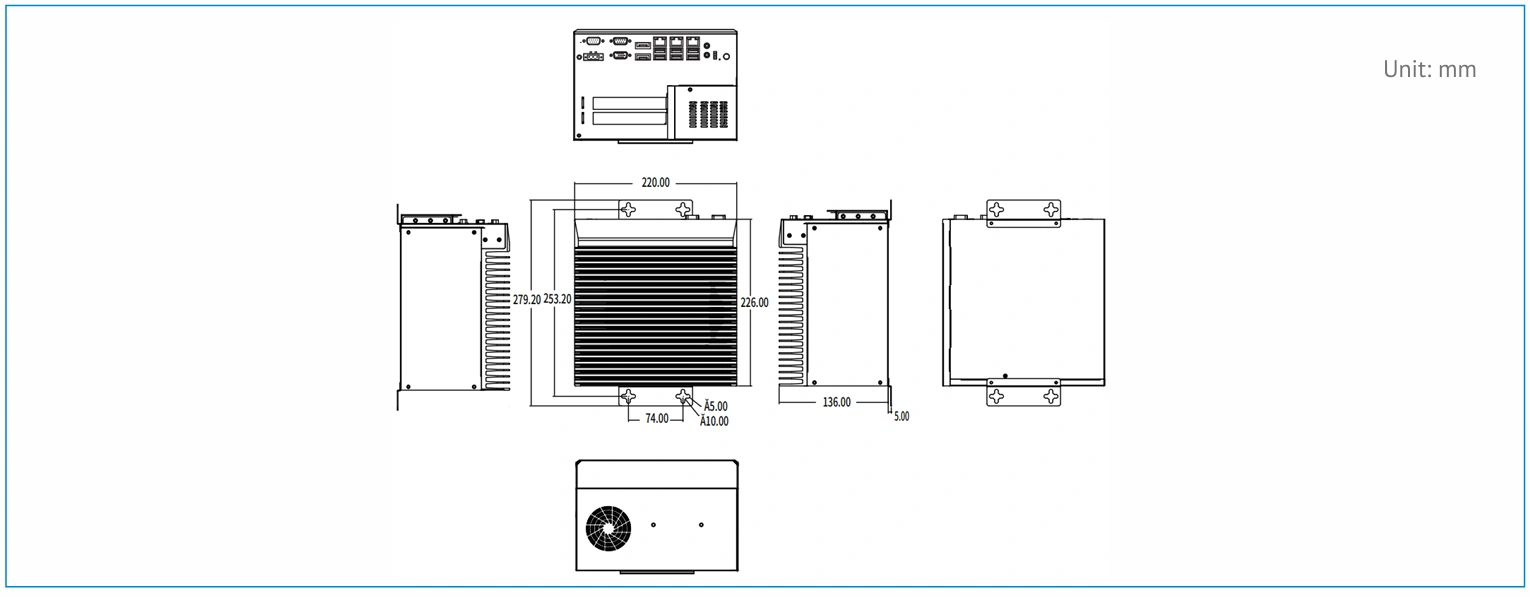

Dimensions

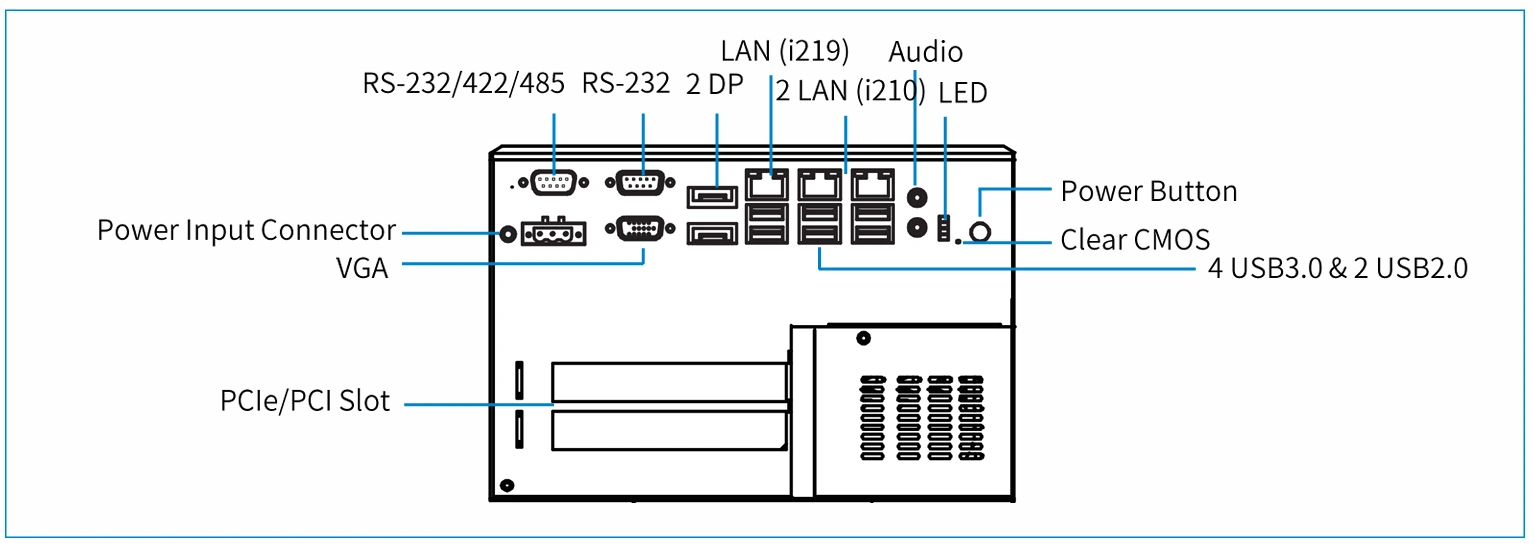

Interfaces
