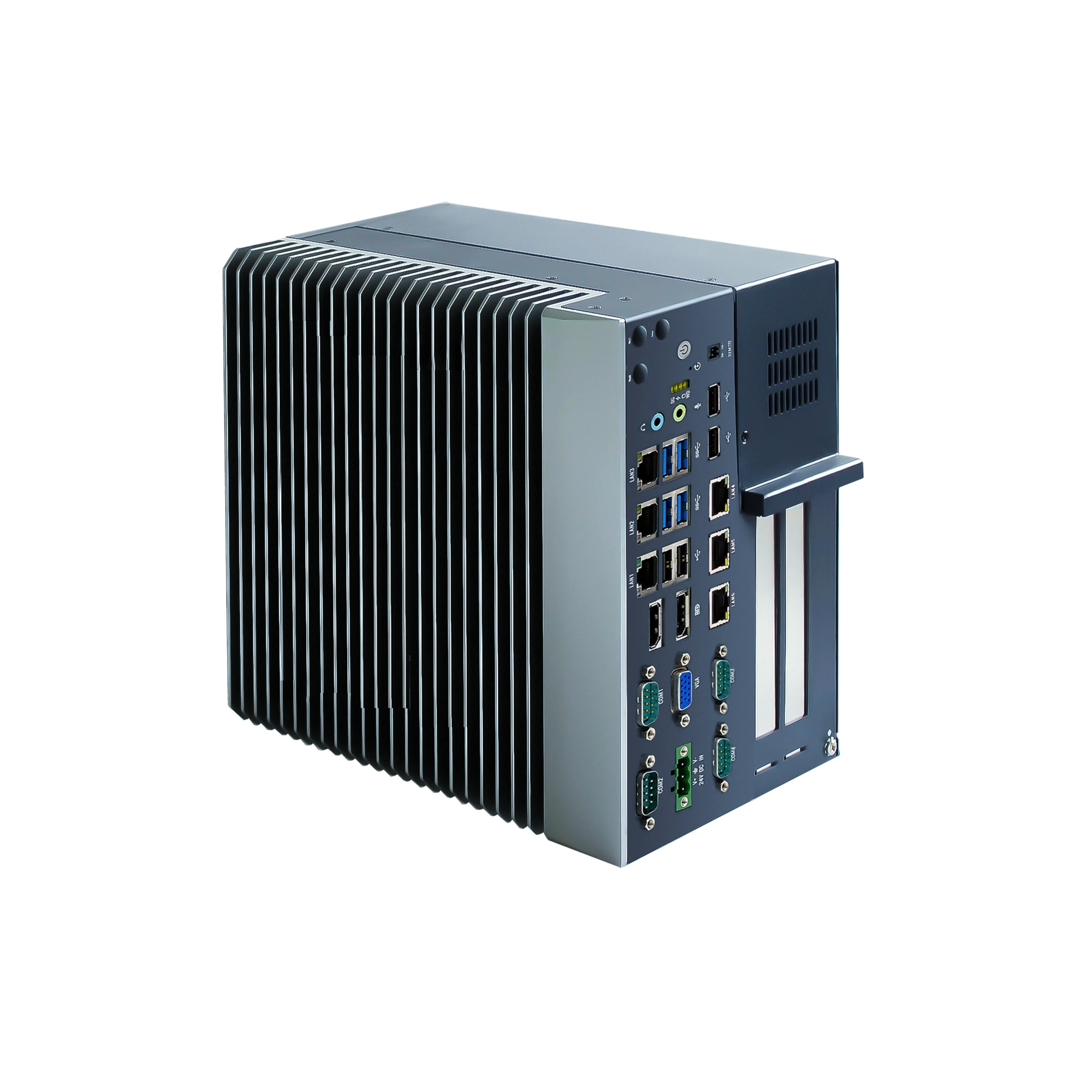

E552
- Intel® 6th to 9th generation Core™ i3/ i5/ i7 Processor
- 6 LAN (5 x Intel i210, 1 x Intel i219)
- 3 independent display via 2 DP and 1 VGA
- 4 USB 3.0, 4 USB 2.0
- 2 RS-232, 1 RS-485, 1 RS-485/232
- 1 PCIe Gen3 x16, 1 PCIe Gen2 x4 (x2signal) or PCI slot
- Supports 4G/5G, Wi-Fi module expansion
- Product Details
- Specification
- Application
- Download
Uncompromising Multi-Subnet Networking and Heavy-Duty Expansion
The E552 is engineered for deployments that cannot compromise on connectivity or processing power. It simultaneously delivers multi-segment network coverage via 6 GbE LAN ports, broad serial protocol support without separate expanders, and massive data throughput via dedicated PCIe Gen3 x16 and PCIe Gen2 x4 slots. This provides the exact architectural foundation required to orchestrate complex device layers and drive specialized GPU or network cards simultaneously. An internal M.2 slot further streamlines the enclosure by supporting cable-free wireless expansion.
Solid Computational Foundation for Heavy-Duty Integration
When standard automation tasks evolve into complex data handling and real-time HMI rendering, the model provides the essential computational bandwidth to drive demanding add-on cards. Harnessing Intel Core processors from i3 up to the 8-core i7-9700 at 4.70GHz, this architecture ensures that high-speed data ingested from external modules is processed seamlessly, preventing system bottlenecks.
Wall-Mount Ready, 3 Displays Supported
The model installs directly on the control cabinet wall without requiring a rack enclosure. Two DP outputs and 1 VGA port support 3 independent displays simultaneously, allowing operators to run HMI, process monitoring, and diagnostics on separate screens from a single centralized unit.
High Reliability
The model accepts DC 24V input with an optional UPS module. The cable-free modular internal architecture and watchdog timer ensure continuous, rock-solid operation through power fluctuations and software faults alike.
Specifications
| E552 Series | ||
| Processor System | CPU | Intel® 6th to 9th generation Core™ i3/ i5/ i7 CPU |
| Chipset | H110 | |
| BIOS | AMI 64MB UEFI BIOS | |
| Memory | Technology | 2 x DDR4 |
| Max. capacity | 64 GB | |
| Storage | M.2 M-Key | 1 x M.2 2280 |
| SATA | 3 x SATA 3.0 | |
| External I/O | DP | 2 x DP, resolution up to 4096 x 2304@60 Hz |
| VGA | 1 x VGA, resolution up to 1920 x 1080@60 Hz | |
| Ethernet | 5 x Intel i210, 1 x Intel i219 GbE LAN | |
| USB | 4 x USB 3.0, 4 x USB2.0 | |
| Serial Port | 1 RS-232/422/485, 2 RS-232/485, 1 RS-232 | |
| Audio | 1 x Mic-In, 1 x Line-Out | |
| Remote | 1 x Remote | |
| Power Connector | 3-pin Phoenix terminal | |
| Expansion | PCIe x16 | 1 x PCIe 3.0 x16 |
| PCIe x4/ PCI | 1 x PCIe 2.0 x4 (x2 signal) or PCI slot | |
| LED & Switch | LED Indicator | Memory, Standby, SSD, Watchdog |
| Power Button | 1 x Power Button | |
| Clear CMOS | 1 x Clear CMOS | |
| Inside Connectors | USB 2.0 | 1 x internal USB2.0 Type-A |
| Mini PCIe | 1 x full size mini-PCIe, supports WLAN/WWAN module | |
| SIM | 1 x SIM | |
| Power Supply | Power Input | DC 24V |
| Others | Watchdog | Interruption and system reset, programmable for 1 to 255 min/sec |
| Environment | Operating Temperature | 0 to 50 °C(32 to 122°F) with airflow 0.7 m/s |
| Storage Temperature | -40°C to 85°C(-40 to 185°F) | |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | |
| Storage Humidity | 95% @ 60 °C (Non-condensing) | |
| Physical Characteristics | Dimension | 220 x 226 x 136 mm (L x W x H) |
| Weight | 4.0 kg | |
| Installation | Wall mount | |
| Certification | EMC | CE, FCC |
| OS | OS | Win7(Only Gen 6), Windows 10/11, Centos 7/8, Ubuntu 18.04/20.04/22.04 |

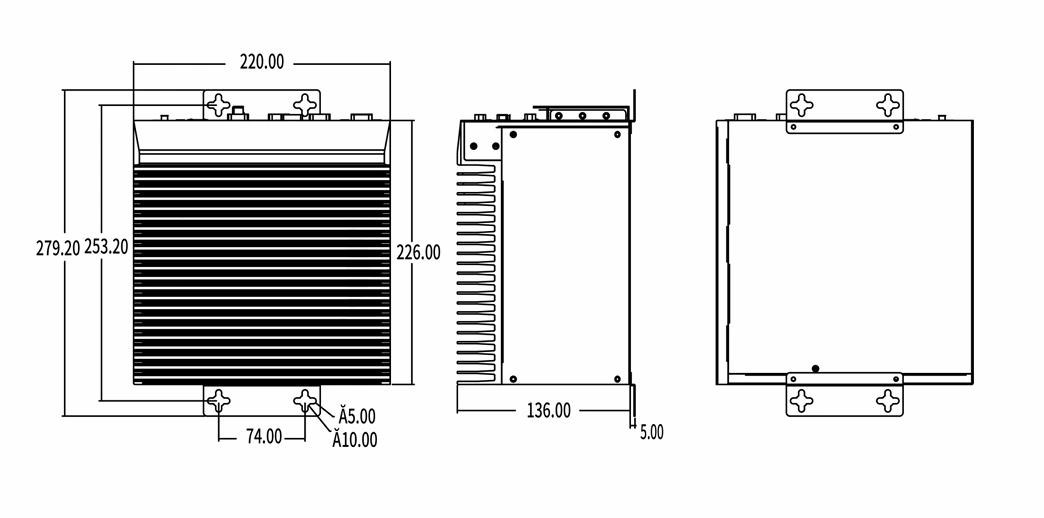

Dimensions

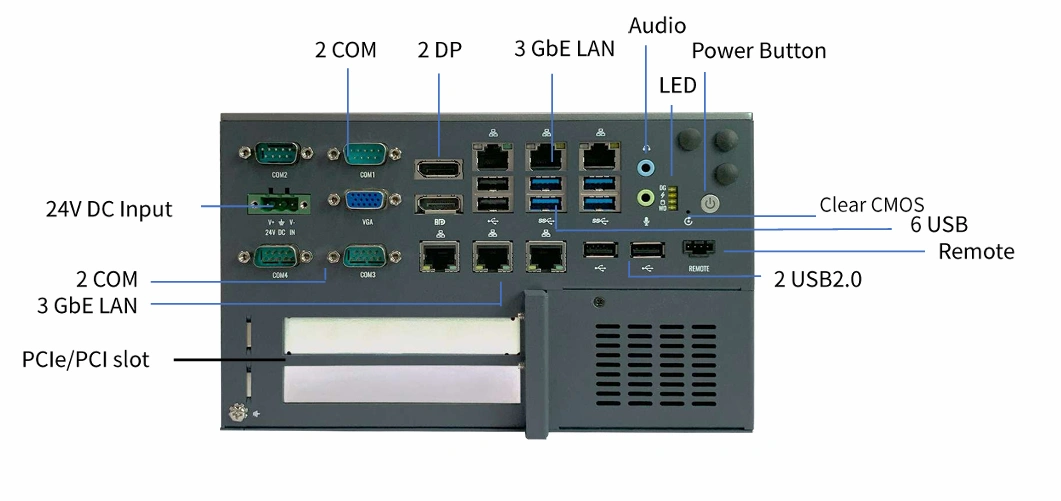

Interfaces
