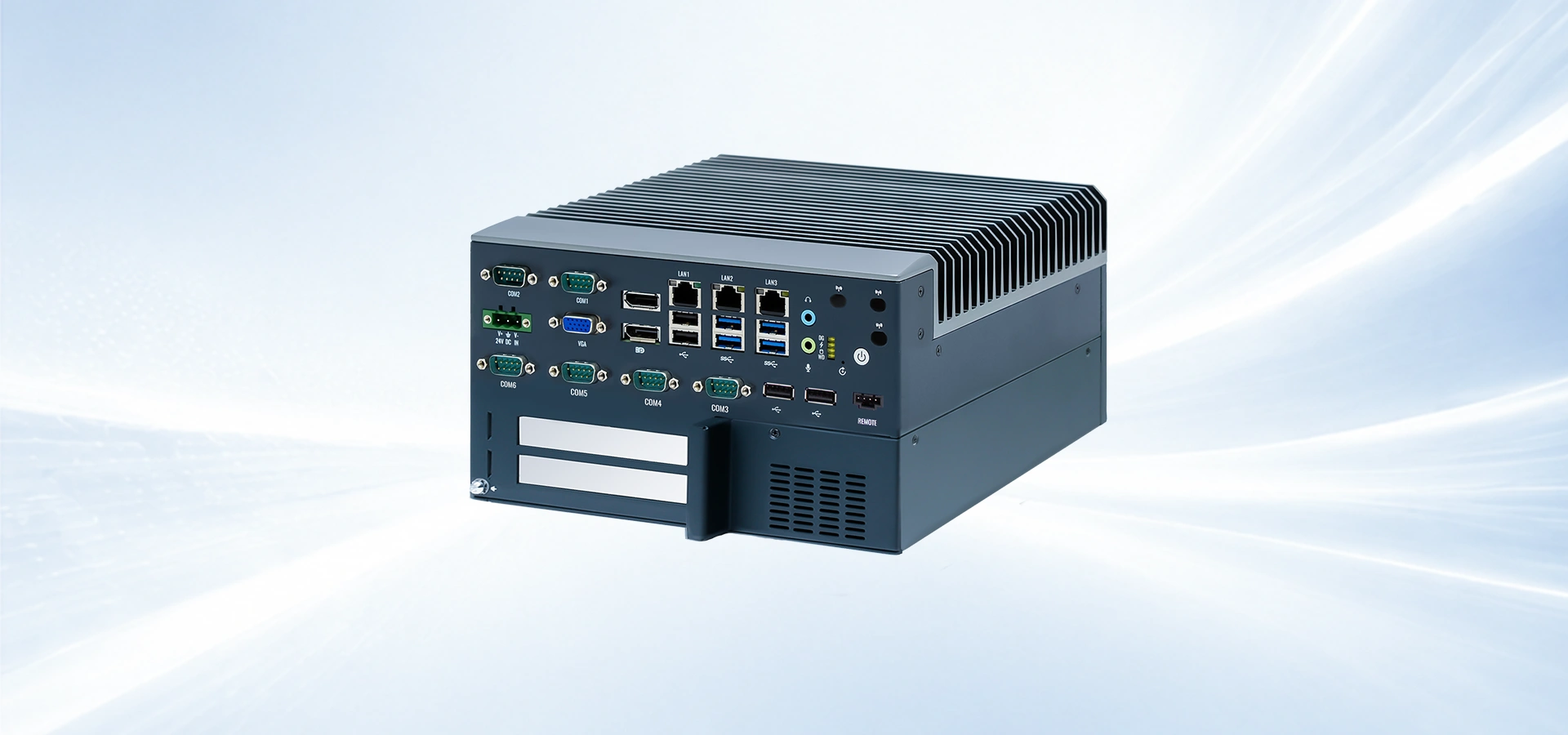

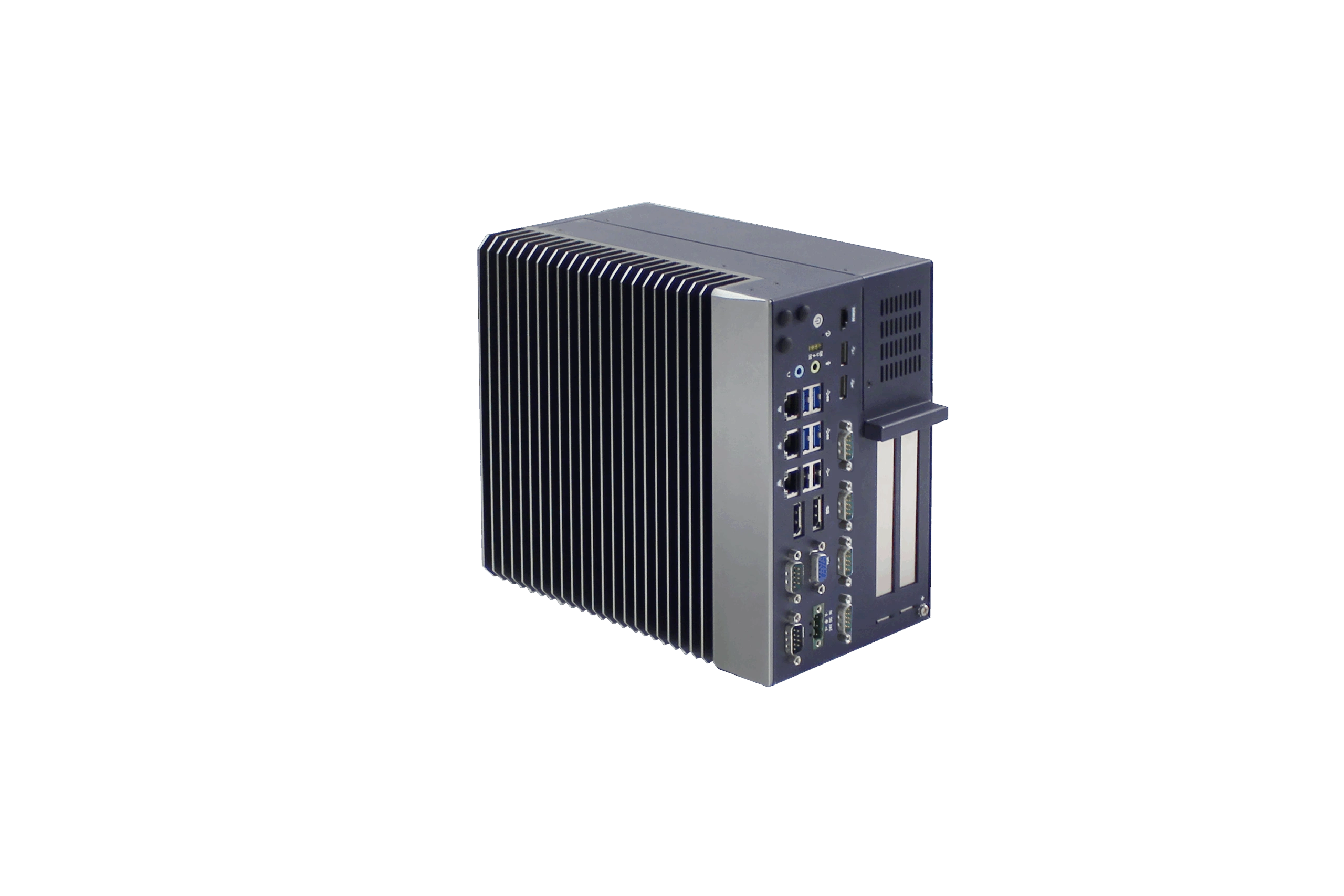

E551
- Intel® 6th to 9th generation Core™ i3/ i5/ i7 Processor
- H110 Chipset
- 3 GbE LAN (2 x Intel i210-AT, 1 x Intel i219-LM)
- 3 independent display via 2 DP and 1 VGA
- 4 USB3.0,4 USB2.0
- 1 RS-232/422/485, 2 RS-232/485, 3 RS-232
- 1 x PCIe 3.0 x16 , 1 x PCIe 2.0 x4 ( x2 signal )/PCIslot
- Supports 4G/5G, Wi-Fi module expansion
- Product Details
- Specification
- Application
- Download
Deep Serial Integration with High-Speed PCIe Bandwidth
Designed for environments that demand rigorous serial communication alongside heavy computing add-ons, the E551 provides a dense array of COM ports (RS-232/422/485) paired with 8 USB interfaces, eliminating the need for fragile external serial expanders. Crucially, it houses dedicated PCIe Gen3 x16 and PCIe Gen2 x4 slots, purpose-built to power high-end frame grabbers or network accelerators immediately upon deployment. An internal M.2 slot further streamlines the enclosure by supporting cable-free wireless expansion.
Solid Computational Foundation for Heavy-Duty Integration
When standard automation tasks evolve into complex data handling and real-time HMI rendering, the model provides the essential computational bandwidth to drive demanding add-on cards. Harnessing Intel Core processors from i3 up to the 8-core i7-9700 at 4.70GHz, this architecture ensures that high-speed data ingested from external modules is processed seamlessly, preventing system bottlenecks.

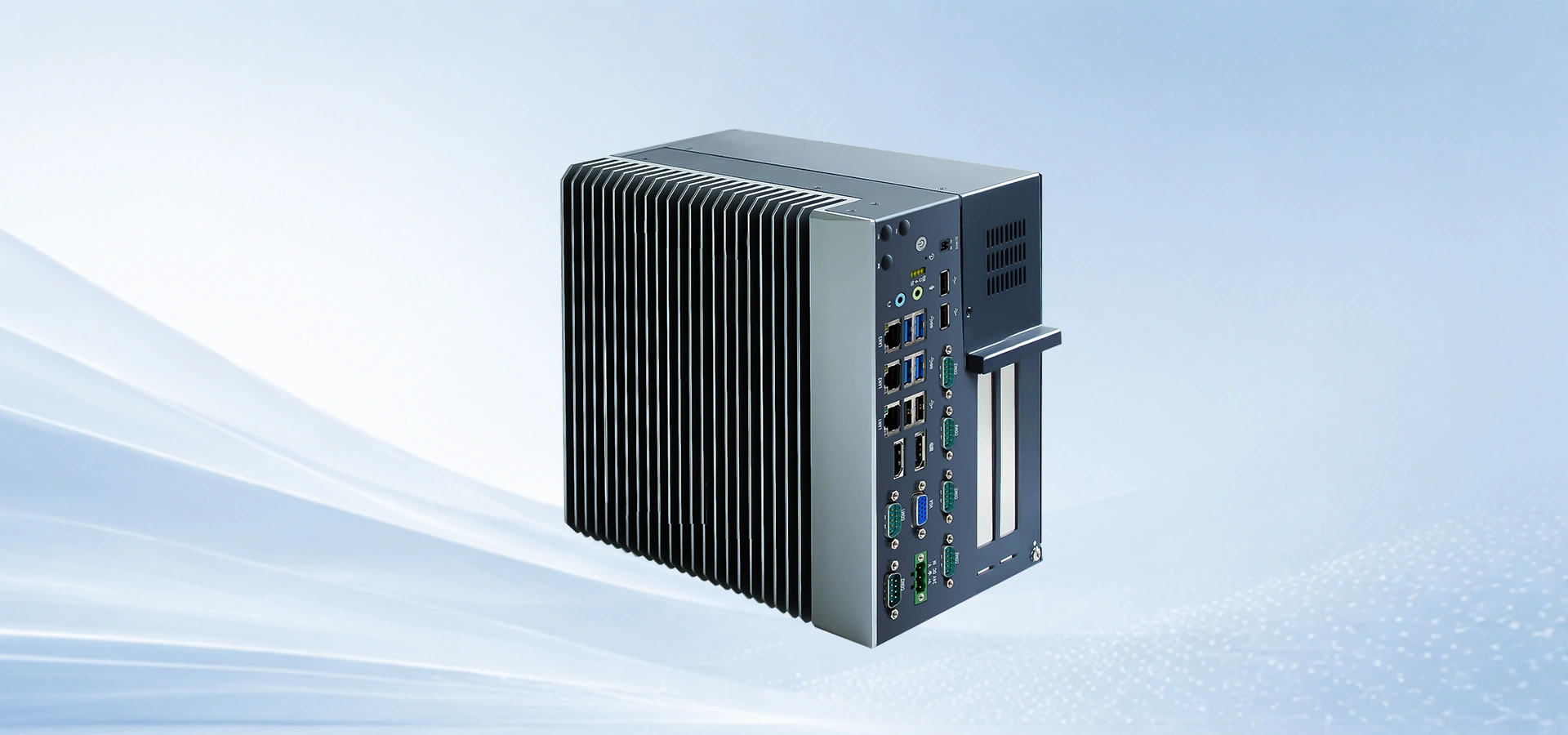

Wall-Mount Ready, 3 Displays Supported
The model installs directly on the control cabinet wall without requiring a rack enclosure. Two DP outputs and 1 VGA port support 3 independent displays simultaneously, allowing operators to run HMI, process monitoring, and diagnostics on separate screens from a single centralized unit.
High Reliability
The model accepts DC 24V input with an optional UPS module. The cable-free modular internal architecture and watchdog timer ensure continuous, rock-solid operation through power fluctuations and software faults alike.
Specifications
| CPU | CPU | Intel® 6th to 9th generation Core |
| TDP | Max.65W | |
| Socket | LGA1151 | |
| Chipset | H110 | |
| BIOS | AMI 64MB UEFI BIOS | |
| Memory | Technology | Dual channel 260-pin DDR4 SO-DIMM |
| Max. capacity | 64GB | |
| External I/O | DP | 2 x DP, resolution up to 4096 x 2304@60 Hz |
| VGA | 1 x VGA, resolution up to 1920 x 1080@60 Hz | |
| LAN | 2 x Intel® i210-AT GbE, 1 x Intel® i219-LM GbE | |
| USB | 4 x USB 3.0, 4 x USB 2.0 | |
| Serial Port | 1 RS-232/422/485, 3 RS-232/485, 2 RS-232 | |
| Audio | 1 x Line-out, 1 x Mic-in (Realtek ALC 662) | |
| Power Connector | 3-pin Phoenix terminal | |
| Remote | 1 x Remote | |
| Expansion | PCIe / PCI | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4 (x2 signal) or 1 x PCI |
| SIM | 1 x Nano SIM | |
| LED & Switch | LED | Memory, Standby, SSD, Watchdog |
| Power Button | 1 x Power Button | |
| Clear CMOS | 1 x Clear CMOS | |
| Inside I/O | Mini PCIe | 1 x full size Mini PCIe, supports WLAN/WWAN module |
| M.2 | 1 x M.2 B-Key 2280 | |
| SATA 3.0 | 1 x SATA 3.0,supports 2.5" SSD | |
| USB 2.0 | 2 x USB 2.0 Type-A | |
| Power Supply | Power Input | 24V DC |
| Others | Watchdog | Interruption and system reset, programmable for 1 to 255 min/sec |
| Physical Characteristics | Material | Aluminium Alloy |
| Dimension | 220 x 226 x 136mm (L x W x H) | |
| Weight | 4.0 Kg | |
| Installation | Wall mount | |
| Environment | Operating Temperature | 0 to 50 °C (32 to 122°F), with airflow 0.7 m/s |
| Storage Temperature | -40 to 85 °C (-40 to 185°F) | |
| Operating Humidity | 95% @ 40 °C(Non-condensing) | |
| Storage Humidity | 95% @ 60 °C(Non-condensing) | |
| Certification | EMC | CE, FCC |
| OS | OS | Win7(Only Gen 6), Windows 10/11, Centos 7/8, Ubuntu 18.04/20.04/22.04 |

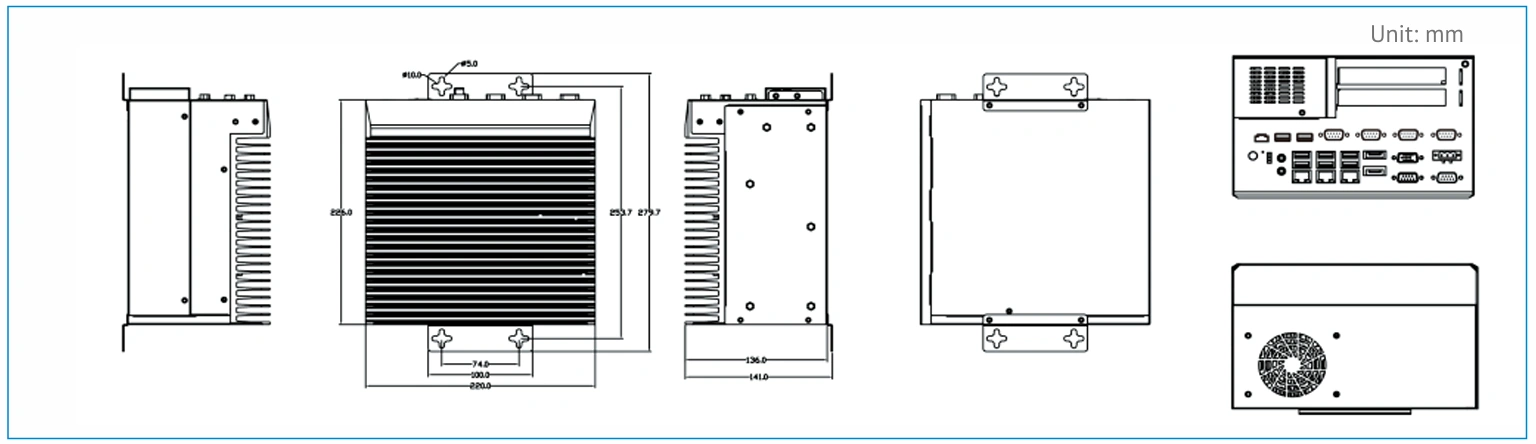

Dimensions

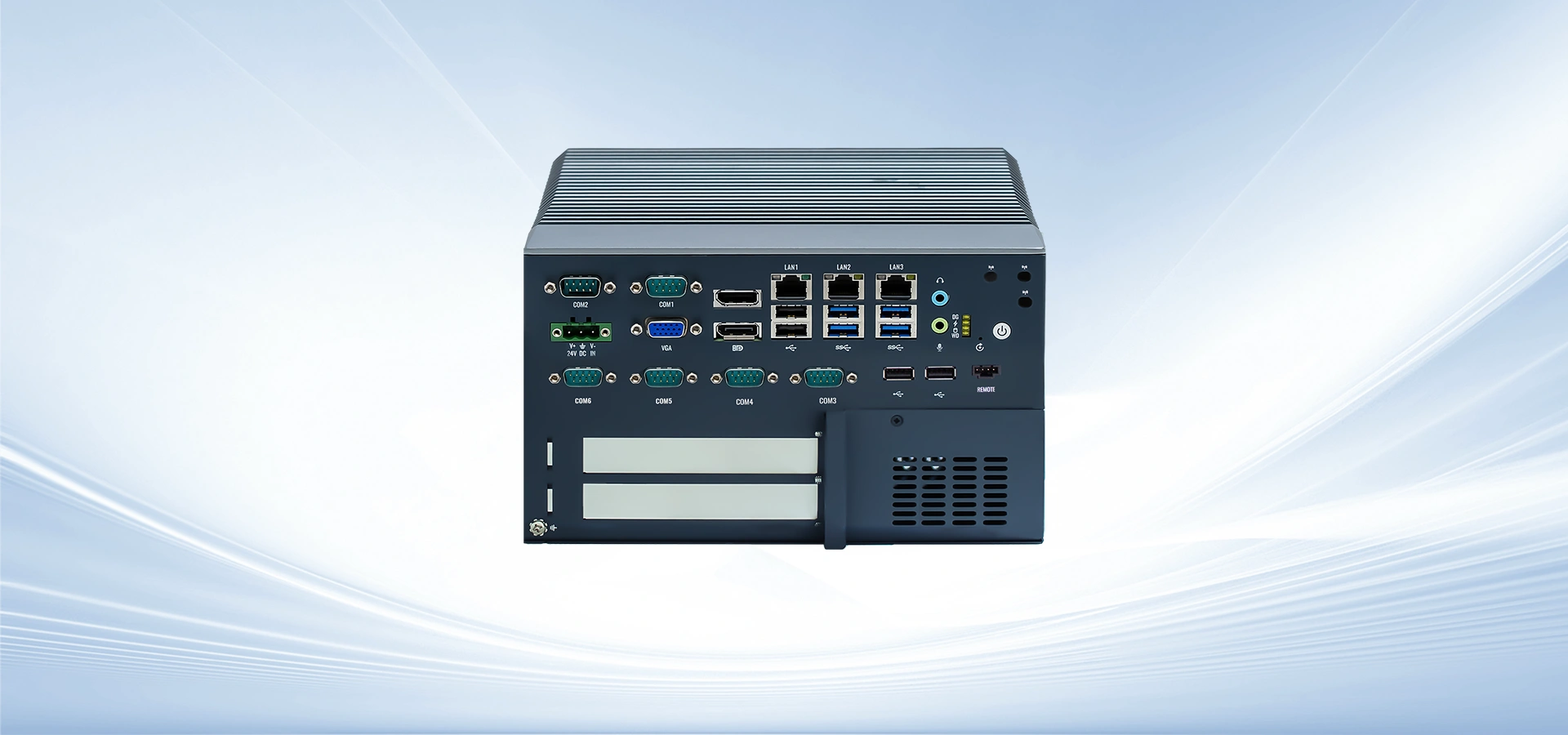

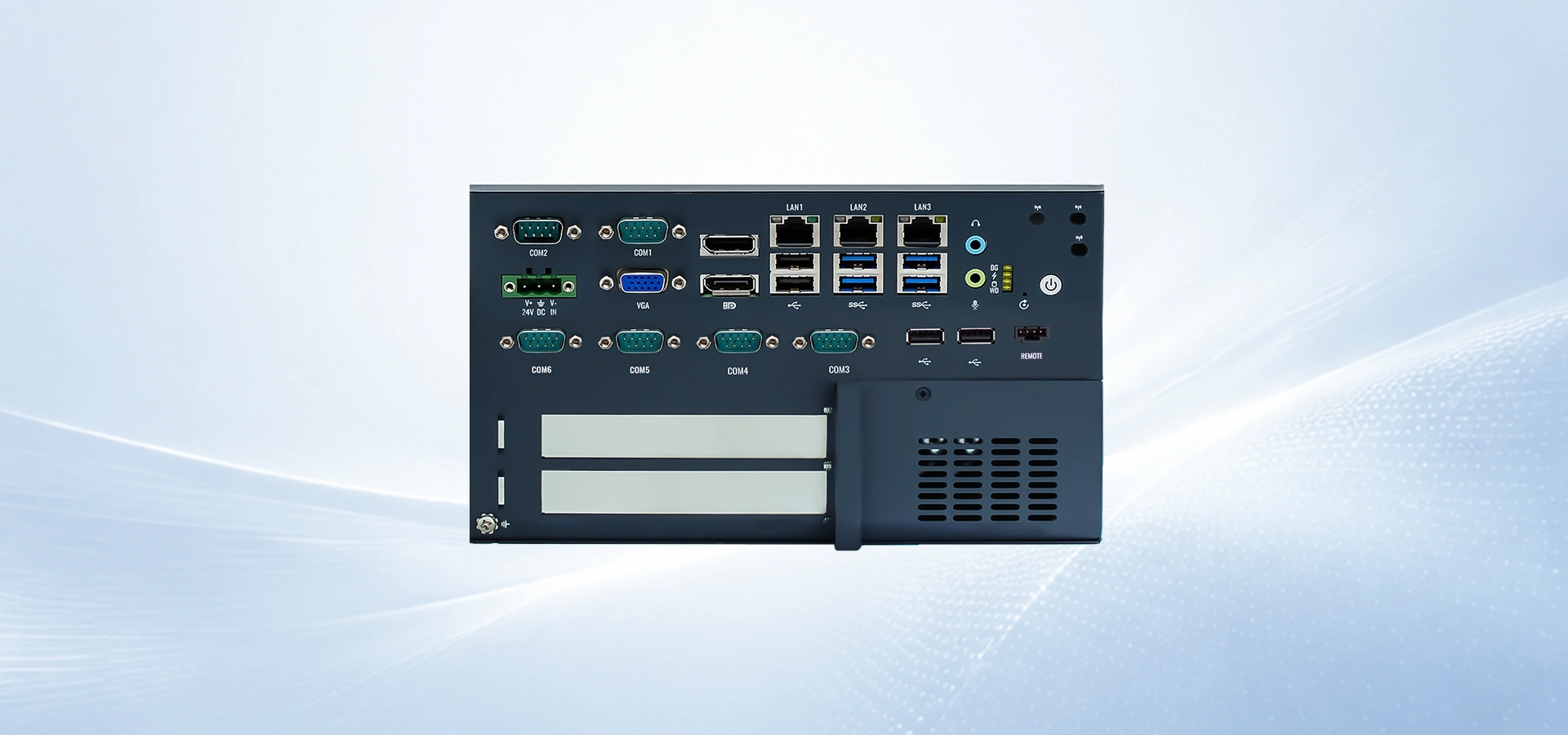

Interfaces
