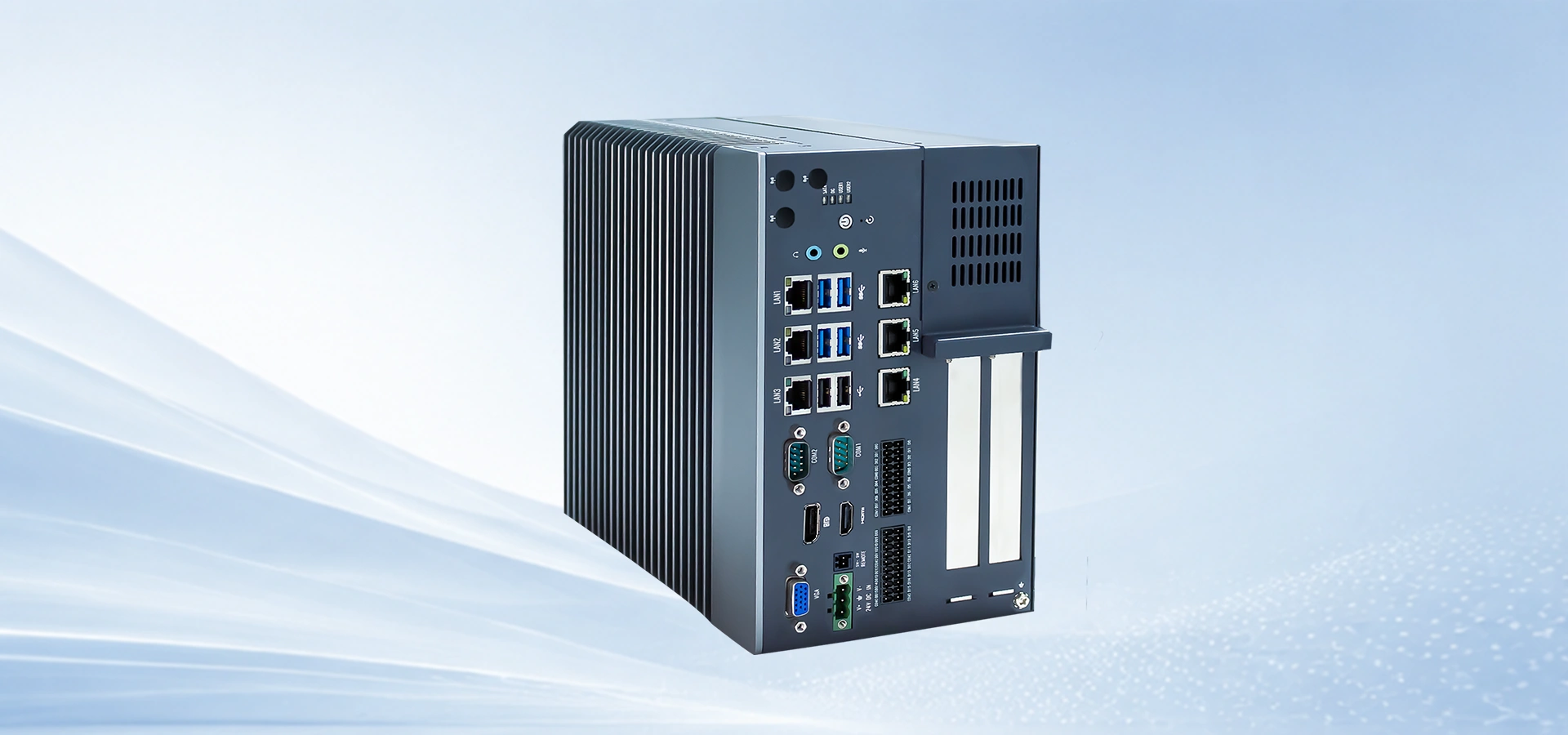

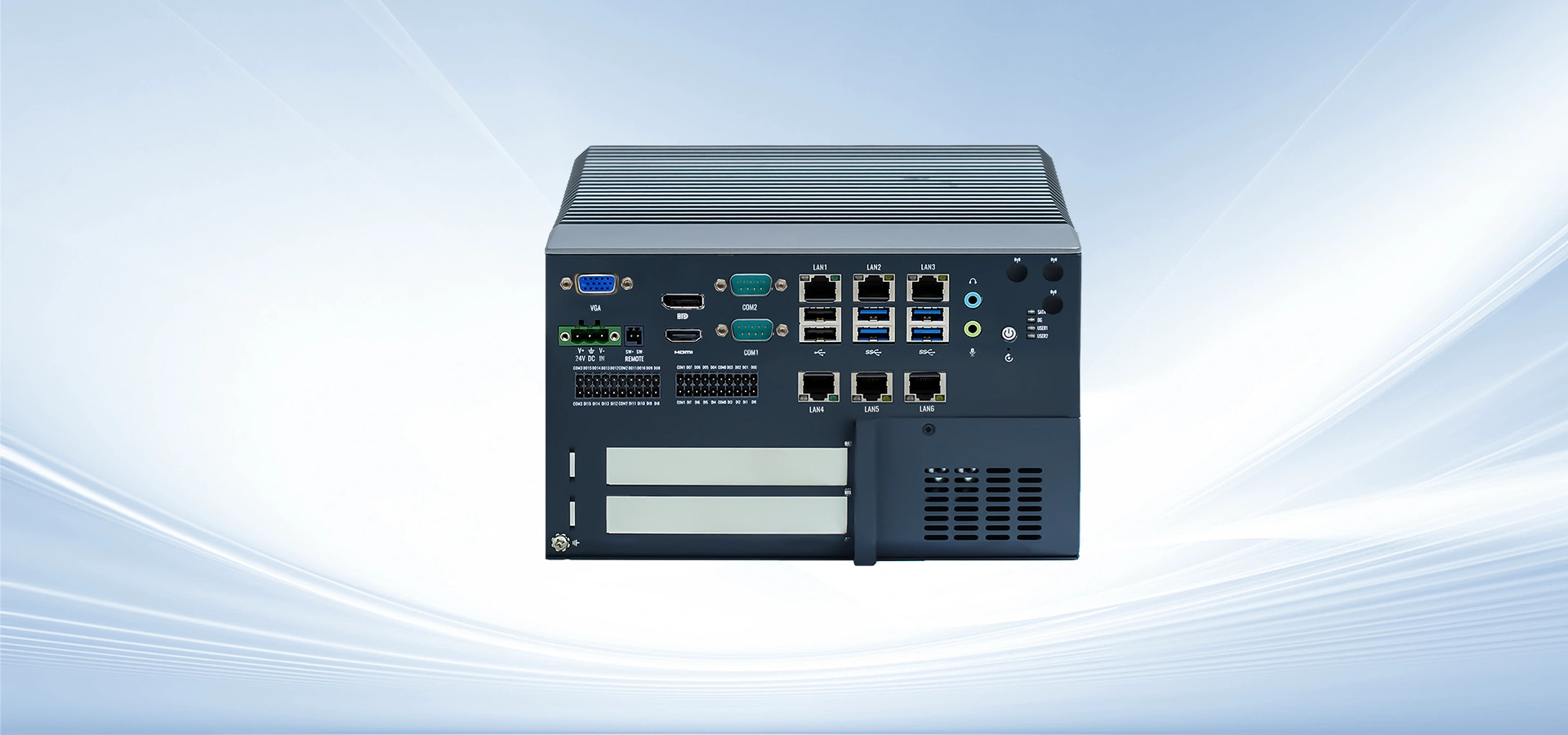

E550A
- Intel® 10-11th generation Core™ i3/ i5/ i7 Processor
- 6 LAN (5 x Intel i210, 1 x Intel i219)
- 3 independent display via 1 DP, 1 HDMI and 1 VGA
- 4 USB 3.0, 2 USB 2.0 (H420E) or 6 USB3.0 (H670/Q470 support 2 SATA RAID (support RAID 0/RAID 1, switchable in BIOS)
- 1 RS-232, 1 RS-232/422/485
- 16 DI, 16 DO
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (x2 signal) or PCI expansion slot
- Supports 4G/5G, Wi-Fi module expansion
- Modular and cable-free high reliability design
- Product Details
- Specification
- Application
- Download
Multi-Network Control Meets Dedicated Acceleration
Complex automation lines demand both extensive network reach and dedicated hardware processing. The E550A integrates 6 GbE LAN ports and 32 channels of digital I/O alongside high-speed PCIe Gen3 x16 and PCIe Gen2 x4 expansion slots. This architecture allows engineers to orchestrate multiple subnets and control actuators directly, while simultaneously running high-performance vision or motion cards without system bottlenecks. 2 COM ports handle serial communication, and an internal M.2 slot provides seamless 4G/5G and Wi-Fi connectivity.
Unleashing Compute Power for Heavy-Duty Expansion
When industrial applications require high-performance frame grabbers, motion control cards, or specialized accelerators, the core processing foundation must be able to keep up. Powered by 10th and 11th generation Intel Core processors, these scalable platforms provide the essential computational bandwidth to drive demanding add-on cards. With robust processing and dual-channel DDR4 memory, this architecture ensures that high-speed data ingested from external expansion modules is processed seamlessly, preventing system bottlenecks.

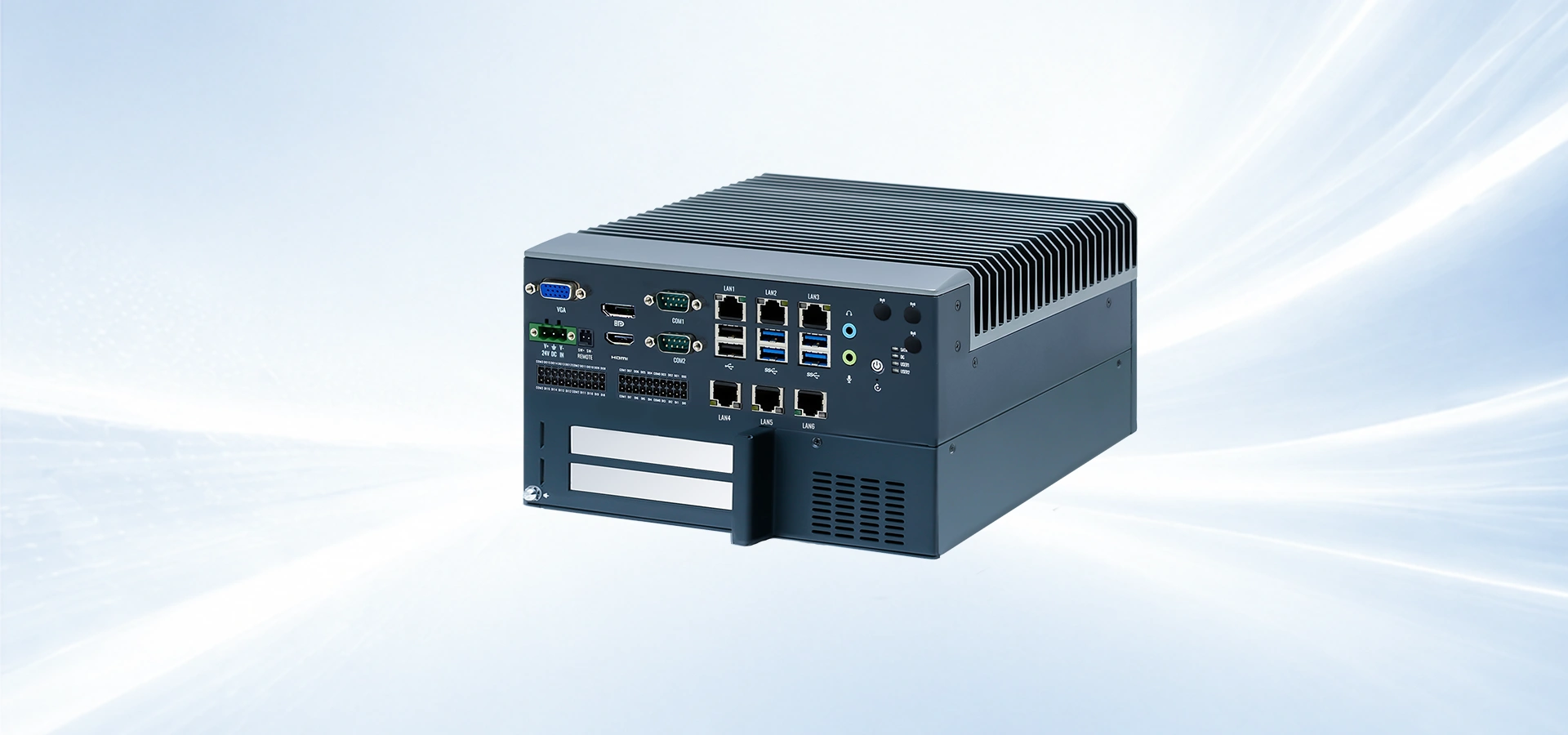

Wall-Mount Ready, 3 Displays Supported
The platform installs directly on the control cabinet wall without a rack enclosure. 1 DP, 1 HDMI, and 1 VGA output support 3 independent displays simultaneously, covering operator HMI, process monitoring, and diagnostics on separate screens from a single unit. Passive cooling keeps operation quiet and maintenance-free at temperatures from 0 to 50°C with airflow.
High Reliability
The platform accepts DC 24V input with an optional UPS module, while the cable-free modular internal architecture and watchdog timer ensure continuous operation through power fluctuations and software faults alike.
Specifications
| Processor System | CPU | Intel® 10-11th generation Core™ i3/ i5/ i7 CPU |
| Chipset | H420E/Q470/H470 | |
| BIOS | AMI 256Mbit SPI Flash | |
| Socket | LGA1200 | |
| TDP | 65W | |
| Memory | Technology | 2 x DDR4 |
| Max. Capacity | 64 GB | |
| Graphics | Controller | Intel UHD Graphics Supports DirectX12, OpenGL 4.5 and OpenCL 2.1 |
| Feature | 3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8,MPEG2,MJPEG,VC-1HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8,MPEG2,MJPEG | |
| Storage | M.2 M-Key | 1 x M.2 2280 SATA3.0 |
| SATA3.0 | 2 x SATA3.0 | |
| External I/O | DP | 1 x DP1.4, resolution up to 4096 x 2304@60 Hz |
| HDMI | 1 x HDMI1.4, resolution up to 4096 x 2160@30 Hz | |
| VGA | 1 x VGA, resolution up to 1920 x 1200@60 Hz | |
| Ethernet | 5 x Intel i210, 1 x Intel i219 GbE LAN | |
| USB 3.0 | 4 (H420E)/ 6 (Q470) | |
| USB 2.0 | 2 (H420E)/ 0 (Q470) | |
| Serial Port | COM1: RS-232, COM2: RS-232/422/ 485 | |
| DIO | 16 x DI, 16 x DO | |
| Audio | 1 x Mic-In, 1 x Line-Out | |
| Power Connector | 3-pin Phoenix terminal | |
| Remote | 1 x Remote | |
| Expansion | PCIe/ PCI | 1 PCIe 3.0 x16；1 x PCIe 3.0 x4 (x2 signal) or 1 x PCI |
| LED & Switch | LED Indicator | SSD, DG(Memory), User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset | |
| Inside Connectors | M.2 E-Key | 1 x M.2 2230 supports Wi-Fi (Q470/H470: supports both CNVI and PCIe protocol; H420E: supports PCIe protocol) |
| M.2 B-Key | 1 x M.2 3052 supports 4G/5G | |
| USB 2.0 | 1 x USB 2.0 Type-A | |
| SIM | 1 x Nano SIM | |
| Power Supply | Power Input | DC 24V |
| Others | Watchdog | 65536 levels, 0 to 65535 second |
| TPM | TPM 2.0(Optional) | |
| Environment | Operating Temperature | 0 to 50 °C(32 to 122°F) with airflow 0.7 m/s |
| Storage Temperature | -40°C to 85°C(-40 to 185°F) | |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | |
| Storage Humidity | 95% @ 60 °C (Non-condensing) | |
| Physical Characteristics | Dimension | 220 x 226 x 136 mm (L x W x H) |
| Weight | 4.0 kg | |
| Installation | Wall mount | |
| Certification | EMC | CE, FCC |
| OS | OS | Windows 10/11, Centos 8, Ubuntu 20.04/22.04 |

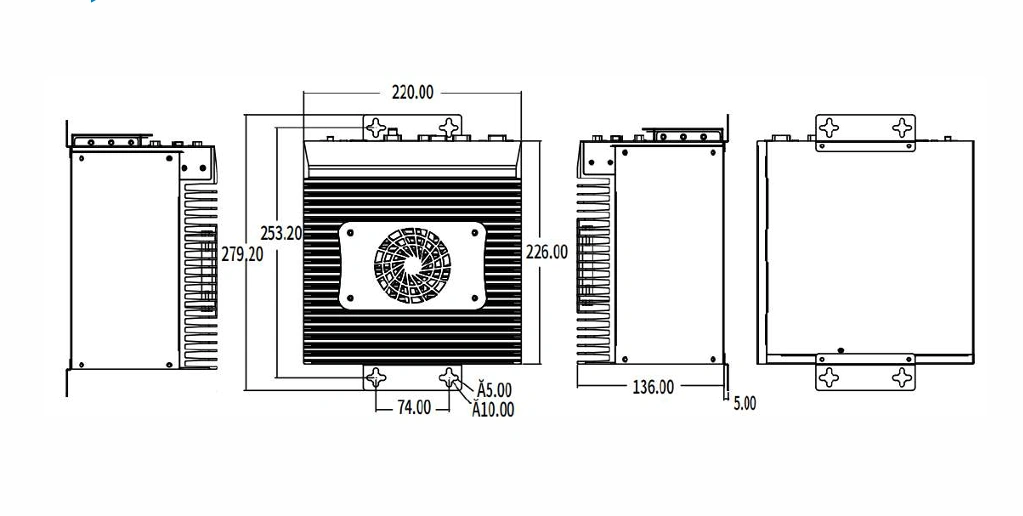

Dimensions

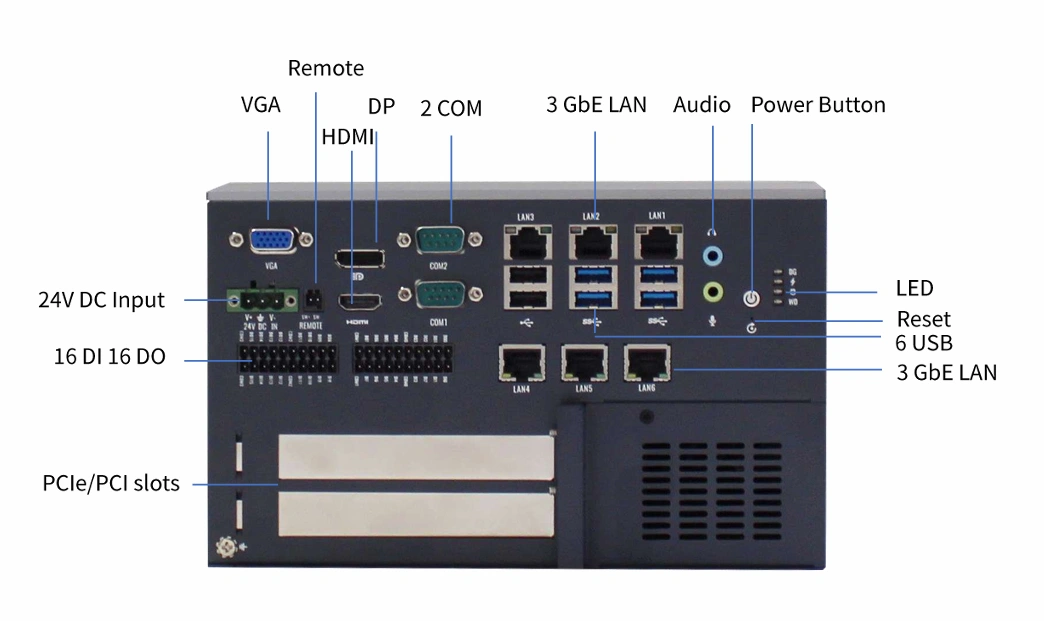

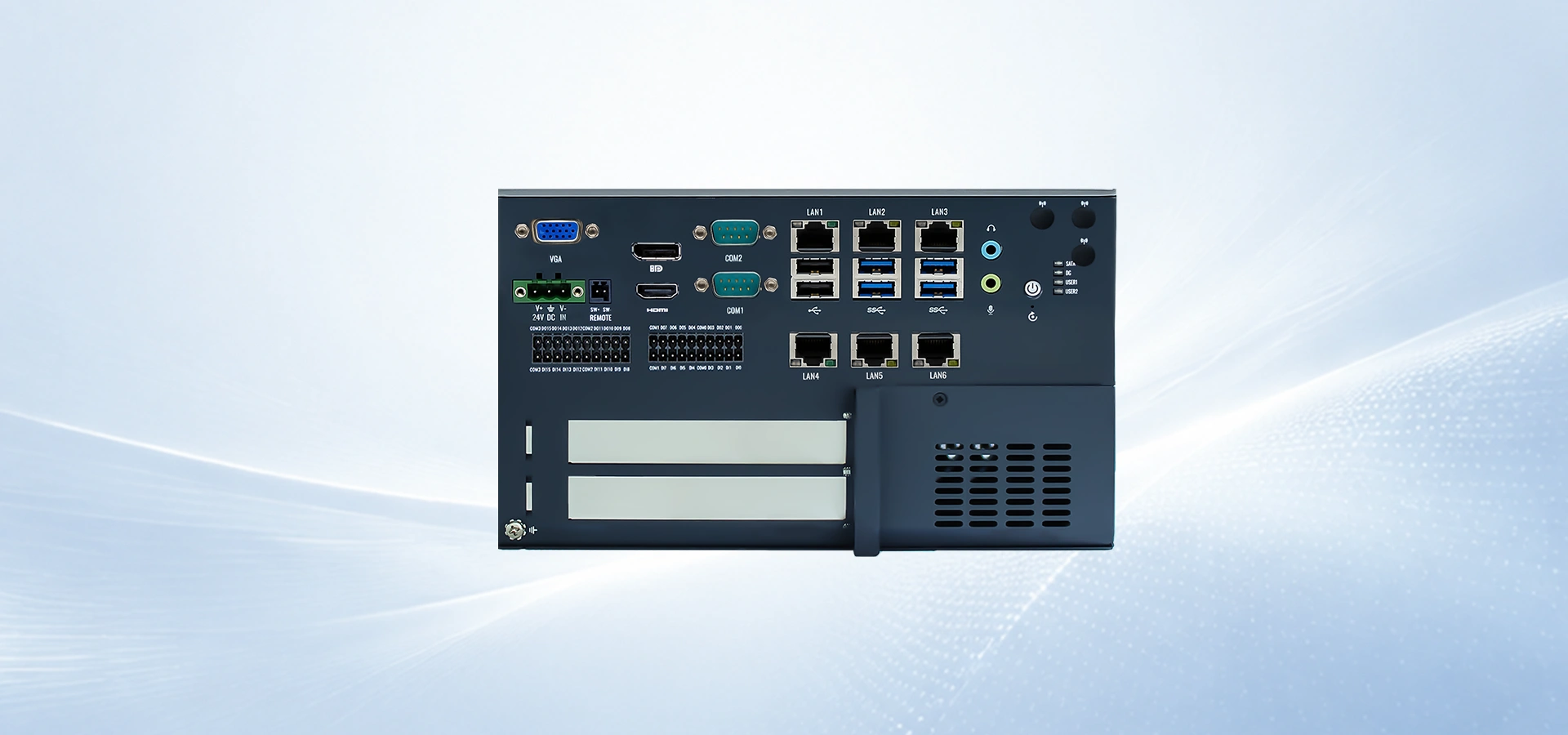

Interfaces
