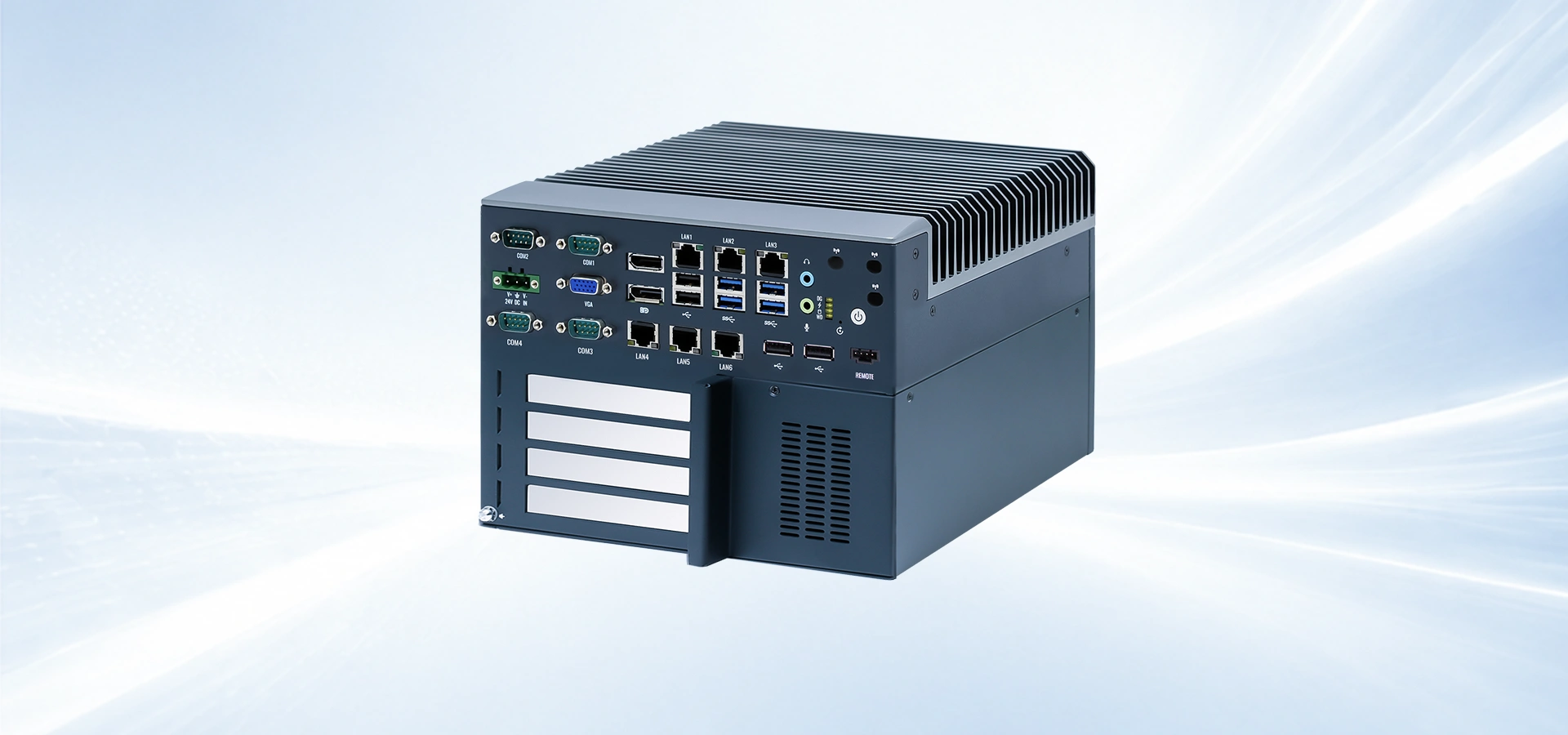

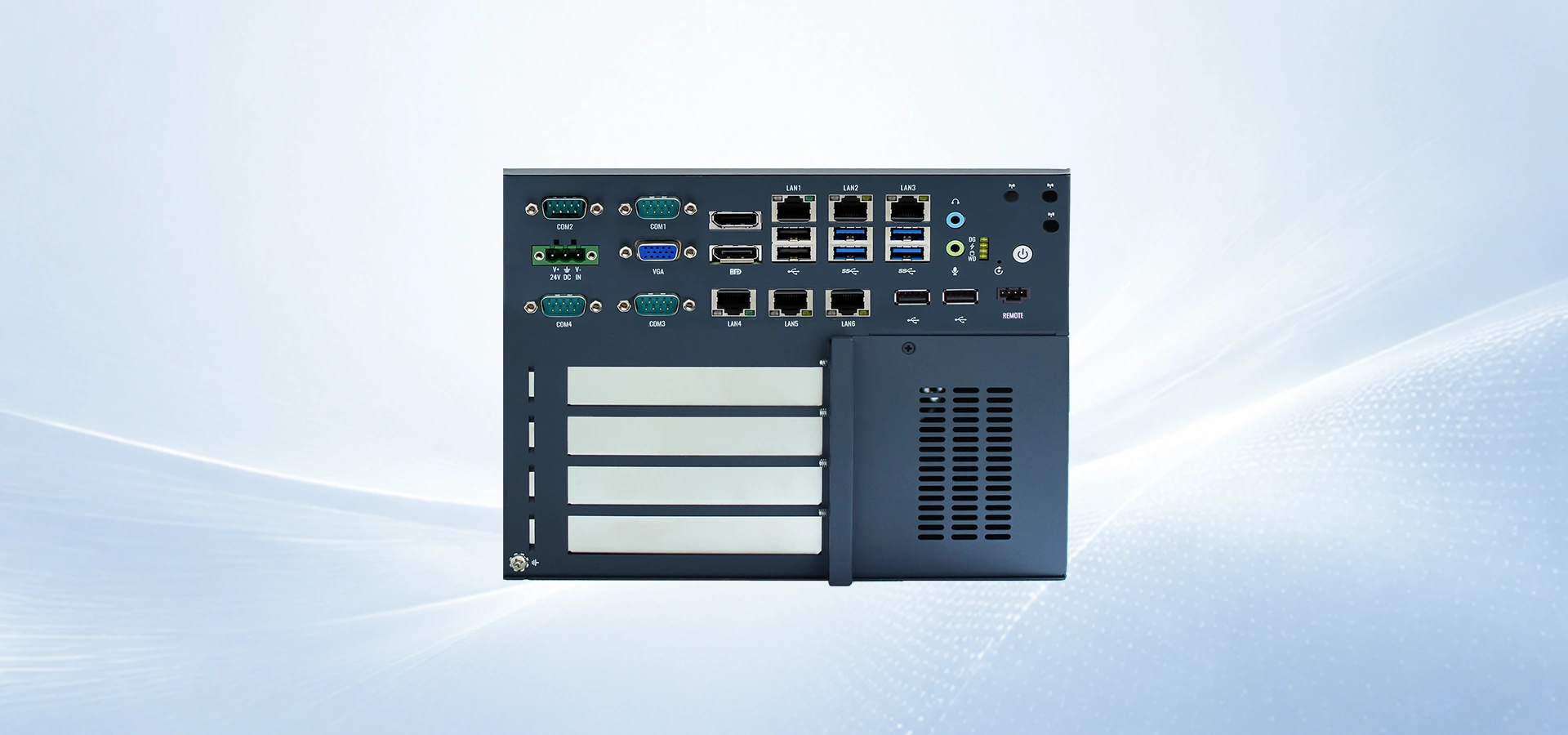

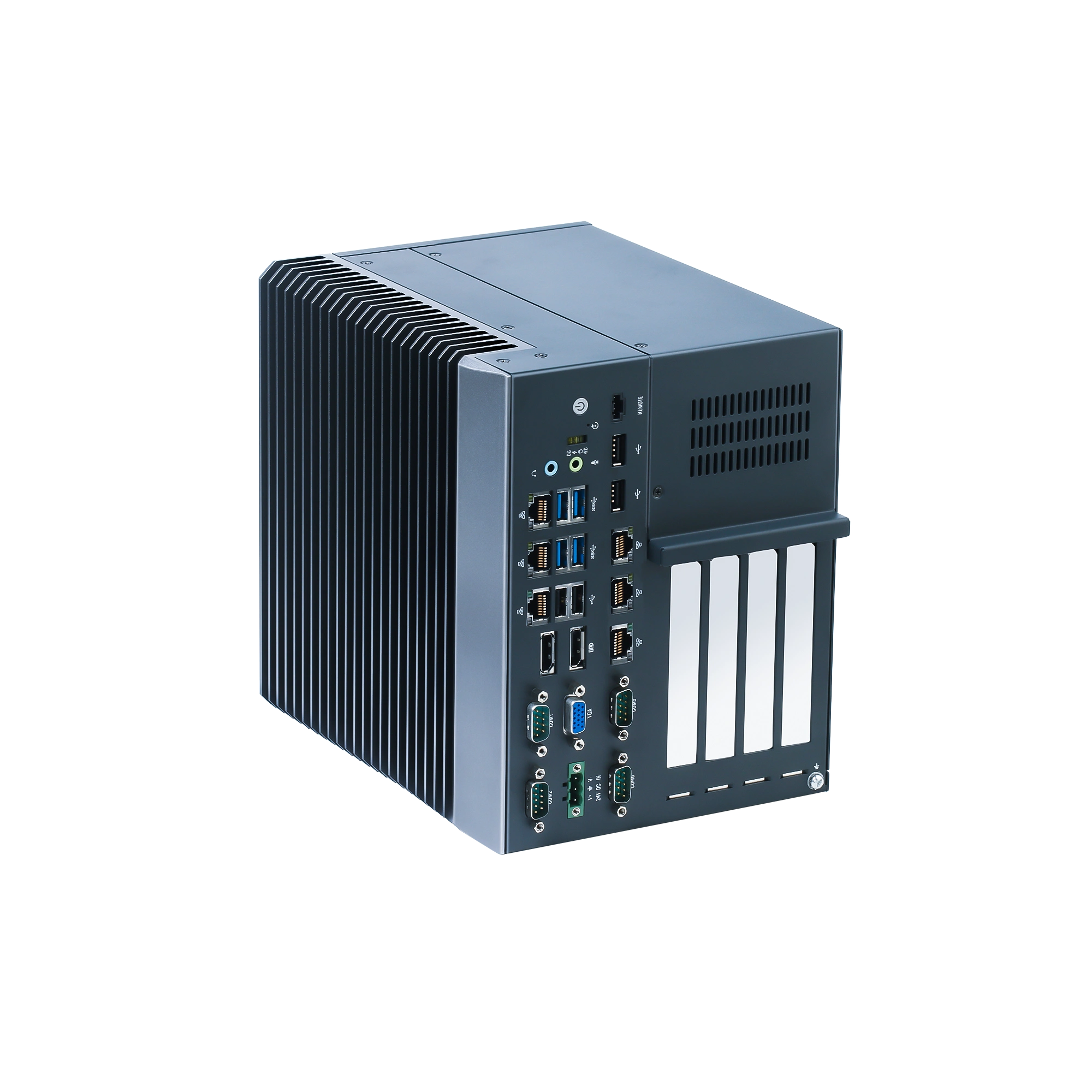

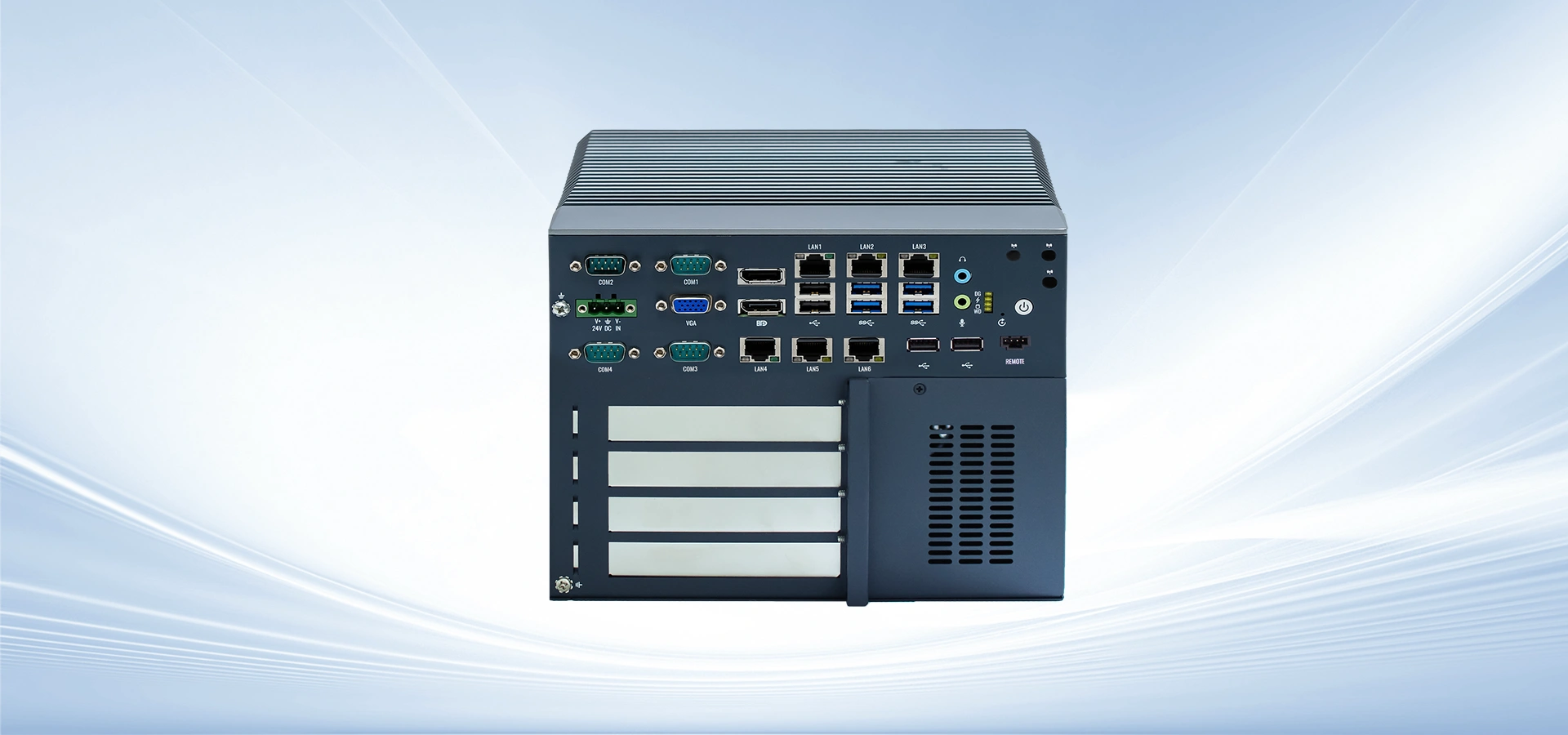

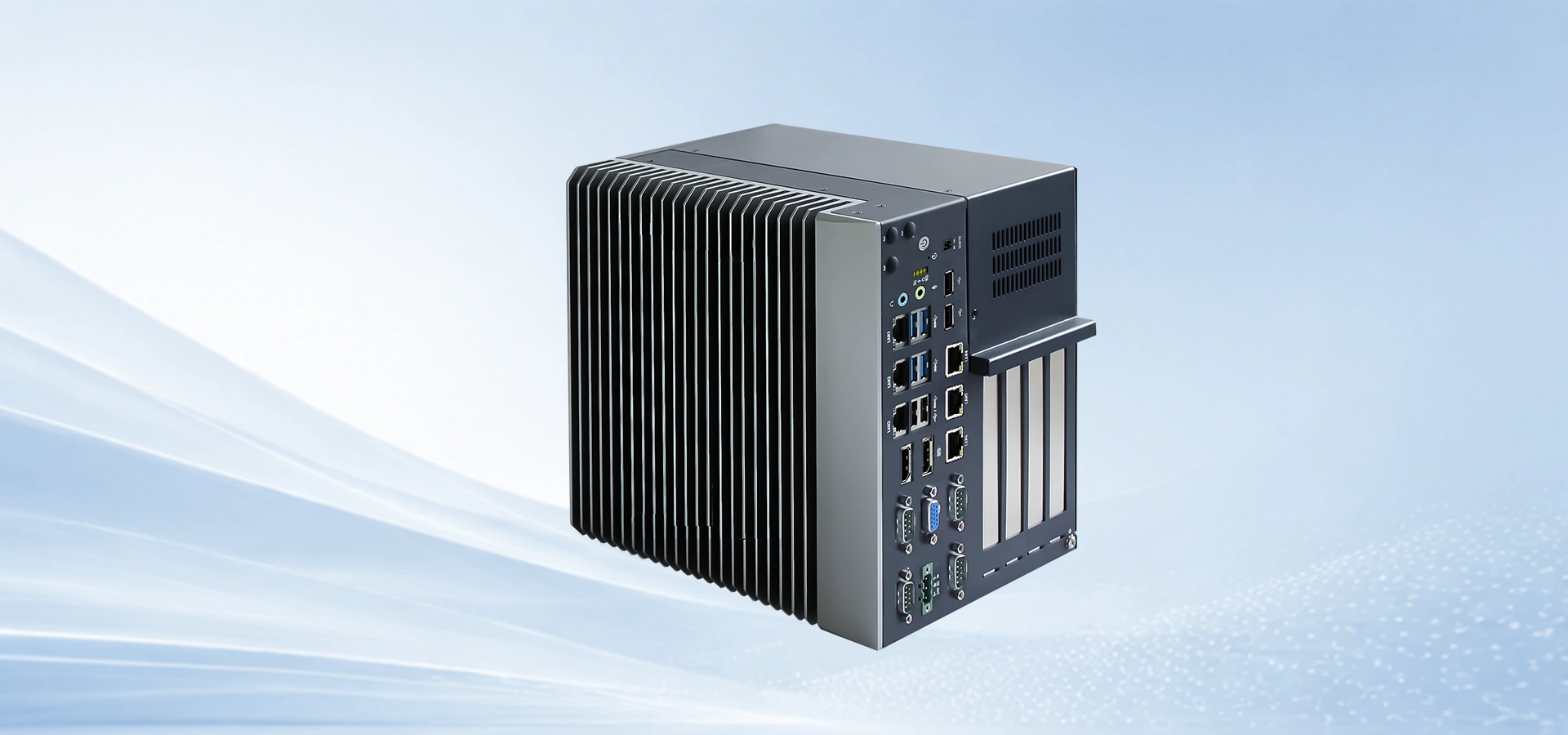

E522
- Intel® 6th to 9th generation Core™ i3/ i5/ i7 Processor
- 6 LAN (5 x Intel i210, 1 x Intel i219)
- 3 independent display via 2 DP and 1 VGA
- 4 USB 3.0, 4 USB 2.0
- 1RS-232/422/485,2 RS-232/485, 1 RS-232
- 1 PCIe Gen3 x16, 1 PCIe Gen2 x4 (x2 signal),2 PCI slots
- Supports 4G/5G, Wi-Fi module expansion
- Product Details
- Specification
- Application
- Download
The Ultimate Quad-Slot Hub for Network and Serial Integration
The E522 delivers absolute connectivity and expansion without bottlenecks. By combining 6 GbE LAN ports for multi-subnet routing, native RS-232/422/485 COM ports for direct device control, and four expansion slots (PCIe x16, PCIe x4, 2x PCI), it serves as the definitive central controller for highly complex machine cells. It provides the immediate capacity to run specialized accelerators and standard industrial control cards side-by-side, completed by an M.2 slot for cable-free 4G/5G and Wi-Fi expansion.
Solid Computational Foundation for Heavy-Duty Integration
When standard automation tasks evolve into complex data handling and real-time HMI rendering, the model provides the essential computational bandwidth to drive demanding add-on cards. Harnessing Intel Core processors from i3 up to the 8-core i7-9700 at 4.70GHz, this architecture ensures that high-speed data ingested from external modules is processed seamlessly, preventing system bottlenecks.
Wall-Mount Ready, 3 Displays Supported
The model installs directly on the control cabinet wall without requiring a rack enclosure. Two DP outputs and 1 VGA port support 3 independent displays simultaneously, allowing operators to run HMI, process monitoring, and diagnostics on separate screens from a single centralized unit.
High Reliability
The model accepts DC 24V input with an optional UPS module. The cable-free modular internal architecture and watchdog timer ensure continuous, rock-solid operation through power fluctuations and software faults alike.
Specifications
| Processor System | CPU | Intel® 6th to 9th generation Core™ i3/ i5/ i7 CPU |
| Chipset | H110 | |
| BIOS | AMI 64MB UEFI BIOS | |
| Memory | Technology | 2 x DDR4 |
| Max. capacity | 64 GB | |
| Storage | M.2 M-Key | 1 x M.2 2280 |
| SATA | 3 x SATA 3.0 | |
| External I/O | DP | 2 x DP, resolution up to 4096 x 2304@60 Hz |
| VGA | 1 x VGA, resolution up to 1920 x 1080@60 Hz | |
| Ethernet | 5 x Intel i210, 1 x Intel i219 GbE LAN | |
| USB | 4 x USB 3.0, 4 x USB2.0 | |
| Serial Port | 1 RS-232/422/485, 2 RS-232/485, 1 RS-232 | |
| Audio | 1 x Mic-In, 1 x Line-Out | |
| Remote | 1 x Remote | |
| Power Connector | 3-pin Phoenix terminal | |
| Expansion | PCIe x16 | 1 x PCIe 3.0 x16 |
| PCIe x4 | 1 x PCIe 2.0 x4 (x2 signal) | |
| PCI | 2 x PCI | |
| LED & Switch | LED Indicator | Memory, Standby, SSD, Watchdog |
| Power Button | 1 x Power Button | |
| Clear CMOS | 1 x Clear CMOS | |
| Inside Connectors | USB 2.0 | 1 x internal USB2.0 Type-A |
| Mini PCIe | 1 x full size mini-PCIe, supports WLAN/WGAN module | |
| SIM | 1 x SIM | |
| Power Supply | Power Input | DC 24V |
| Others | Watchdog | Interruption and system reset, programmable for 1 to 255 min/sec |
| Environment | Operating Temperature | 0 to 50 °C(32 to 122°F) with airflow 0.7 m/s |
| Storage Temperature | -40°C to 85°C(-40 to 185°F) | |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | |
| Storage Humidity | 95% @ 60 °C (Non-condensing) | |
| Physical Characteristics | Dimension | 220 x 226 x 176 mm (L x W x H) |
| Weight | 4.3 kg | |
| Installation | Wall mount | |
| Certification | EMC | CE, FCC |
| OS | OS | Win7(Only Gen 6), Windows 10/11, Centos 7/8, Ubuntu 18.04/20.04/22.04 |

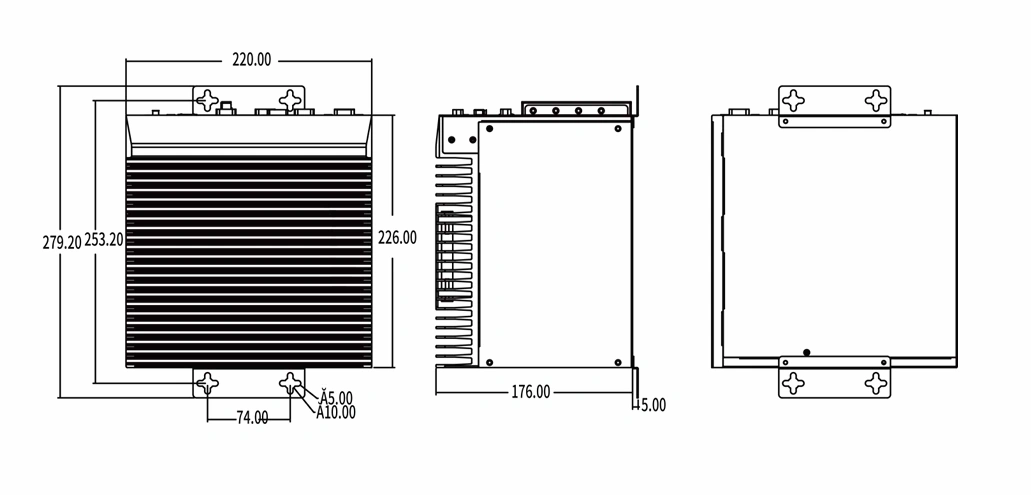

Dimensions

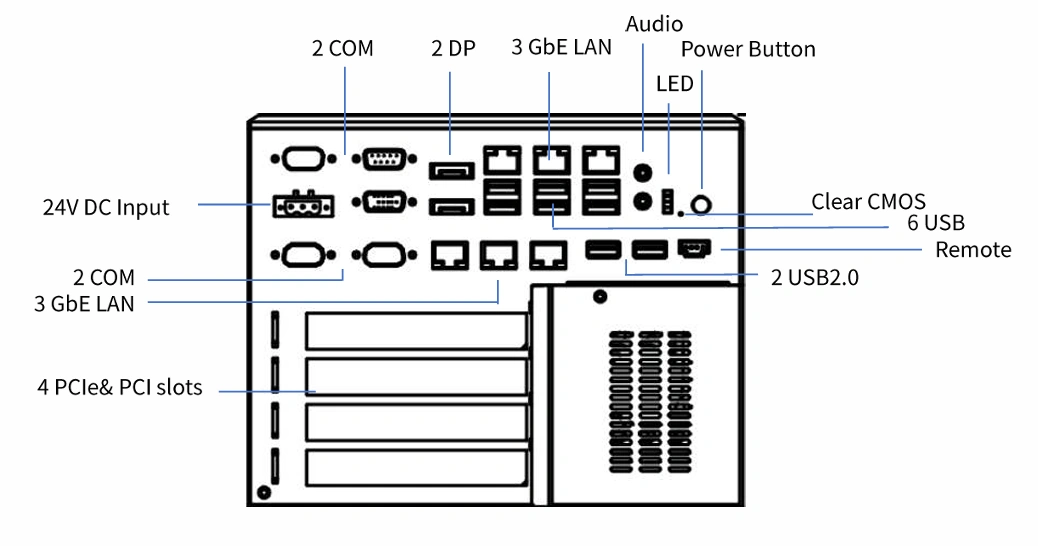

Interfaces
