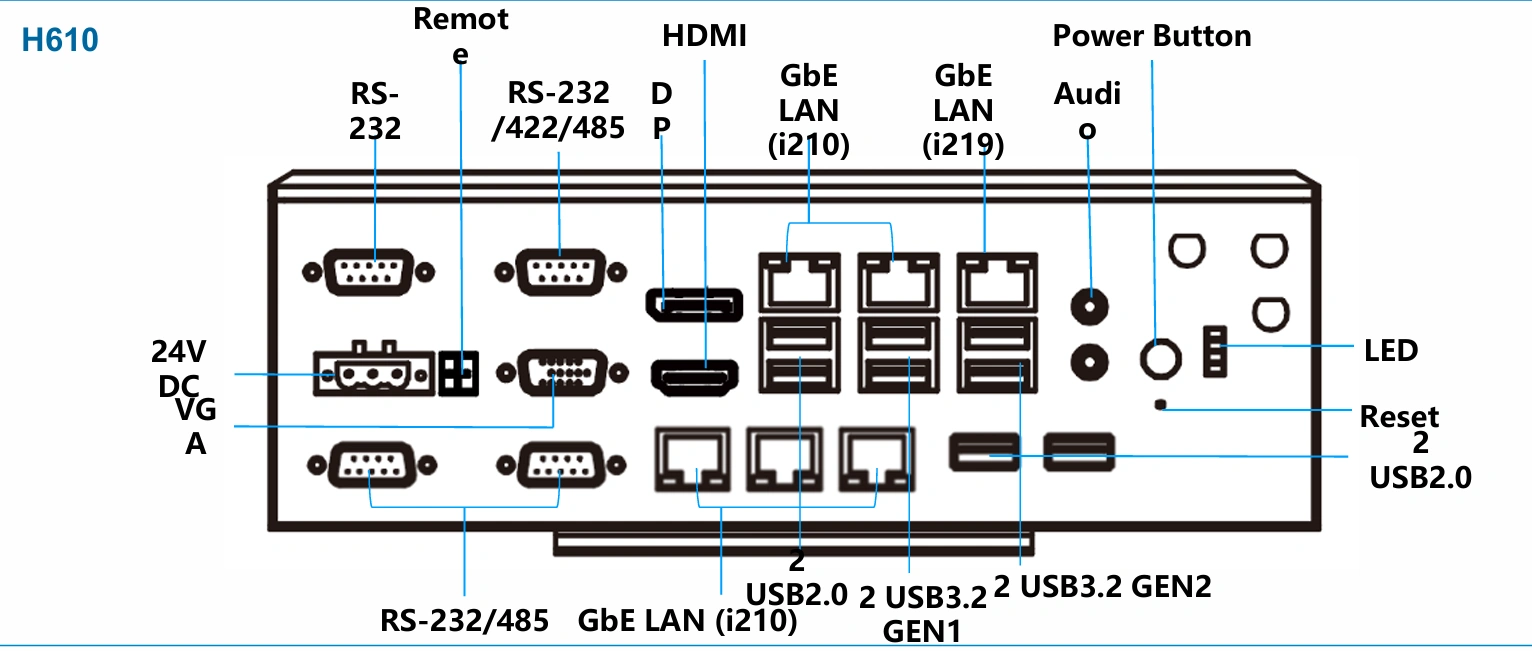

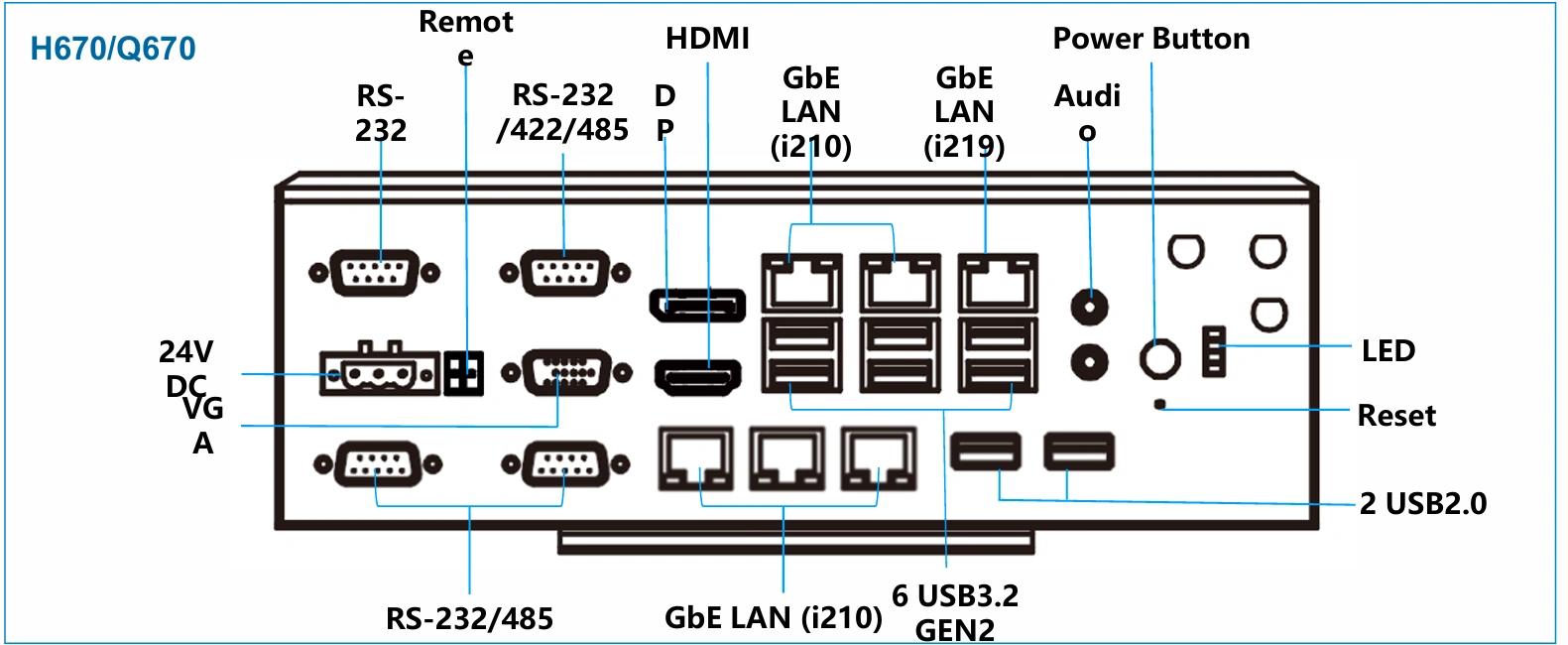

The E512-C is built on the Intel 12th through 14th generation Core i3, i5, and i7 platform with LGA1700 socket, spanning H610, H670, and Q670 chipset options to match security, manageability, and I/O requirements precisely to the application. Dual-channel DDR5 memory up to 64 GB provides the bandwidth headroom required for simultaneous multi-stream data processing, complex HMI rendering, and real-time control loops. Three independent display outputs via DP, HDMI, and VGA support simultaneous operator HMI, process monitoring, and diagnostics from a single unit, and up to 6 USB 3.2 ports cover high-speed peripheral connectivity across the full device layer.

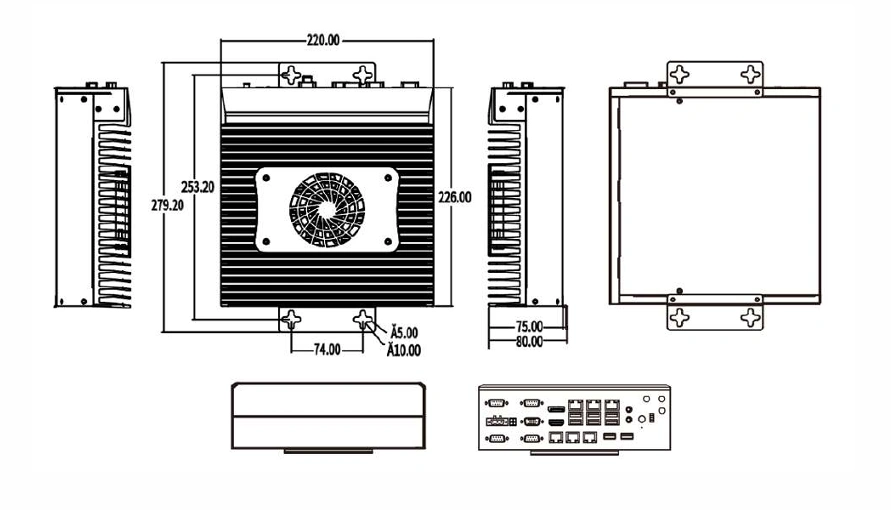

The E512-C installs directly on the control cabinet wall at 220 x 226 x 75mm without a rack enclosure. A 24V DC input with optional UPS module protects against unexpected power loss, while the cable-free modular internal architecture removes a common failure point in high-vibration settings. A 65,536-level programmable watchdog timer and optional TPM 2.0 round out the reliability and security features. CE and FCC Class B certification with ESD 8KV/15KV protection covers regulated industrial environments operating from 0 to 50°C.
