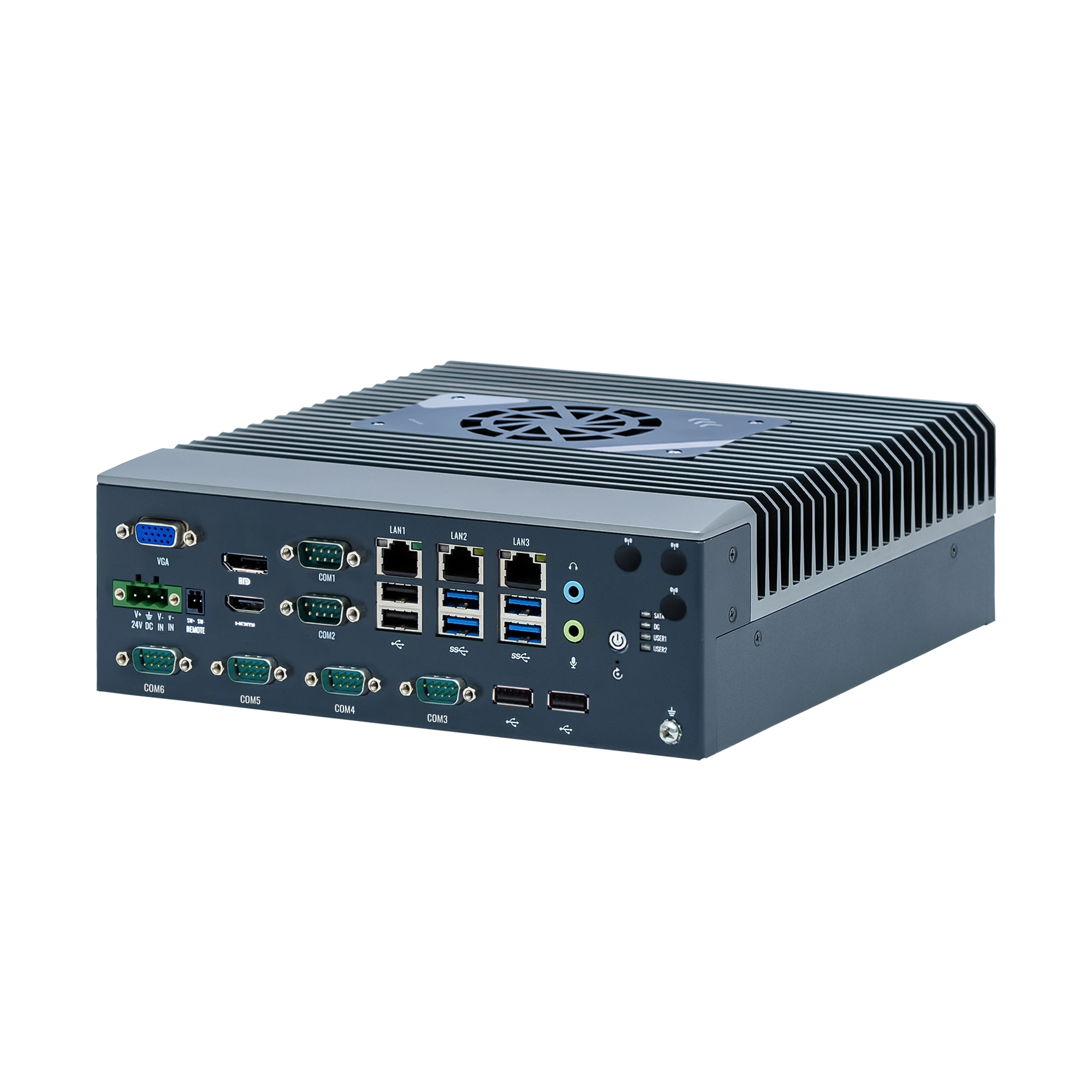

The E511A transcends the typical limits of compact industrial PCs, providing a robust compute platform for edge environments where data density is high and downtime is not an option. Powered by 10th and 11th Gen Intel Core i3 through i7 processors, it provides the computational headroom required for simultaneous multi-stream analytics, complex HMI rendering, and real-time control loops. With the i7-11700 delivering 8-core performance and up to 4.90GHz turbo frequency, the model effectively consolidates multiple specialized controllers into a single compact chassis, turning demanding workloads into streamlined, reliable operations.

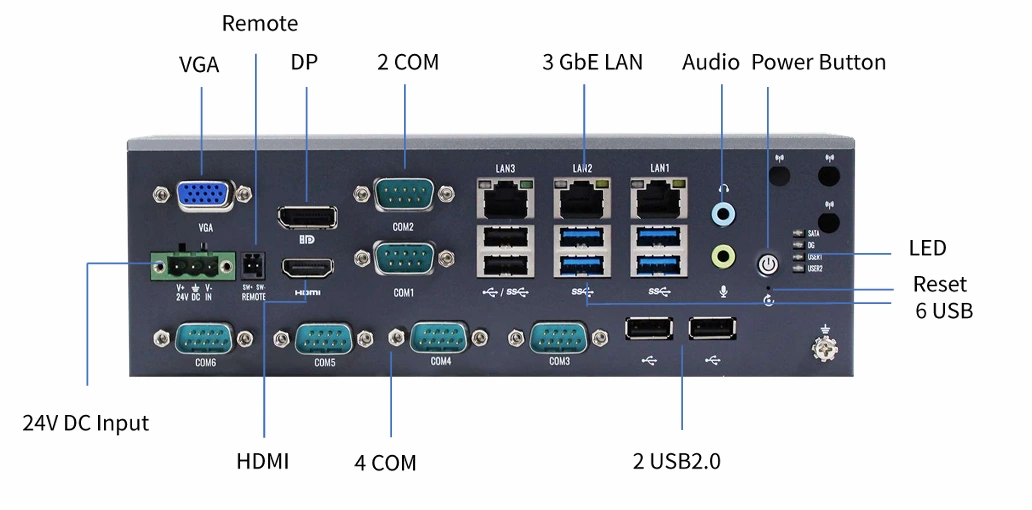

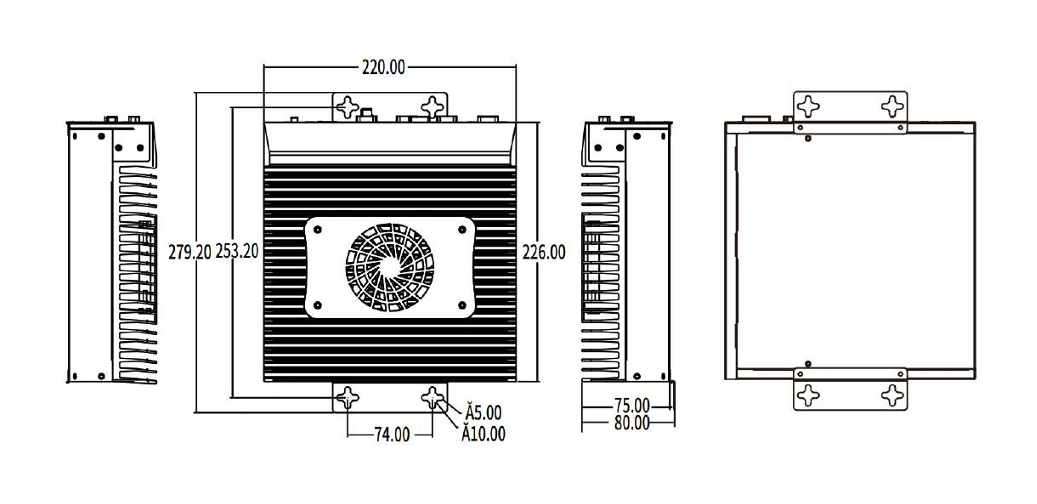

The E511A installs directly on the control cabinet wall without a rack enclosure. 1 DP, 1 HDMI, and 1 VGA output support 3 independent displays simultaneously, covering operator HMI, process monitoring, and diagnostics on separate screens from a single unit. Passive cooling keeps operation quiet and maintenance-free at temperatures from 0 to 50°C with airflow.

The E511A accepts DC 24V input with an optional UPS module, while the cable-free modular internal architecture and watchdog timer ensure continuous operation through power fluctuations and software faults alike.
