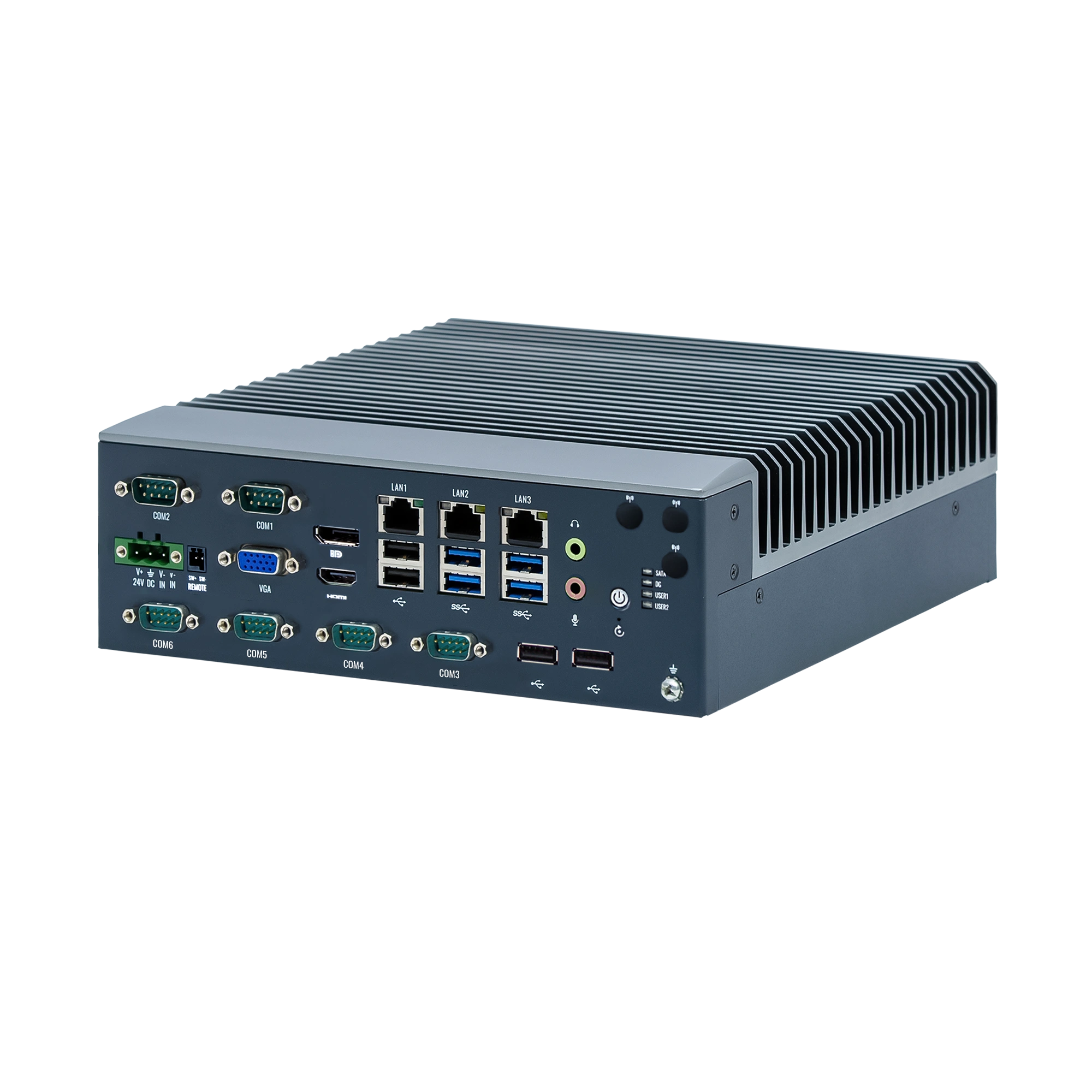

E511-C
- Intel® 12-14th GenCore™i3/ i5/ i7 Processor
- H610/H670/Q670 Chipset
- 3 LAN（2×Intel i210, 1×Intel i219）
- 3 independent display via 1 DP, 1 HDMI and 1 VGA
- 4 USB3.2, 4 USB2.0 (H610) or 6 USB3.2, 2 USB2.0 (H670/Q670) support 2 SATA RAID (support RAID 0/RAID 1, switchable in BIOS)
- 1 RS-232/422/485,3 RS-232/485, 2 RS-232
- Supports 4G/5G, Wi-Fi module expansion
- Modular and cable-free high reliability design
- Product Details
- Specification
- Application
- Download
Serial Connectivity at the Core
In high-precision automation, reliable communication is non-negotiable. The E511-C delivers rock-solid data integrity for PLCs, drives, and meters through 6 native COM ports (RS-232/422/485), while simultaneously supporting up to 8 high-speed USB 3.2/2.0 ports for seamless integration of machine vision cameras and data acquisition devices. Complementing this, 3 GbE LAN ports handle core network connectivity, and internal M.2 slots support 4G/5G and Wi-Fi expansion—all within a cable-free, high-reliability architecture.
Powerful performance
In high-precision automation, reliable communication with drives, PLCs, and instrumentation is non-negotiable. The E511-C provides 6 native COM ports across RS-232, RS-422, and RS-485 protocols, ensuring the rock-solid data integrity that software-based emulators simply cannot match. This allows engineers to integrate PLCs, meters, drives, and other peripherals without the need for a separate COM expander. Complementing this, 3 GbE LAN ports handle core network connectivity, while the internal M.2 slot supports 4G/5G and Wi-Fi module expansion without adding cables to the enclosure.
Wall-Mount Ready with High Reliability
In high-precision automation, reliable communication with drives, PLCs, and instrumentation is non-negotiable. The E511-C provides 6 native COM ports across RS-232, RS-422, and RS-485 protocols, ensuring the rock-solid data integrity that software-based emulators simply cannot match. This allows engineers to integrate PLCs, meters, drives, and other peripherals without the need for a separate COM expander. Complementing this, 3 GbE LAN ports handle core network connectivity, while the internal M.2 slot supports 4G/5G and Wi-Fi module expansion without adding cables to the enclosure.
Specifications
| E511-C Series | ||
| CPU | CPU | Intel® 12-14th Gen Core™ Processors |
| TDP | 65W Max | |
| Socket | LGA1700 | |
| Chipset | H610/H670/Q670 | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | Technology | Dual channel 262-pin DDR5 SO-DIMM |
| Max Max. Capacity | 64GB | |
| Graphic | Controller | Intel UHD Graphics 770 |
| DP | 1 x DP1.4a, resolution up to 4096x2304@60Hz | |
| HDMI | 1 x HDMI2.0b, resolution up to 4096 x 2160@60 Hz | |
| VGA | 1 x VGA, resolution up to 1920 x 1200@60Hz | |
| External I/O | LAN | 2 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN |
| Serial Port | COM 1: RS-232/422/485, COM 2&6: RS-232, COM 3 to 5: RS-232/485 | |
| USB 3.2 | H610: 4 USB3.2 (2 x GEN1, 2 x GEN2)Q670/H670: 6 USB3.2 (GEN2) | |
| USB 2.0 | H610: 4 USB2.0Q670/H670: 2 USB2.0 | |
| audio | 1 x Line out, 1 x Mic in | |
| LED & Switch | Power Button | 1 x Power Button |
| Reset | 1 x Reset | |
| LED | 4 (SSD, Memory, User 1, User 2) | |
| Expansion | USB | 1 x Internal USB2.0 (Type A) |
| M.2 E-Key | 1 x M.2 2230 supports Wi-Fi (supports PCIe Protocol) | |
| M.2 B-Key | 1 x M.2 3042 B-Key supports 4G (H610), 1 x M.2 3052 B-Key supports 4G/5G (H670/Q670); or 1 x M.2 2280 supports SATA3.0 | |
| M.2 M-Key | 1 x M.2 2280 M-Key SATA3.0 | |
| SIM | 1 x NANDO SIM | |
| Power Supply | Power Input | 24V DC |
| Power Management | AT/ATX | |
| Max.Consumpt ion | 240W | |
| Others | Watchdog | 65536 levels, 0 to 65535 sec |
| TPM | TPM2.0(Optional) | |
| Physical Characteristics | Installation | Wall mount |
| Dimension | 220 x 226 x 75 mm (L x W x H) | |
| Weight | 3.4 kg | |
| Environment | Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage | -40 to 85 °C (-40 to 185°F) | |
| Temperature | -40 to 85 °C (-40 to 185°F) | |
| Operating Humidity | 95% @ 40 °C(Non-Condensing) | |
| Storage Humidity | 95% @ 60 °C(Non-Condensing) | |
| Certification | EMC | CE, FCC |
| OS | OS | Windows 10/11, Centos 8, Ubuntu 20.04/22.04/24.04 |

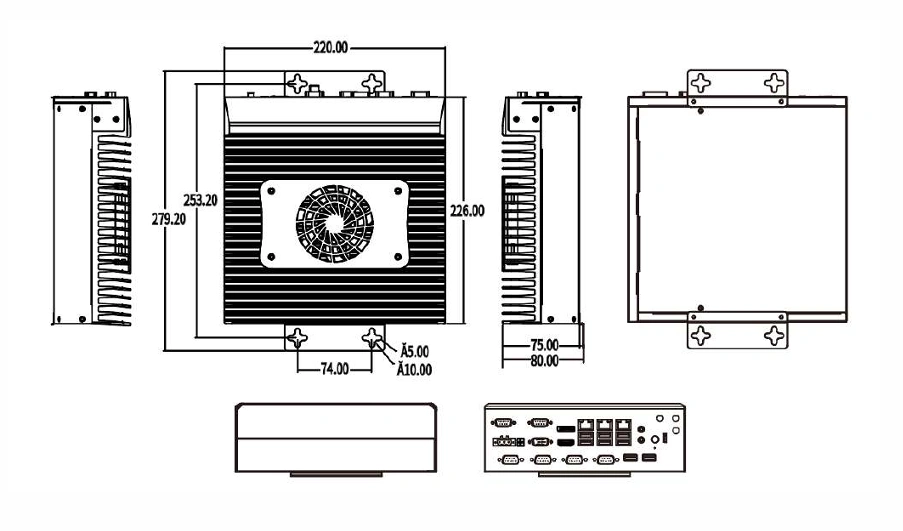

Dimensions

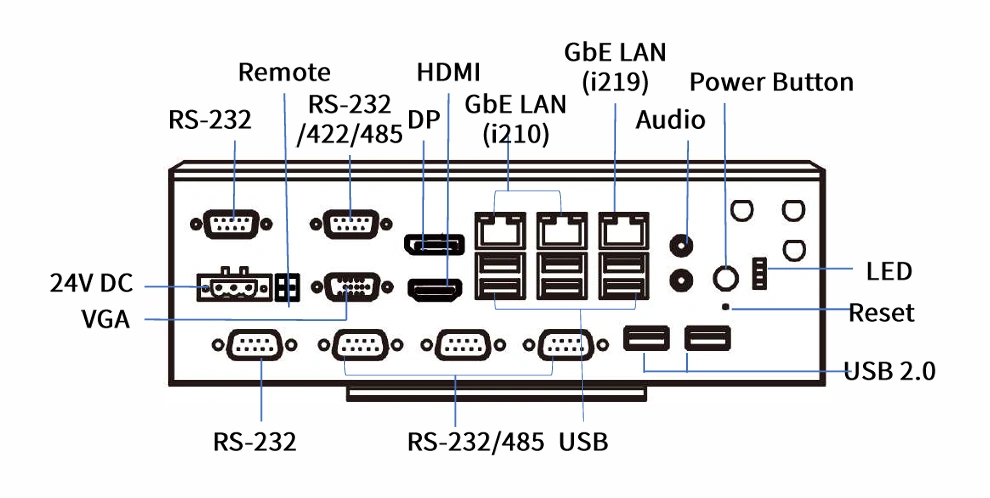

Interfaces
