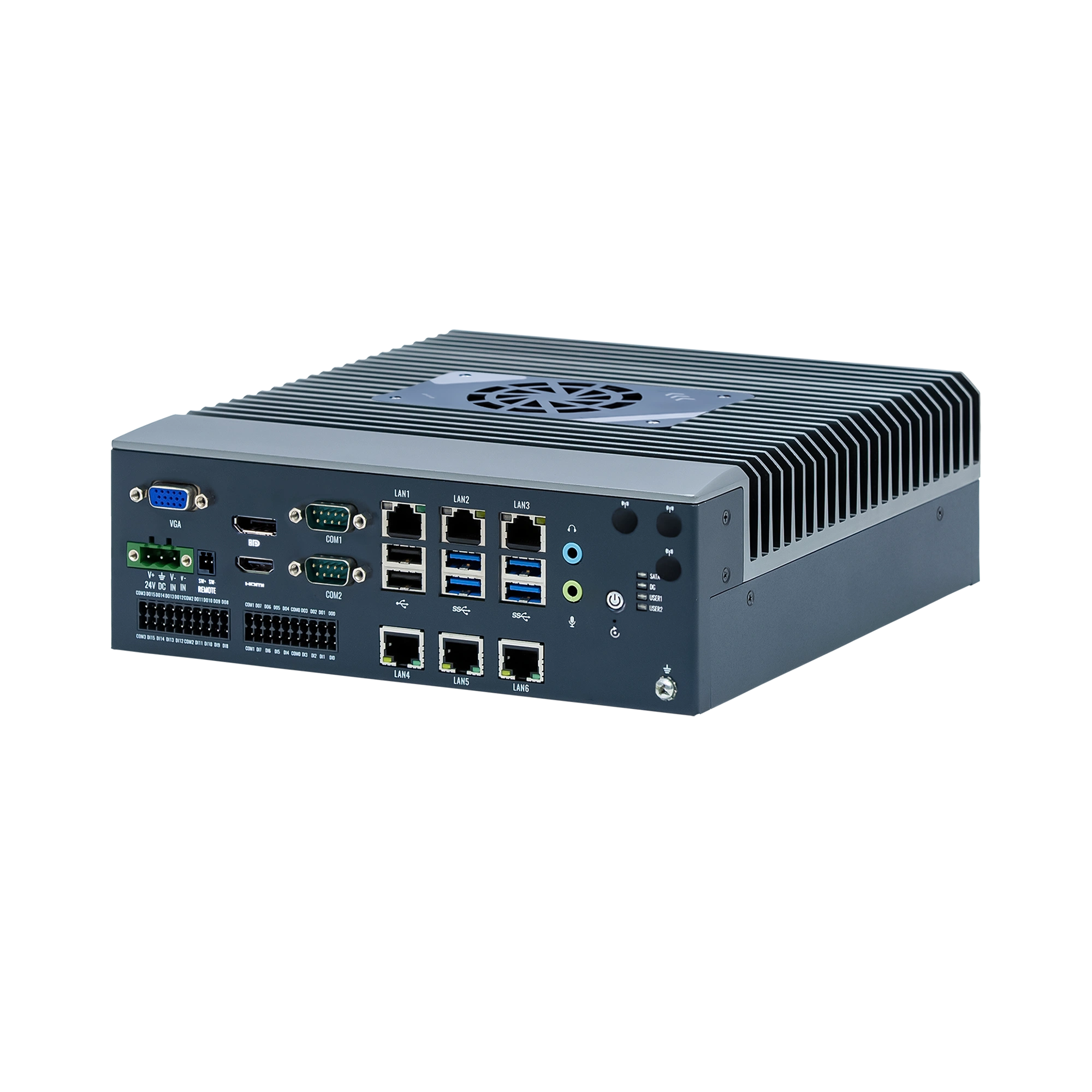

E510A
- Intel® 10-11th generation Core™ i3/ i5/ i7 Processor
- 6 LAN (5 x Intel i210, 1 x Intel i219)
- 3 independent display via 1 DP, 1 HDMI and 1 VGA
- 4 USB 3.0, 2 USB 2.0 (H420E) or 6 USB3.0 (H470/Q470)
- 1 RS-232, 1 RS-232/422/485
- 16 DI, 16 DO
- Supports 4G/5G, Wi-Fi module expansion
- Product Details
- Specification
- Application
- Download
Multi-Network Reach and Direct I/O Control, One Platform
Large-scale automation lines require both extensive network reach and direct device control. The E510A combines 6 GbE LAN ports for multi-segment network routing with 32 channels of digital I/O, allowing engineers to manage multiple subnets while directly controlling sensors and actuators from a single platform, eliminating the need for separate I/O controllers. 2 COM ports cover serial device communication, and the internal M.2 slot supports 4G/5G and Wi-Fi expansion without adding cables to the enclosure.
Unleashing High-Density Compute for Real-Time Edge Intelligence
The E510A transcends the typical limits of compact industrial PCs, providing a robust compute platform for edge environments where data density is high and downtime is not an option. Powered by 10th and 11th Gen Intel Core i3 through i7 processors, it provides the computational headroom required for simultaneous multi-stream analytics, complex HMI rendering, and real-time control loops. With the i7-11700 delivering 8-core performance and up to 4.90GHz turbo frequency, the E510A effectively consolidates multiple specialized controllers into a single c0mpact chassis, turning demanding workloads into streamlined, reliable operations.

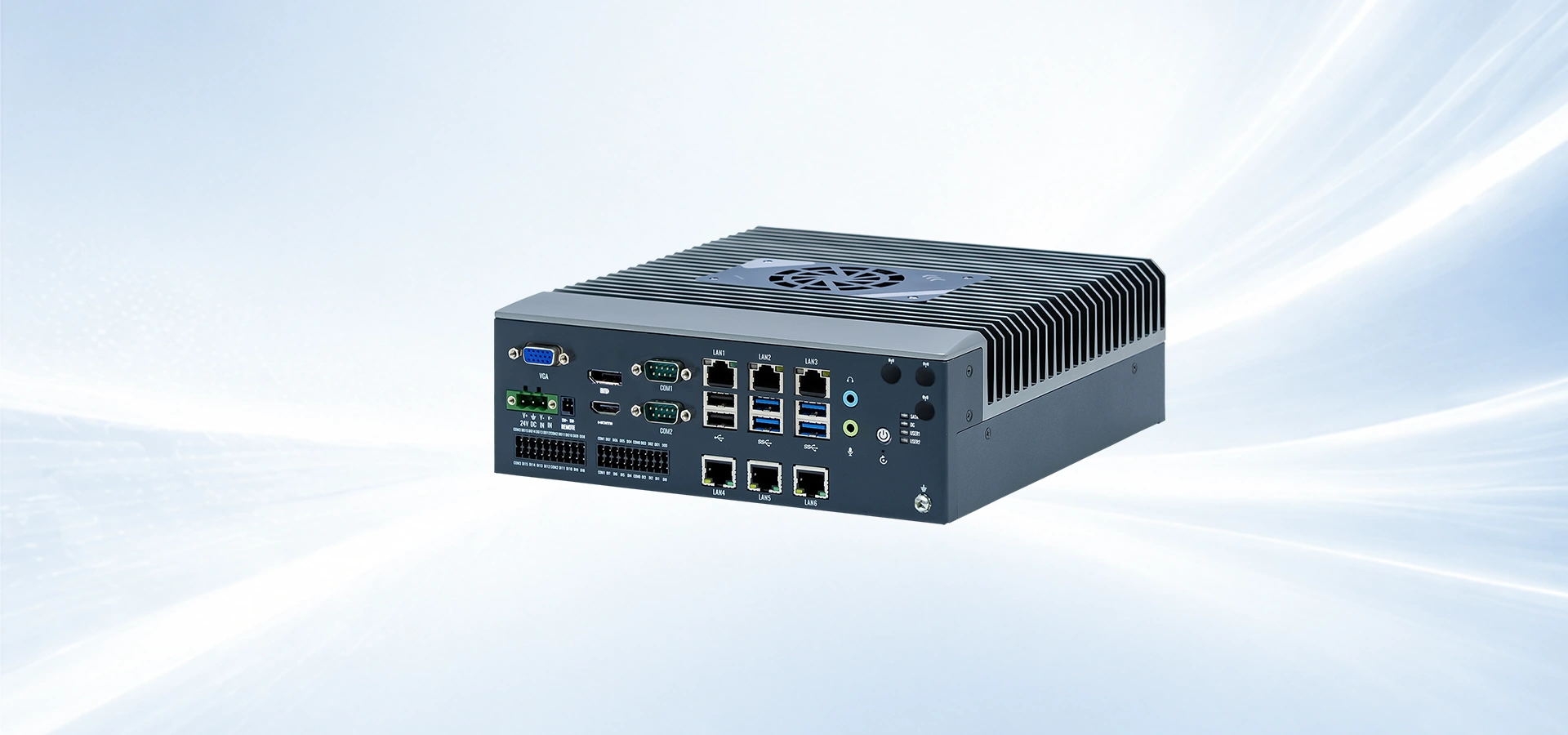

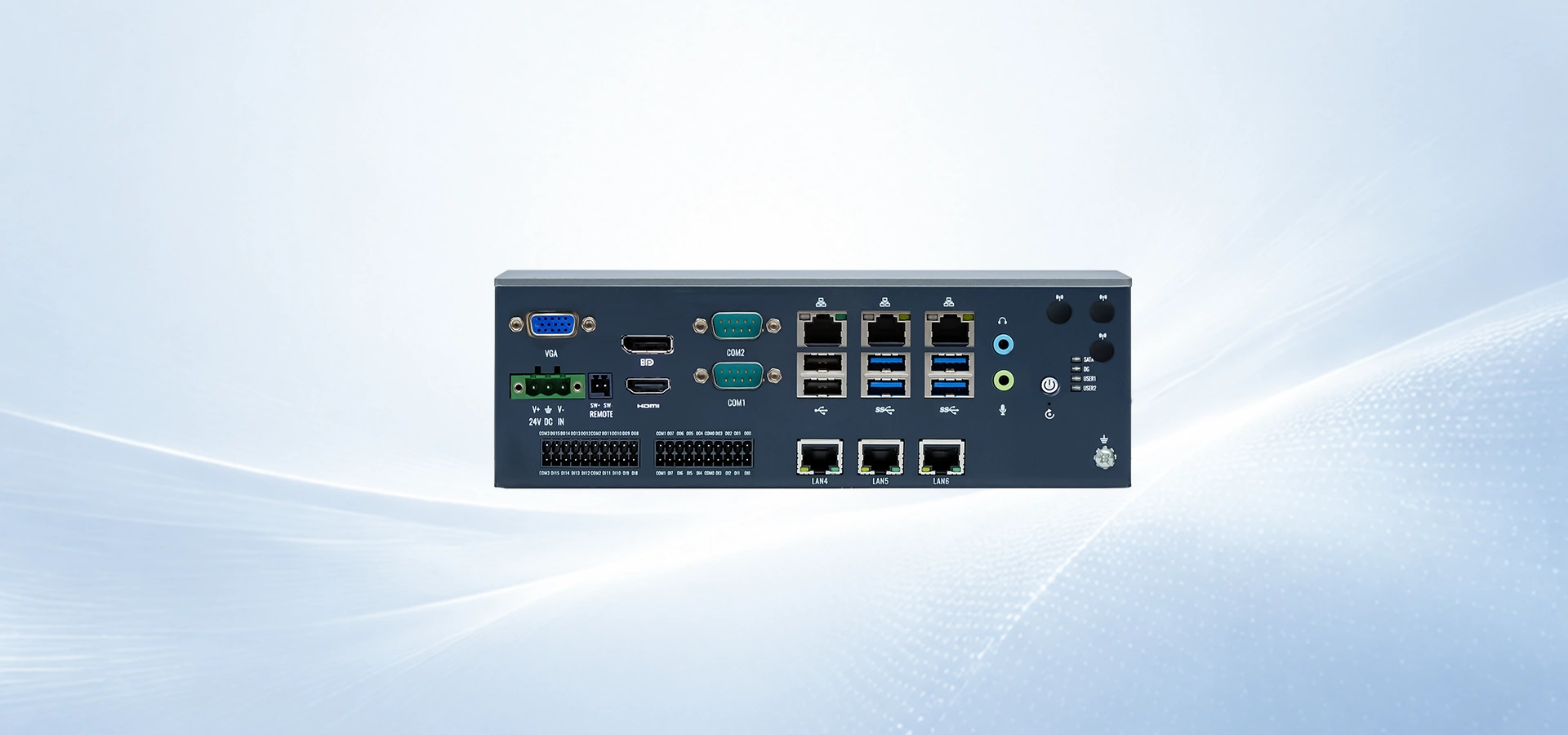

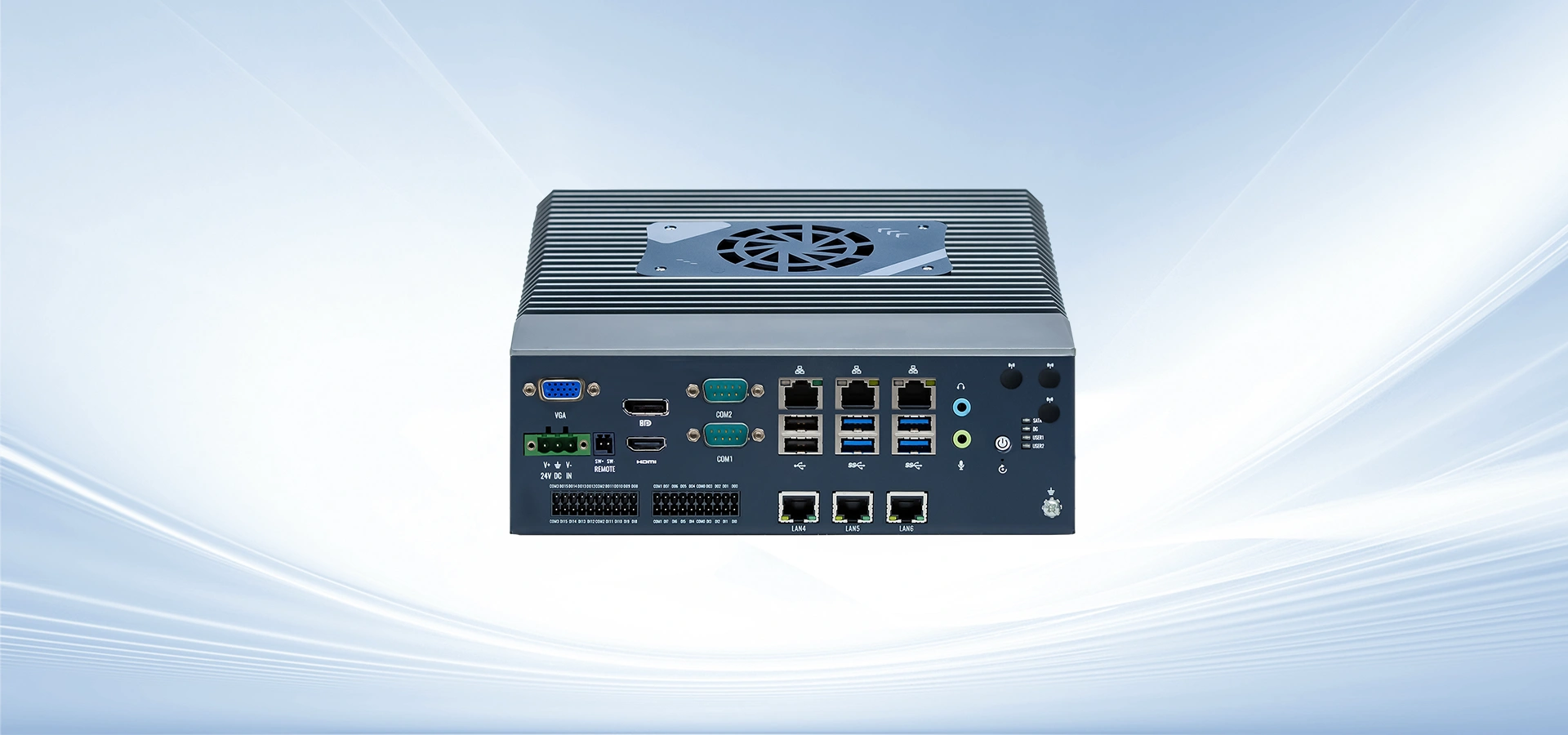

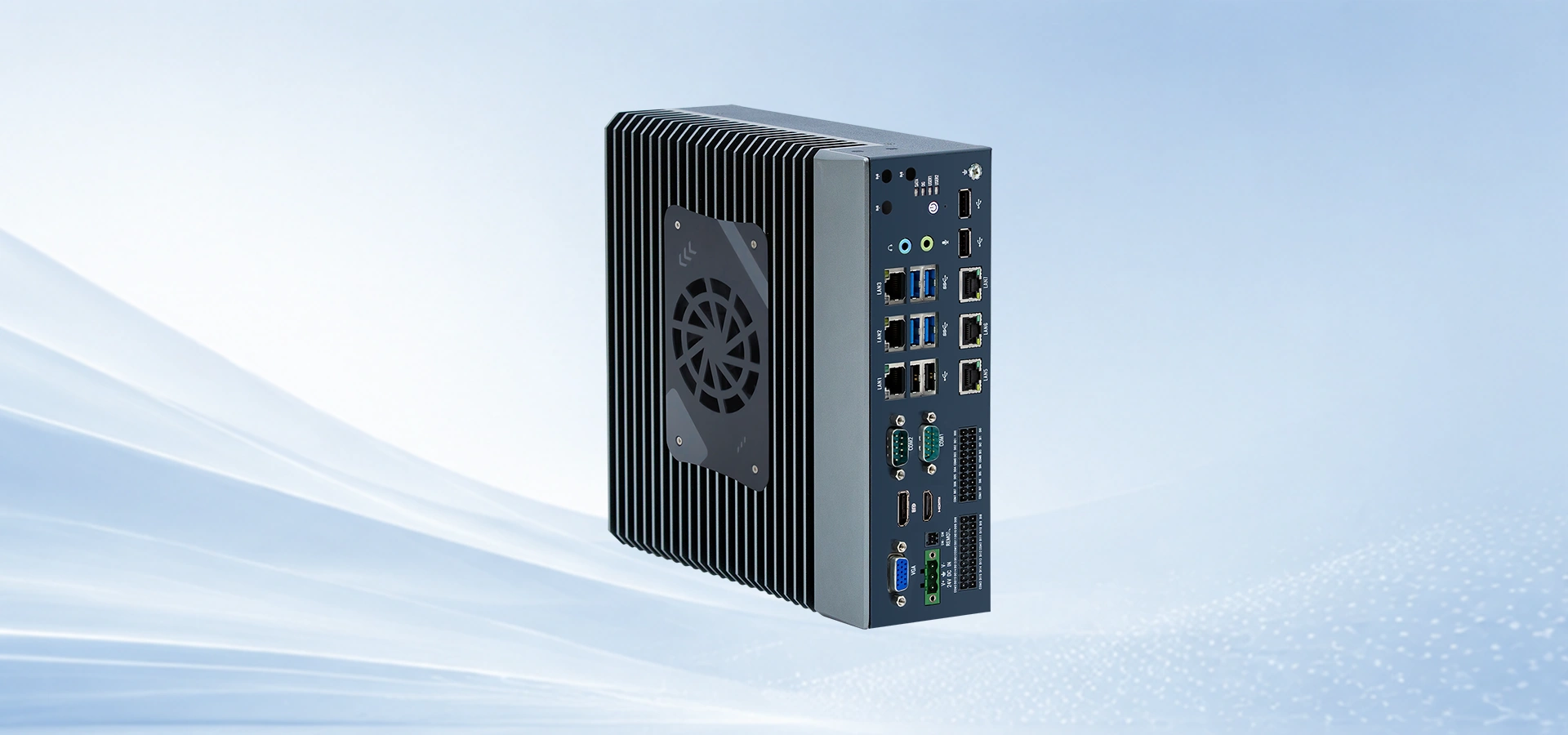

Wall-Mount Ready, 3 Displays Supported
The E510A installs directly on the control cabinet wall without a rack enclosure. 1 DP, 1 HDMI, and 1 VGA output support 3 independent displays simultaneously, covering operator HMI, process monitoring, and diagnostics on separate screens from a single unit. Passive cooling keeps operation quiet and maintenance-free at temperatures from 0 to 50°C with airflow.
High Reliability
The E510A accepts DC 24V input with an optional UPS module, while the cable-free modular internal architecture and watchdog timer ensure continuous operation through power fluctuations and software faults alike.
Specifications
| Processor System | CPU | Intel® 10-11th generation Core™ i3/ i5/ i7 CPU |
| Chipset | Q470/H470/H420E | |
| BIOS | AMI 256Mbit SPI Flash | |
| Slot | LGA1200 | |
| TDP | Max 65W | |
| Memory | Technology | 2 x DDR4 |
| Max. Capacity | 64 GB | |
| Graphics | Controller | Intel UHD Graphics Supports DirectX12, OpenGL 4.5 and OpenCL 2.1 |
| Feature | 3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8,MPEG2,MJPEG | |
| Storage | M.2 M-Key | 1 x M.2 2280 SATA3.0 |
| DP | 1 x DP1.4, resolution up to 4096 x 2304@60 Hz | |
| HDMI | 1 x HDMI1.4, resolution up to 4096 x 2160@30 Hz | |
| VGA | 1 x VGA, resolution up to 1920 x 1200@60 Hz | |
| Ethernet | 5 x Intel i210, 1 x Intel i219 GbE LAN | |
| USB 3.0 | 4 (H420E)/ 6 (Q470) | |
| USB 2.0 | 2 (H420E)/ 0 (Q470) | |
| Serial Port | COM1: RS-232, COM2: RS-232/422/ 485 | |
| DIO | 16 x DI, 16 x DO | |
| Audio | 1 x Mic-In, 1 x Line-Out | |
| Power Connector | 3-pin Phoenix terminal | |
| Remote | 1 x Remote | |
| LED & Switch | LED Indicator | SSD, DG(Memory), User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset | |
| Inside Connectors | M.2 E-Key | 1 x M.2 2230 supports Wi-Fi (Q470/H470: supports both CNVI and PCIe protocol; H420E: supports PCIe protocol) |
| M.2 B-Key | 1 x M.2 3052 supports 4G/5G | |
| USB 2.0 | 1 x USB 2.0 Type-A | |
| SIM | 1 x NANDO SIM | |
| Power Supply | Power Input | DC 24V |
| Others | Watchdog | 65536 levels, 0 to 65535 second |
| TPM | TPM 2.0(Optional) | |
| Environment | Operating Temperature | 0 to 50 °C(32 to 122°F) with airflow 0.7 m/s |
| Storage Temperature | -40°C to 85°C(-40 to 185°F) | |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | |
| Storage Humidity | 95% @ 60 °C (Non-condensing) | |
| Physical Characteristics | Dimension | 220 x 226 x 75 mm (L x W x H) |
| Weight | 3.4 kg | |
| Installation | Wall mount | |
| Certification | EMC | CE, FCC |
| OS | OS | Windows 10/11, CentOS 8, Ubuntu 20.04/22.04 |
Dimensions

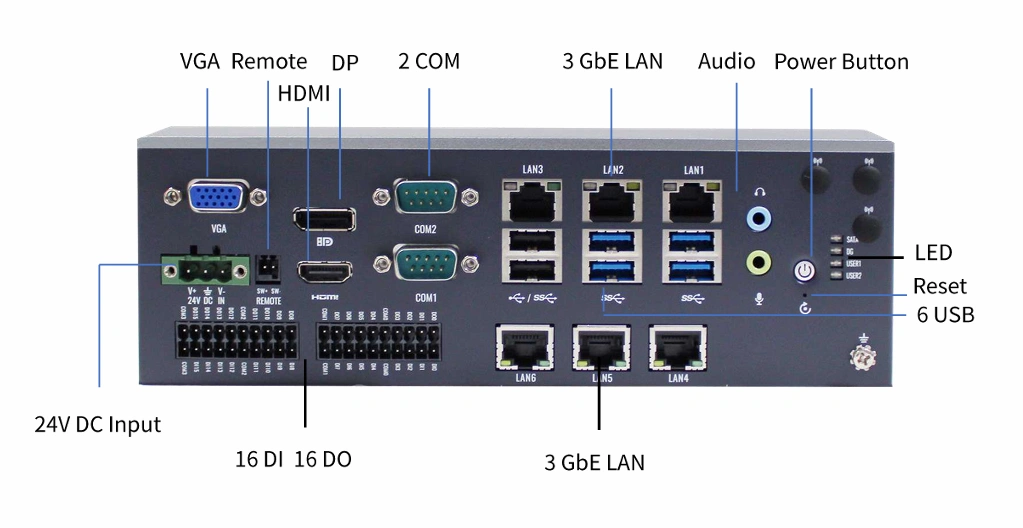

Interfaces
