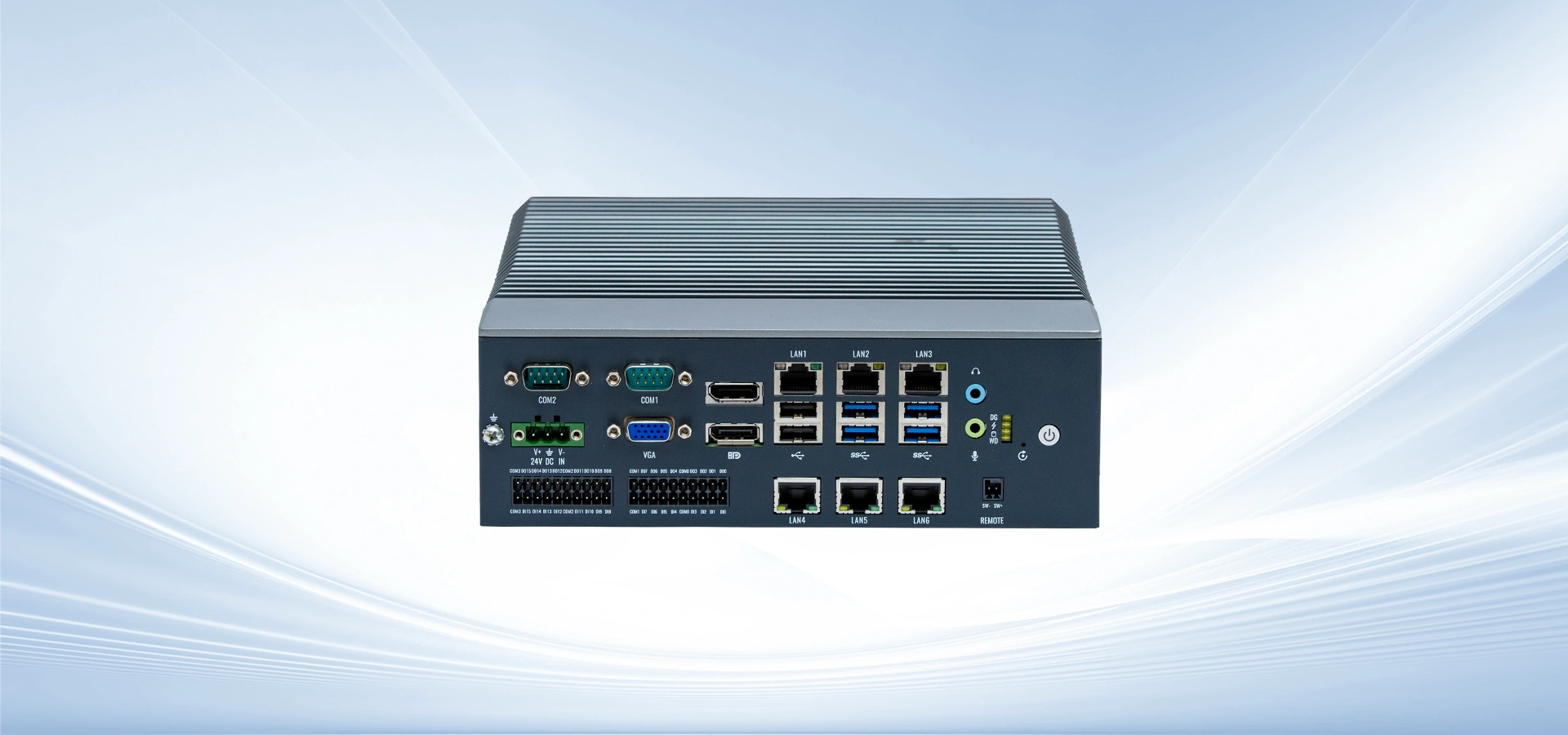

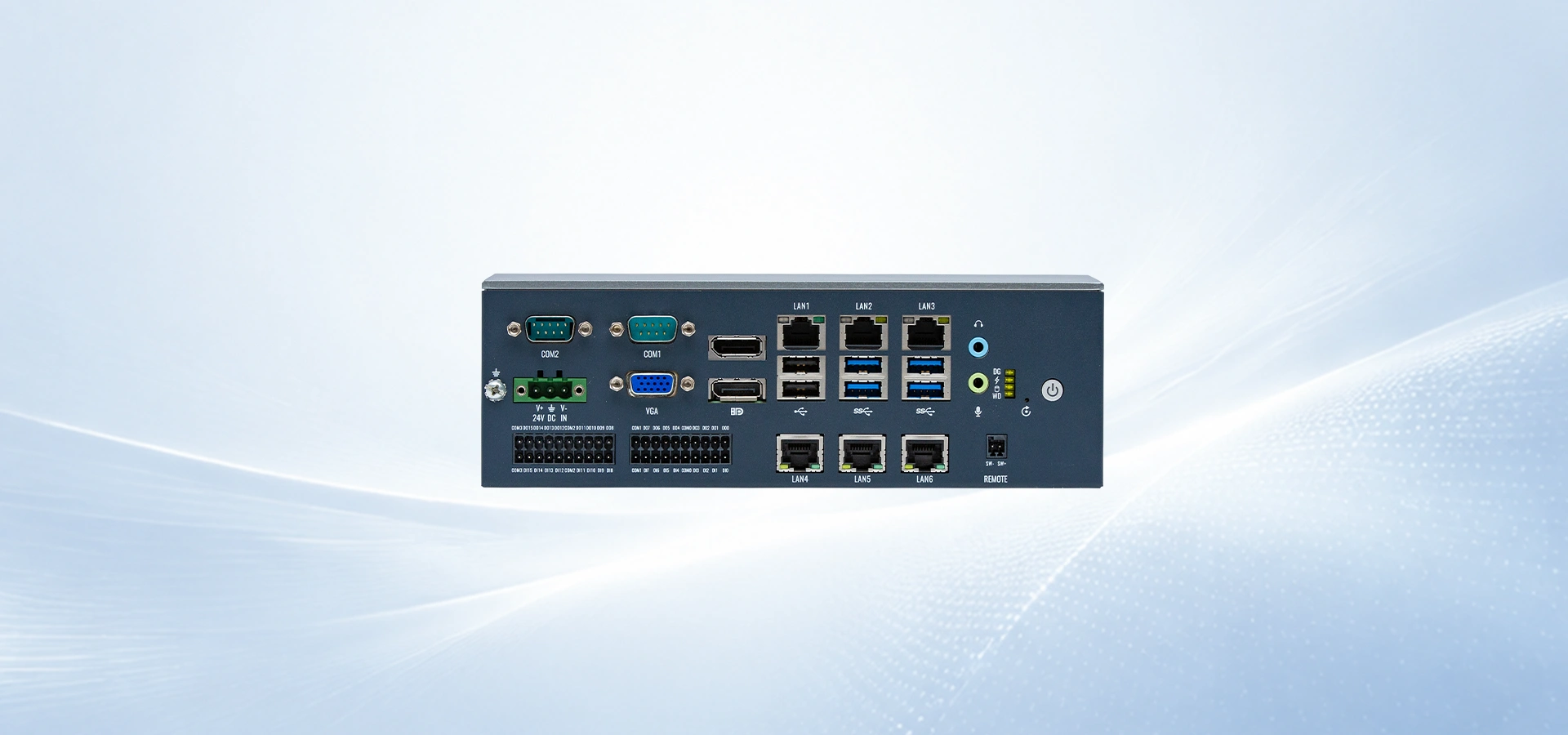

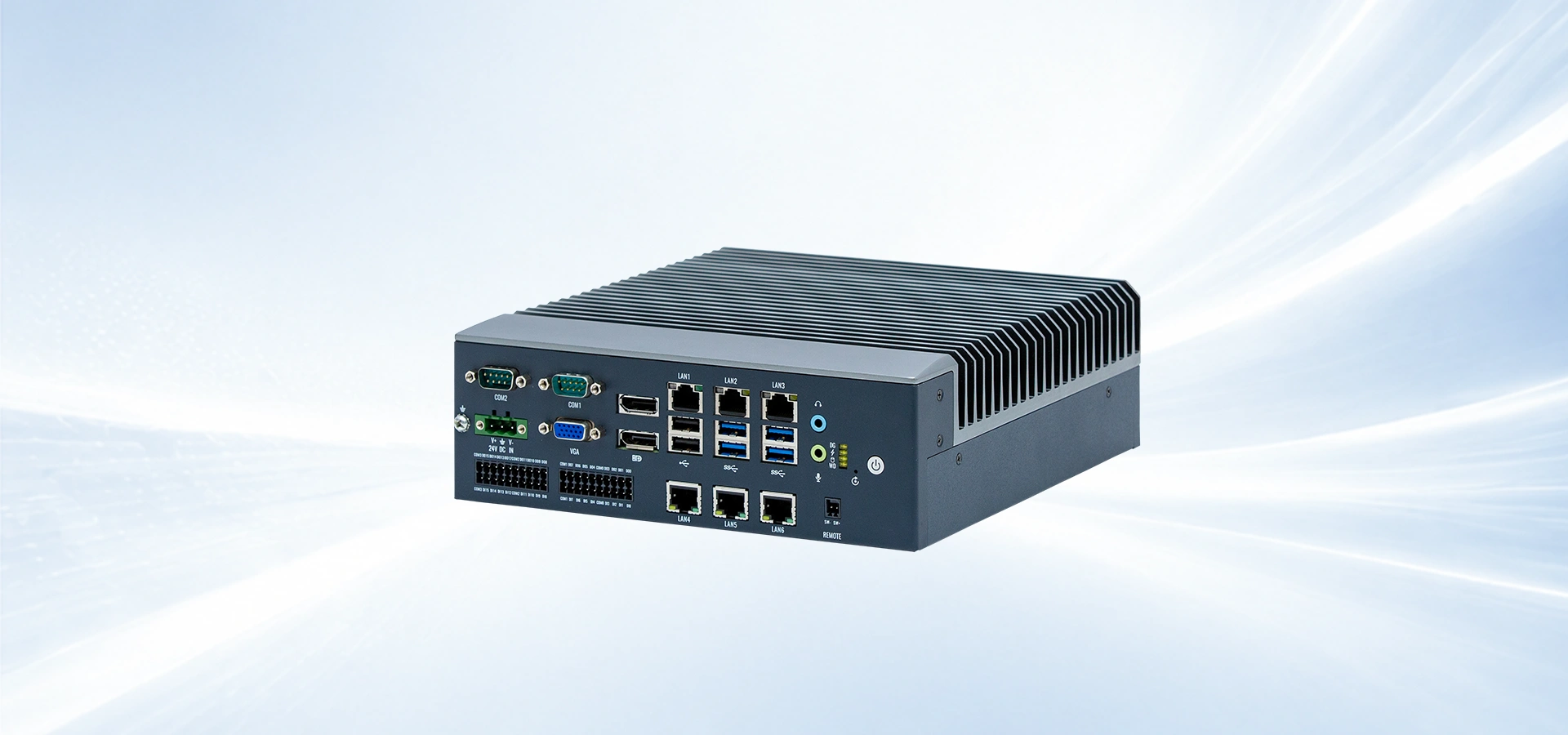

E510
- Intel® 6th to 9th generation Core™ i3/ i5/ i7 Processor
- 6 LAN (5 x Intel i210, 1 x Intel i219)
- 3 independent display via 2 DP and 1 VGA
- 4 USB 3.0, 2 USB 2.0
- 1 RS-232, 1 RS-232/422/485
- 16 DI, 16 DO
- Supports 4G/5G, Wi-Fi module expansion
- Product Details
- Specification
- Application
- Download
Multi-Network Reach and Direct I/O Control, One Platform
Large-scale automation lines require both extensive network reach and direct device control. The E510 combines 6 GbE LAN ports for multi-segment network routing with 32 channels of digital I/O, allowing engineers to manage multiple subnets while directly controlling sensors and actuators from a single platform, eliminating the need for separate I/O controllers. 2 COM ports cover serial device communication, and the internal M.2 slot supports 4G/5G and Wi-Fi expansion without adding cables to the enclosure.
Uncompromising Performance for Complex Edge Workloads
When standard automation tasks evolve into complex data handling and real-time HMI rendering, the E510 delivers the necessary compute headroom without sacrificing the fanless, compact form factor. It harnesses Intel Core processors from i3 to i7, bridging the gap between low-power edge devices and bulky rack-mount servers. At the top end, the i7-9700 delivers 8 cores at 4.70GHz turbo frequency, covering the most demanding real-time control and data processing workloads in a fully fanless chassis.

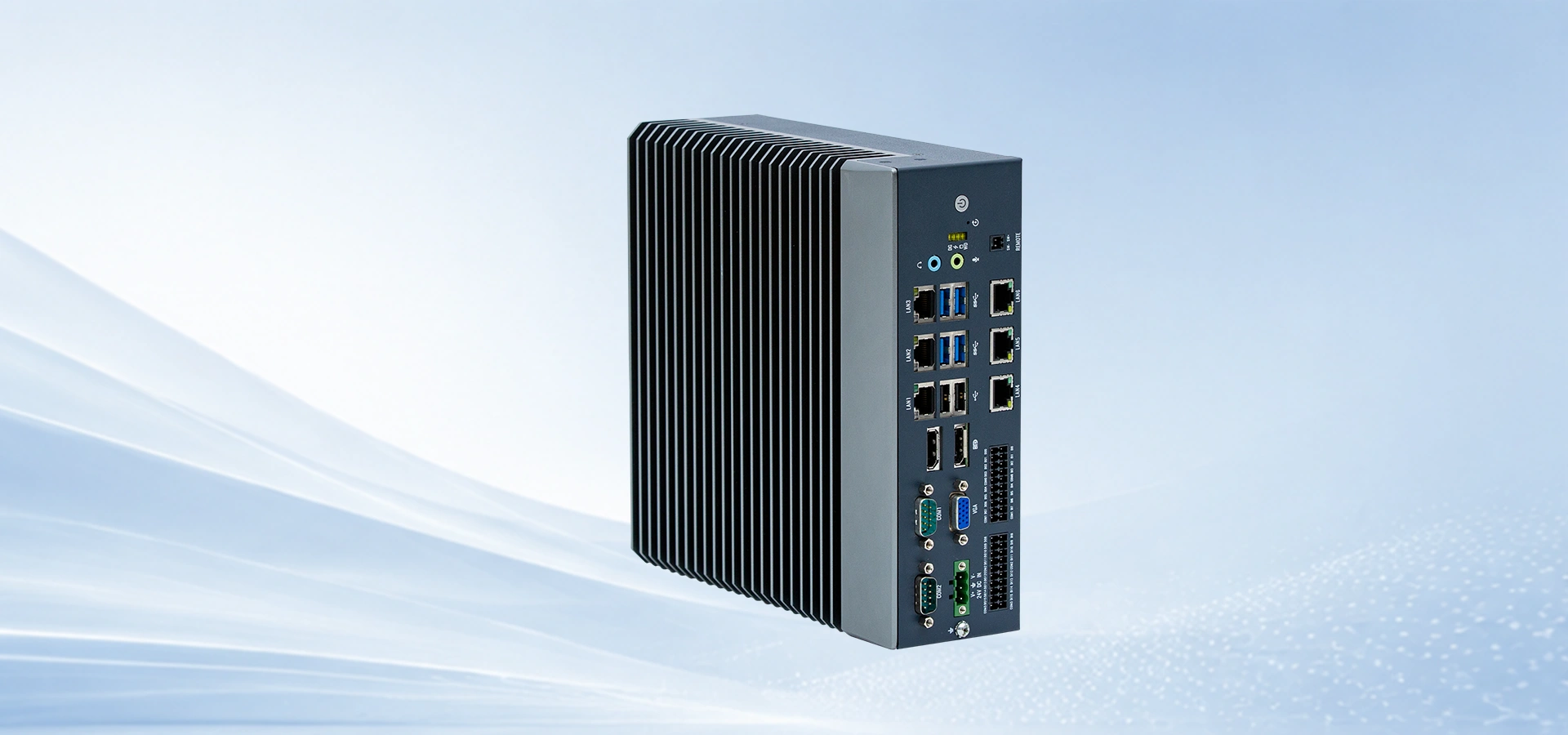

Wall-Mount Ready, Three Displays Supported
The E510 installs directly on the control cabinet wall without a rack enclosure. Two DP outputs and one VGA port support three independent displays simultaneously, covering operator HMI, process monitoring, and diagnostics on separate screens from a single unit. Passive cooling keeps operation quiet and maintenance-free at temperatures from 0 to 50°C with airflow.
High Reliability
The E510 accepts DC 24V input with an optional UPS module, while the cable-free modular internal architecture and watchdog timer ensure continuous operation through power fluctuations and software faults alike.
Specifications
| Items | Descriptions | |
| Processor System | CPU | 6th ~9th generation Intel® Core™ Series CPU |
| TDP | Max 65W | |
| Socket | LGA1151 | |
| Chipset | H110 | |
| BIOS | AMI 64MB UEFI BIOS | |
| Memory | Technology | Dual channel 260-PIN DDR4 SO-DIMM |
| Capacity | Max 64GB | |
| DP | 2 x DP, resolution up to 4096 x 2304@60 Hz | |
| VGA | 1 x VGA, resolution up to 1920 x 1080@60 Hz | |
| Ethernet | 5 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN | |
| USB | 4 x USB 3.0, 2 x USB 2.0 | |
| External I/O | Serial Port | COM 1: RS-232, COM 2: RS-232/422/485 |
| DIO | 16 x DI, 16 x DO | |
| Audio | 1 x Line-out, 1 x Mic-in (Realtek ALC 662) | |
| Power Input Connector | 3 PIN Phoenix terminal | |
| Remote | 1 x Remote | |
| LED & Switch | LED | Memory, Stand by, SSD, Watchdog |
| Power Button | 1 x Power Button | |
| Clear CMOS | 1 x Clear CMOS | |
| Internal Connectors | Mini PCIe | 1 x full size Mini PCIe, support WLAN/WWAN module |
| M.2 | 1 x M.2 B-Key 2280 | |
| SATA 3.0 | 1 x SATA 3.0 | |
| USB 2.0 | 1 x USB 2.0 Type-A | |
| Power Supply Others | Power Input | 24V DC (9-36V configuration is optional) |
| Watchdog | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec | |
| Material | Aluminum | |
| Physical Characteristics | Size | 220 x 226 x 75mm (L x W x H) |
| Weight | 3.3 Kg | |
| Installation | Wall mounting | |
| Environment | Operating Temperature | 0~50 °C (32~122°F) with airflow 0.7 m/s |
| Storage Temperature | -40~85 °C (-40~185°F) | |
| Operating Humidity | 95% @ 40 °C (Non-condensing) | |
| Storage Humidity | 95% @ 60 °C (Non-condensing) | |
| Certification OS | EMC | CE, FCC |
| Operation System | Windows 7 (Only Gen 6th), Windows 10, centos 7/8, ubuntu 18.04~24.04, etc | |

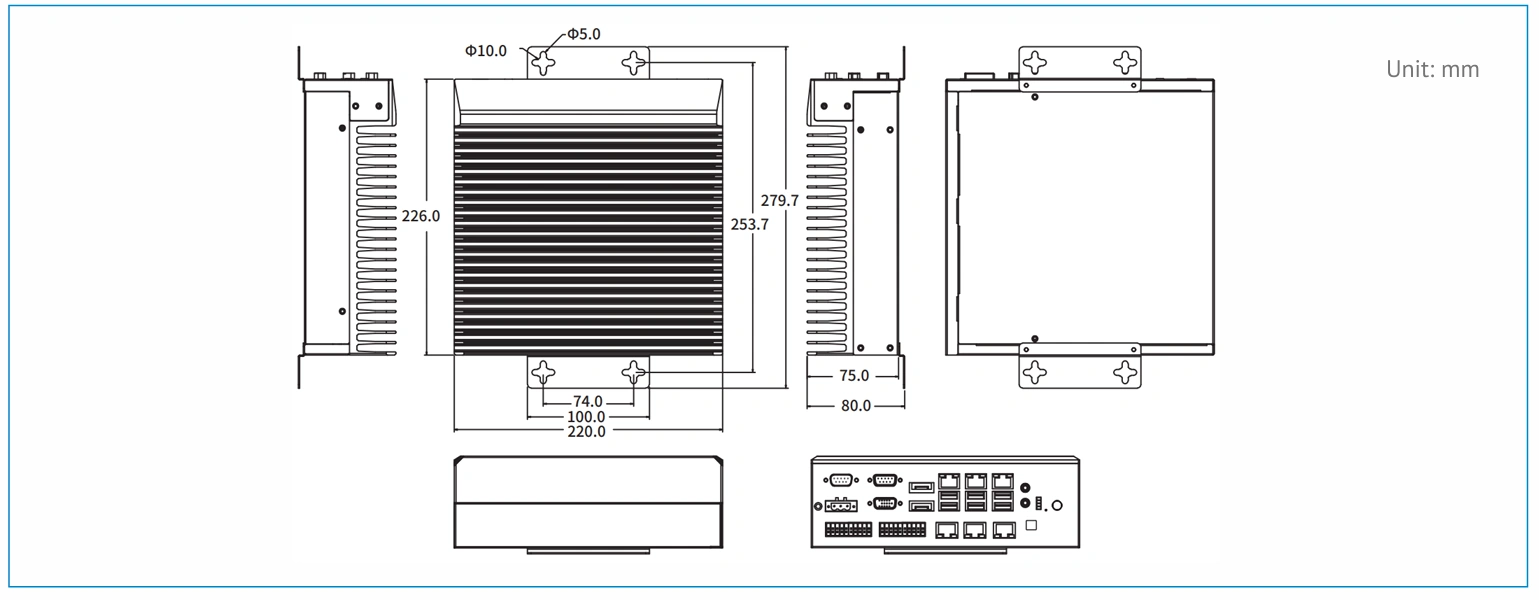

Dimensions

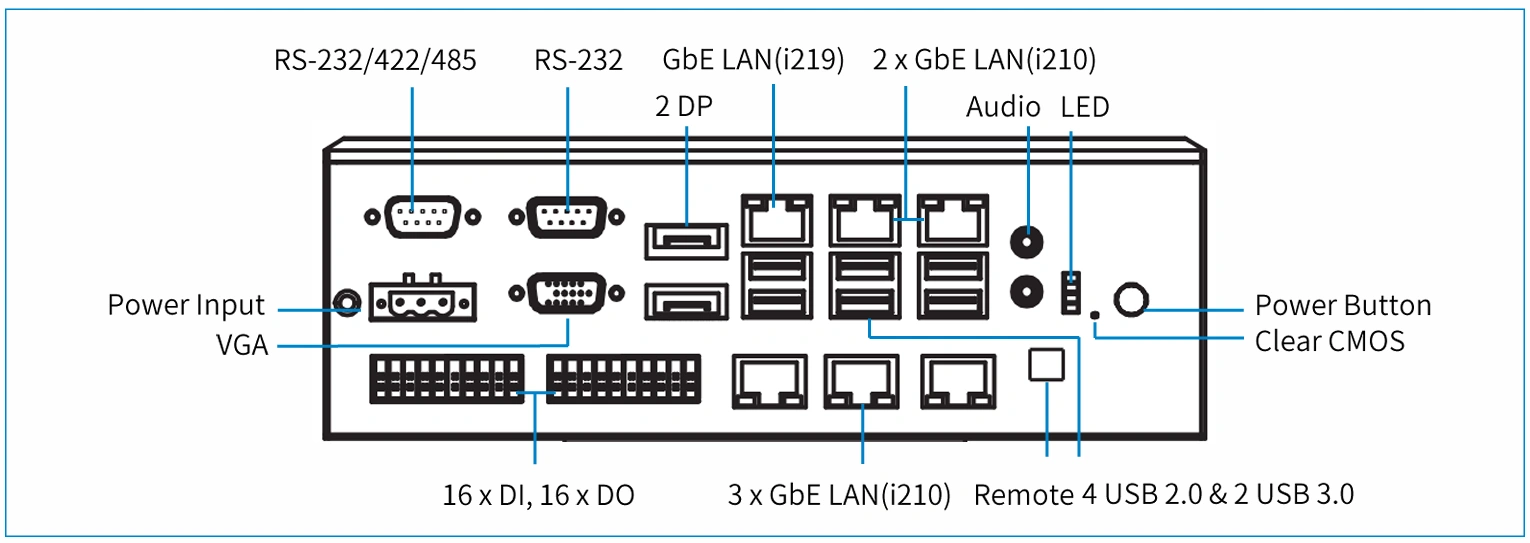

Interfaces
