When standard automation tasks evolve into complex data handling and real-time HMI rendering, the E500A delivers the necessary compute headroom without sacrificing the compact form factor. It harnesses 10th and 11th generation Intel Core processors from i3 to i7, bridging the gap between low-power edge devices and bulky rack-mount servers. At the top end, the i7-11700 delivers 8 cores at 4.90GHz turbo frequency, covering the most demanding real-time control and data processing workloads in a fully compact chassis.

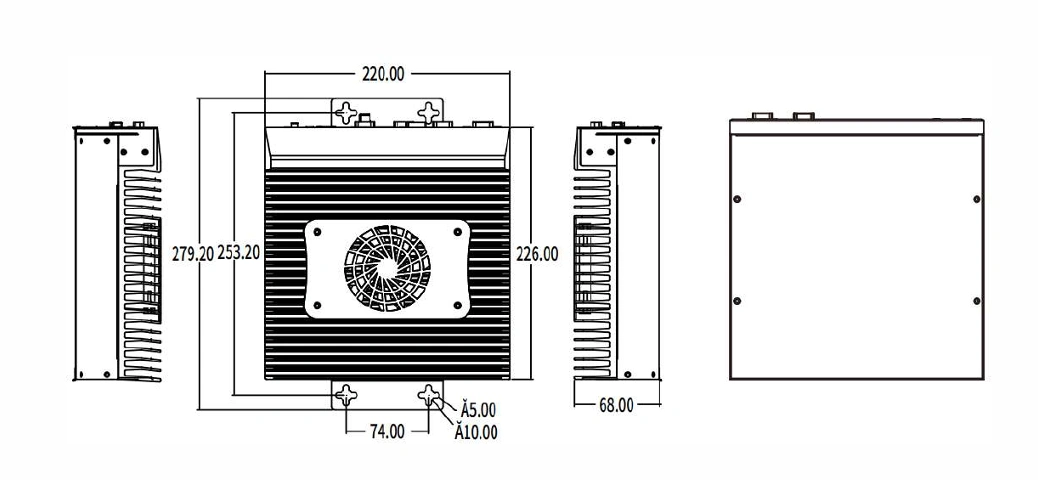

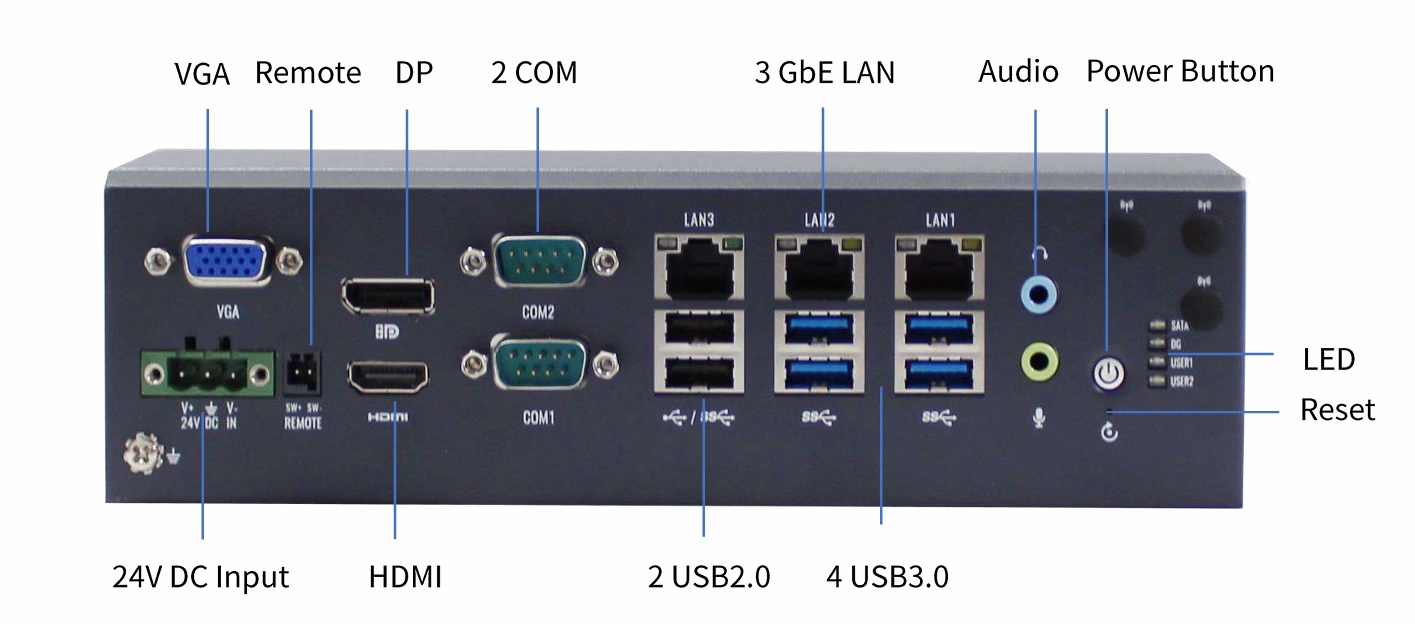

The E500A installs directly on the control cabinet wall without a rack enclosure. One DP, one HDMI, and one VGA output support three independent displays simultaneously, covering operator HMI, process monitoring, and diagnostics on separate screens from a single unit. Passive cooling keeps operation quiet and maintenance-free at temperatures from 0 to 50°C with airflow.

The E500A accepts DC 24V input with an optional UPS module, while the cable-free modular internal architecture and watchdog timer ensure continuous operation through power fluctuations and software faults alike.
