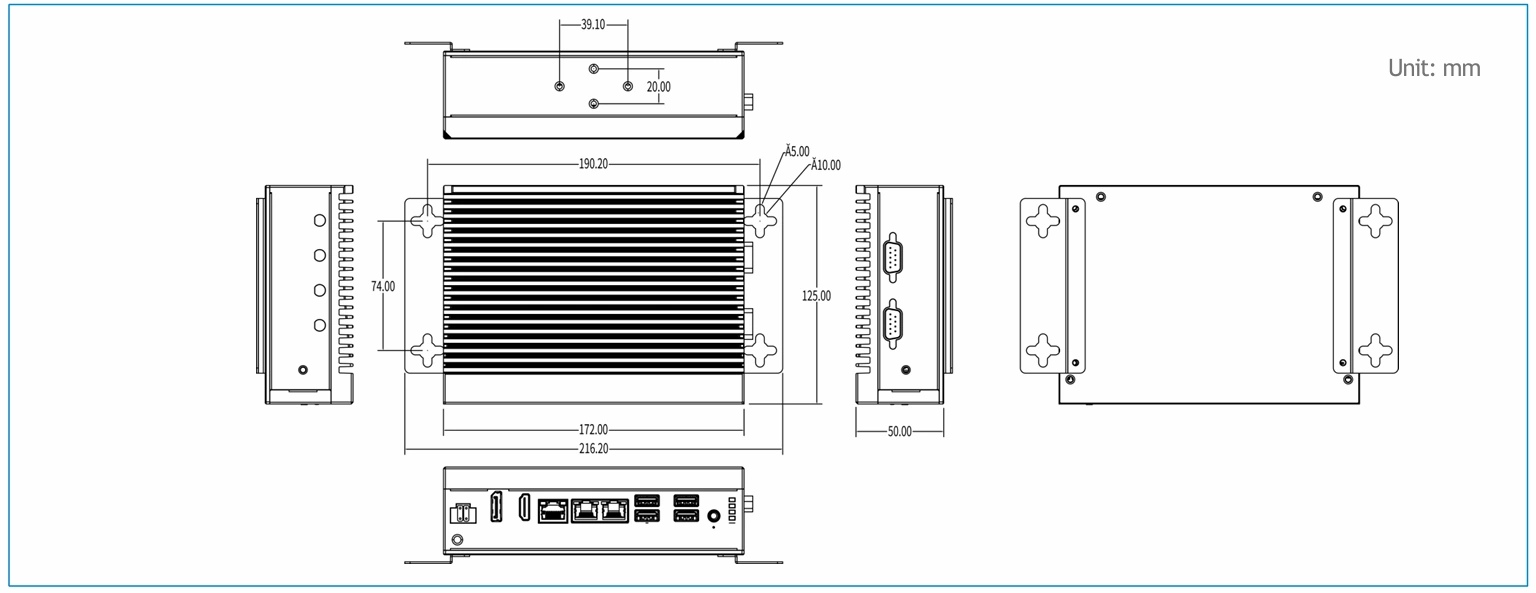

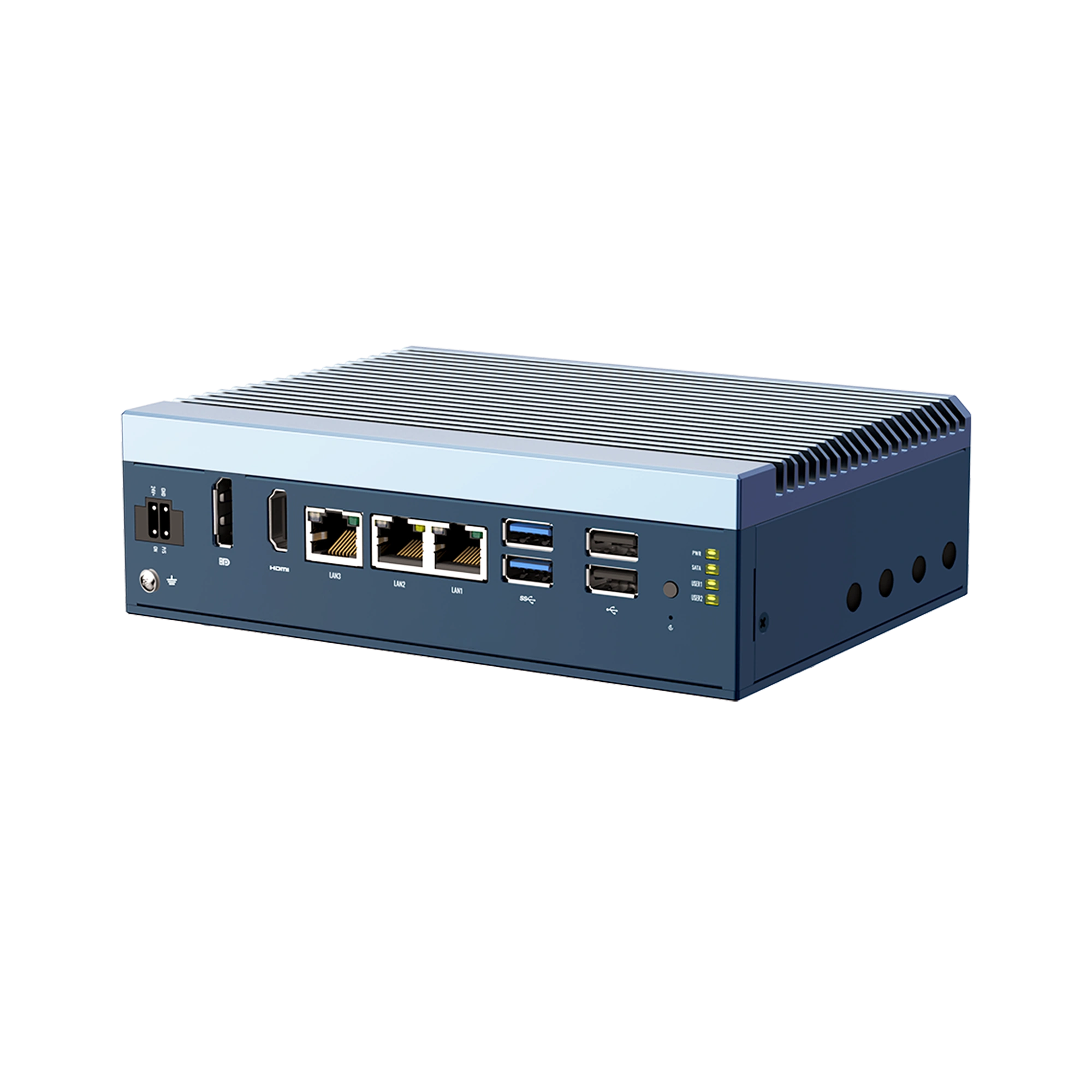

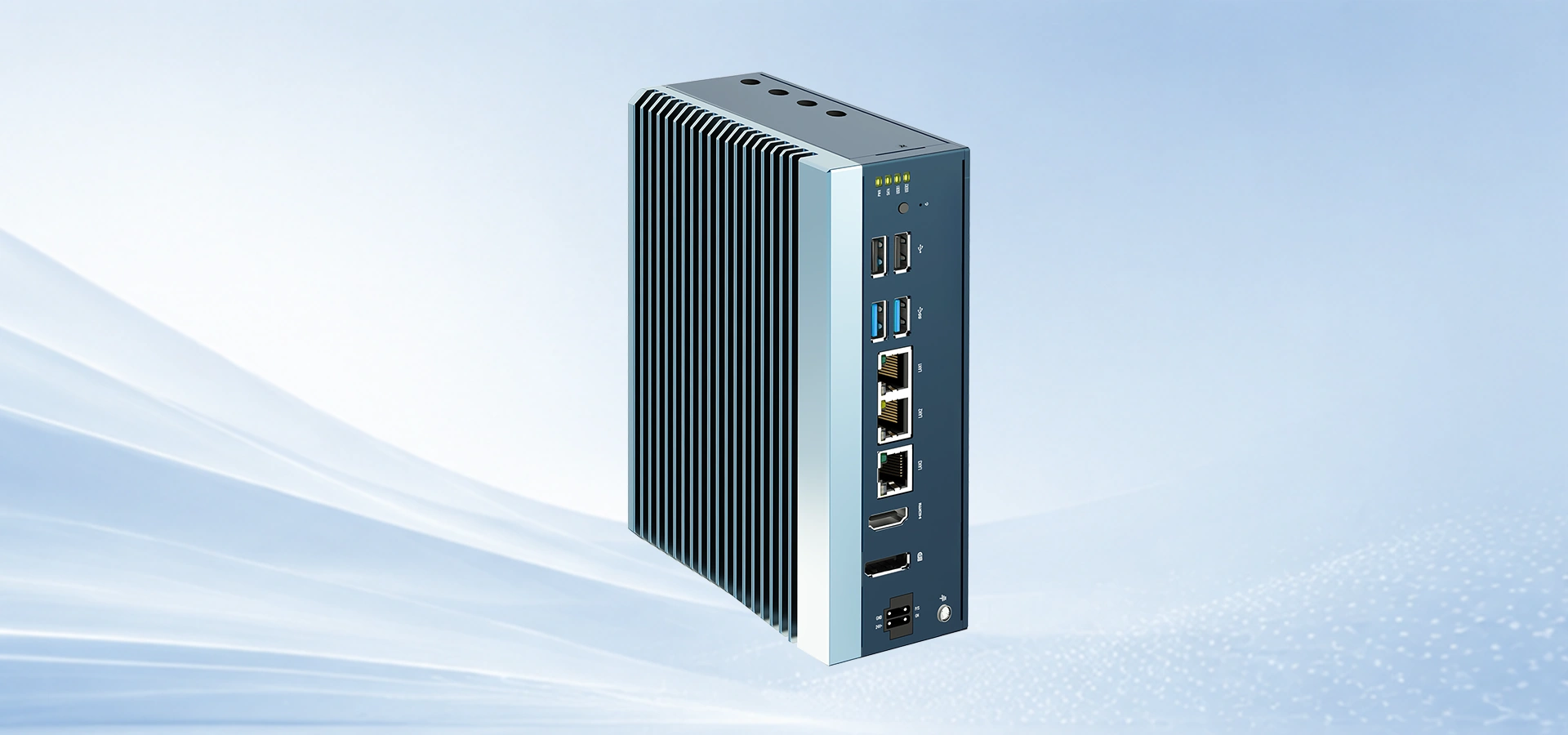

At 172 x 125 x 50mm and 1.0kg, the E215 brings 64GB DDR4 memory capacity and PCIe x4 SSD support into the slimmest chassis in the Elkhart Lake lineup. Wall mount and DIN rail installation options accommodate space-constrained control cabinet deployments. Designed for fanless embedded computing, passive cooling keeps operation silent and maintenance-free at temperatures from 0 to 60°C.

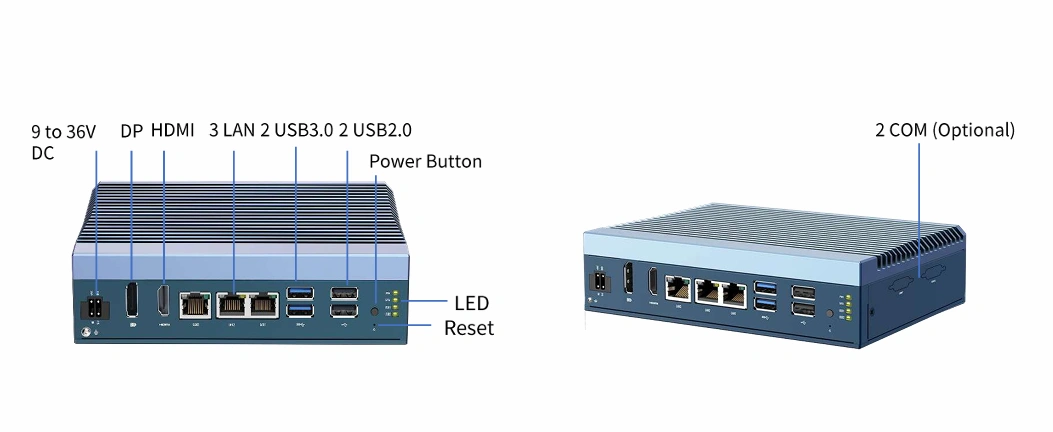

The Intel Elkhart Lake platform delivers reliable computing within a 12W TDP envelope. What sets the E215 apart is dual-channel DDR4 support with up to 64GB capacity, giving edge applications the memory headroom to buffer large datasets, run multiple concurrent processes, and handle real-time data aggregation without hitting a memory ceiling. Integrated Intel Gen11 Graphics covers dual display output via DP and HDMI for HMI visualization alongside control logic.

The E215 accepts a wide 9 to 36V DC input, handling the voltage surges and fluctuations common in factory and vehicle environments. An optional built-in UPS module protects against unexpected power loss, while the cable-free modular internal architecture removes a common failure point in high-vibration settings. Watchdog timer and TPM 2.0 round out the reliability features.

Support for Windows 7 (6th generation only), Windows 10 64Bit and Linux, meet different system requirements of different customers.
