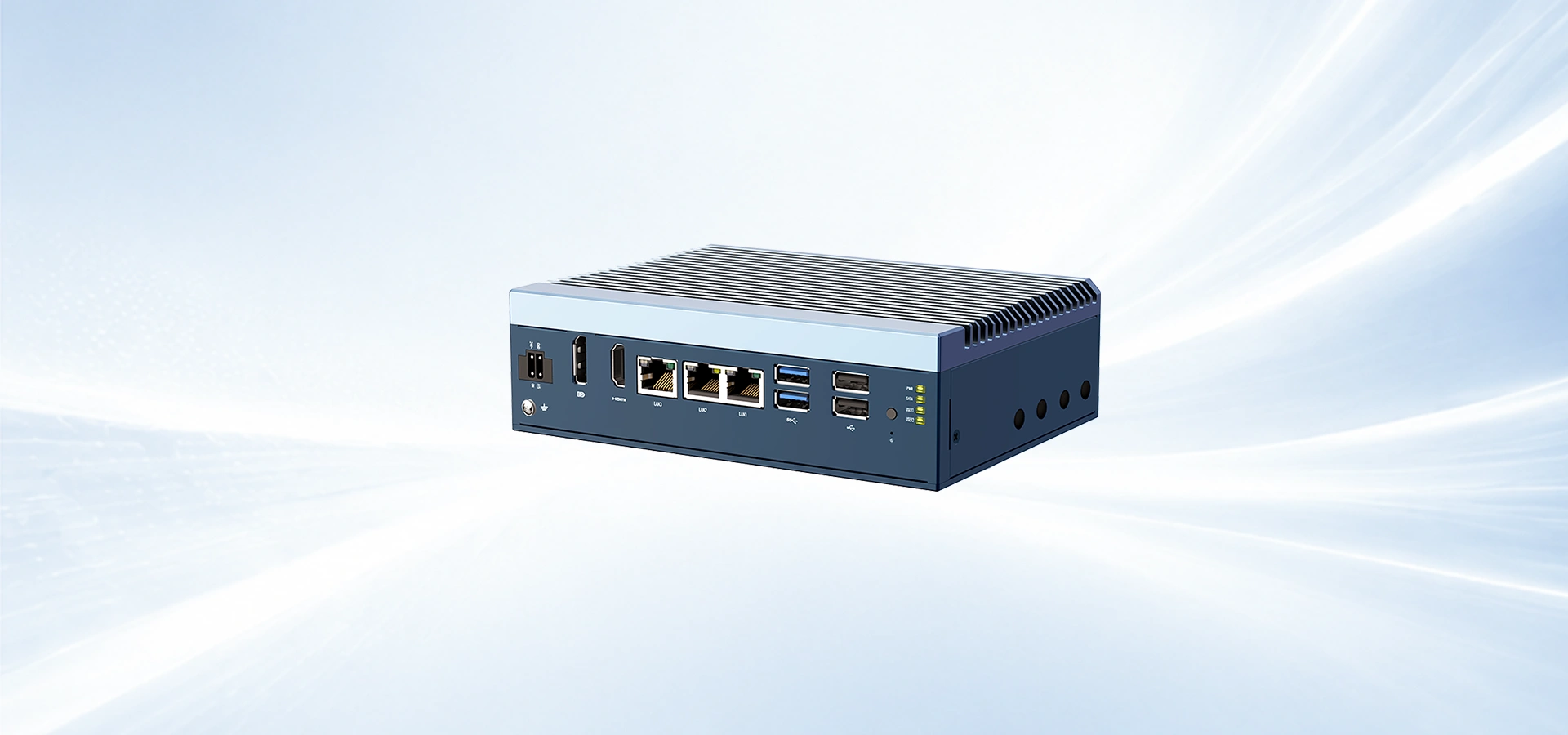

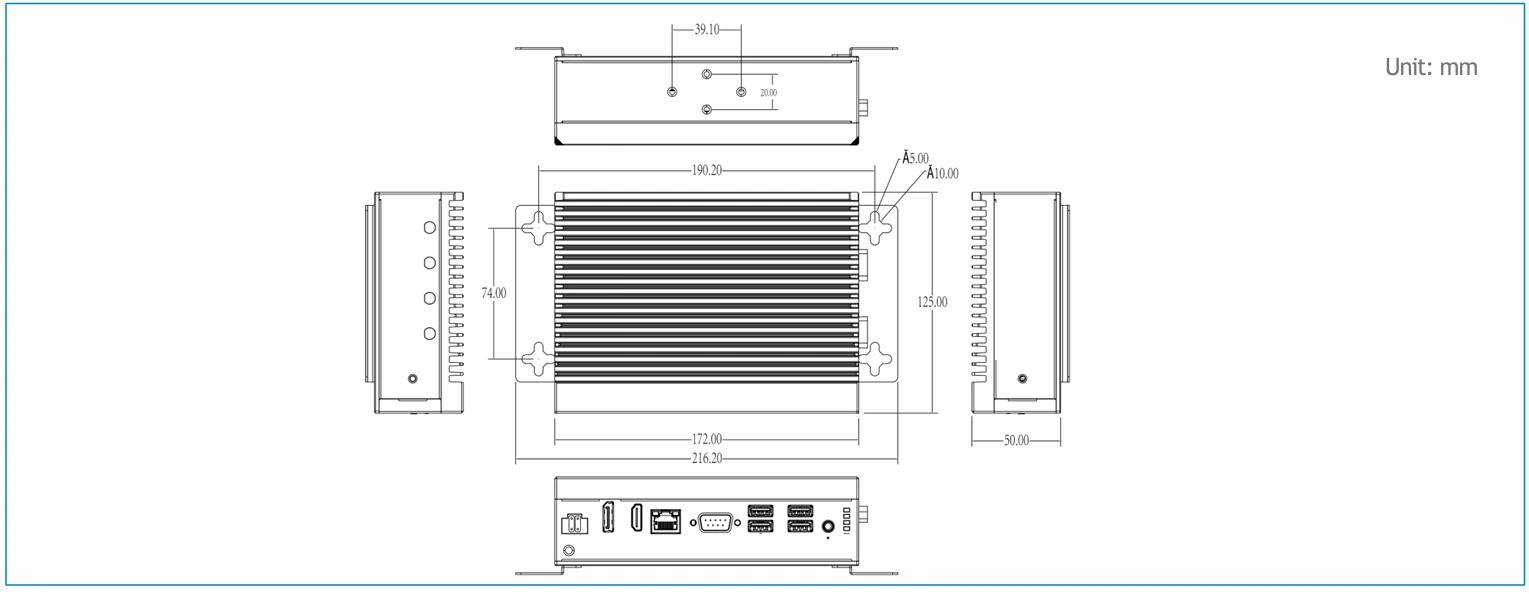

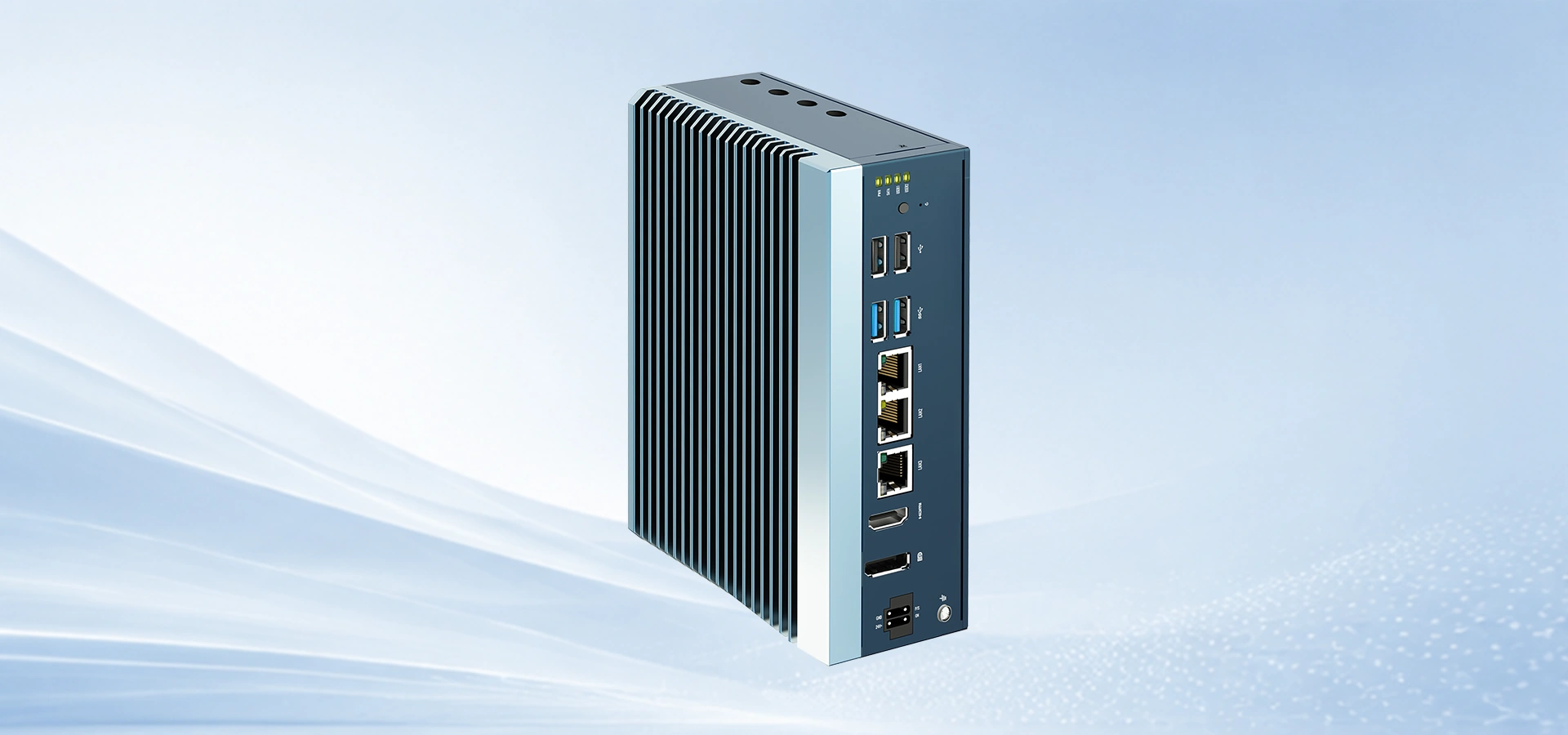

At 172 x 125 x 50mm and 1.0kg, the E215-C brings 64GB DDR4 memory capacity and PCIe x4 SSD support into the slimmest chassis in the Elkhart Lake lineup. Wall mount and DIN rail installation options accommodate space-constrained control cabinet deployments. Designed for fanless embedded computing, passive cooling keeps operation silent and maintenance-free at temperatures from 0 to 60°C.

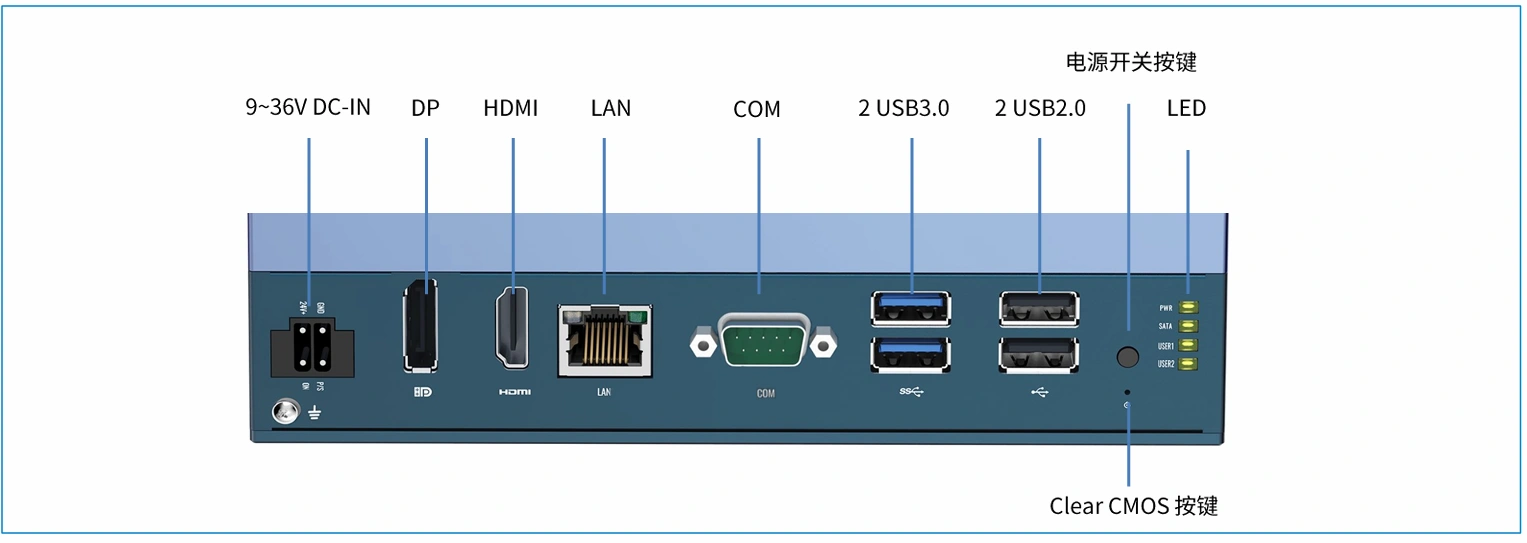

The Intel Elkhart Lake platform delivers reliable computing within a 12W TDP envelope. What sets the E215-C apart is dual-channel DDR4 support with up to 64GB capacity, giving edge applications the memory headroom to buffer large datasets, run multiple concurrent processes, and handle real-time data aggregation without hitting a memory ceiling. Integrated Intel Gen11 Graphics covers dual display output via DP and HDMI for HMI visualization alongside control logic.

The E215-C accepts a wide 9 to 36V DC input, handling the voltage surges and fluctuations common in factory and vehicle environments. An optional built-in UPS module protects against unexpected power loss, while the cable-free modular internal architecture removes a common failure point in high-vibration settings. Watchdog timer and TPM 2.0 round out the reliability features.
