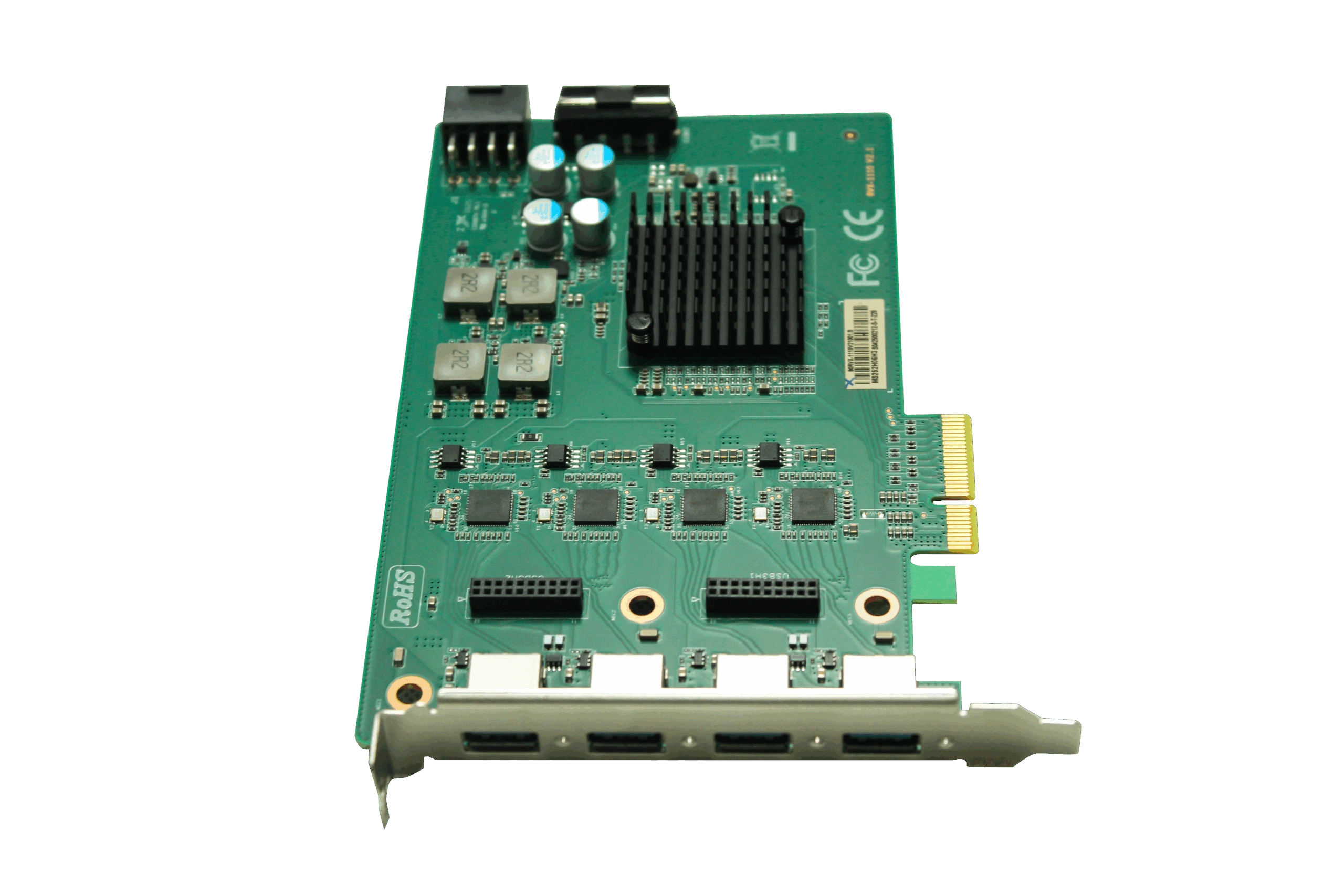

Each USB 3.0 port is managed by a dedicated Renesas controller delivering the full 5Gb/s single-port bandwidth, ensuring that simultaneous transfers across all ports do not degrade individual throughput. This architecture is essential for machine vision systems where multiple high-speed cameras or data acquisition devices must operate at full bandwidth without contention. Each port delivers 1500mA power output, and the redundant external DC 12V power supply design with 8A input per port ensures stable operation even when all ports are simultaneously under heavy load.

The C200-series USB expansion cards deliver the same Renesas controller silicon and industrial-grade construction as comparable cards from leading automation vendors, at a significantly more competitive price point — without restriction in compatibility, quality, or durability. Operating from 0 to 60°C with airflow and fully backward compatible with USB 2.0, 1.1, and 1.0 devices, the cards carry CE and FCC Class B certification for regulated industrial environments. Windows and Linux are both supported out of the box.
