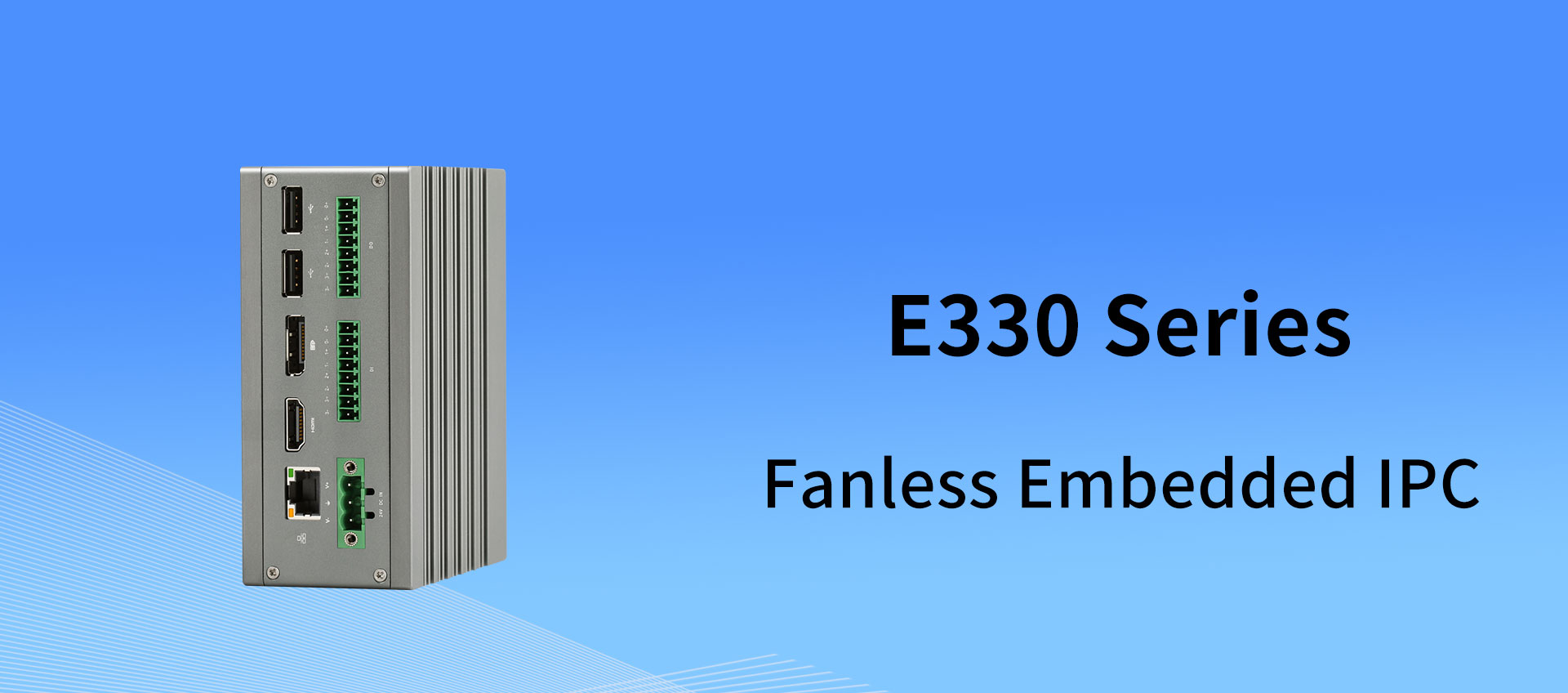

E330 Series
• Intel®Apollo Lake SoC处理器, 1 DP和1 HDMI
• 3 GbE LANs(2 x Intel i211/i210-AT,1 x RTL8111H GbE)
• 4 x USB, 2 x RS232, 2 x RS485
• 4 x DIO
• 超紧凑迷你型

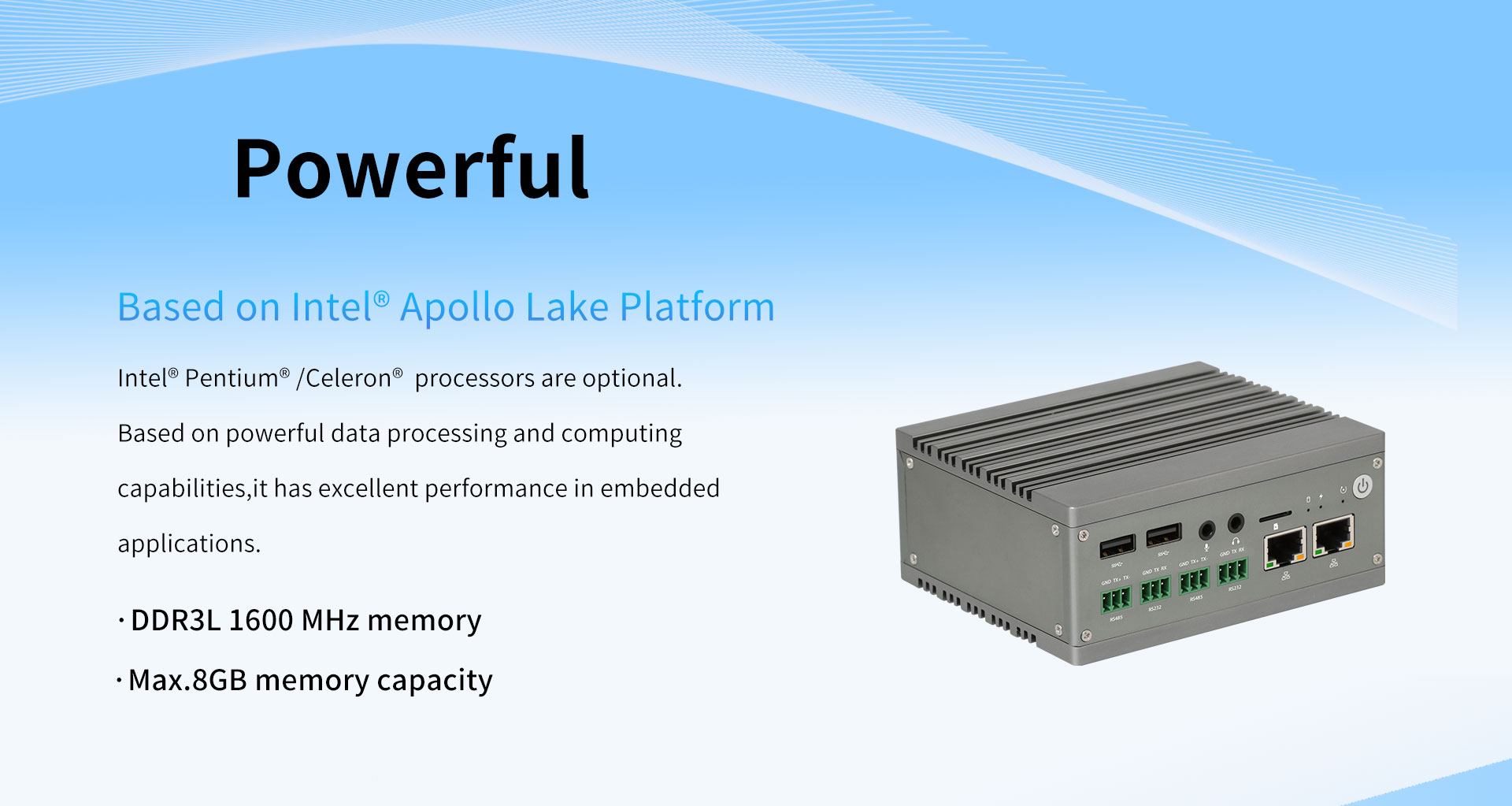

  • Intel Apollo Lake SoC处理器
  • DDR3L 1600MHz(Max. 8GB)
  • 1 x HDMI, 1 x DP
  • 3(2 x Intel i211/i210-AT,1 x RTL8111H GbE)
  • 2 x USB 3.0, 2 x USB 2.0 ,2 x RS-232, 2 x RS-485
  • Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications



Specs

Item

E330

Processor System

CPU

Intel® Apollo Lake N3350/J3355/N4200/J4205 processor

BIOS

AMI 8MB UEFI

Memory

Sockets

DDR3L 1600 MHz

Capacity

2GB (Max. 8GB)

Display

ChipsetIntel HD Graphics 500/505
Graphics engine
4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9

DP

1, Max. resolution 4096 x 2160@60Hz

HDMI

1, Max. resolution 3840 x 2160@60Hz

Dual Display

HDMI+DP

Audio

I/O

Realtek ALC662,High Definition Audio, Line Out & Line In

Ethernet

LAN

1 x RTL8111H GbE, 2 x Intel i210AT GbE

I/O Interface

USB

2 x USB2.0, 2 x USB3.0

COM

2 x RS232, 2 x RS485

DI4 x DI(Opto-couplers isolation)
DO4 x DO(Opto-couplers isolation)

Storage

M.2

1 x 2242 SSD

eMMC

MAX. 256GB

TF Card
1
SATA 3.01 x SATA 3.0, support 2.5" SSD
Power SupplyDC input
24V DC IN

OS

MicrosoftWindows

Windows 10 64Bit

Linux

Yes

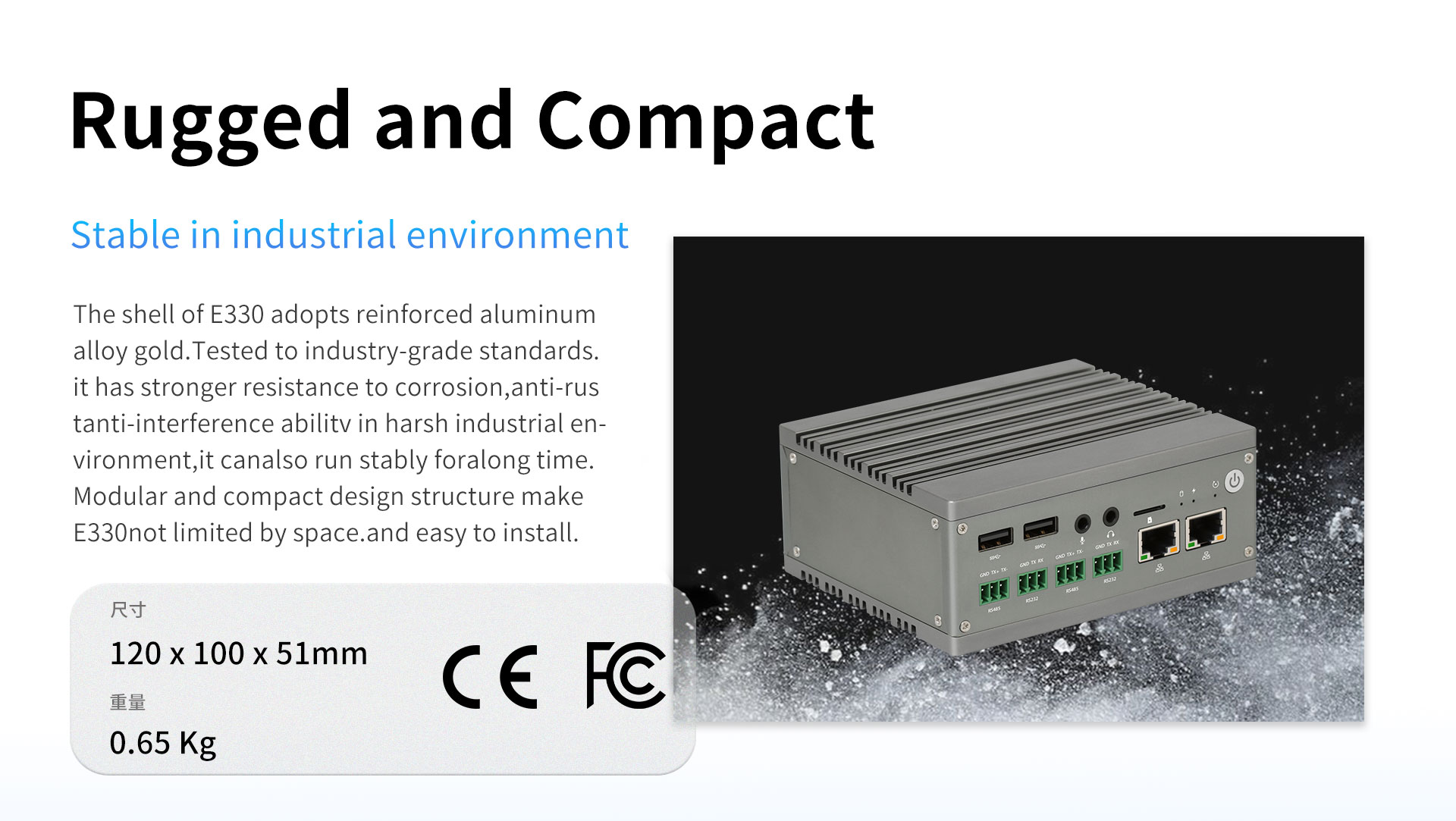

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Wall Mounting

Dimensions

120x100x51 mm(LxWxH)

Weight

0.65 Kg

Environment

Operating Temperature

-20°C~60°C, Airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

95%@40°C(Non-Condensing)

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCCClassB




尺寸图 Demensions

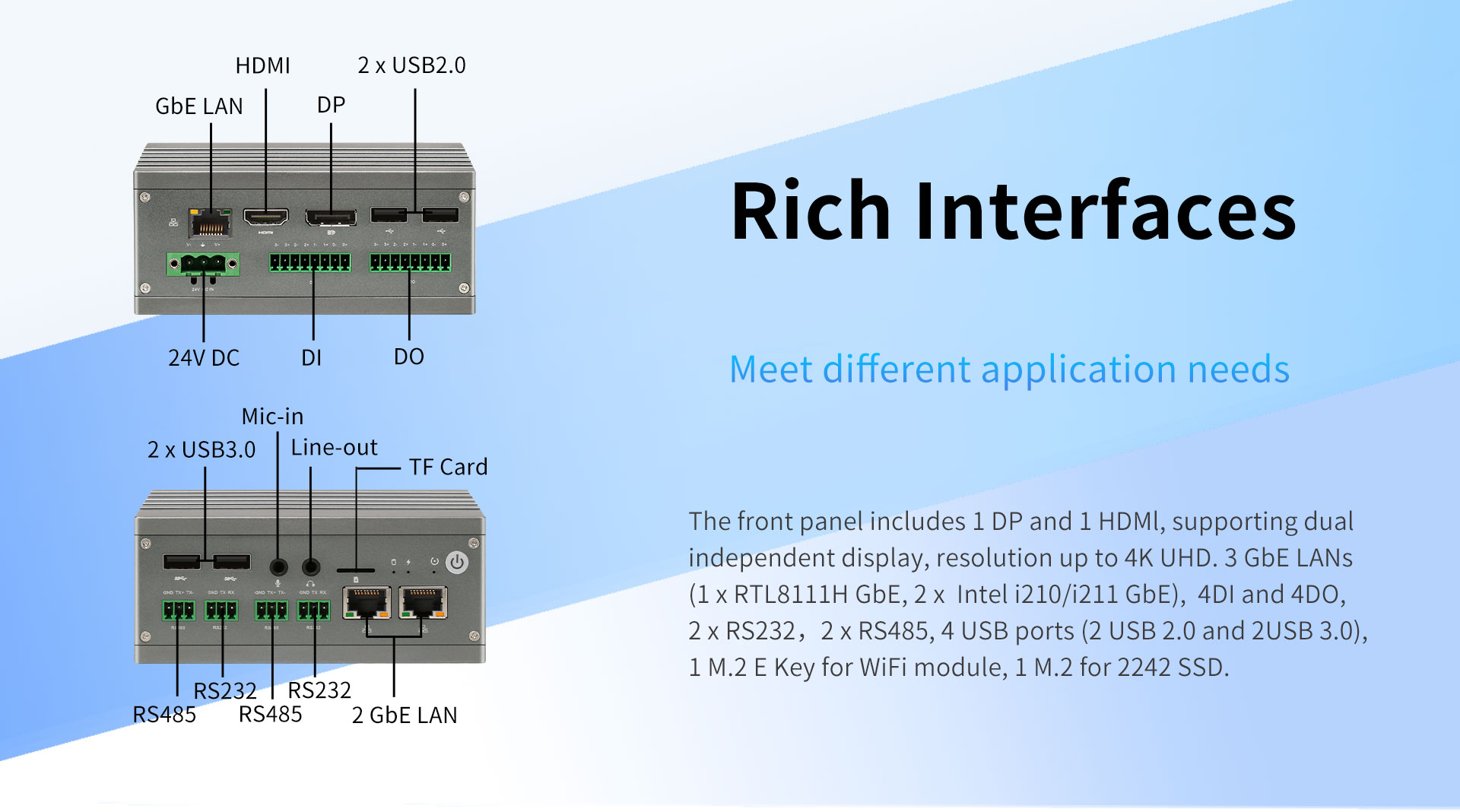

接口图 Interfaces
