E310 Series
• Intel®Apollo Lake SoC处理器, 1 DP和1 HDMI
• 3 GbE LANs(2 x Intel i211/i210-AT,1 x RTL8111H GbE)
• 4 x USB, 2 x RS232, 2 x RS485
• 超紧凑迷你型

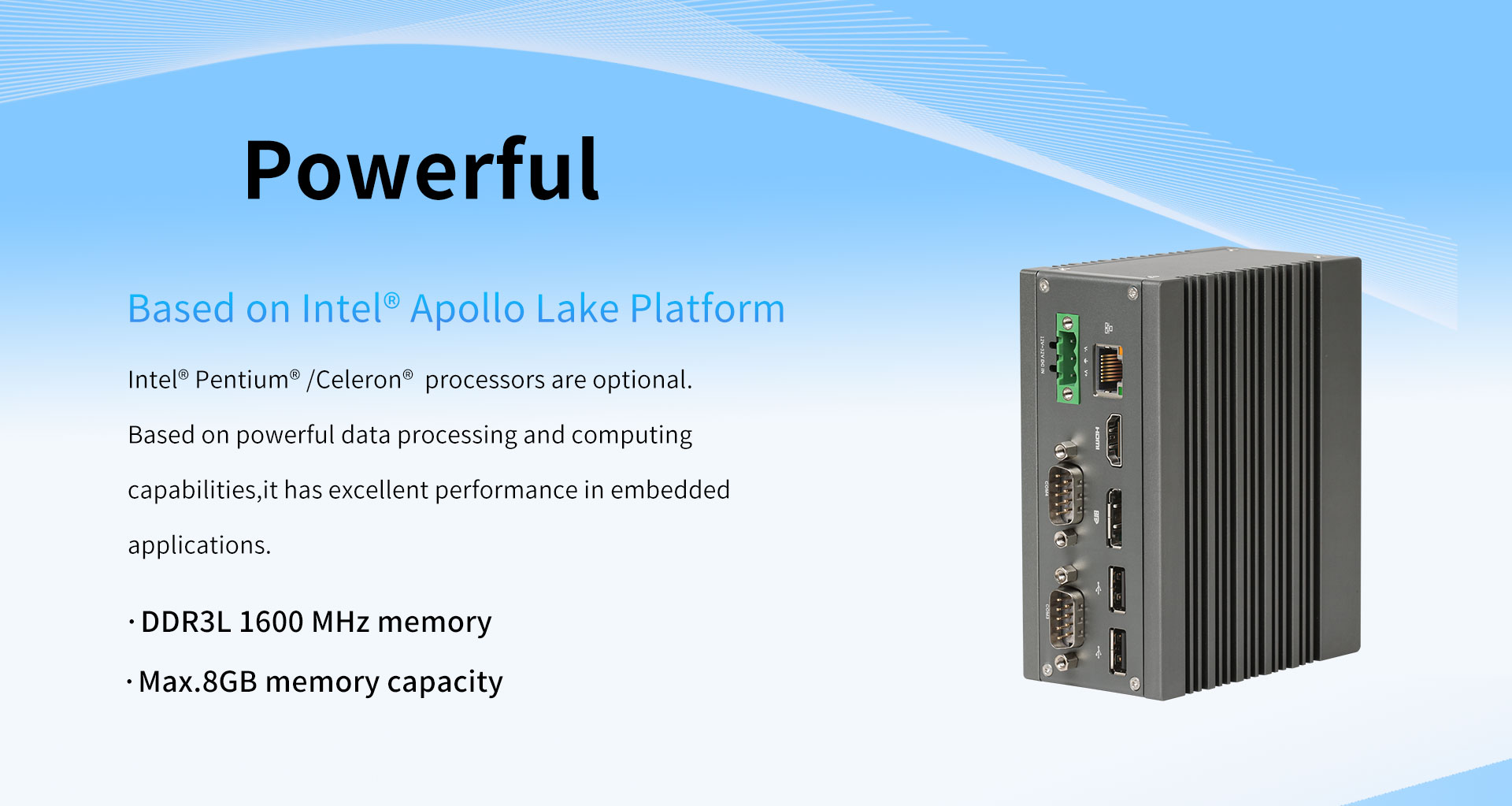

  • Intel Apollo Lake SoC处理器
  • DDR3L 1600MHz(Max. 8GB)
  • 1 x HDMI, 1 x DP
  • 3(2 x Intel i211/I210-AT,1 x RTL8111H GbE)
  • 2 x USB 3.0, 2 x USB 2.0 ,2 x RS-232, 2 x RS-485
  • Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download







规格 Specifications



Specs

Item

E310

Processor System

CPU

Intel® Apollo Lake N3350/J3355/N4200/J4205 系列处理器

BIOS

AMI 8MB UEFI

Memory

Sockets

DDR3L 1600 MHz

Capacity

2GB (Max. 8GB)

Display

ChipsetIntel HD Graphics 500/505
Graphics engine
4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9

DP

1, Max. resolution 4096 x 2160@60Hz

HDMI

1, Max. resolution 3840 x 2160@60Hz

Dual Display

HDMI+DP

Audio

I/O

Realtek ALC662,High Definition Audio, Line Out & Line In

Ethernet

LAN

1 x RTL8111H GbE, 2 x Intel i210/i211-AT GbE

I/O Interface

USB

2 x USB2.0, 2 x USB3.0

COM

2 x RS232, 2 x RS485

Expansion

Mini-PCIe

1 x full size Mini-PCIe, support WLAN/WWAN module

SIM1 x USIM for 3G/4G LTE

Storage

M.2

1 x 2242 SSD

eMMC

MAX. 256GB

TF Card
1
SATA 3.01 x SATA 3.0, support 2.5" SSD
Power SupplyDC input
12~32V DC IN

OS

MicrosoftWindows

Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Wall Mounting

Dimensions

120x100x51 mm(LxWxH)

Weight

0.65 Kg

Environment

Operating Temperature

-20°C~60°C, Airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

95%@40°C(Non-Condensing)

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCCClassB




尺寸图 Demensions

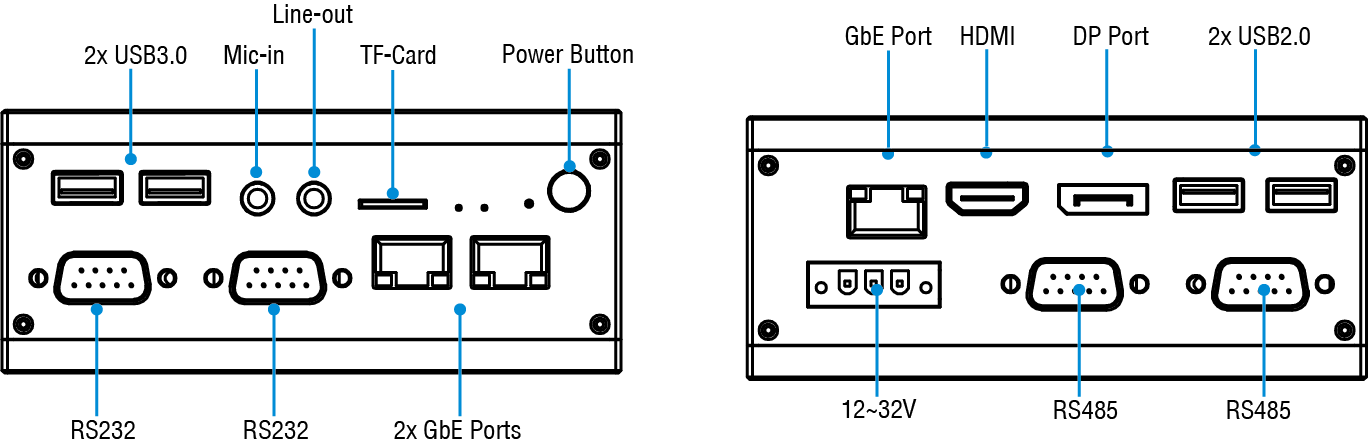

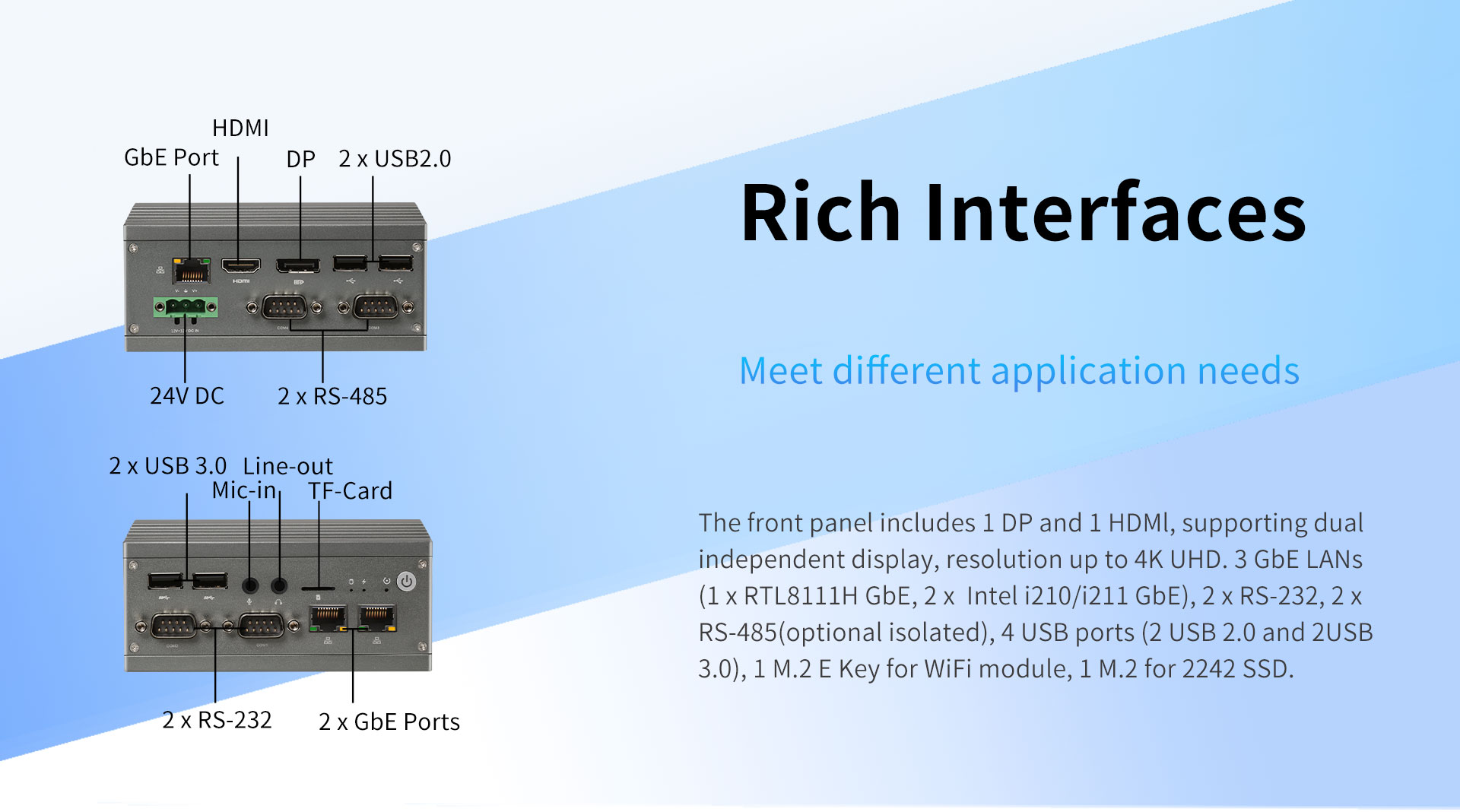

接口图 Interfaces
