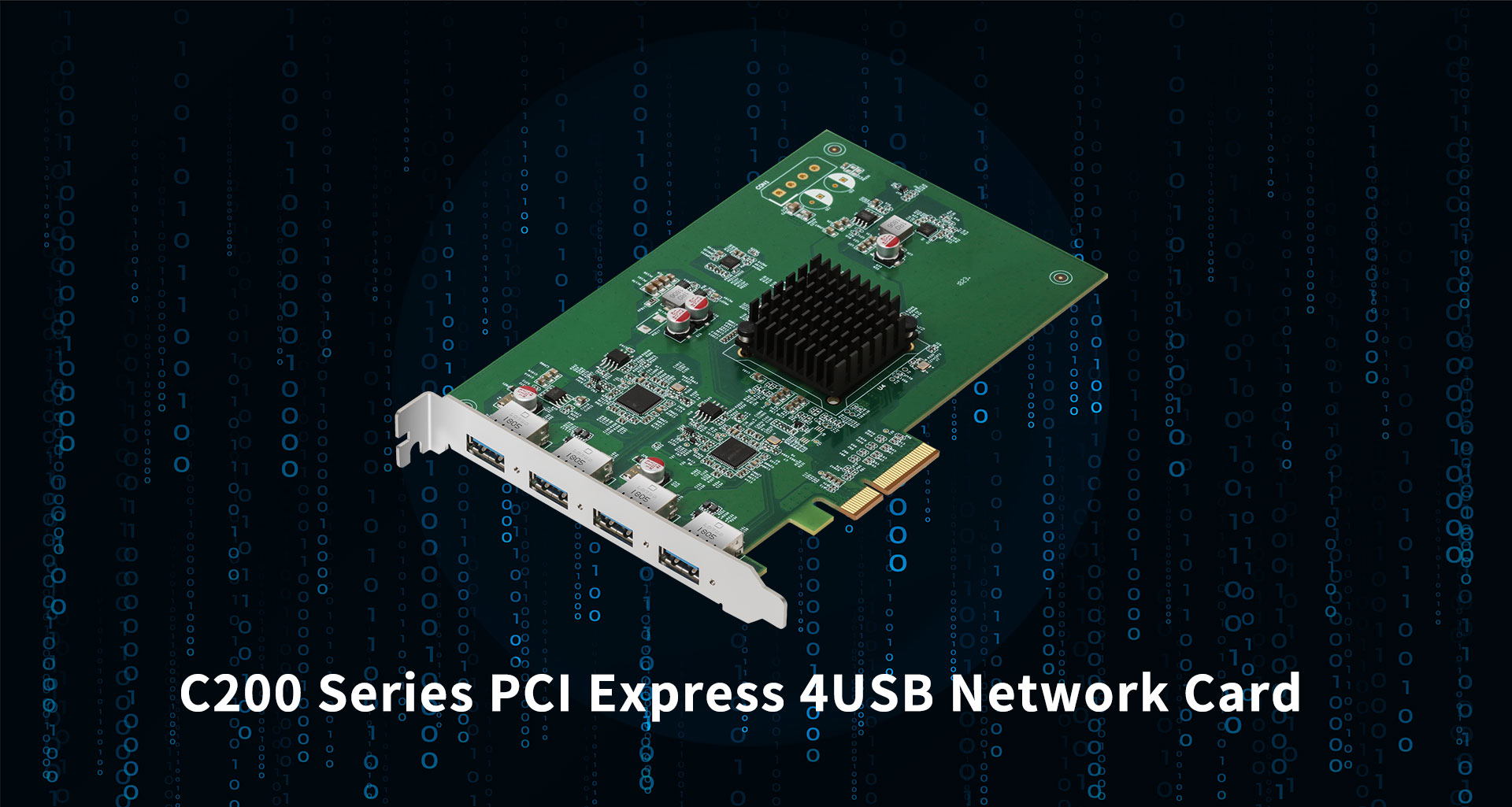

C200 Series
• PCI Express Gen2/Gen3 interface
• 4 ports USB3.1 provided by 2 independent controllers
• Onboard 5V DC regulated power supply, no additional power supply required
• 1500mA current limit
• Compatible with USB 3.1 Rev. 1.0 and Intel xHCI Rev. 1.0 standards
  • /
  • /
  • /
  • /
  • 4 x USB 3.1
  • Windows 7/8/10, Linux
  • Product Details
  • Specification
  • Application
  • Download





规格 Specifications



C200-100C200-200

Bus interface

4-lanes, PCI Express Gen2 interface

4-lanes, PCI Express Gen3 interface
2.5 GB/s total bandwidth, each port provides up to 600MB/s4GB/s total bandwidth, each port provides up to 900MB/s

USB

4 USB3.1 ports, compatible with USB3.0/USB2.0/ 1.1/ 1.0

4 USB 3.0 Type-A connectors on the front panel (fixed by M2 screws)

USB controller

2 ASM3142 master controllers

Compliant with Universal Serial Bus 3.1 specification revision 1.0

Compliant with Intel xHCI specification revision 1.0

USB Per Port Current Limit Control

User selectable 1500mA per port current limit control

Power
Power from PCI Express bus: max 2.0A @ 3.3V
Take power from PCI Express bus: maximum 2.8A @ 12V, for external device power supply
Operation environment

0°C ~ 60°C ,with airflow

Humidity: 5%~90% relative humidity, non-condensing
Operation systemWindows 7/8/10, Linux
Size168 mm x 112 mm (W x H)

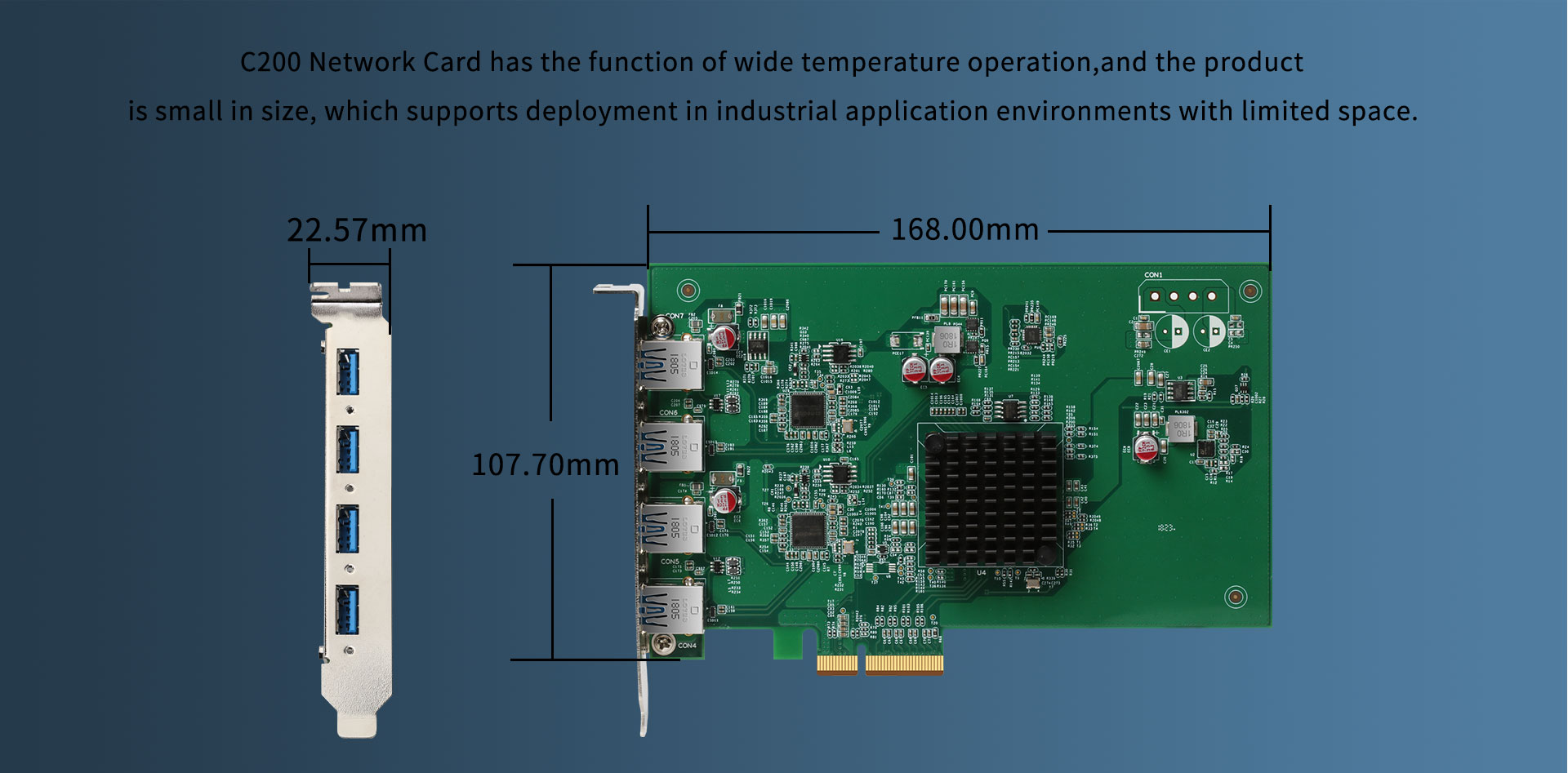

尺寸图 Demensions
