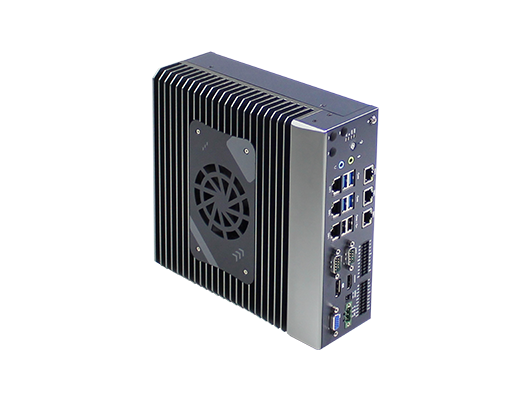

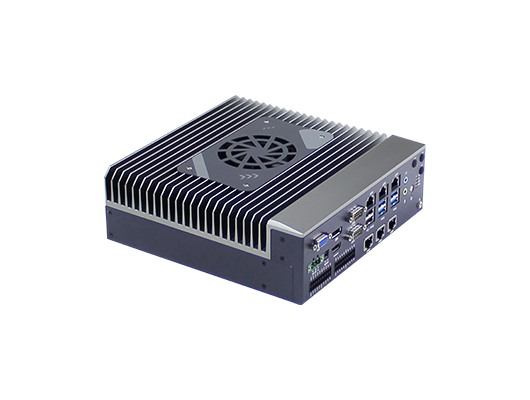

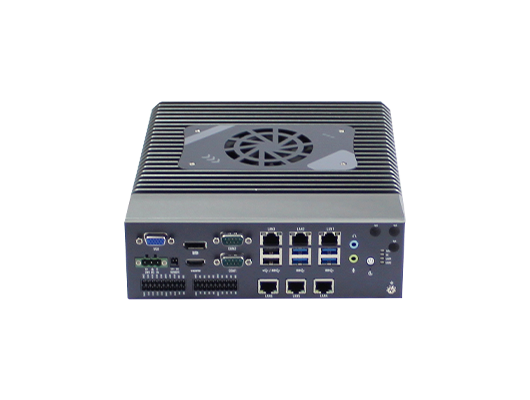

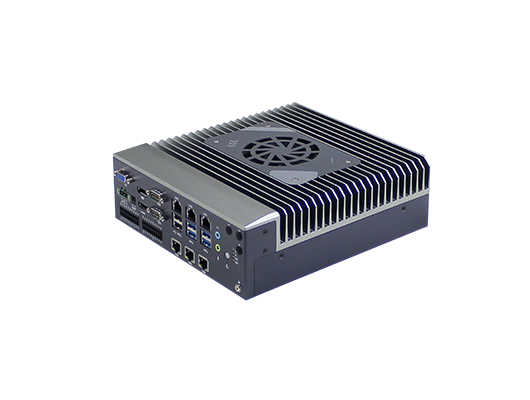

E510A Series
• 10th generation Intel Core i3/ i5/ i7 series CPU
• 1 DP, 1 HDMI, 1 VGA
• 6 GbE LAN (5 x Intel i210, 1 x Intel i219)
• 1 RS-232/422/485, 1 RS-232, 16 DI, 16 DO
• 4 USB3.0, 2 USB2.0 (H420E) or 6 USB 3.0 (Q470)
• Windows 10/11, centos 8, ubuntu 20.04/22.04
  • 10th generation Intel Core i3/ i5/ i7 series CPU (LGA 1200)
  • 2 x DDR4 up to 64GB
  • 1 x HDMI, 1 x DP, 1 x VGA
  • 6 (5 x Intel i210, 1 x Intel i219)
  • 4 x USB3.0, 2 x USB2.0 (H420E) or 6 x USB3.0 (Q470), 1 x RS-232/422/485, 1 x RS-232
  • Windows 10/11, centos 8, ubuntu 20.04/22.04
  • Product Details
  • Specification
  • Application
  • Download





Specifications


Specs

Item

E510A

Processor System

CPU

10th generation Intel® Core™ i3/ i5/ i7 Processors

Chipset

H420E/ Q470

Socket

LGA1200

TDP

Max 65W

BIOS

AMI 128Mbit SPI Flash

Memory

Technology

2 x 260 PIN DDR4 SO-DIMM

Capacity

Max 64GB

Graphics

Controller

Intel UHD Graphics supports DirectX12, OpenGL 4.5 and OpenCL 2.1

Graphic Features

3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1

 HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1

 HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8, MPEG2,MJPEG

External I/O

DP

1 x DP1.4 resolution up to 4096x2304@60Hz

HDMI

1 x HDMI1.4 resolution up to 4096 x 2160@30Hz

VGA

1 x VGA resolution up to 1920 x 1200@60Hz

LAN

5 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN

Serial Ports

1 x RS-232/422/485, 1 x RS-232

USB 3.0

4 (H420E)/ 6 (Q470)

USB 2.02 (H420E)/ 0 (Q470)
DI
16 x DI
DO16 x DO
Audio
1 x  Line out, 1 x Mic in
Remote1 x 2 PIN Remote Switch
Power Input Connector1 x 3 PIN Power Input Connector

LED & Switch

LED

HDD, Memory, User-defined 1, User-defined 2

Power Button

1 x Power Button

Reset
1 x Reset Button

Internal Connectors

USB2.0

1 x Internal USB2.0 support Dongle

M.2 E-Key

1 x M.2 2230 support Wi-Fi (Q470: CNVI&PCIe protocol, H420E: PCIe protocol)

M.2 B-Key1 x M.2 3052 support 4G/5G
M.2 B-Key2 x M.2 2280 SATA3.0
SIM1 x Micro SIM

Power Supply

Power Input
24V DC Input

Power Management

AT/ATX

Max. Consumption150W

Others

Watchdog

65536 level, 0~65535 sec

TPM

TPM2.0 (Optional)

Physical Characteristics

Construction

Aluminium Alloy

Dimension

220 x 226 x 75mm (L x W x H)

Weight

3.4 kg

Installation

Wall Mounting

Environment

Operating Temperature

0°C~50°C (32~122℉)

Storage Temperature

-40°C~85°C (-40~185℉)

Operating Humidity

95%@40°C (Non-Condensing)

Storage Humidity

95% @60°C (Non-Condensing)

CertificationEMCCE, FCC
Operation SystemOSWindows 10/11, centos 8, ubuntu 20.04/22.04




Demensions

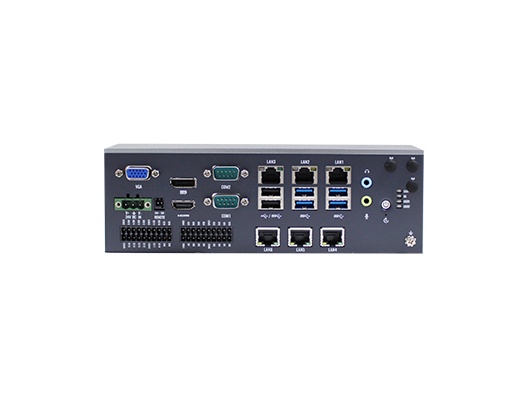

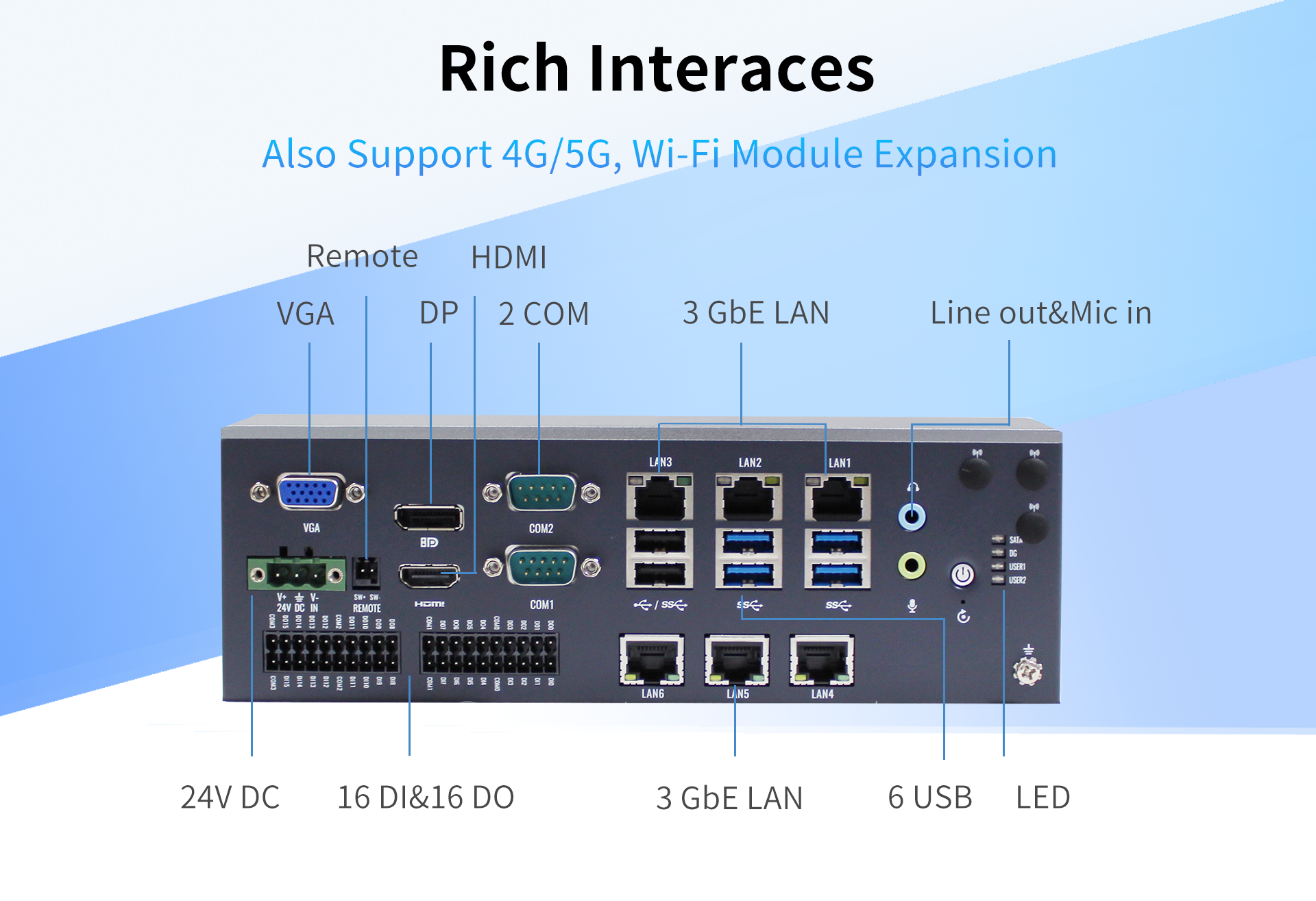

Interfaces
