规格 Specifications
Item | Sub-Item | Description |

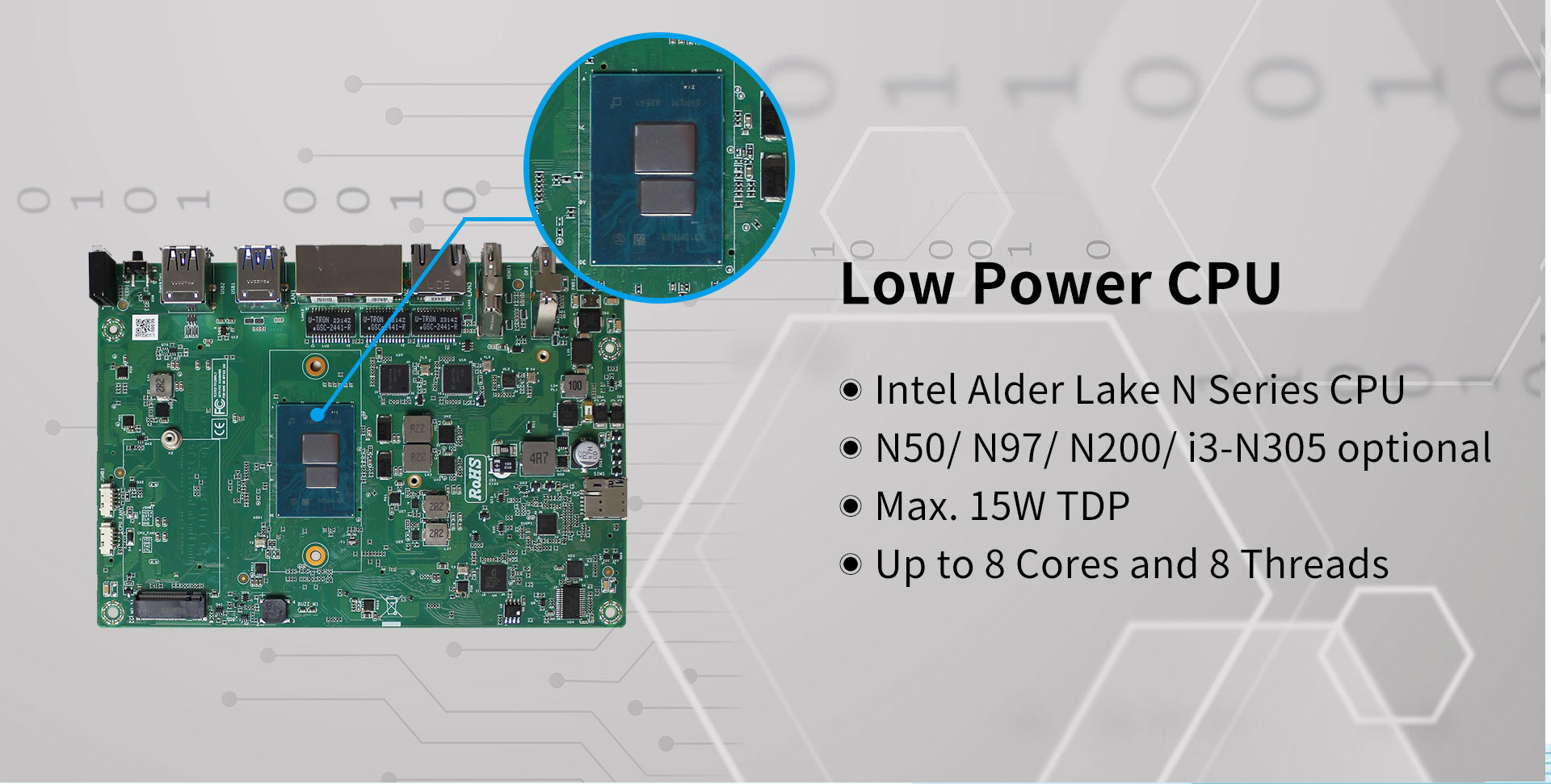

Processor System | CPU | Intel Alder Lake N N50/ N97/ N200/i3-N305 |
TDP | 15W MAX | |
BIOS | AMI 128 Mbit SPI Flash | |
Memory | Technology | Single channel DDR5 4800 MT/s |
Capacity | Max. 16 GB | |
Graphics | Controller | Intel Gen12 UHD Graphics Engines (SoC integrated) |
| Graphic features | DX12,Open GL4.6,Vulkan 1.2 | |
Display | DP | 1 x DP1.4a resolution up to 4096 x 2304@ 60Hz |
HDMI | 1 x HDMI2.0b resolution up to 4K x 2K@ 60Hz | |
LCD1 | 1 x eDP1.4b resolution up to 4096 x 2304 @60Hz or LVDS Dual Channel 18/24-bit resolution up to 1920x1200 | |

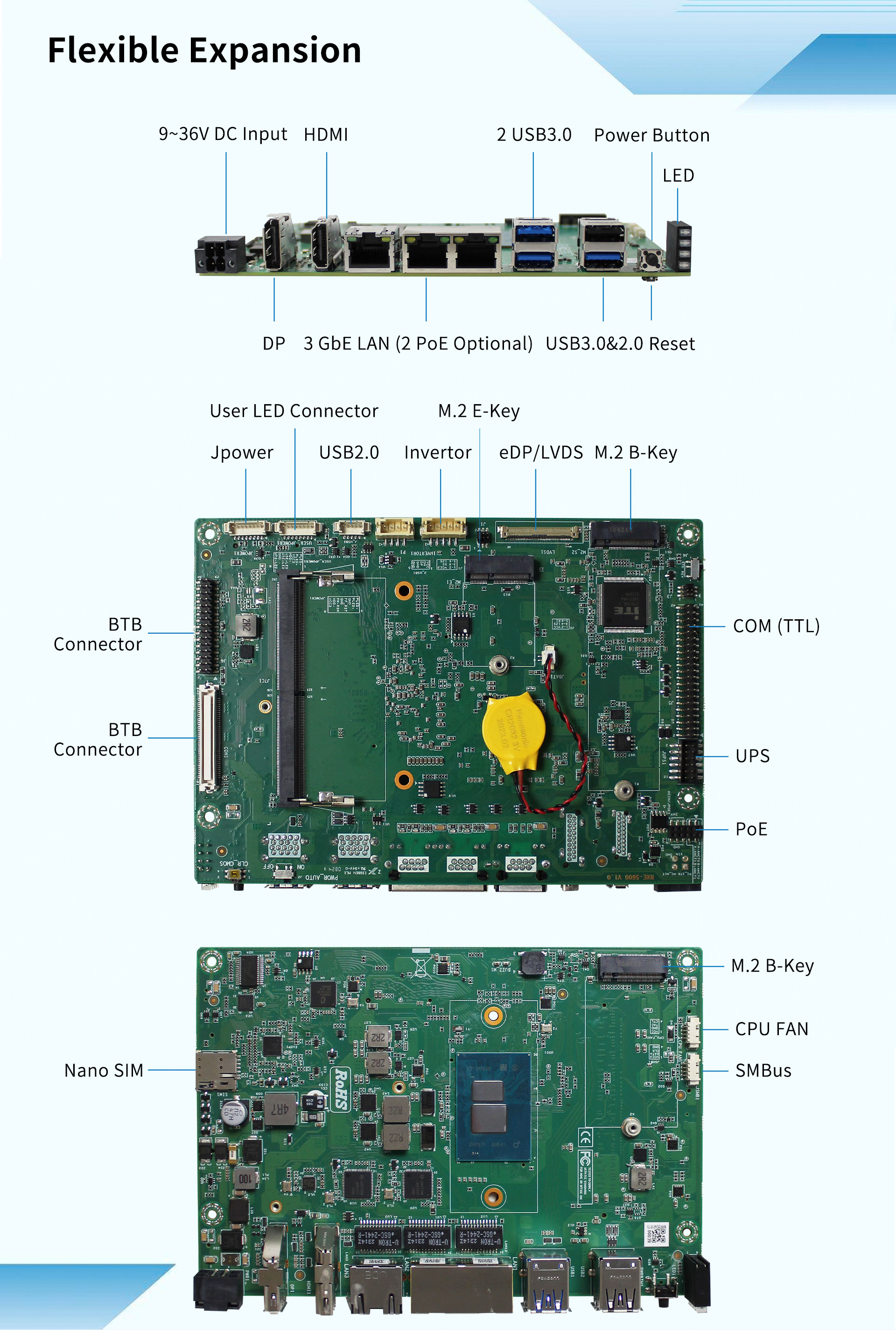

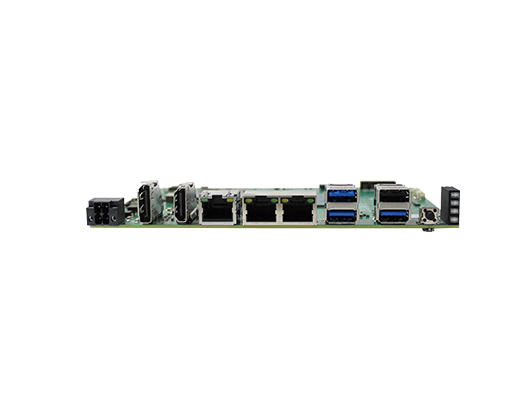

External I/O | DP/HDMI | 1/1 |
| Ethernet | 2 x Intel i210 GbE LAN (PoE function optional), 1 x Realtek RTL8111H GbE LAN | |
| USB | 3 x USB3.0, 1 x USB2.0 | |
Internal Connectors | USB 2.0 | 1 x USB 2.0 (Pin-Out) |
LCD | 1 x eDP1.4b/ LVDS | |
COM | 1 x RS-232/422/485 (BIOS control), 1 x RS-232 | |
| GPIO | 8-bit GPIO | |
| Audio | 1 x HDA | |
| eSPI/ SMBus | 1/1 | |
| SIM | 1 x Nano SIM | |
| Invertor | 1 x Invertor | |
| CPU FAN | 1 x CPU FAN | |
| UPS | 1 x UPS (Optional) | |
| LED & Switch | LED Indicator | Power status, HDD, User-defined 1, User-defined 2 |
| Power Button | 1 x Power Button | |
| Reset | 1 x Reset Button | |
| Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 support CNVI |
| M.2 B-Key | 1 x M.2 B-Key 3042/3052 support 4G/5G | |
| M.2 M-Key | 1 x M.2 B/M-Key 2280 SATA3.0 | |
| Board to Board | 1 x PCIe x1/ 2 x USB2.0/ 1 x I2C/ 1 x eSPI/ 4 x TTL (TX/ RX/ CTS/ RTS/ GND) | |
| Board Feature | Watchdog Timer | 65536 lever, 0~65535 sec |
| TPM | TPM 2.0 (Optional) | |
Power Requirement | Supply Voltage | DC 9-36V ± 5% |
| Power Management | AT/ATX | |
| Max. Consumption | 30W (N50/ N97/ N200)/ 45W (i3-N305) | |
Environment | Temperature | Operating 0 ~ 60 °C (32~140℉) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% (Non-condensing) Non-Operating 60 °C @ 95% (Non-condensing) | |
| Physical characteristic | Dimensions | 165 x 115mm |
| Certification | EMC | CE, FCC |
| Operation System | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 |
