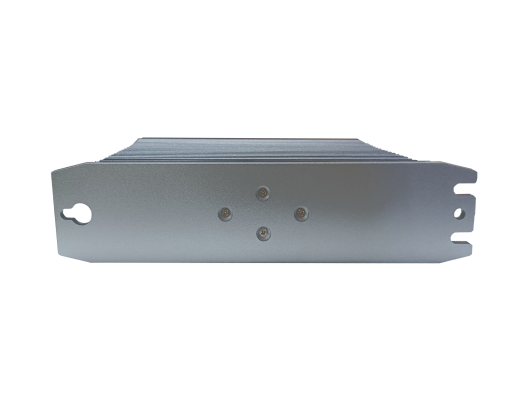

E215 Series
• Intel® Elkhart Lake J6412/N6210/X6425E
• 1 x DP, 1 x HDMI
• 3 LAN (2 x Intel i210-AT,1 x Intel i226-V)
• 1 x RS-232, 1 x RS-232/422/485 (Optional)
• 2 x USB 2.0, 2 x USB 3.0
• DC 9~36V
• Support UPS, 4G/5G, Wi-Fi expansion
  • Intel Elkhart Lake J6412, N6210, X6425E
  • 2 x DDR4-3200 up to 32GB
  • 1 x HDMI, 1 x DP
  • 3(2 x Intel i210-AT,1 x Intel i226-V)
  • 2 x USB 3.0, 2 x USB 2.0, 1 x RS-232/422/485, 1 x RS-232 ()
  • Windows 10/11, centos 8, ubuntu 20.04/22.04
  • Product Details
  • Specification
  • Application
  • Download






Specifications


Specs

Item

E215 Series

Processor System

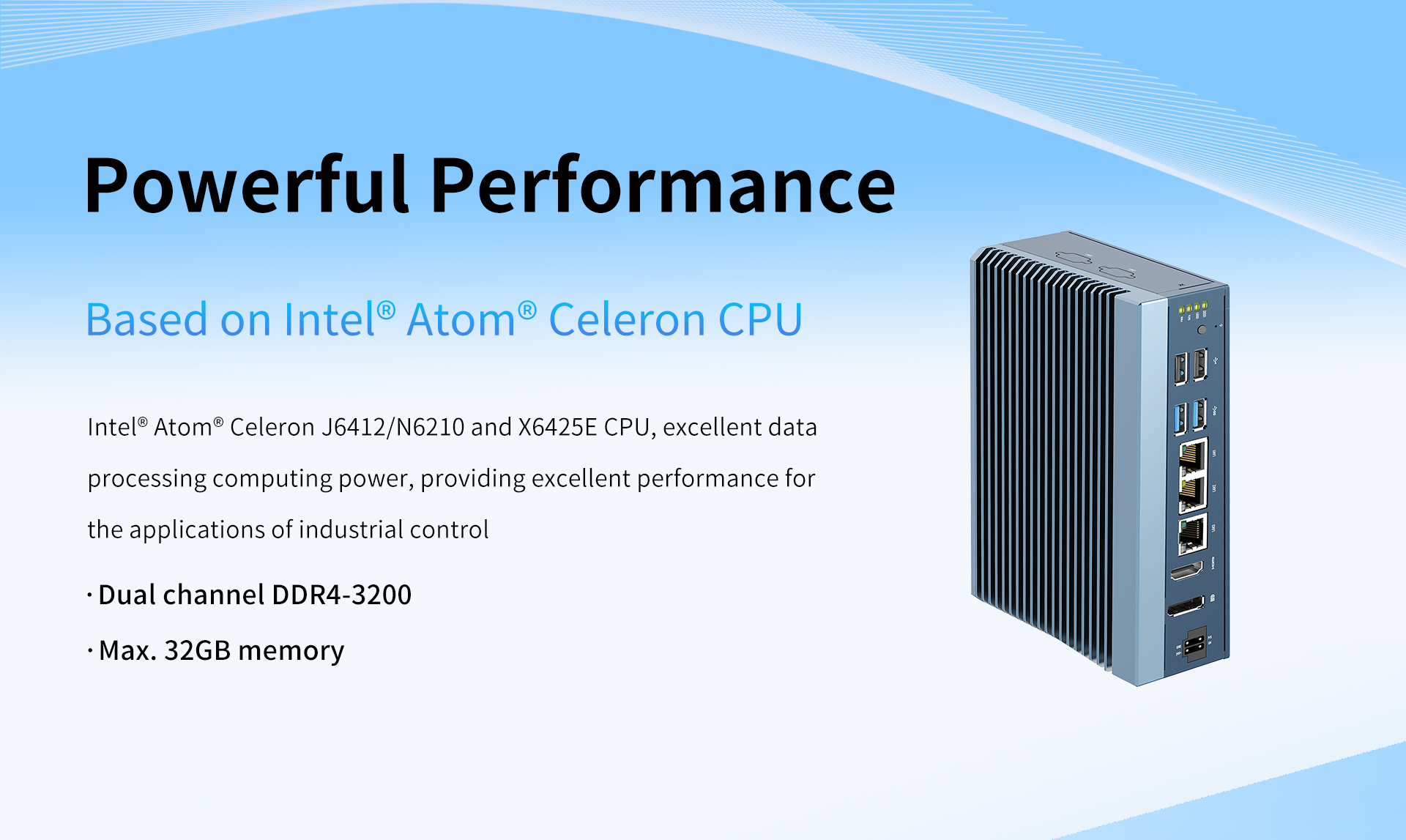

CPU

Intel® Elkhart Lake platform J6412/N6210/X6425E CPU

TDP12W MAX
BIOS

AMI 128Mbit SPI Flash

Memory

Technology

2 x DDR4 3200MT/s SO-DIMM

Max. Capacity

32 GB

Display

Controller

Intel Gen11 Graphics Engines (SoC integrated)

Graphic Features

DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC)

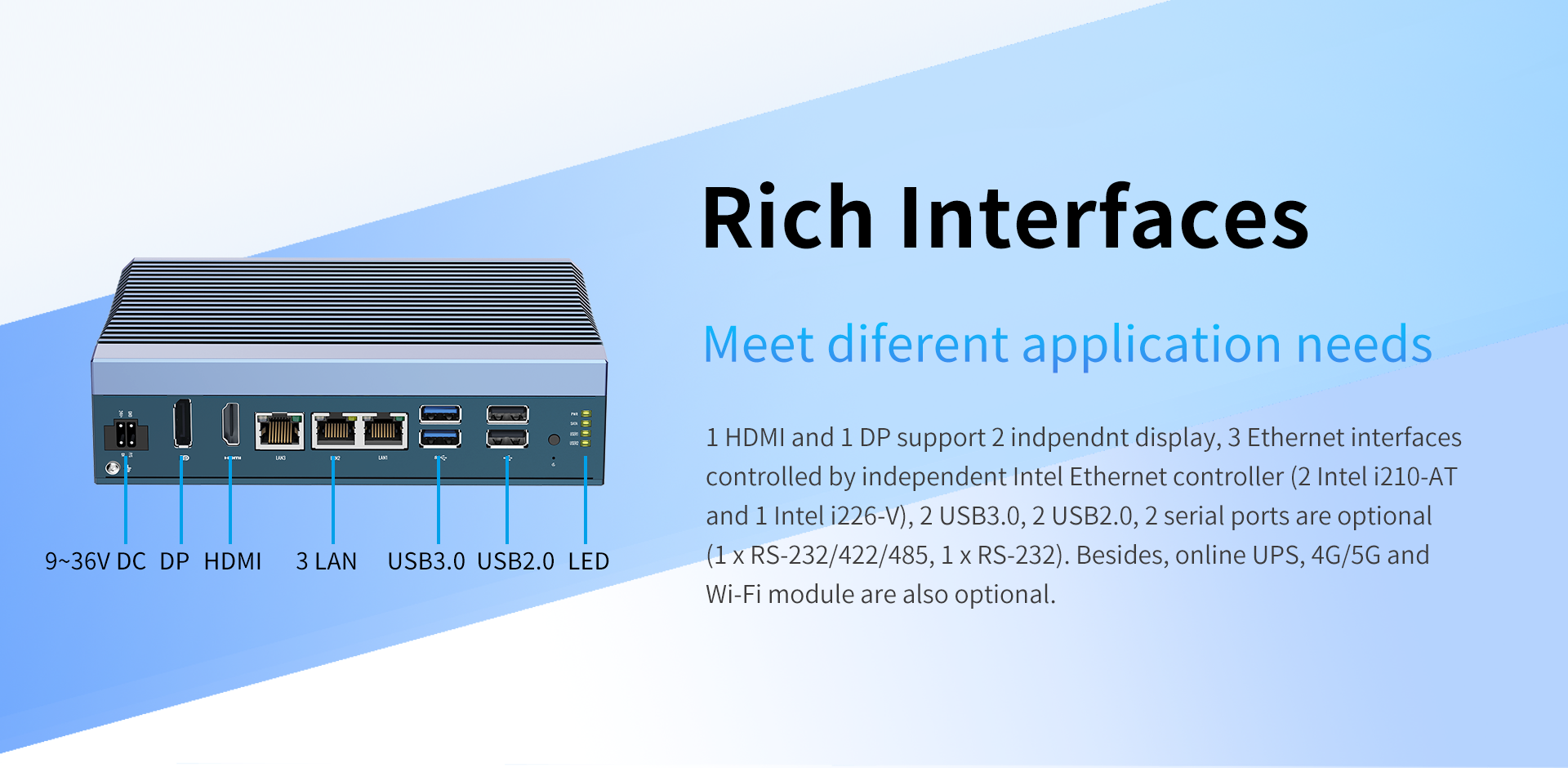

I/O Interface

DP1 x DP 1.4 up to 4096 x 2160 @ 60Hz
HDMI1 x HDMI 2.0b up to 4096 x 2160@60Hz
Ethernet2 x Intel i210-AT GbE LAN, 1 x Intel i226-V 2.5GbE LAN
COM

COM1: RS-232/422/485 COM2: RS-232

USB

2 x USB3.0, 2 x USB2.0

Power DC JackPhoenix 4pin
Expansion
M.2 E-Key1 x M.2 2230 Support Wi-Fi
M.2 B-Key1 x M.2 3052 Support 4G/5G
M.2 M-Key1 x M.2 2280 SATA3.0
SATA1 x SATA3.0
Internal USB2.03 x Internal USB2.0 (Pinout)
SIM1 x Nano SIM
LEDLED LightsPower status, HDD R/W,USER1,USER2
Power

Supply Voltage

DC 9~36V±10%

Max. Consumption30W
Power ManagementAT/ATX
OthersWatchdogTimer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
TPMTPM 2.0 (optional)

Environment

Operating Temperature

0 ~ 60 °C (32~140°F)

Storage Temperature

-40° C ~ 85° C (-40~185°F)

Relative Humidity (Operating)

95% @ 40°C ( Non-Condensing )

Relative Humidity (Storage)95% @ 60 °C (non-condensing)
CertificationEMCCE, FCC

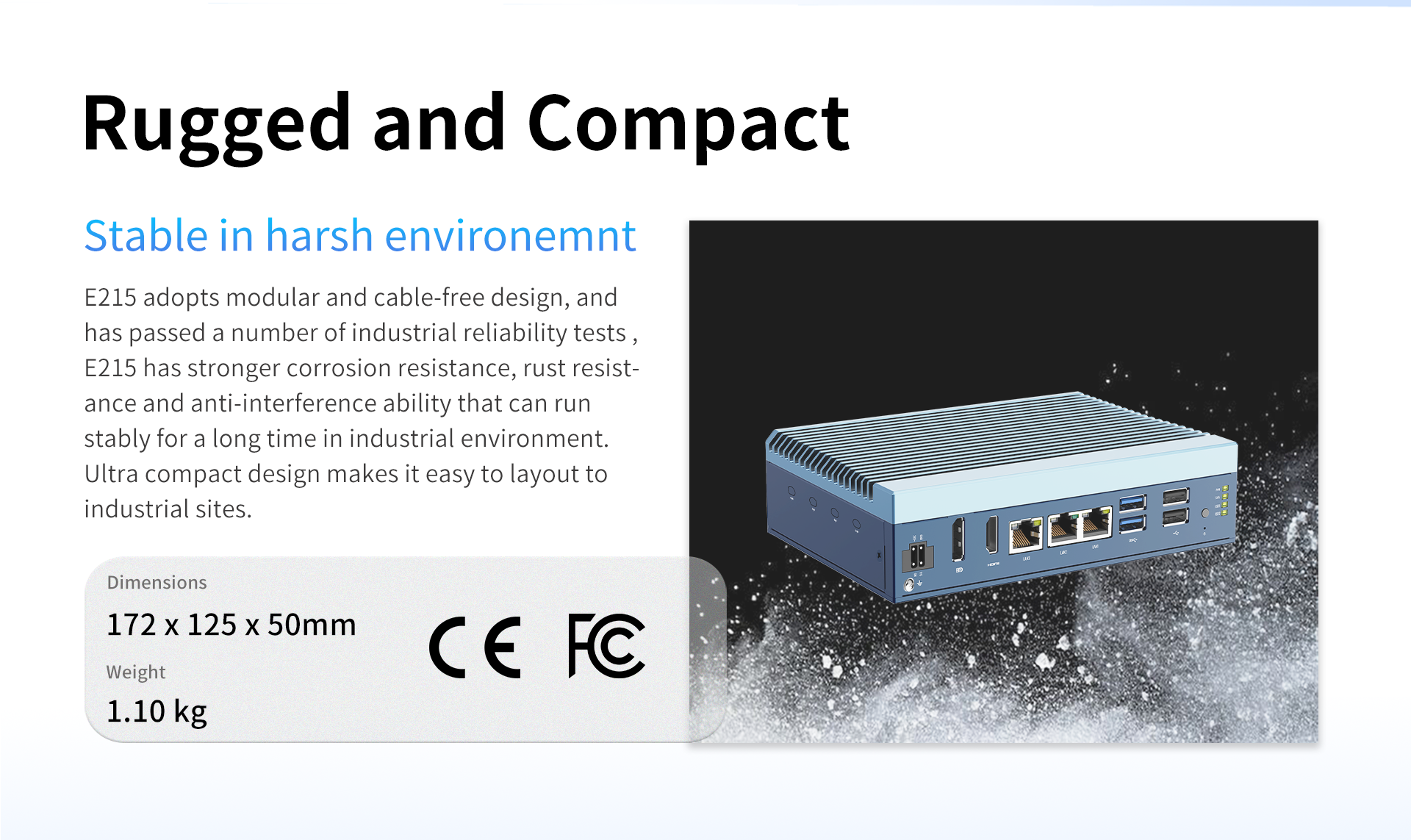

Physical characteristicDimensions172 x 125 x 50mm(L x W x H)
Operation systemOSWindows 10/11, centos 8, ubuntu 20.04/22.04


Dimensions

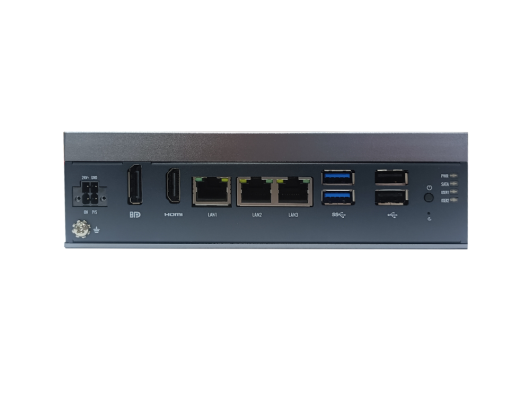

Interfaces
