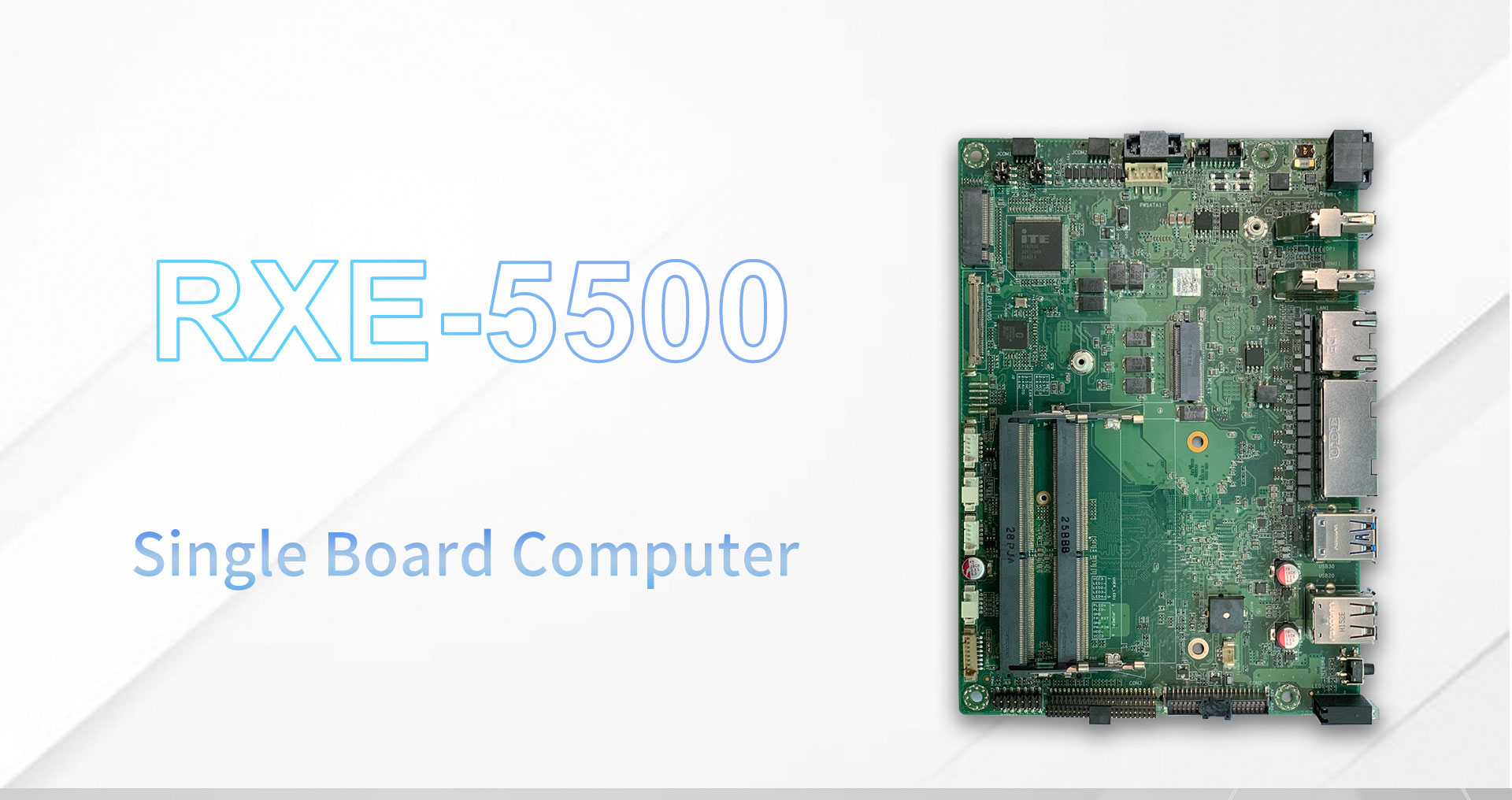

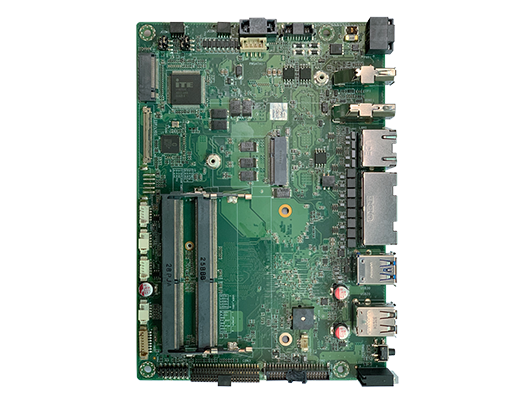

RXE-5500 Series
• Intel® Elkhart Lake Series prcessors
• 1 DP, 1 HDMI
• 3 GbE LAN(2 x Intel i225-V, 1 x Intel i219-V)
2 of them support POE
• 2 x USB 3.0, 2 x USB 2.0
  • Intel Elkhart Lake Processor
  • 2x DDR4 SO-DIMM(Max.32GB)
  • 1 x HDMI, 1 x DP
  • 3(2 x Intel i225-V, 1 x Intel i219-V, 2 of them support PoE)
  • 2 x USB 3.0, 2 x USB 2.0
  • Windows 10/Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications


Item

Sub-Item

Description

Processor System

CPU

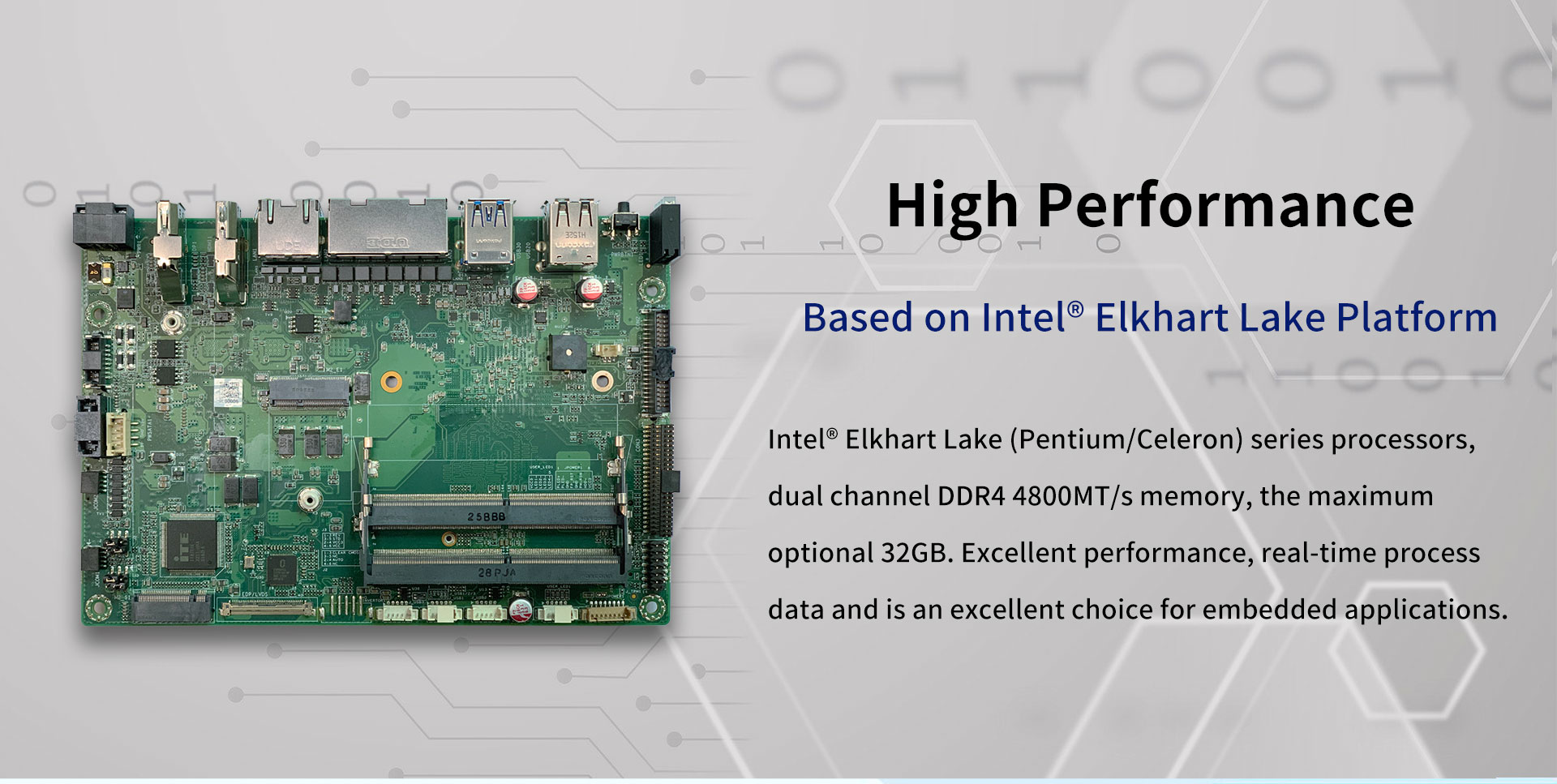

Intel Elkhart Lake

TDP

45W MAX

BIOS

AMI 128 Mbit SPI Flash

Memory

Technology

Dual channel DDR4 4800

Capacity

32 GB

Socket2 x 260PIN SO-DIMM

Graphics

Controller

Intel Gen11 Graphics Engines (SoC integrated)

Graphic features
DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC)

Display

DP

1 x DP1.4a up tp 4096x2304x36bpp@60Hz,or 5120x3200x24bpp@60Hz

HDMI

1 x HDMI 1.4, up to 4096 x 2160 x 24bpp@30Hz

LCD1

1 x eDP or LVDS Dual Channel 18/24-bit,up to 1920x1200

VGA1 x Max Resolution up to 1920 x 1200@60Hz

External I/O

USB 3.0

2

USB 2.02
DP1
HDMI1
LEDPower status, HDD R/W,USER1,USER2
Ethernet2 x Intel I225-V, 1 Intel I219-V, 2 support external PoE power supply

Internal Connectors

USB 2.0

3

LCD1

1 x eDP or LVDS Dual Channel 18/24-bit,up to 1920x1200

SATA 3.0

1

UFS0

1 x UFS

Serial Port1 x RS-232/422/485, 1 x RS-232
SIM1 x Nano SIM
SMBus1
Invertor
1
CPU FAN1
SYS FAN
1
Front Panel ControlPower LED, HD LED, Reset, Power Switch
User LED4
UPS1
ExpansionM.2 E-Key1 x M.2 E-Key 2230 support Wifi
M.2 B-Key1 x M.2 B-Key 3052 support 4G/5G
M.2 M-Key1 x M.2 B/M-Key 2280 support SSD(PCIe x4)
Board to Board 11 x 1I2C/1eSPI/4TTL (TX/RX/CTS/RTS/GND)/8GPIO
Board to Board 21 x PCIe x 1/2USB2.0
Board FeatureWatchdog Timer65536 lever, 0~65535 sec
TPMTPM 2.0

OS

OS

Windows 10 /Linux

Power

Requirement

Supply Voltage

DC 9-36V ± 5%

Power Management
AT/ATX
Max. Consumption60W
Test EnvironmentIntel J6412 DDR4 32GB X2

Environment

Temperature

Operating 0 ~ 60 °C,Extend -40~85℃

Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating 40 °C @ 95% RH Non-condensing

Non-Operating 60 °C @ 95% RH Non-condensing

Physical characteristic

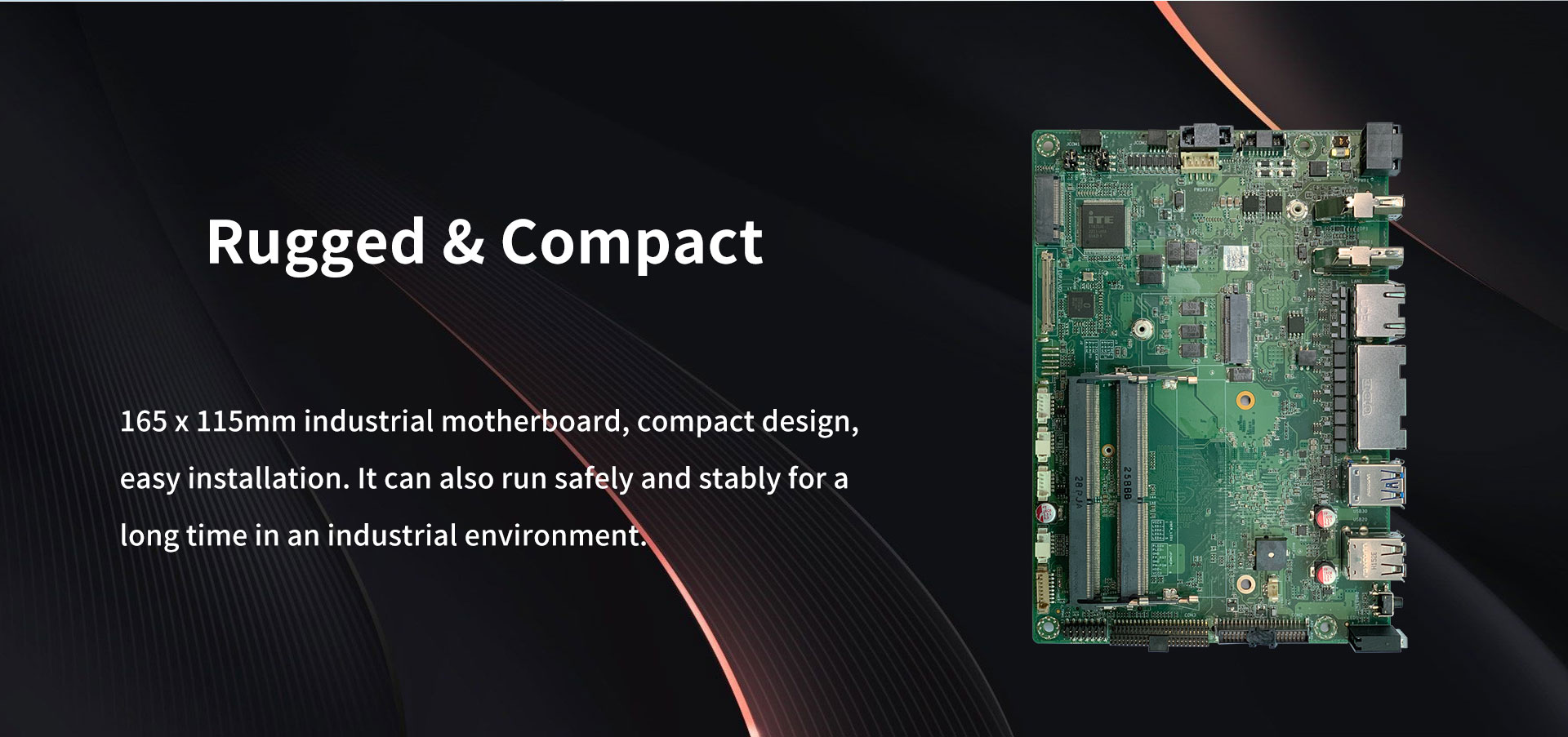

Dimensions165 x 115mm
