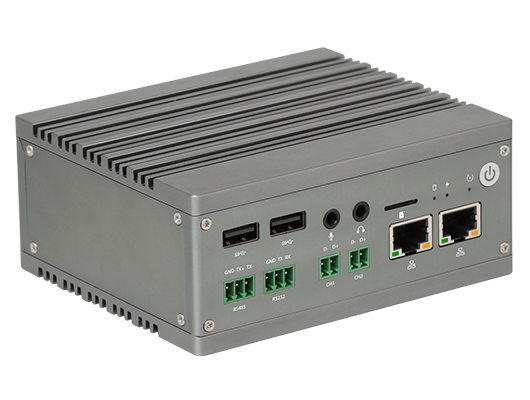

V300 Series
• Intel®Apollo Lake SoC Processor
• 1 DP and 1 HDMI
• 3 GbE LANs(1 x RTL8111H GbE,2 x Intel i210 GbE)
• 4 x USB, 1 x RS232, 1 xRS485
• 4 DIO,support 2 Lighting Source Control
• Compact Mini Size
  • Intel Apollo Lake SoC Processor
  • DDR3L(Max. 8GB)
  • 1 x HDMI, 1 x DP
  • 3(1 x RTL8111H GbE, 1 x Intel i210 GbE)
  • 2 x USB 3.0,2 x USB 2.0,1 x RS232,1 x RS485,2 x Light source control,4DIO
  • Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download























规格 Specifications



Specs

Item

V300

Processor System

CPU

Intel® Apollo Lake N4200/J4205 Processor

BIOS

AMI 8MB UEFI

Memory

Sockets

DDR3L 1600 MHz

Capacity

2GB (Max. 8GB)

Display

ChipsetIntel HD Graphics 505
Graphics engine
4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9

DP

1, Max. resolution 4096 x 2160@60Hz

HDMI

1, Max. resolution 3840 x 2160@60Hz

Dual Display

HDMI+DP

Audio

I/O

Realtek ALC662,High Definition Audio, Line Out & Line In

Ethernet

LAN

1 x RTL8111H GbE, 2 x Intel i210 GbE

I/O Interface

USB

2 x USB2.0, 2 x USB3.0

COM

1 x RS232,1 x RS485

Light source control2 channels of flow control (CH1, CH2), single channel maximum 24W (24V1A)
DIO4DI,4DO

Storage

M.2

1 x 2242 SSD

eMMC

8GB ,MAX. 256GB

TF Card
1
Power SupplyDC input
24V DC IN

OS

MicrosoftWindows

Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Wall Mounting

Dimensions

120x100x51 mm(LxWxH)

Weight

0.65 Kg

Environment

Operating Temperature

-20°C~60°C, Airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

95%@40°C(Non-Condensing)

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCCClassB

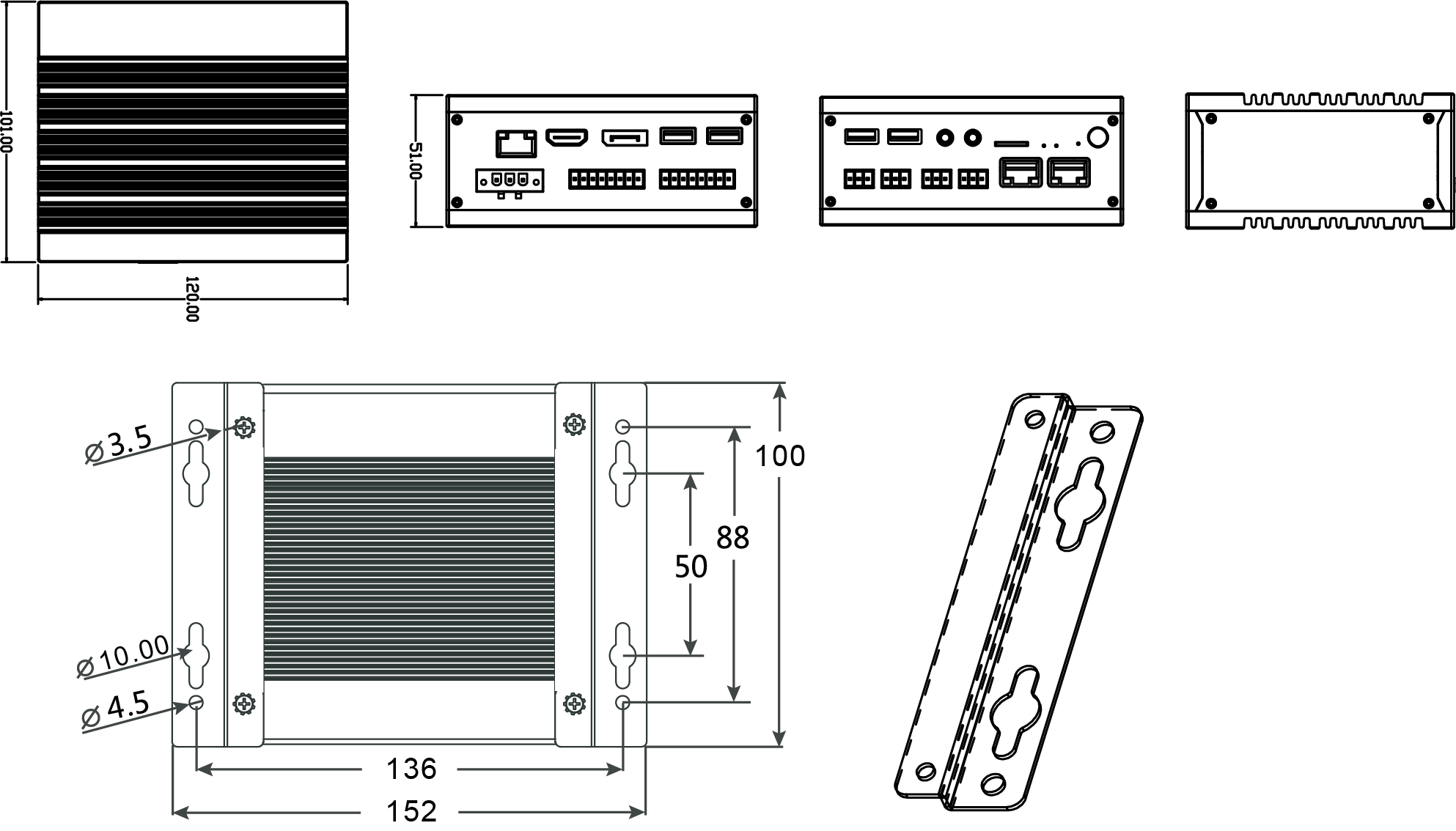

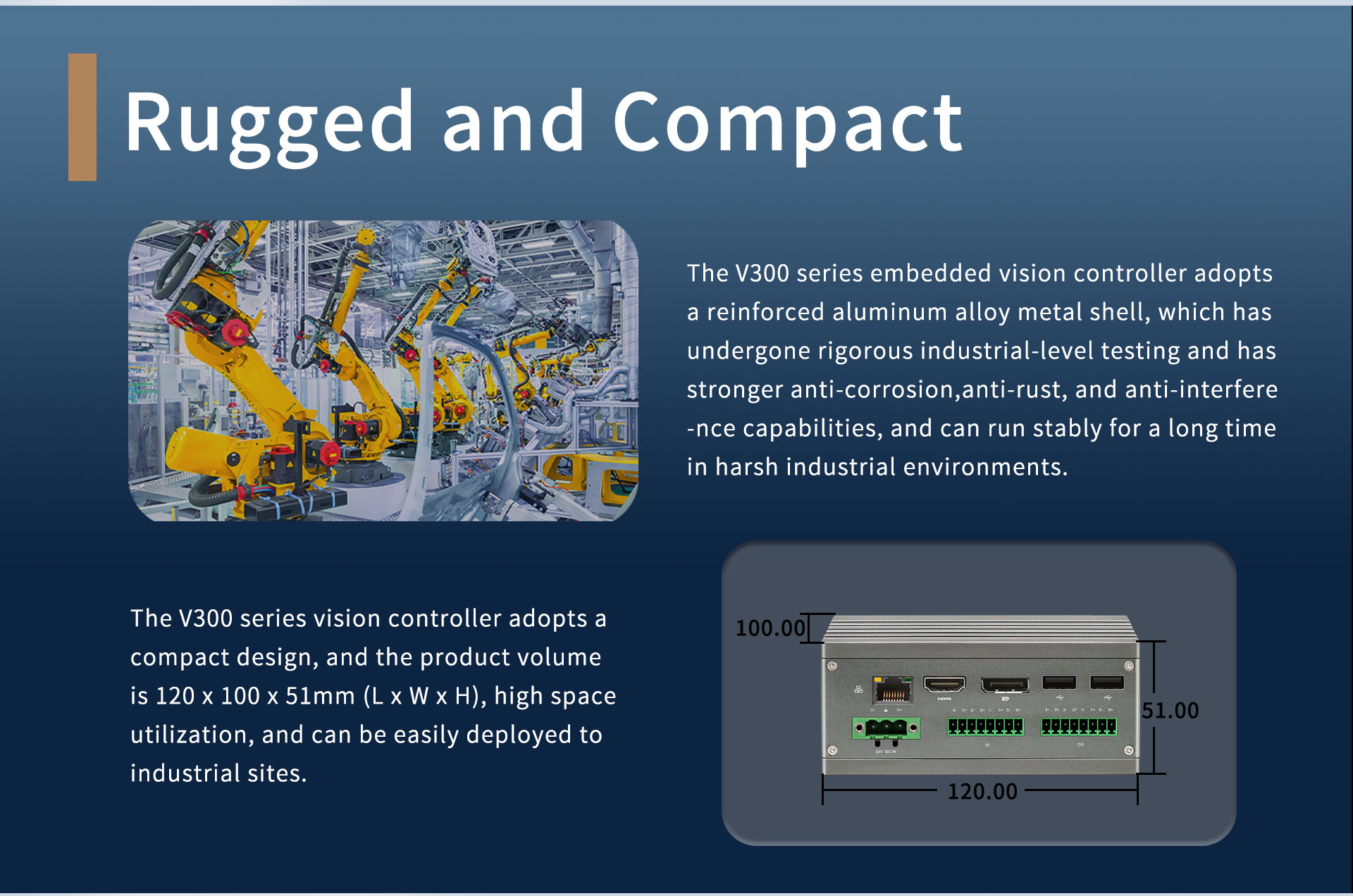

尺寸图 Demensions

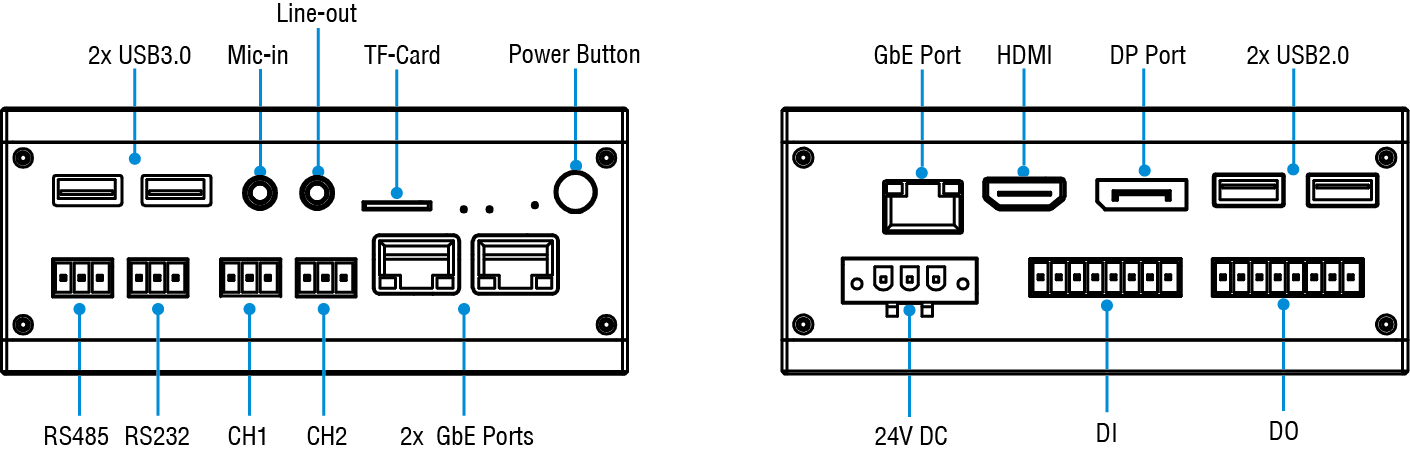

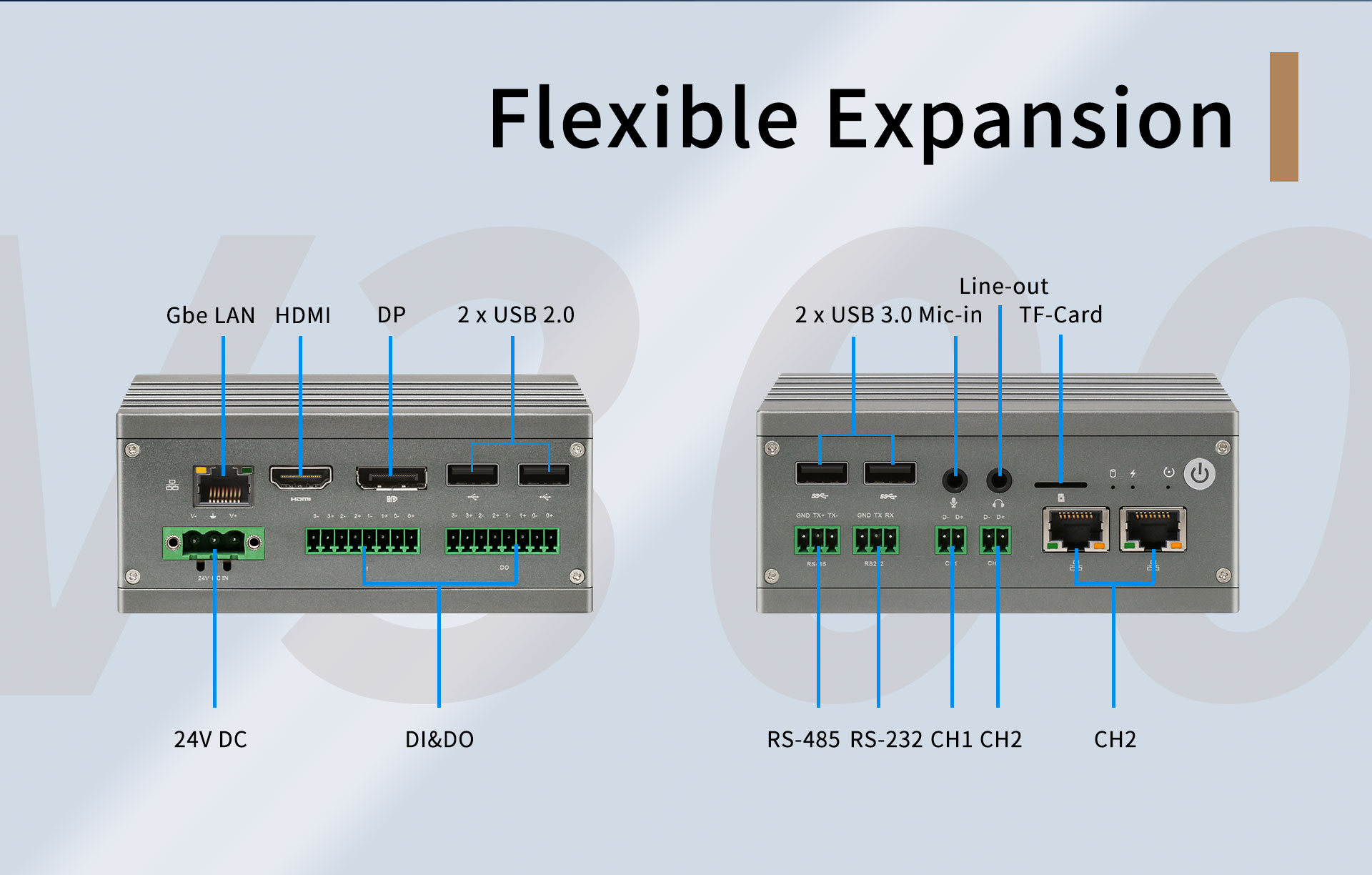

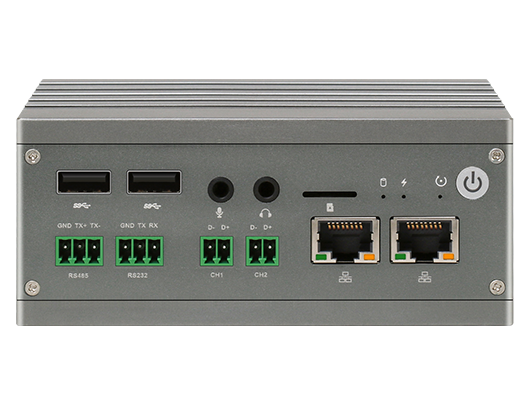

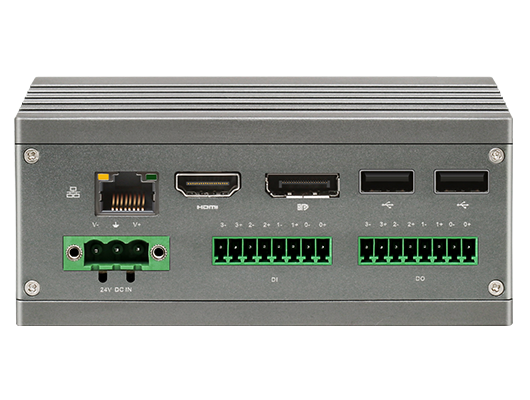

接口图 Interfaces





  • V300 Series Vision Controller Datasheet
    Size:1.39MB
    Download
