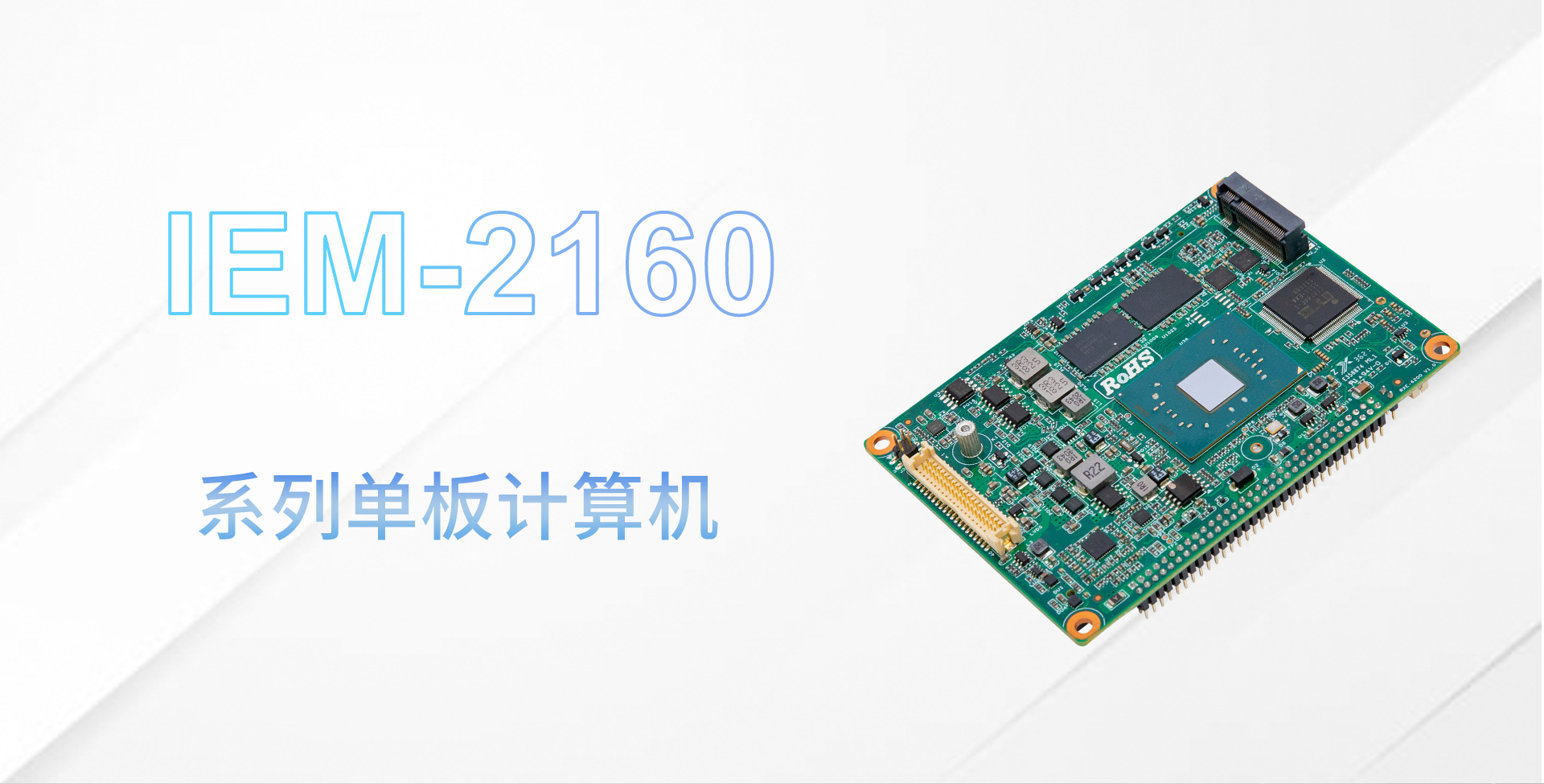

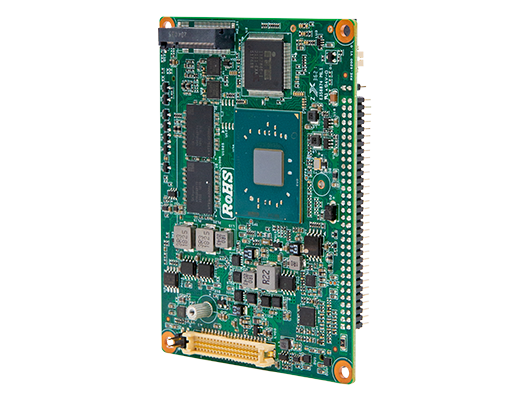

IEM-2160系列
• Intel® Apollo Lake SoC处理器
• 1 x DP/HDMI, 1 x LVDS, 1 x VGA
• 1 GbE LAN(Intel i211-AT)
• 2 x 串口,5 x USB
• 1 x BTB Connector,2 x 64 Pin Connector

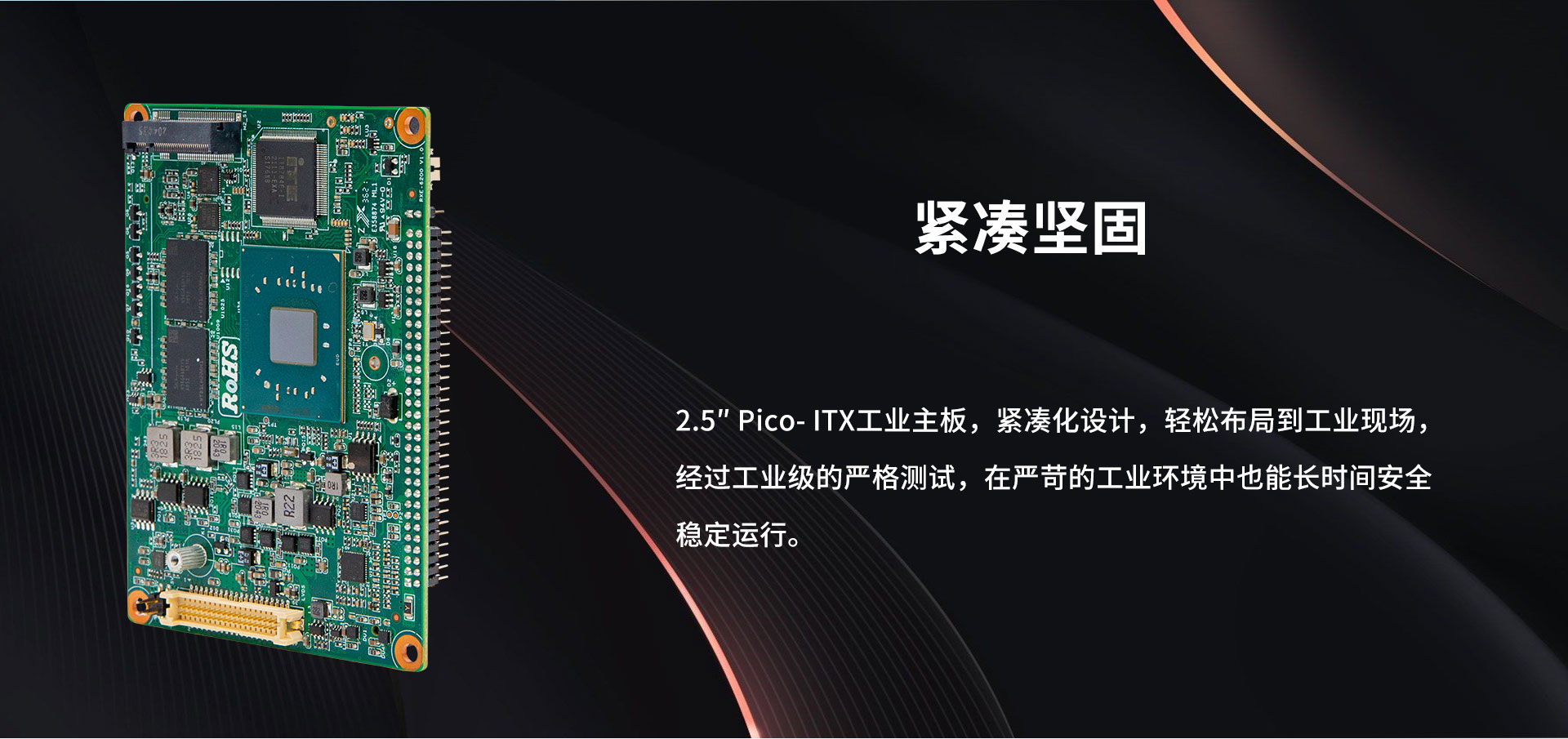

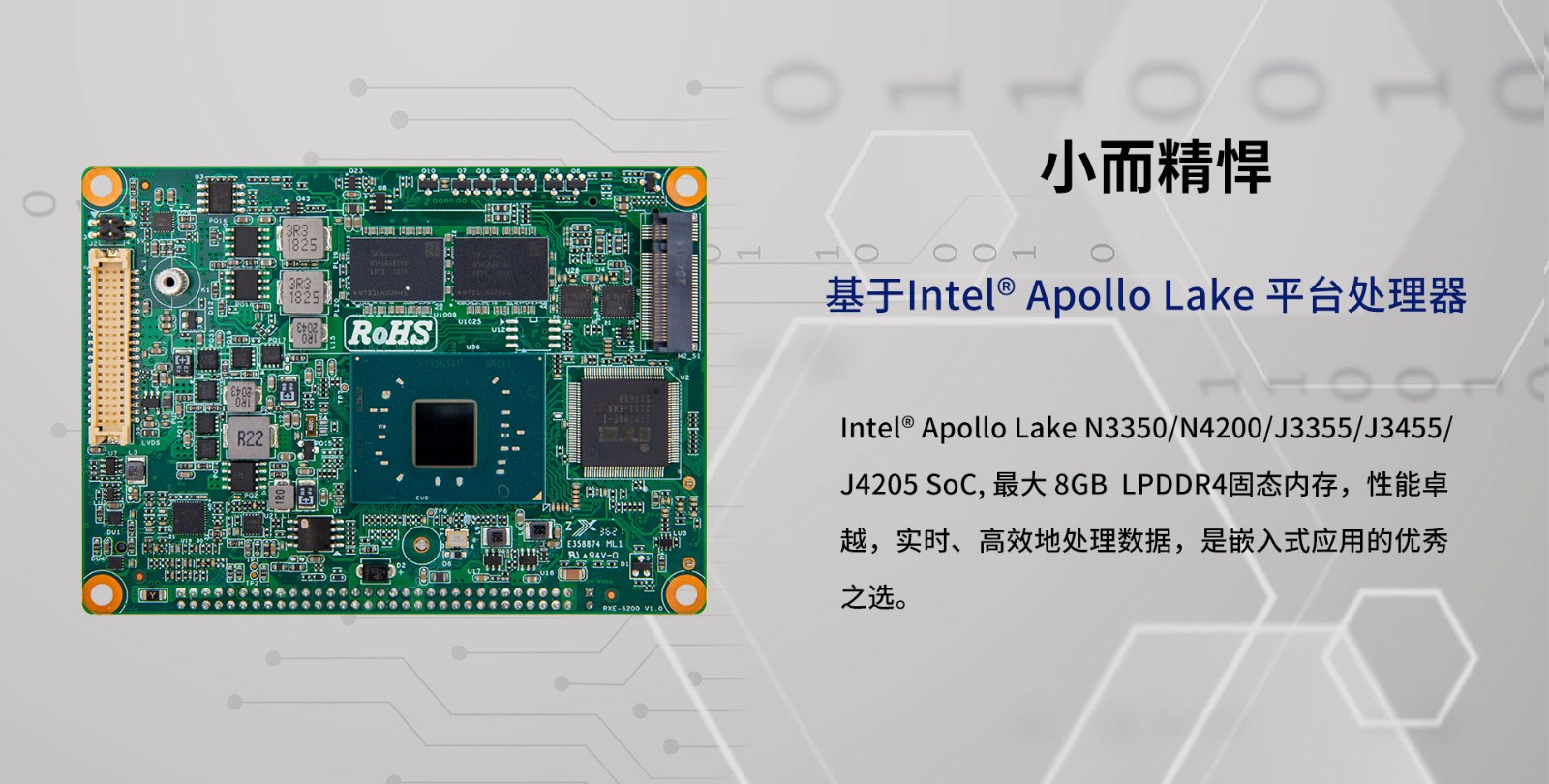

  • Intel Apollo Lake SoC处理器
  • LPDDR4(4 GB)
  • 1 x DP/HDMI, 1 x LVDS, 1 x VGA
  • 1( Intel i211-AT/ i210-AT)
  • 2 x COM,5 x USB,1 x BTB Connector,2 x 64 Pin Connector
  • Windows 10 IOT, Linux
  • 产品详情
  • 规格
  • 应用
  • 下载






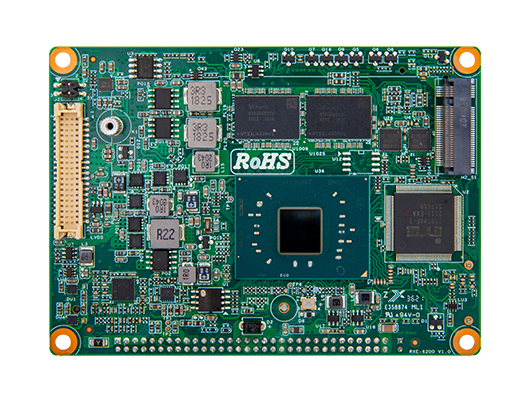

规格 Specifications


Item

Sub-Item

Description

Processor System

CPU

Intel Apollo Lake N4200/J4205/J3455/J3355

TDP

10W

BIOS

AMI UEFI BIOS at 64 Mbit SPI

Memory

Technology

LPDDR4

Capacity

4 GB (8G Optional)

Graphics

Controller

Intel HD Graphics

Display

DP/HDMI(Optional)

1 (Resolution up to 4096 x 2304 @ 60 Hz)

LVDS

1 (Resolution up to 1920 x 1200 @ 60 Hz)

VGA

1 (Resolution up to 1920 x 1200 @ 60 Hz)

Dual-Display

DP+LVDS or DP+VGA or LVDS+VGA

Ethernet

Interface

1x 10/100/1000 Mbps

Controller

GbE LAN1: Intel I211-AT or I210-AT

Audio

Controller

ALC662-VD0-GR (Co-lay ALC897)

Storage

M.2

1x B Key 2280up to >1TB

SATA

1 x SATA3.0 (600M/S), Support HDD, SSD

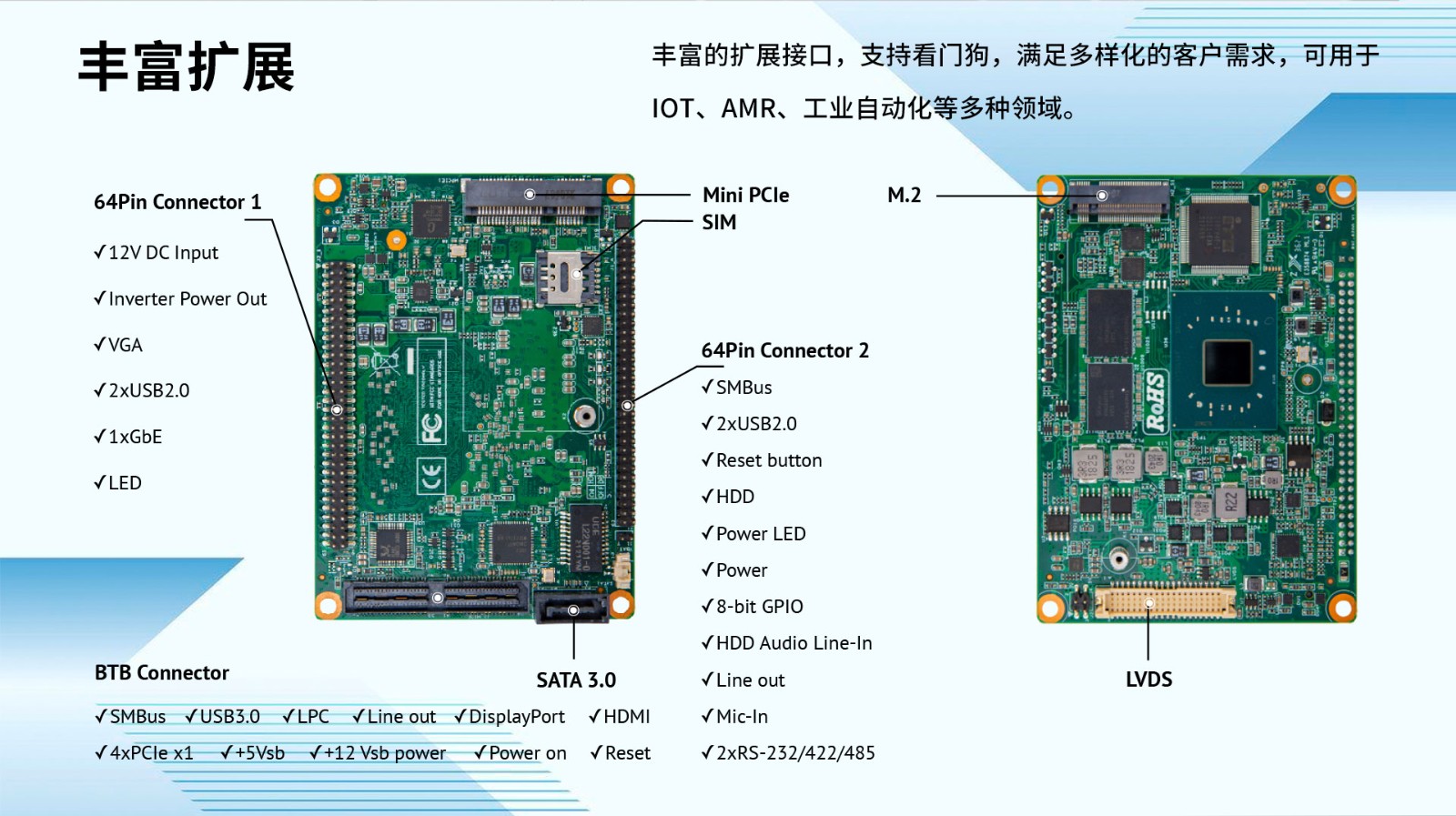

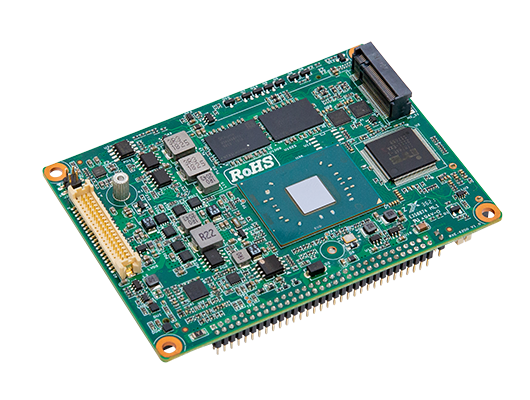

Expansion

64-Pin connector 1

12V DC input/Inverter/VGA/2XUSB2.0/1GbE/LED

64-Pin connector 2

SMBus/I2C/ Power/Reset button/HDD/Power LED/2 x

USB2.0/8-bit GPIO/ HD Audio Line-in/ Line out/ Mic-in/ 2 x RS-232/422/485

BTB Connector

SMBus/USB3.0/LPC/4 x PCIe x1/Line out/DisplayPort/HDMI*/

+5 Vsb/+12 Vsb power/Power On/Reset

SIM

1 x SIM Socket

Mini-PCIe

1 x Full-size

OS

OS

Windows 10 /Linux

Power

Requirement

Test Environment

Intel Apollo lake N4200 LPDDR4 2GB X2

Environment

Temperature

Operating 0 ~ 60 °C (32 ~ 140 °F)

Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating 40 °C @ 95% RH Non-condensing

Non-Operating 60 °C @ 95% RH Non-condensing

Physical

Characteristics

Dimensions (L x H)

100 x 72 mm

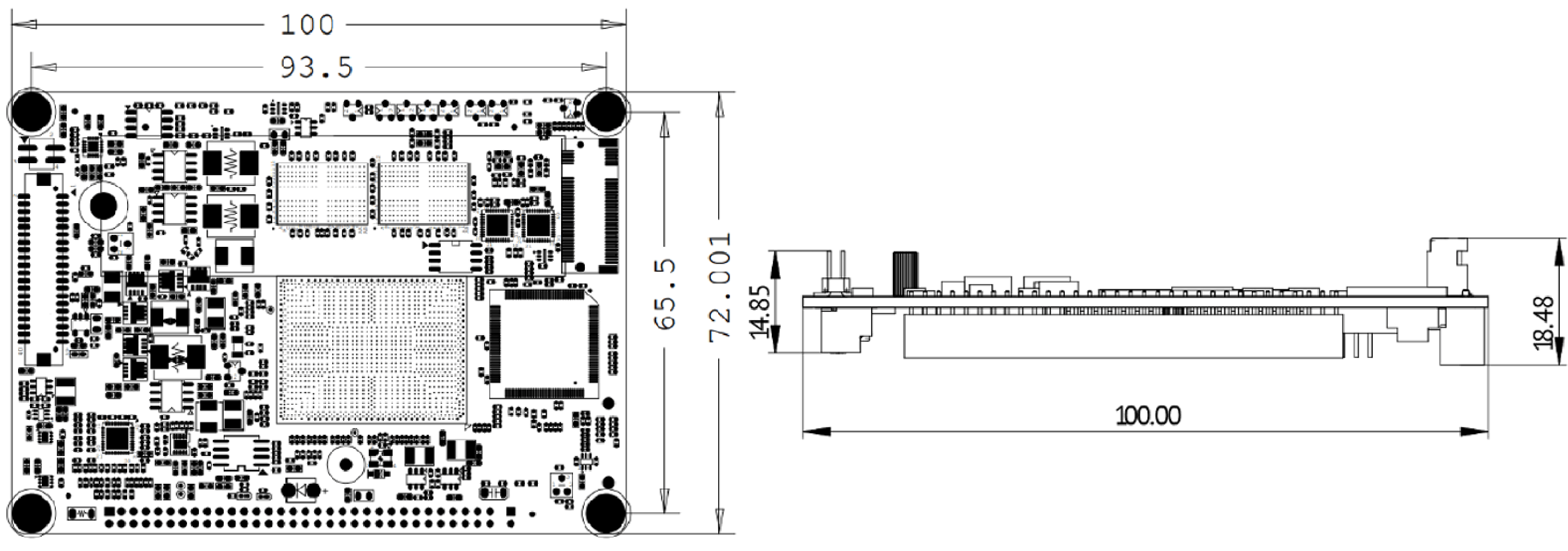

尺寸图 Demensions

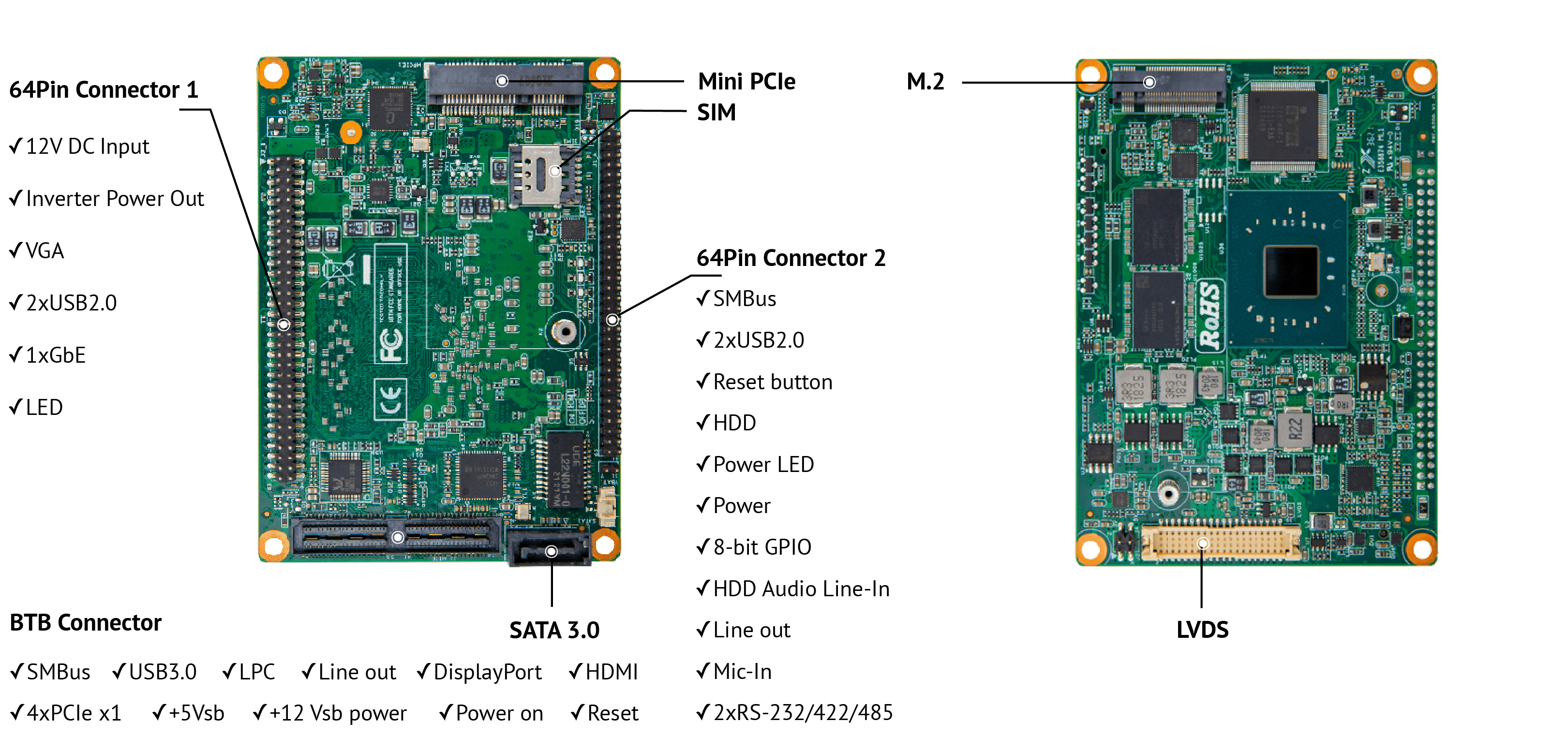

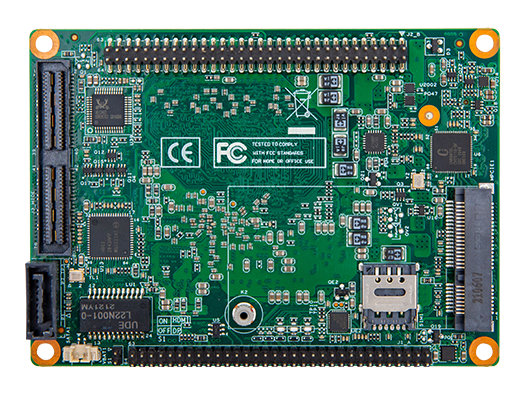

接口图 Demensions
