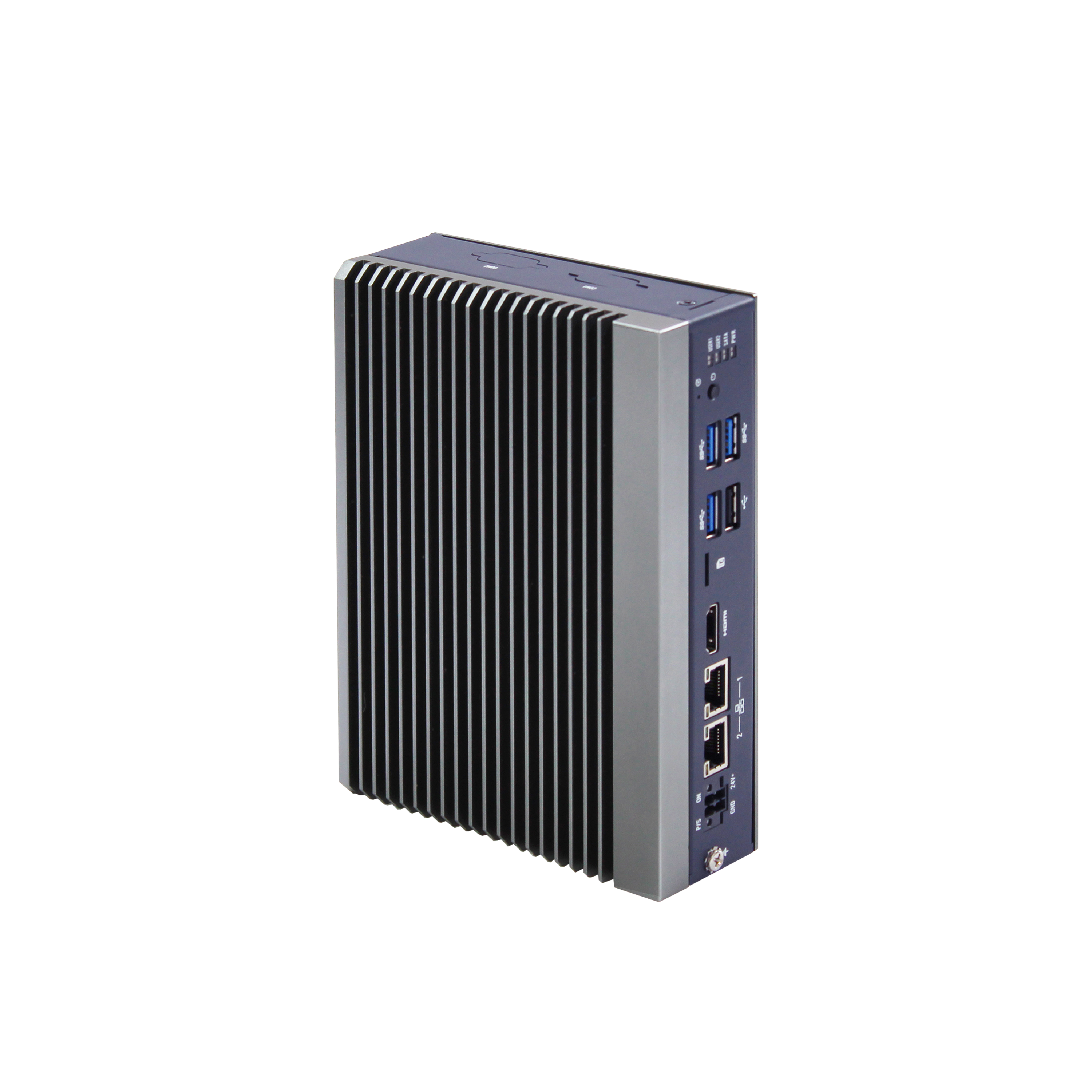

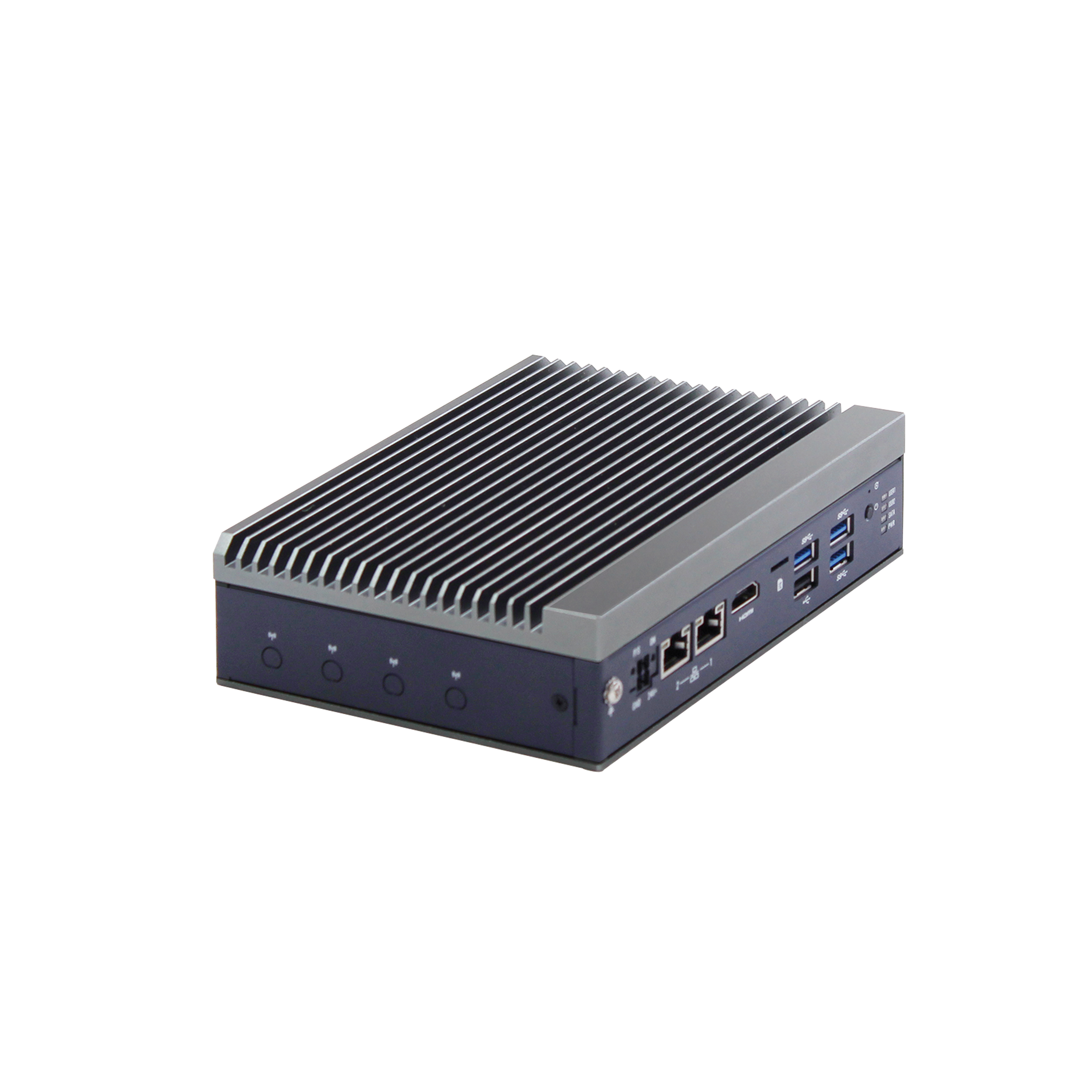

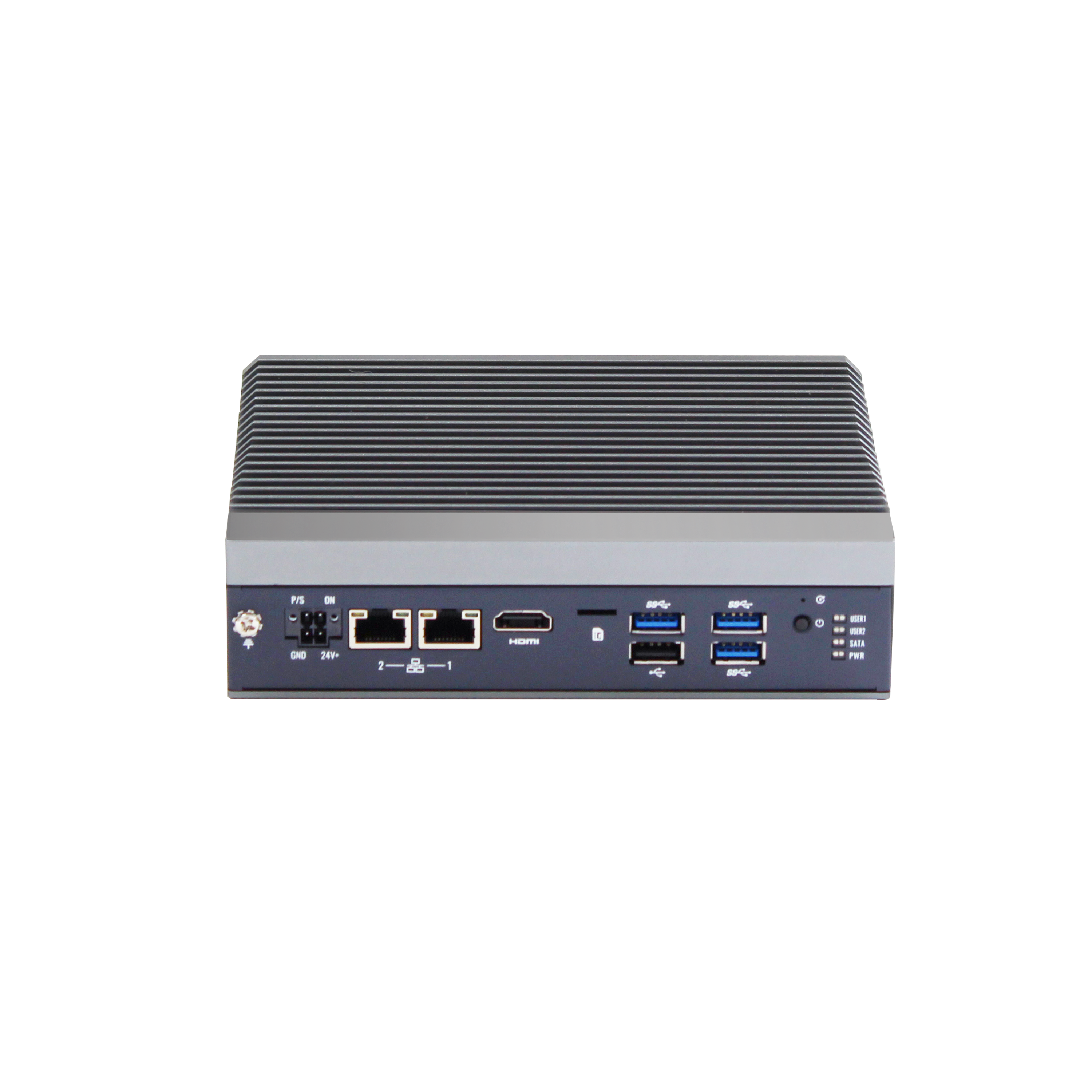

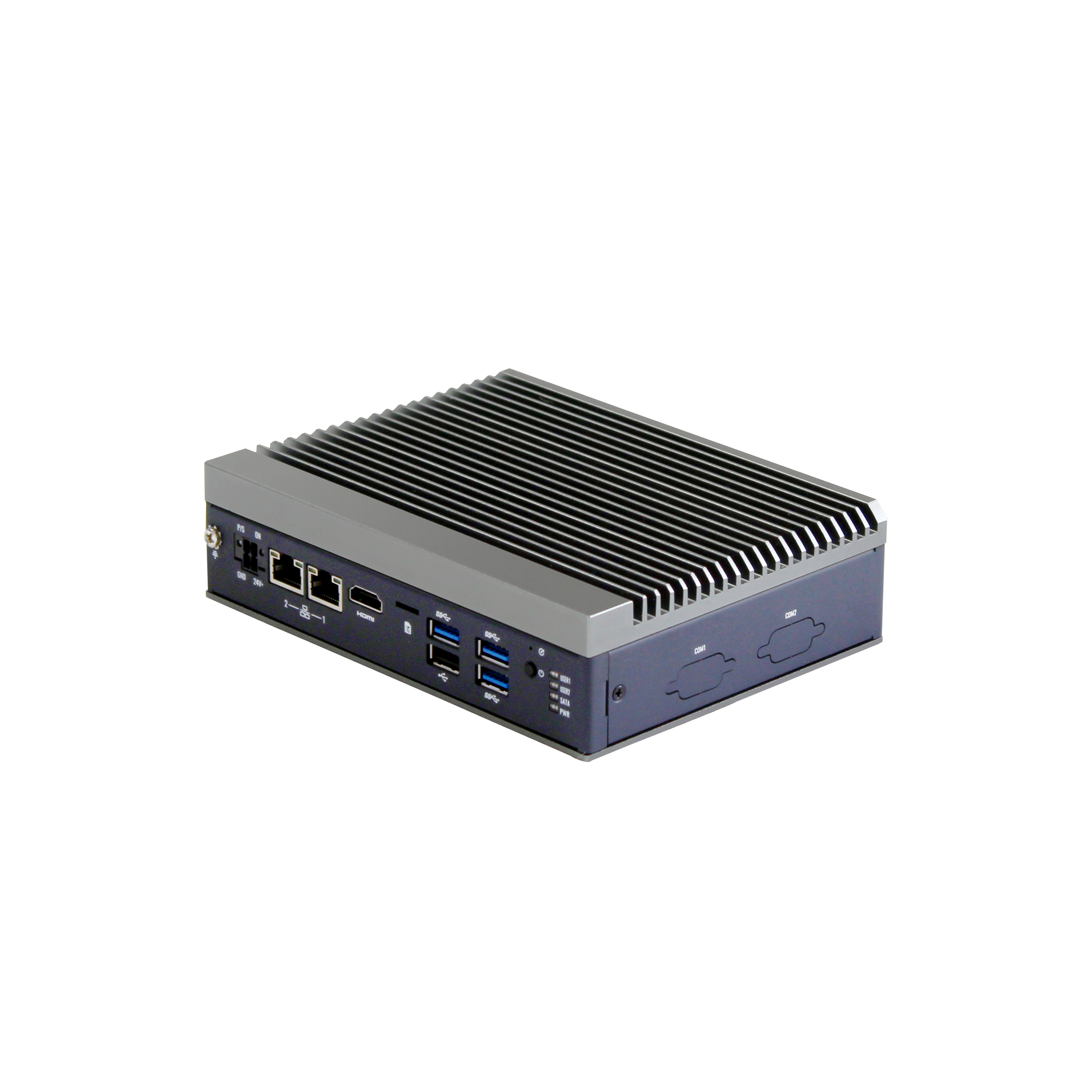

E201系列
• Intel® J3355/J3455/N3350/N4200
• 1 HDMI
• 2 Intel i225 2.5GbE LAN
• 3 USB3.0, 1 USB2.0
• 1 RS-232, 1 RS-485
• 4 DI, 4 DO, 2 CAN
• 支持 4G/5G, Wi-Fi 扩展
• Win 10/11 和 Linux 多版本系统

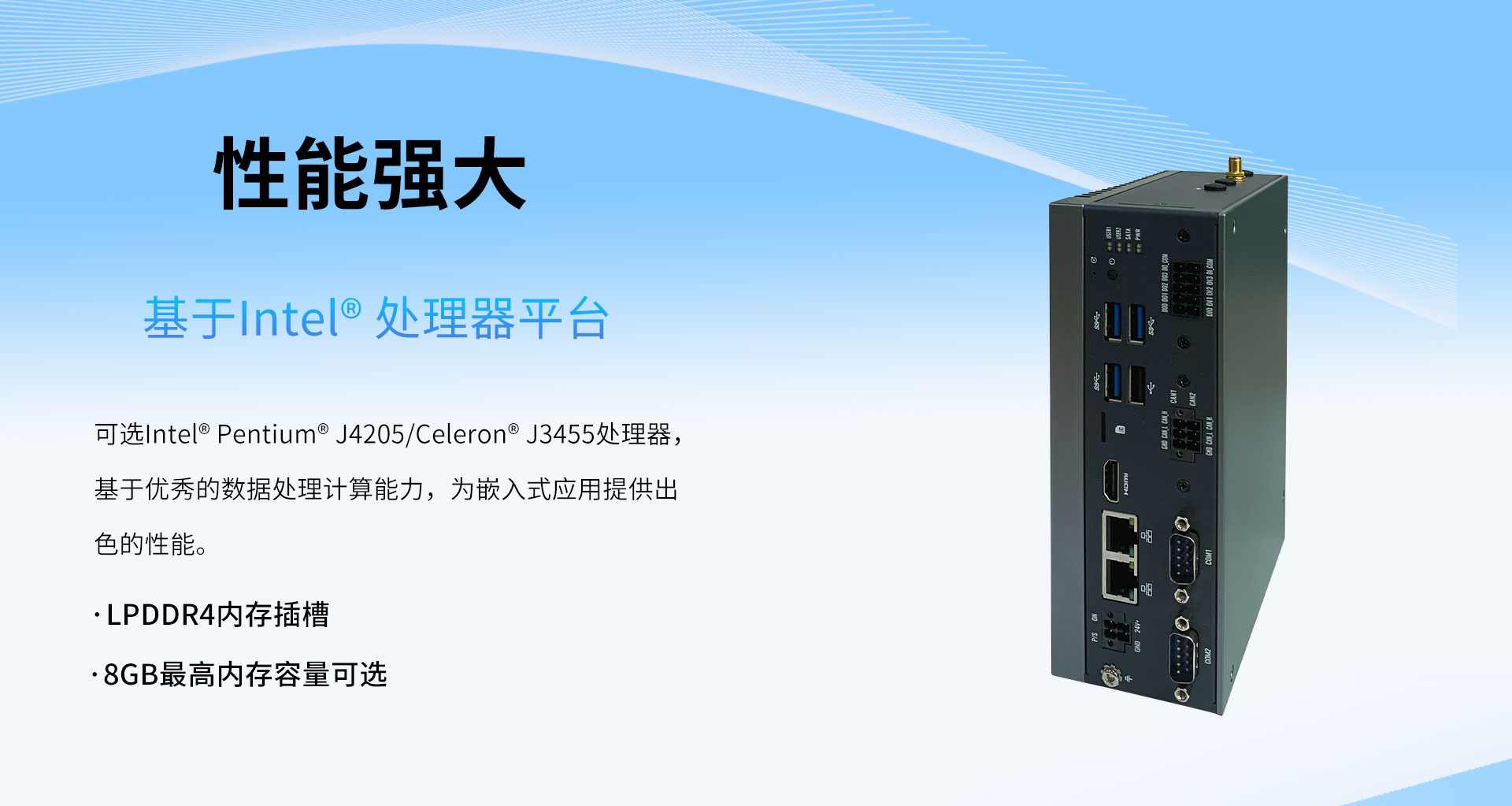

  • Intel Apollo Lake SoC处理器
  • LPDDR4(Max. 8GB)
  • 1 x HDMI
  • 2 x Intel i225-V GbE LAN
  • 3 x USB 3.0, 1 x USB 2.0 ,1 x RS-232, 1 x RS-485, 2 x CAN, 4 x DIO
  • Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
  • 产品详情
  • 规格
  • 应用
  • 下载






规格 Specifications


Specs

Item

E201 Series

Processor System

CPU

Intel® Pentium-N4200, Celeron-N3350/J3355/ J3455

BIOS

AMI UEFI BIOS at 64 Mb

Memory

Sockets

LPDDR4

Capacity

Max. 8 GB

Graphics

Controller

Intel Gen9 Graphic engine

Features

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: H.264, MPEG2, VC-1, WMV9, H.265/HEVC, VP8, JPEG/MJPEG

External IO

HDMI

1 x HDMI, resolution up to 3840 x 2160 @ 30Hz

Ethernet

2 x Intel i225-V 2.5GbE LAN

COM

1 x RS-232, 1 x RS-485

USB

3 x USB3.0, 1 x USB2.0

SIM

1 x Micro SIM

CAN2 x CANBus
DIO
4 x DI, 4 x DO
Power DC JackPhoenix 4pin terminal
ExpansionM.2 E-Key

1 x M.2 2242Support Wi-Fi

M.2 B-Key

1 x M.2 3052 Support 4G/5G

M.2 M-Key1 x M.2 2280 SATA3.0
SATA 3.01
LEDLED LightsPower, SATA, USER1, USER2
Power

Power Type

24V/2.5ADC Input

OthersWatchdog255-level timer, resettable

OS

Operation system

Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04

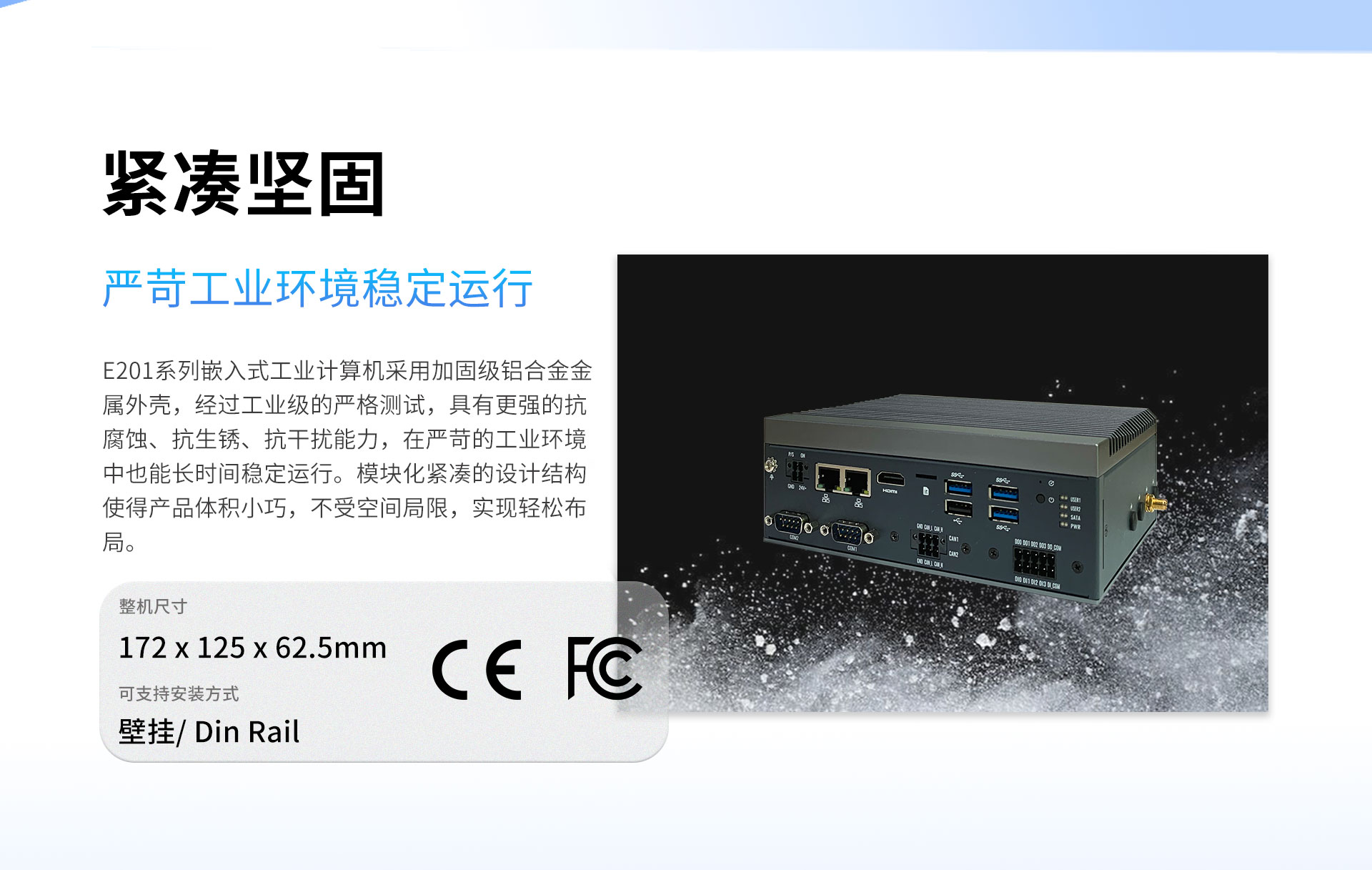

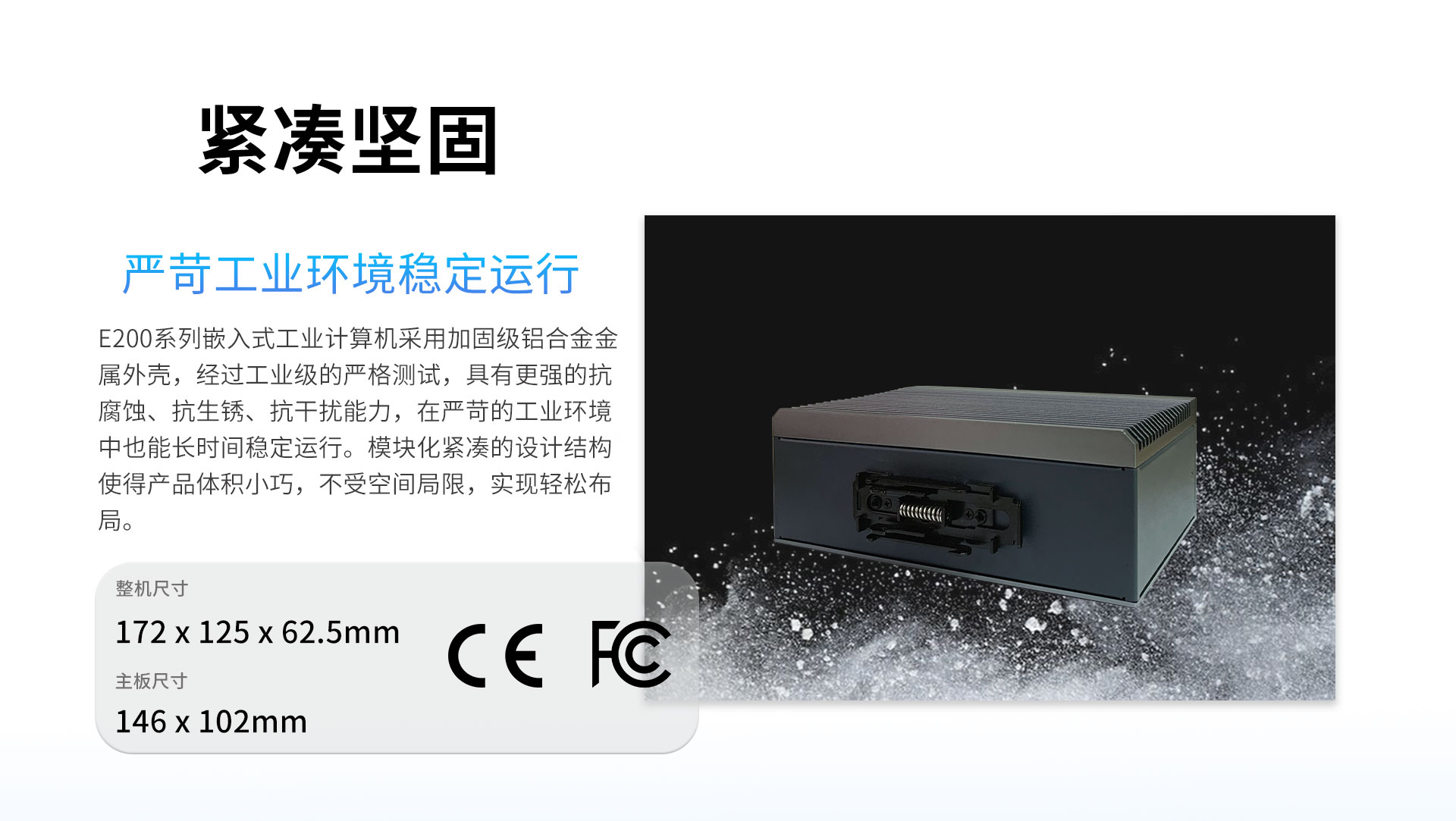

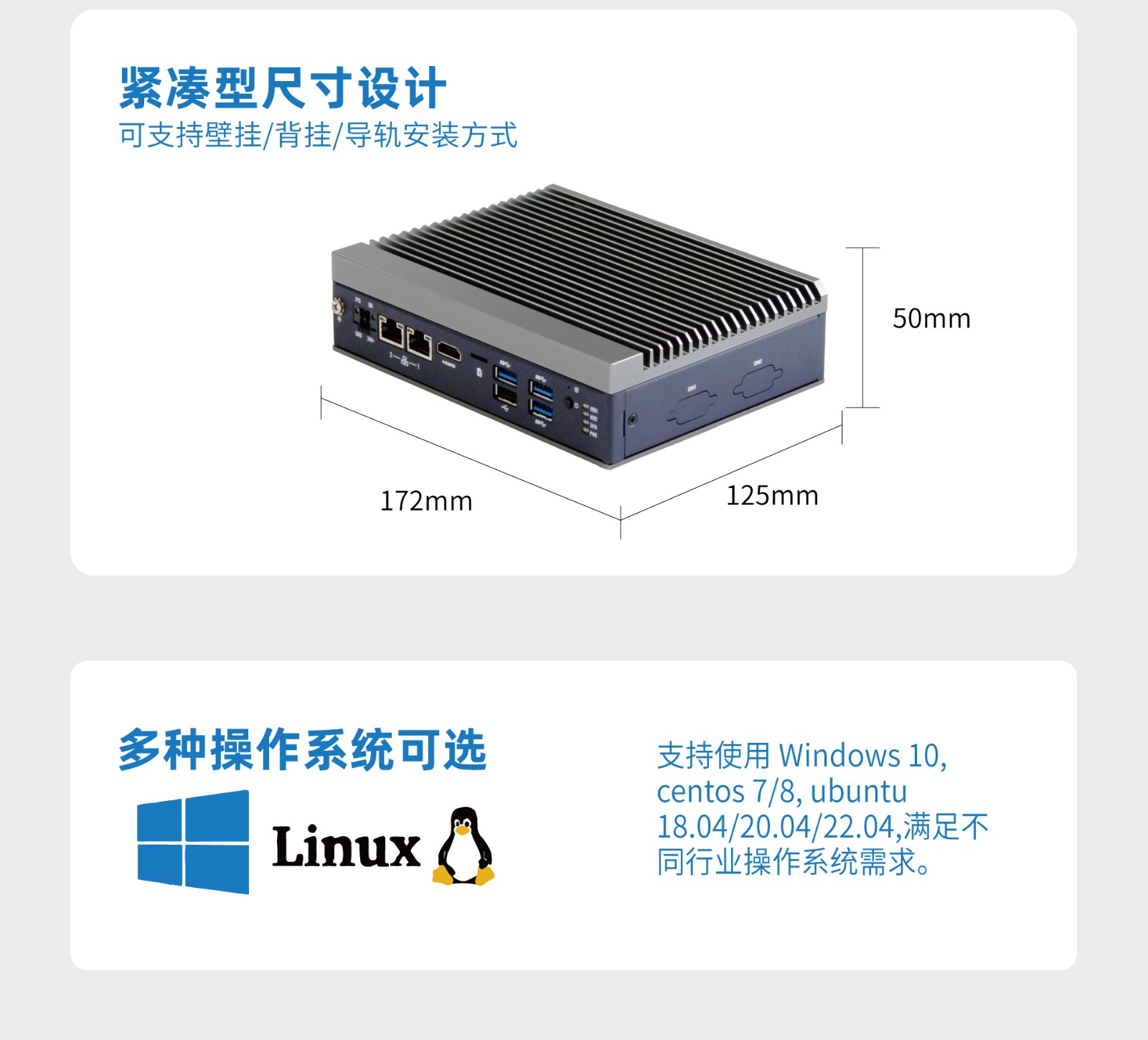

Physical CharacteristicsDimensions

172 x 125 x 62.5 mm

Construction

AluminiumAlloy

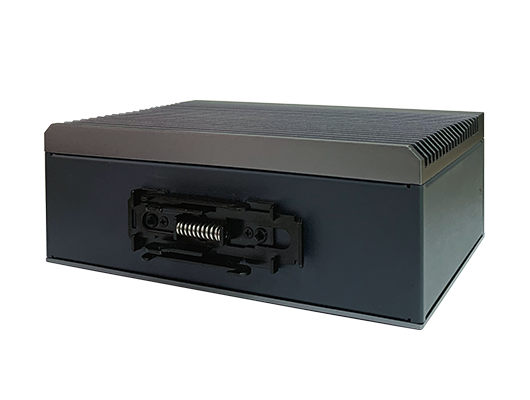

MountingWall Mounting/ Din Rail Clip
Certification
EMC CE, FCC

Environment

Operating Temperature

0 ~ 60 °C(32~140°F)

Storage Temperature

-40°C ~ 85°C(-40~185°F)

Relative Humidity (Operating)

95% @ 40 °C (non-condensing)

Relative Humidity(Storage)

95% @ 60 °C (non-condensing)

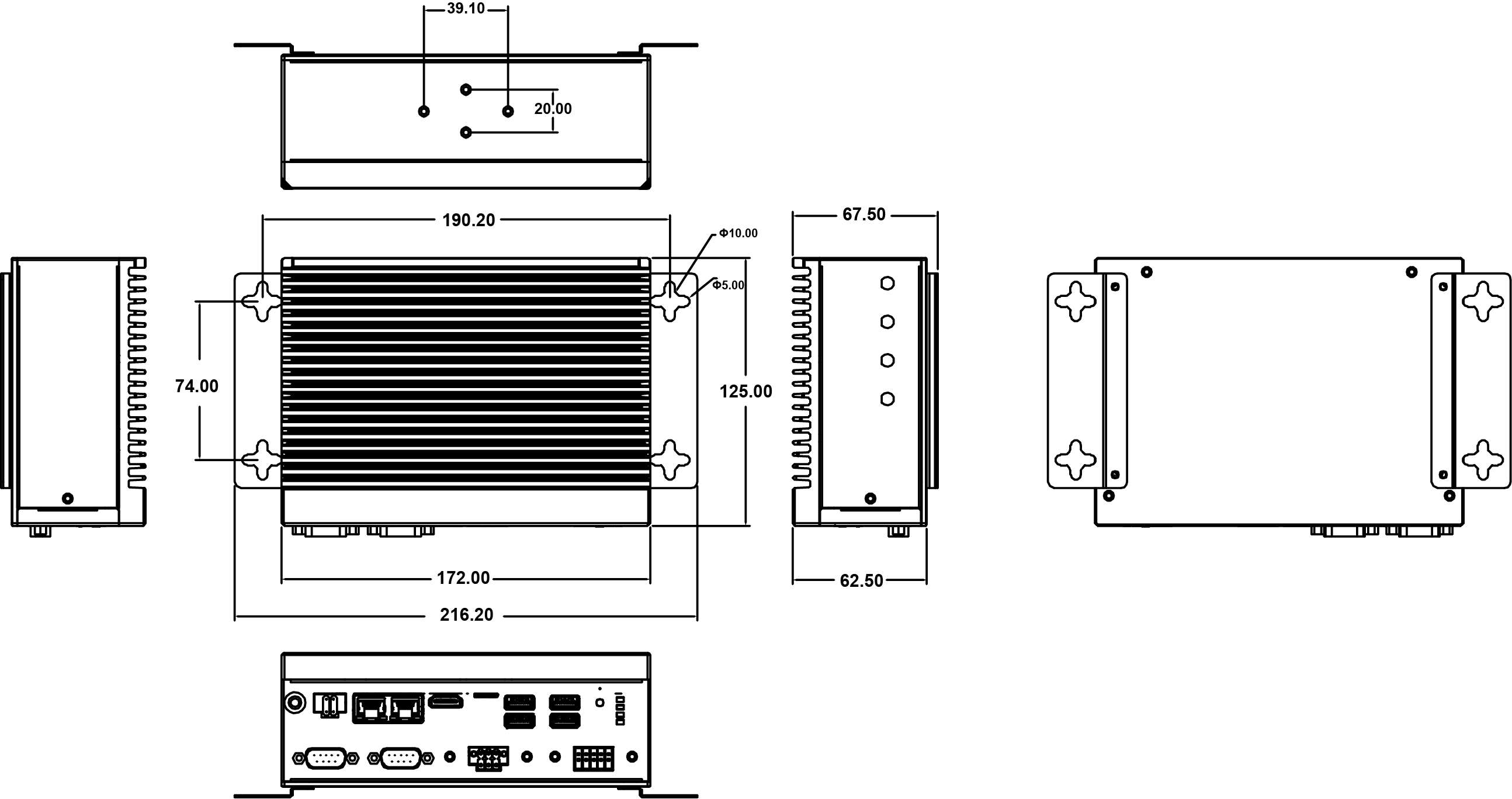

尺寸图 Dimensions

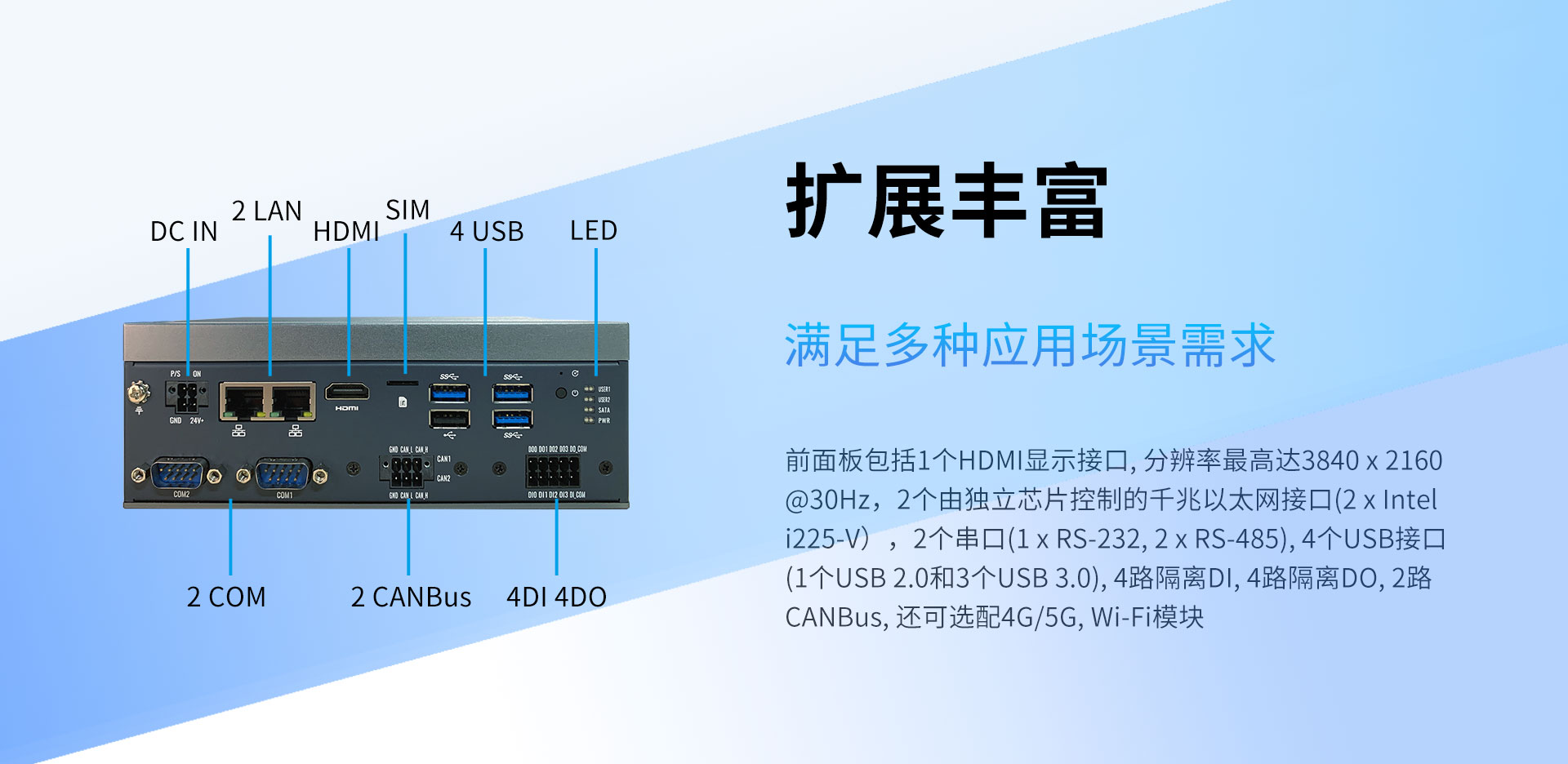

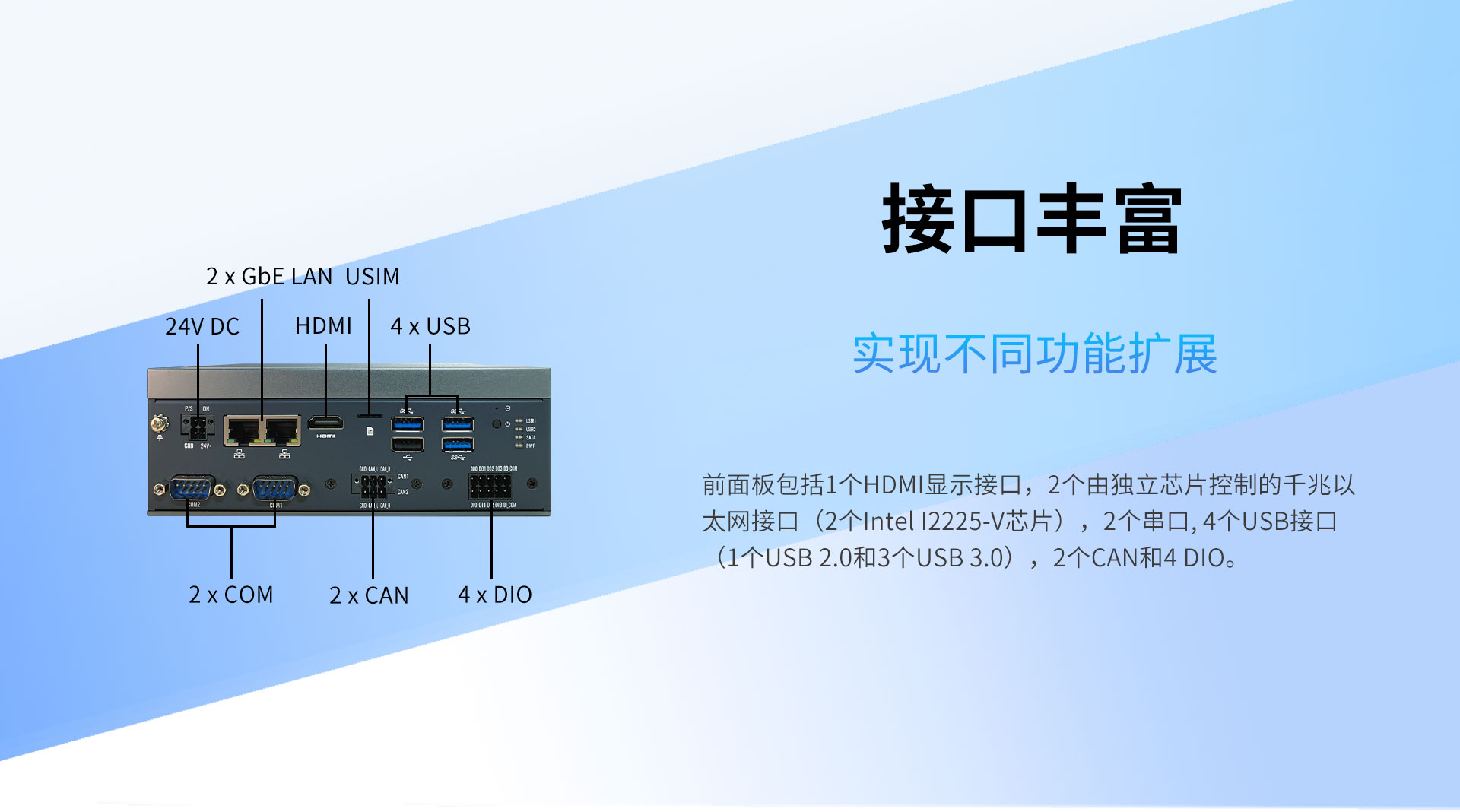

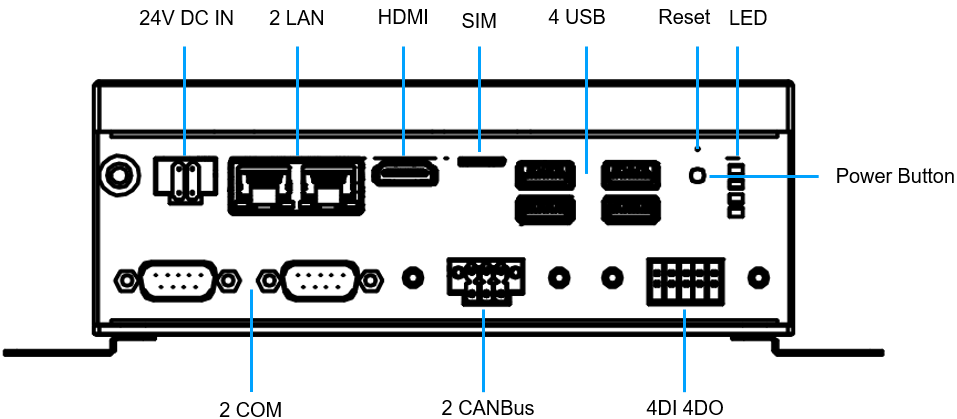

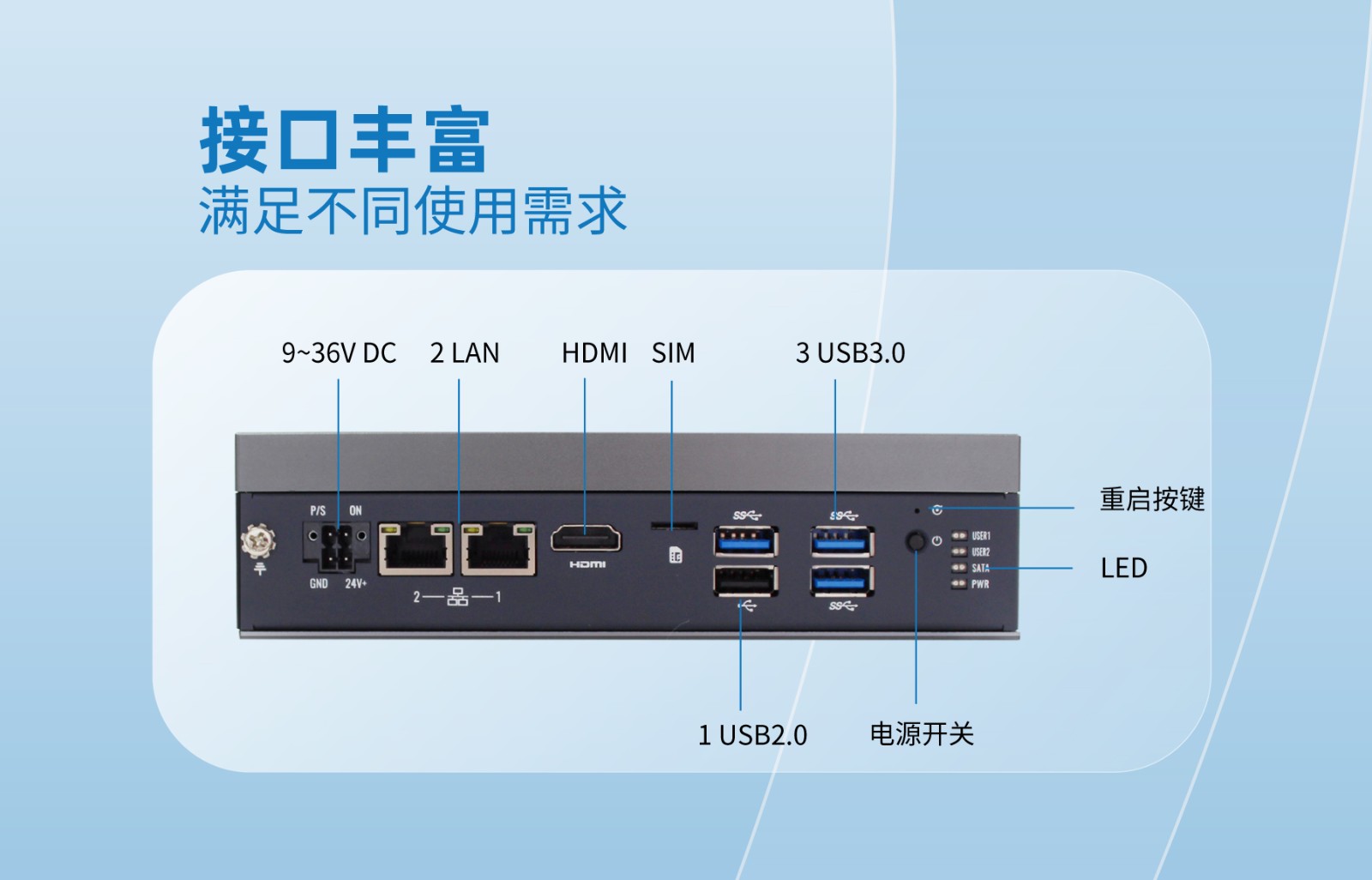

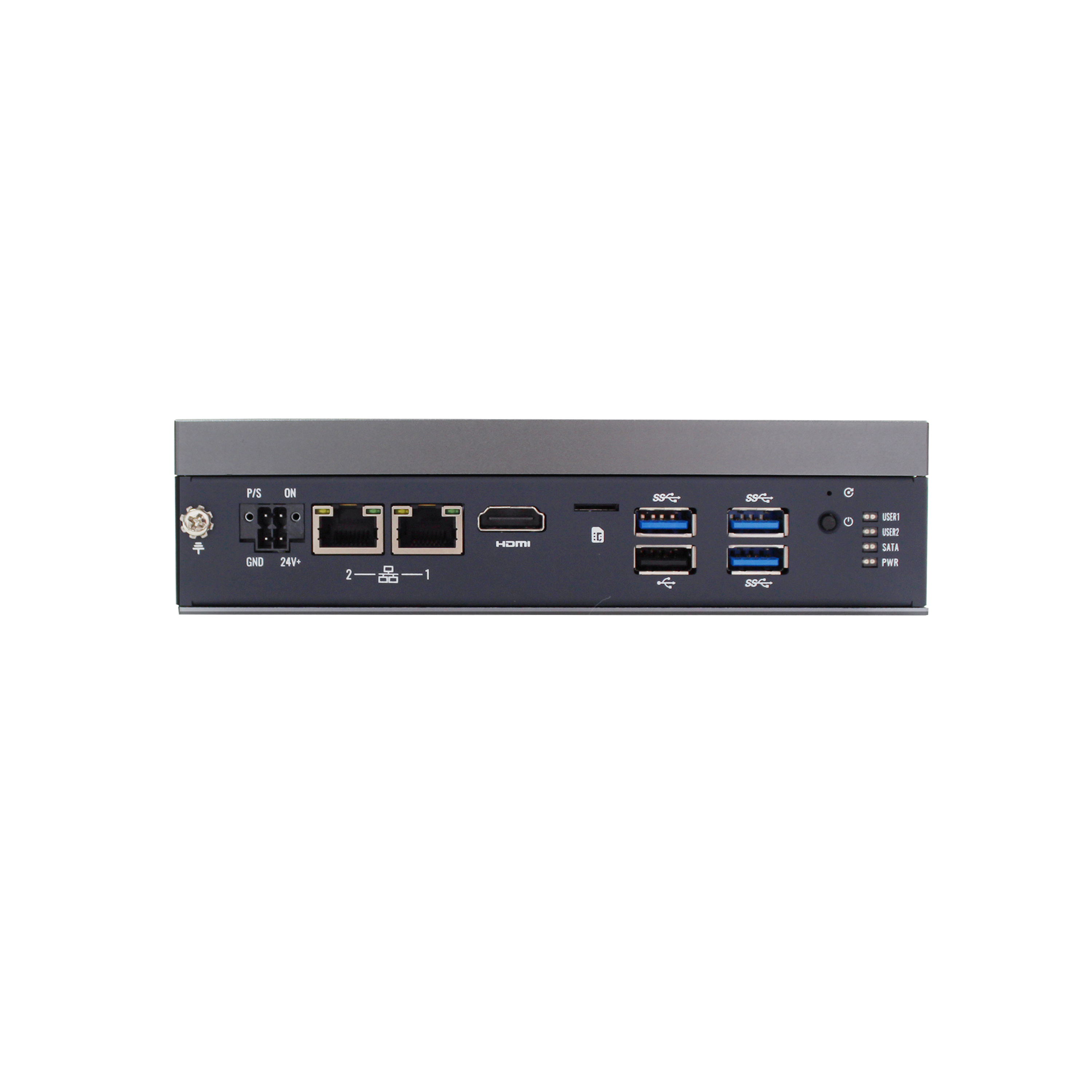

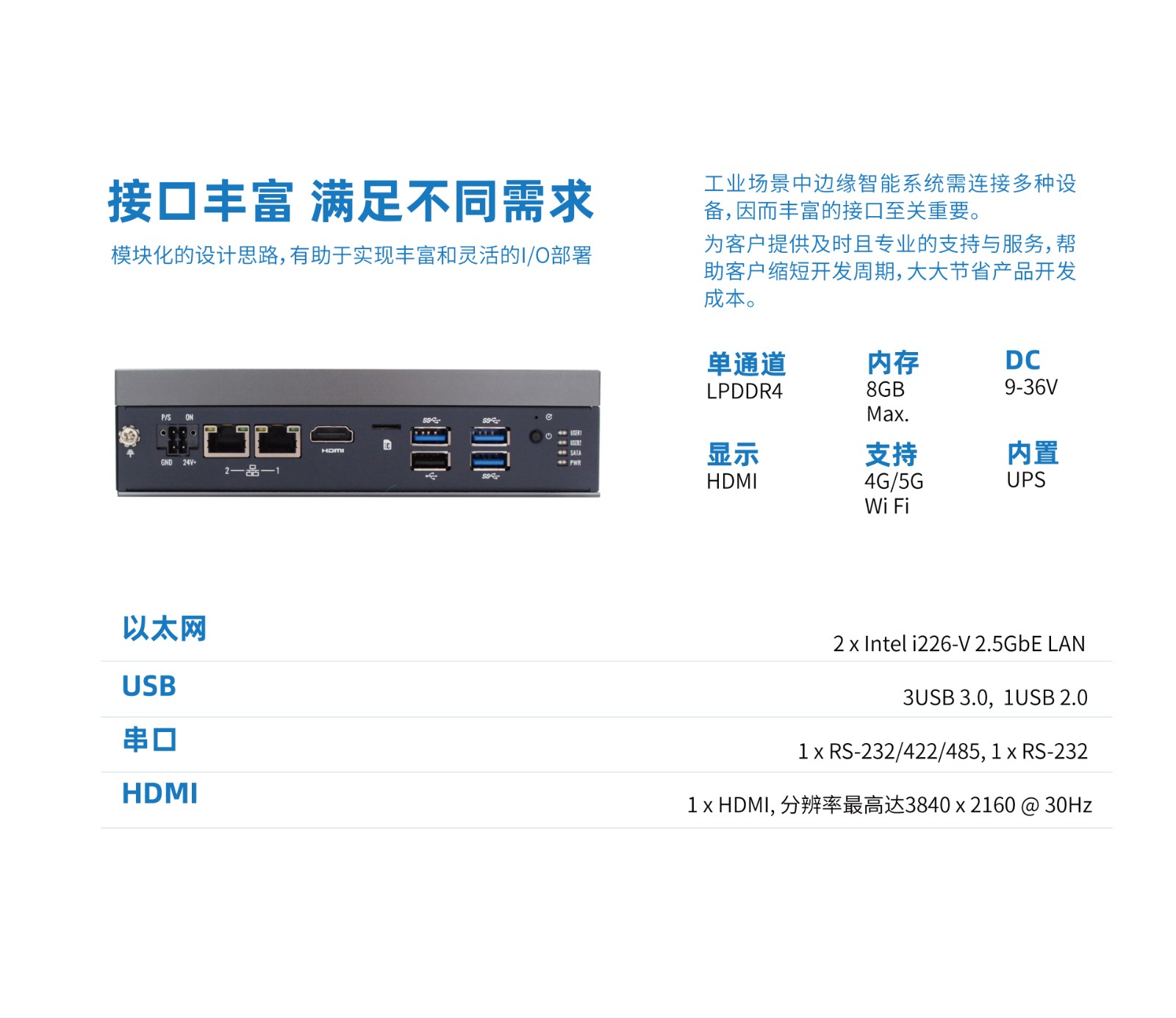

接口图 Interfaces
