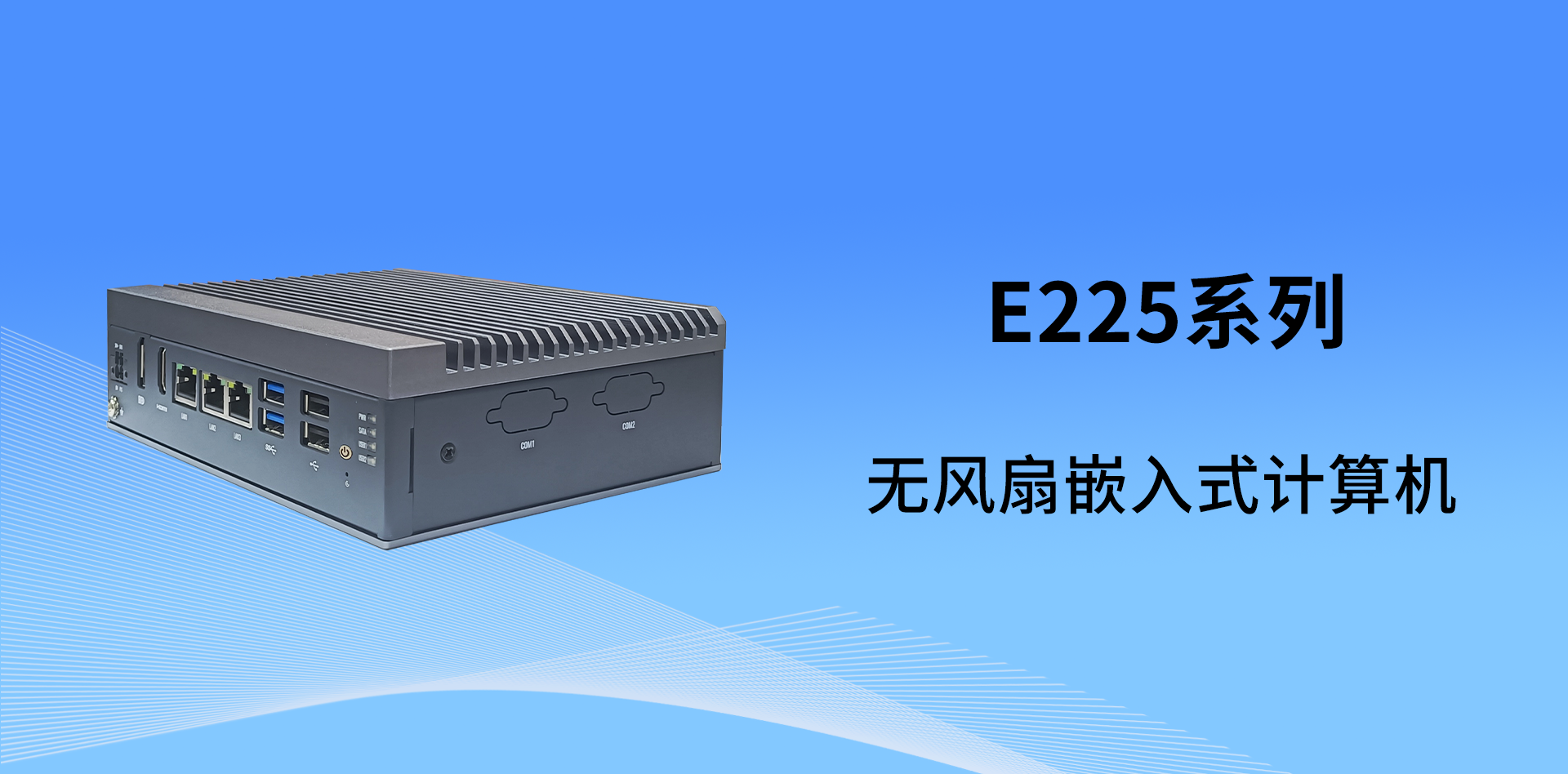

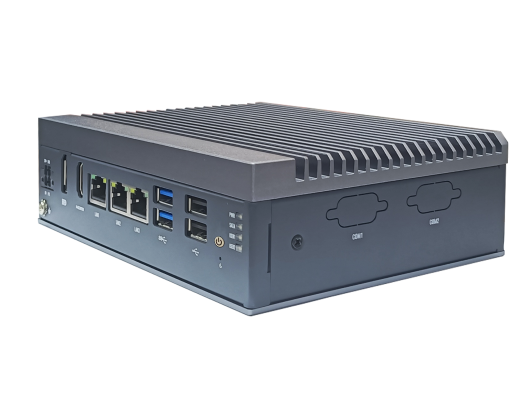

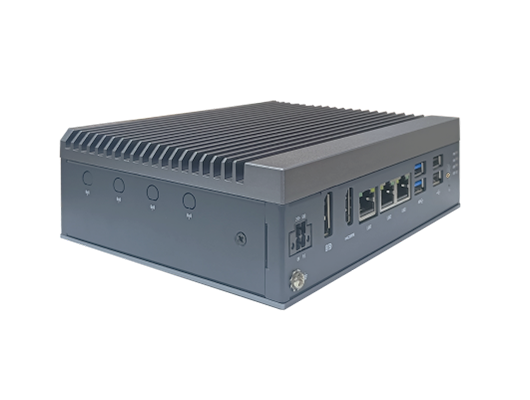

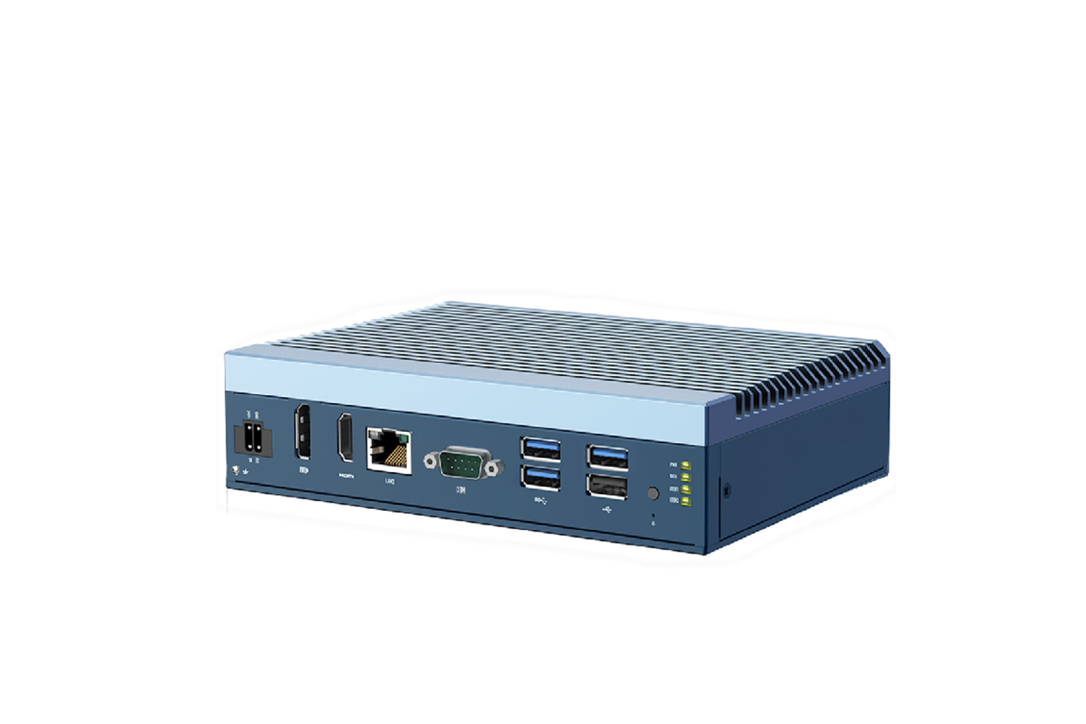

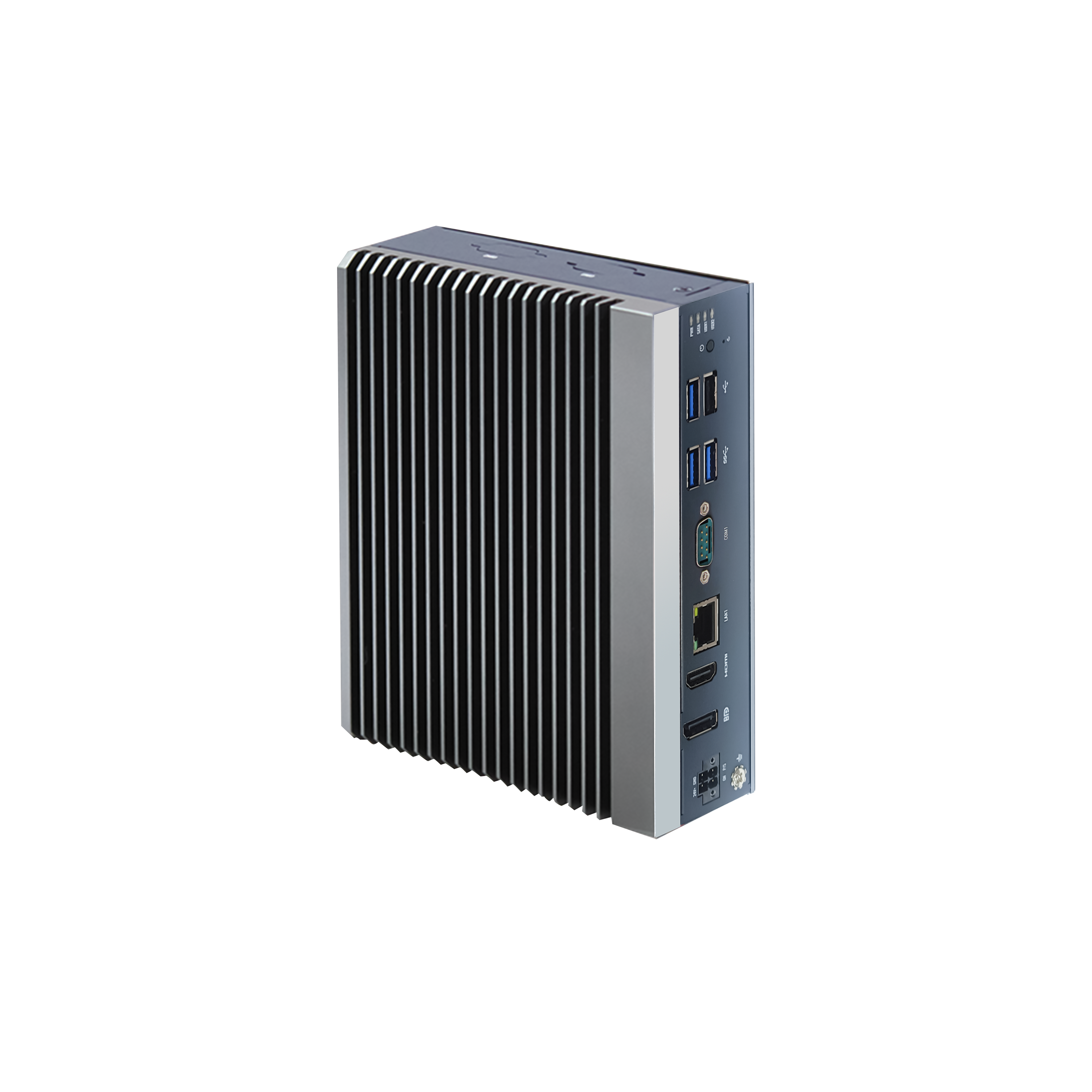

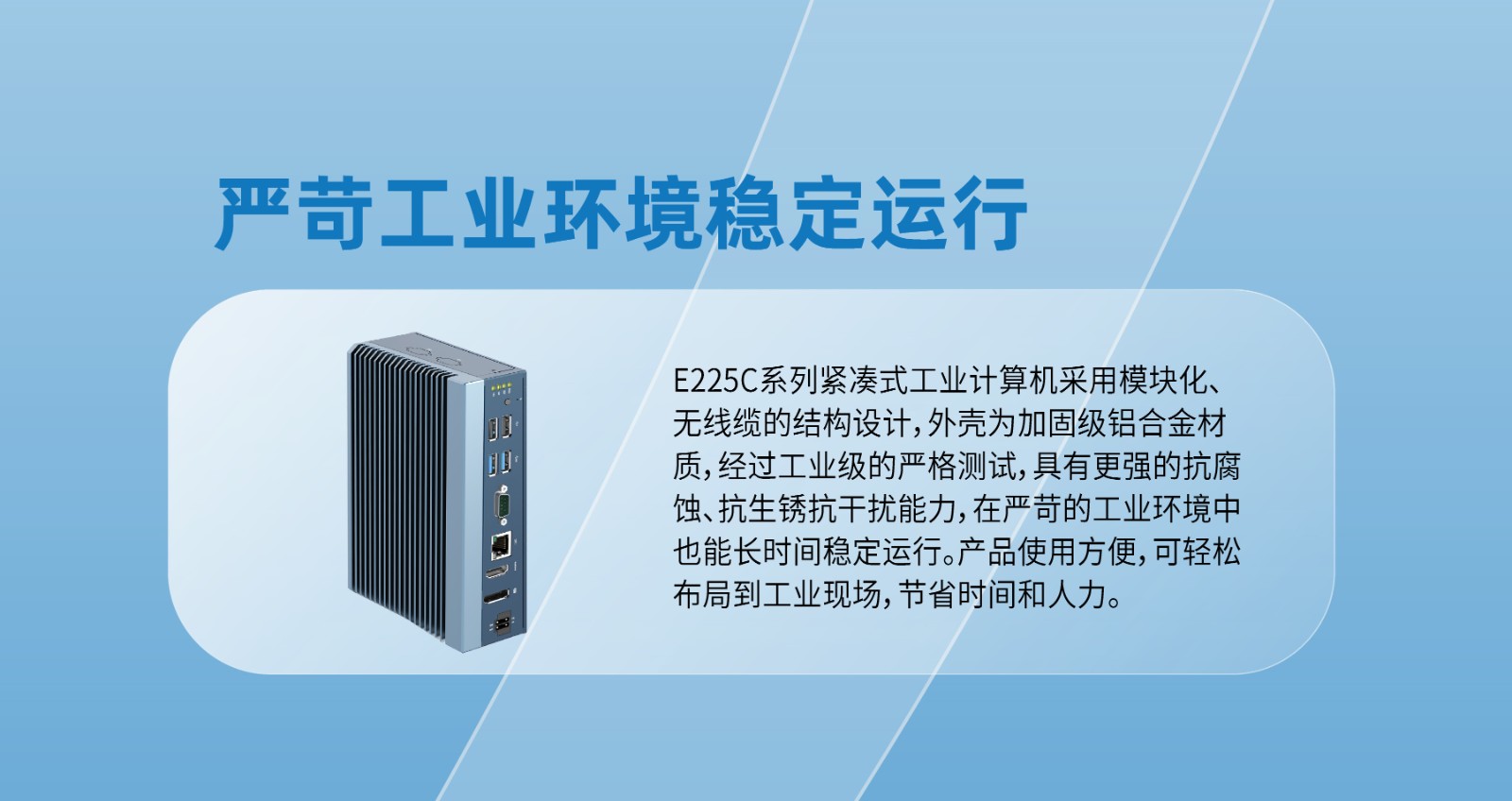

E225系列
• Intel® Alder Lake N N50/ N97/ N200/ i3-N305

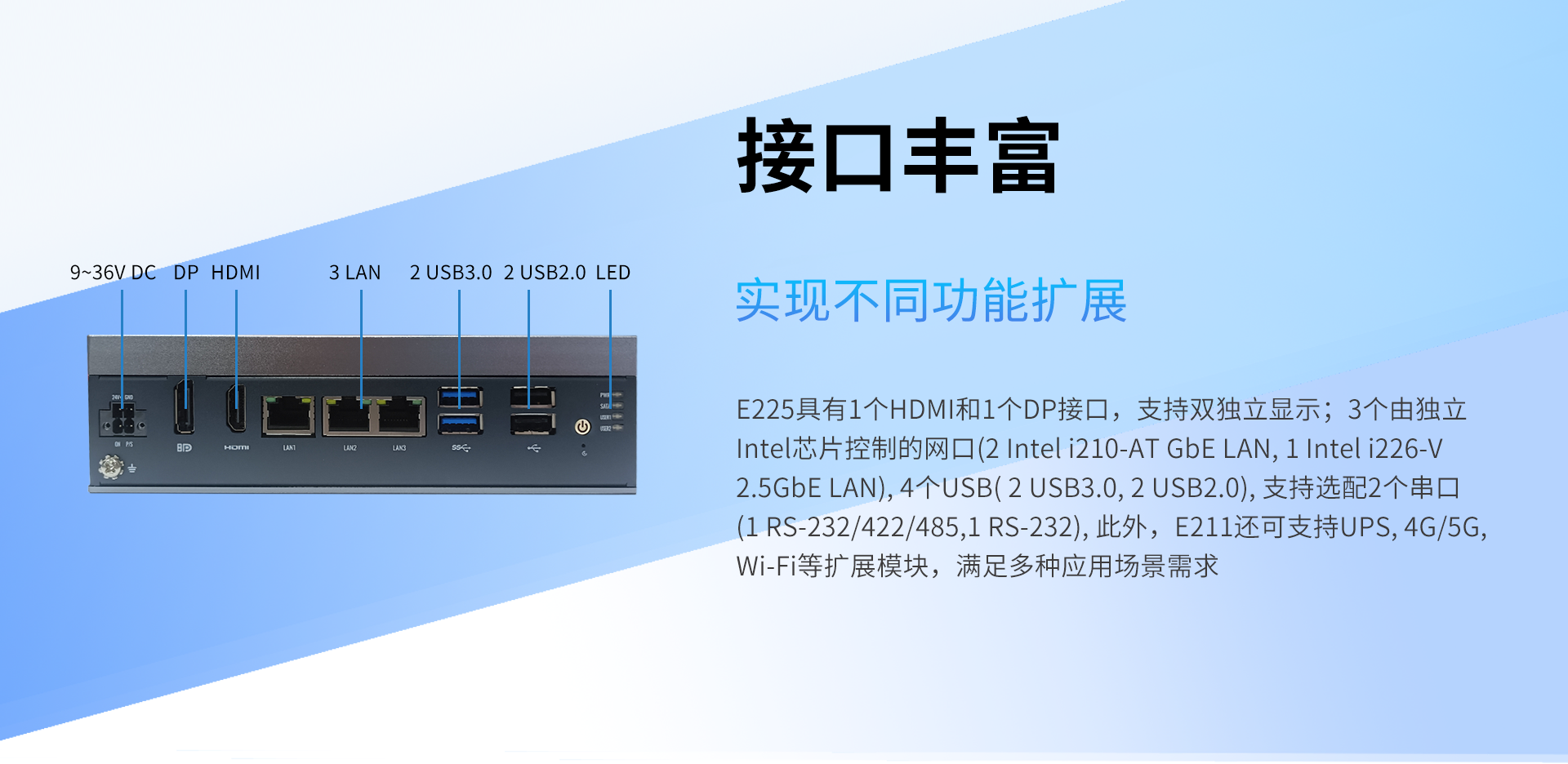

• 1 DP, 1 HDMI
• 3 LAN (2 x Intel i210, 1 x Realtek RTL8111H)
• 1 RS-232/422/485, 1 RS-232 (可选)
• 2 USB 3.0, 2 USB 2.0
• 支持 4G/5G, Wi-Fi 扩展
• Win 10/11 和 Linux 多版本系统

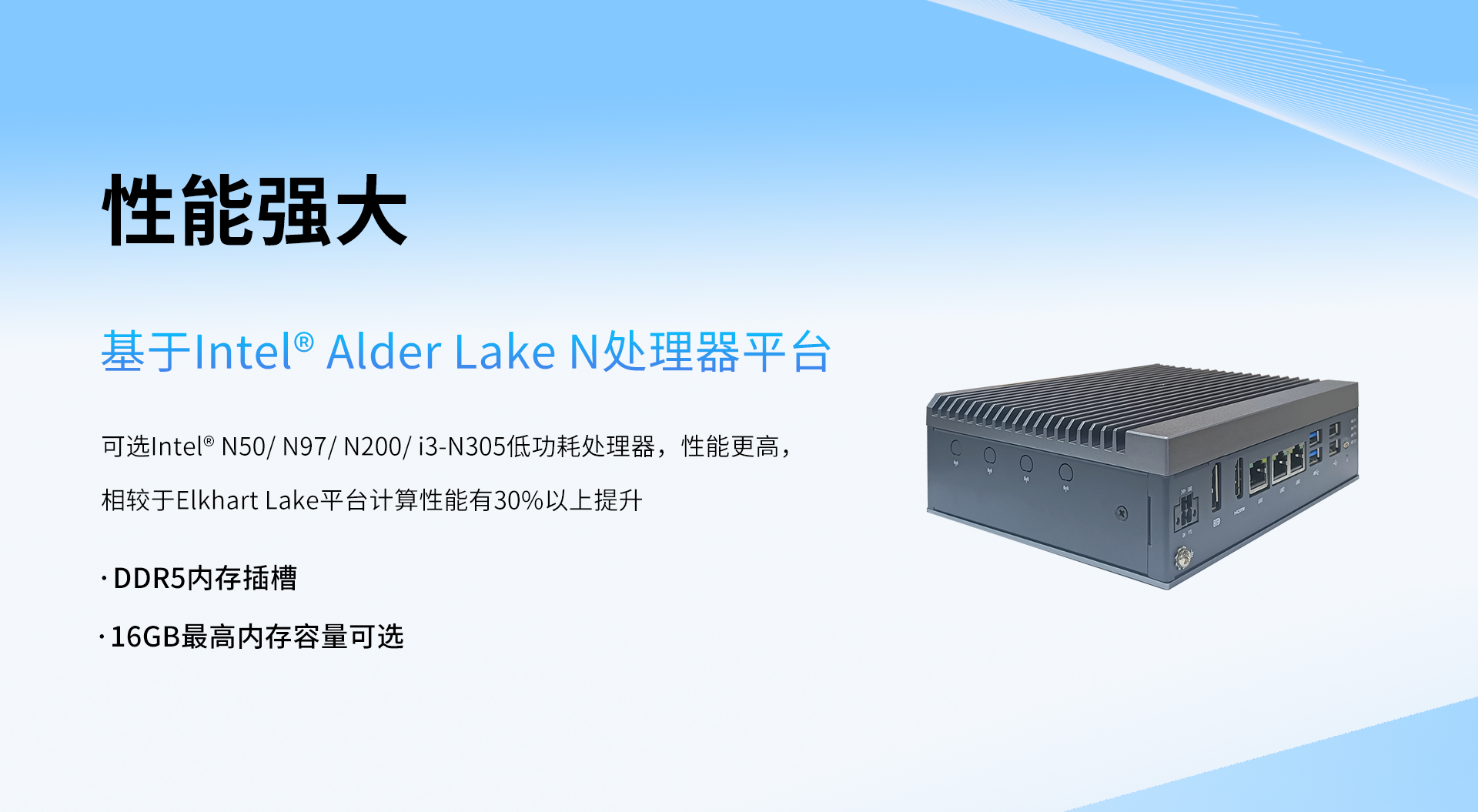

  • Intel Alder Lake-N N50/ N97/ N200/ i3-N305
  • DDR5-4800, 最高16GB
  • 1 x HDMI, 1 x DP
  • 3(2 x Intel i210,1 x Intel Realtek RTL8111H)
  • 2 x USB 3.0, 2 x USB 2.0 1 x RS-232/422/485, 1 x RS-232(可选)
  • Windows 10/11, centos 8, ubuntu 20.04/22.04
  • 产品详情
  • 规格
  • 应用
  • 下载





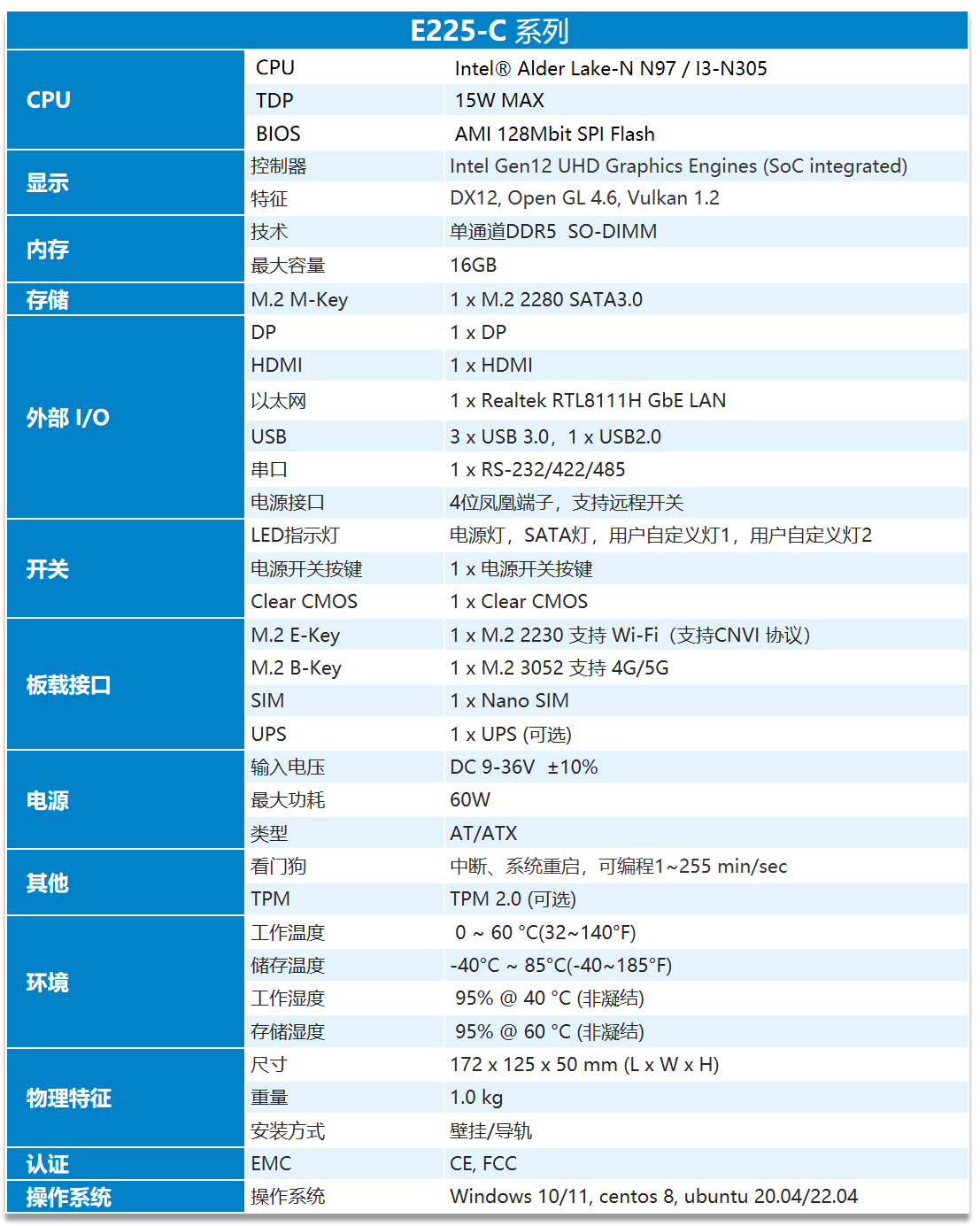

规格 Specifications


Specs

Item

E225 Series

Processor System

CPU

Intel® Alder Lake-N platform N50/ N97/ N200/ i3-N305

TDP15W MAX
BIOS

AMI 128Mbit SPI Flash

Memory

Technology

Single channel DDR5 4800MT/s SO-DIMM

Max. Capacity

16 GB

Display

Controller

Intel Gen12 UHD Graphics Engines (SoC integrated)

Graphic Features

DX12, Open GL 4.6, Vulkan 1.2

I/O Interface

DP1 x DP 1.4 up to 4096 x 2304 @ 60Hz
HDMI1 x HDMI 2.0b up to 4K x 2K @60Hz
Ethernet2 x Intel i210 GbE LAN, 1 x Realtek RTL8111H GbE LAN
USB

2 x USB3.0, 2 x USB2.0

COM

COM1: RS-232/422/485, COM2: RS-232

Power Input ConnectorPhoenix 4pin
Expansion
M.2 E-Key1 x M.2 2230 Support Wi-Fi (Support both CNVI and PCIe)
M.2 B-Key1 x M.2 3052 Support 4G/5G
M.2 M-Key1 x M.2 2280 SATA3.0
Internal USB2.01 x Internal USB2.0 (PIN-Out)
SIM1 x Nano SIM
LED & SwitchLED LightsPower status, HDD R/W,USER1,USER2
Power Button1 x Power Button
Reset1 x Reset
Power

Supply Voltage

DC 9~36V±10%

Max. Consumption60W
Power ManagementAT/ATX
OthersWatchdogTimer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
TPMTPM 2.0 (optional)

Environment

Operating Temperature

0 ~ 60 °C (32~140°F)

Storage Temperature

-40° C ~ 85° C (-40~185°F)

Relative Humidity (Operating)

95% @ 40°C ( Non-Condensing )

Relative Humidity (Storage)95% @ 60 °C (non-condensing)
CertificationEMCCE, FCC

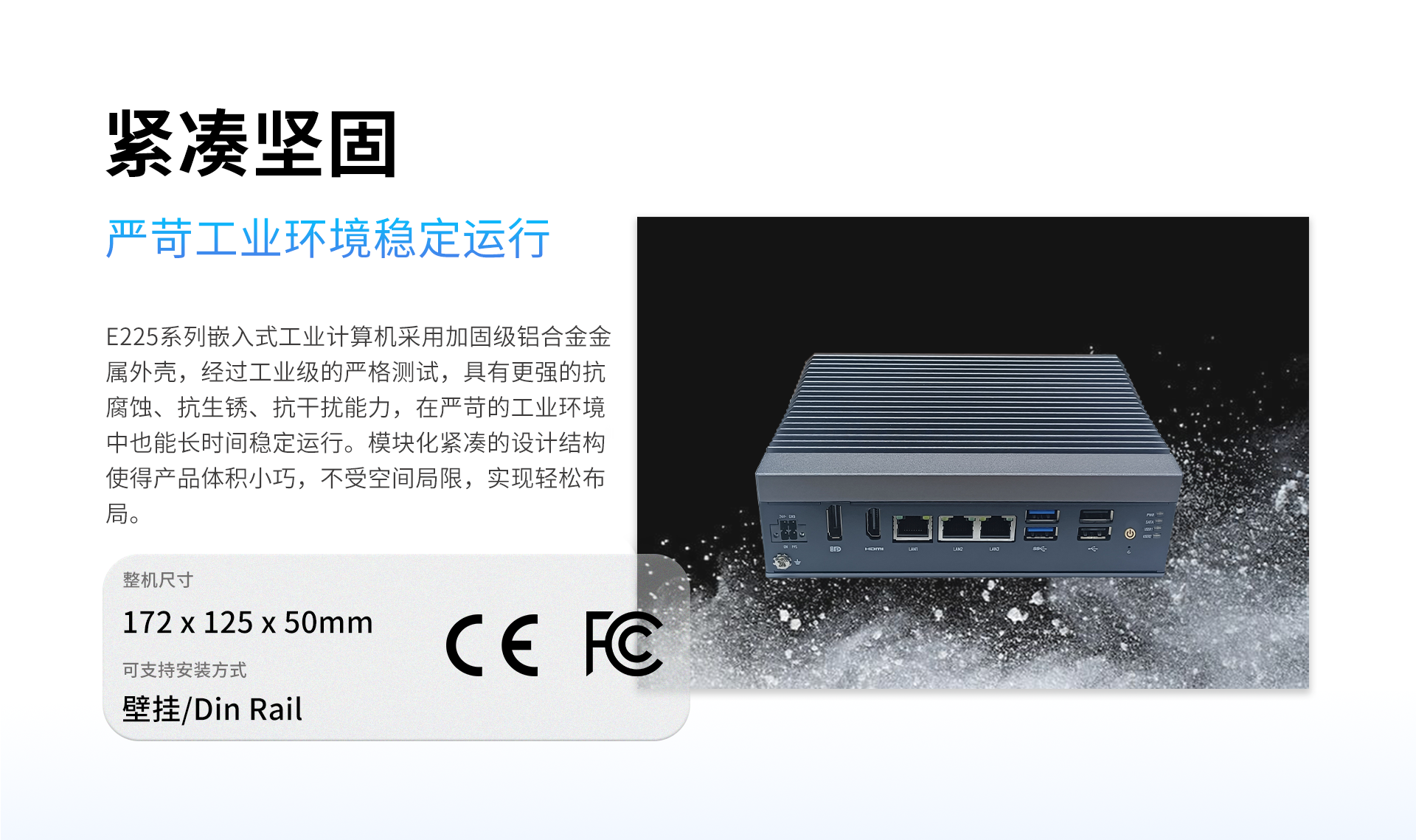

Physical characteristicDimensions172 x 125 x 50mm(L x W x H)
Weight
1.0 kg

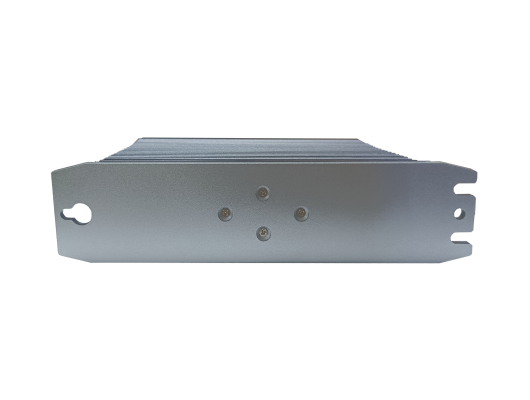

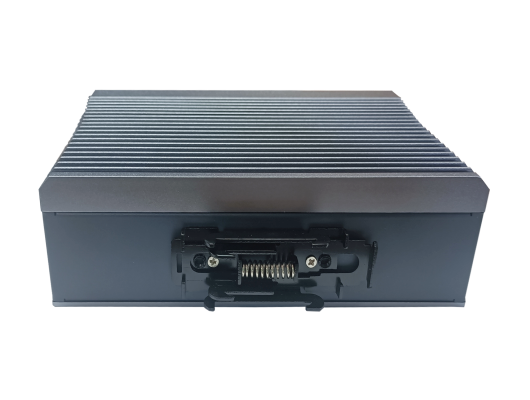

InstallationWall-mounting/ Din rail
Operation systemOSWindows 10/11, centos 8, ubuntu 20.04/22.04


尺寸图 Dimensions

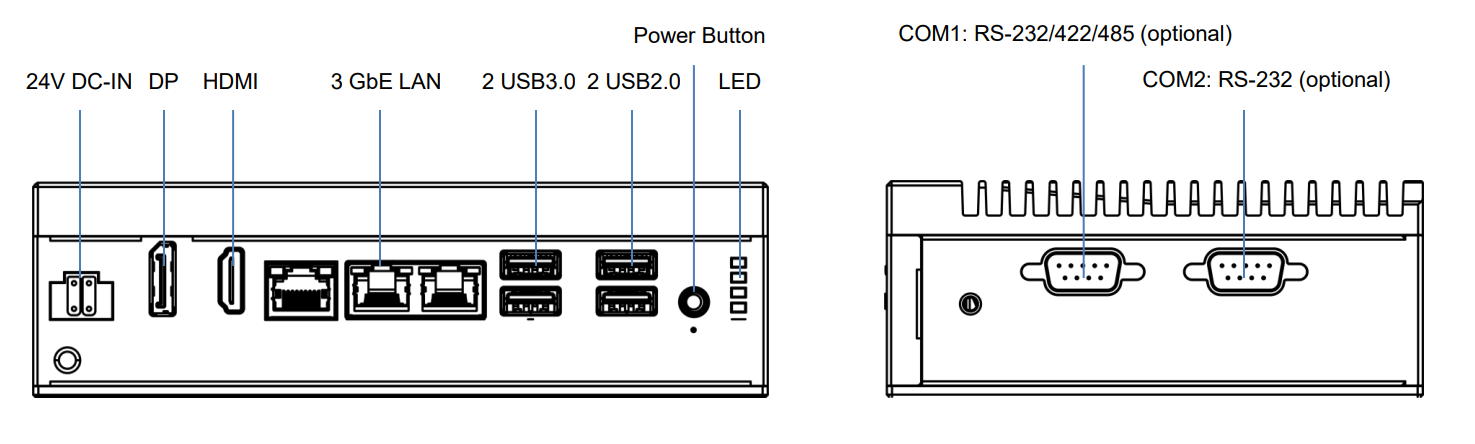

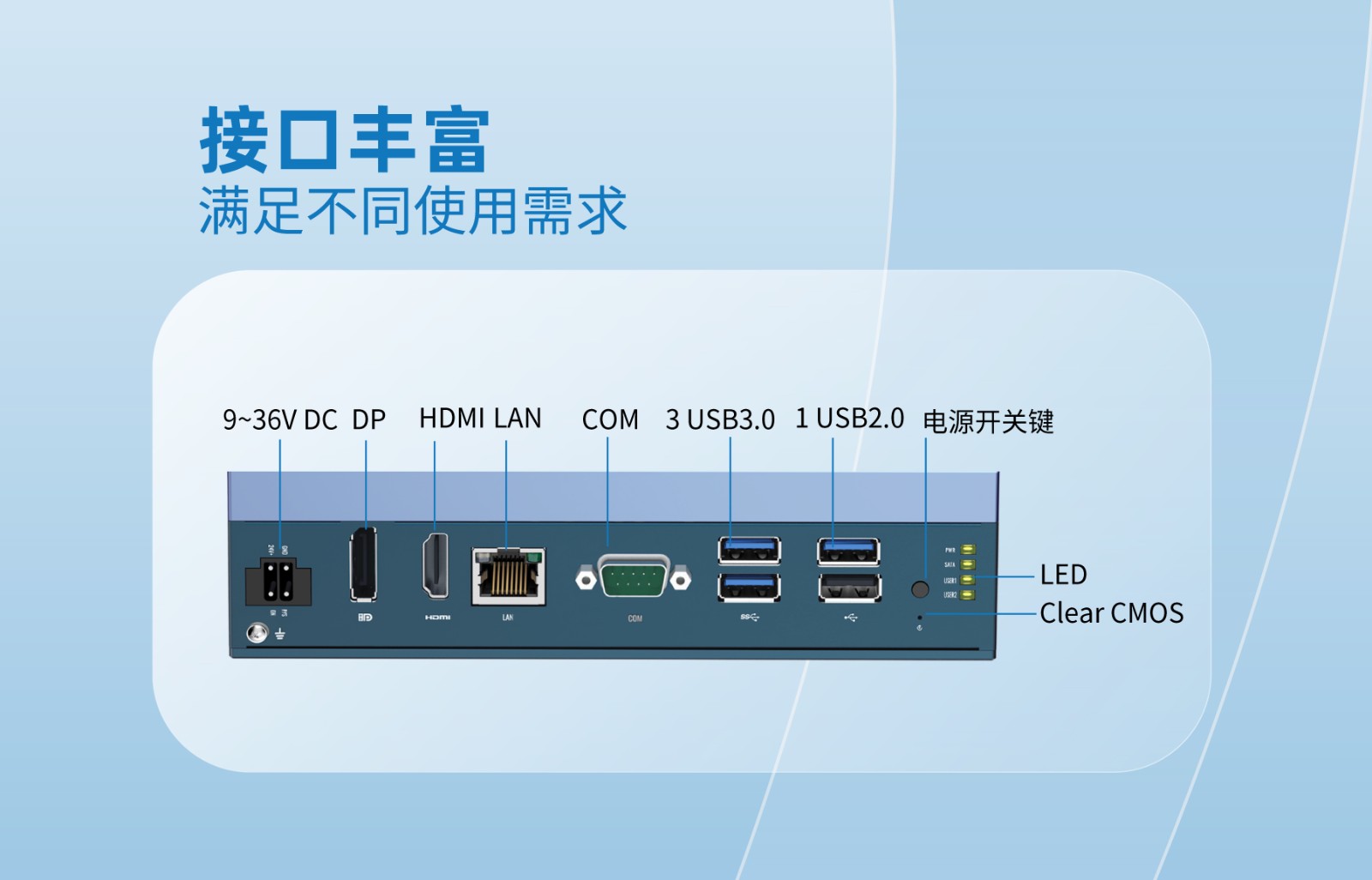

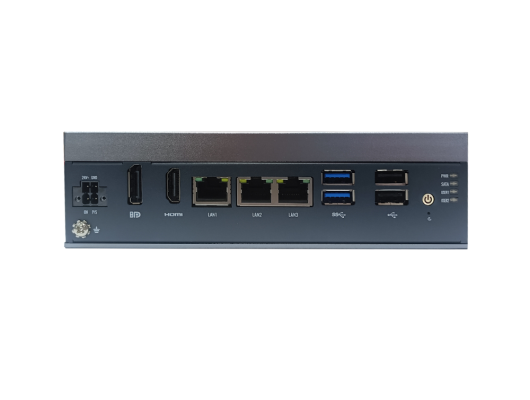

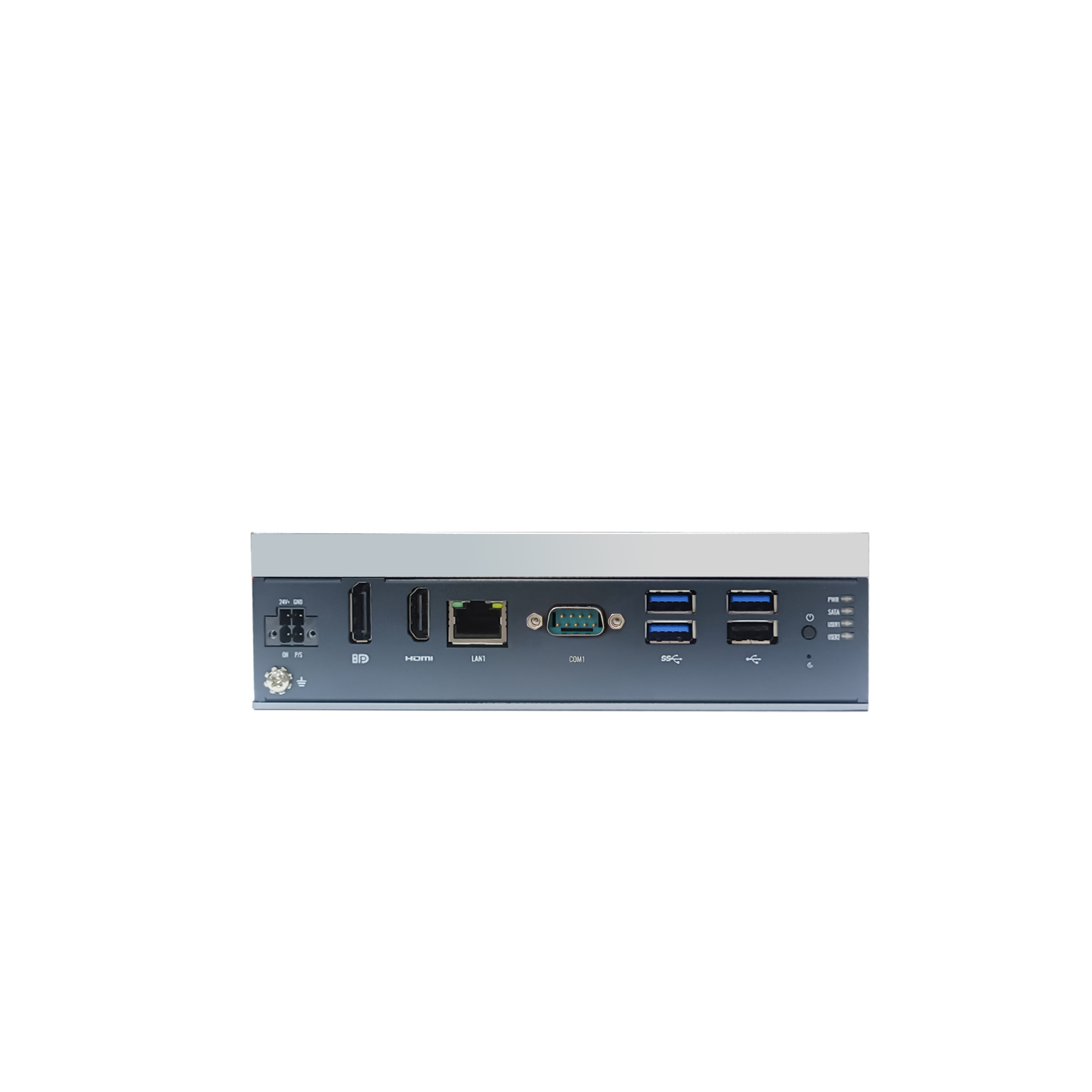

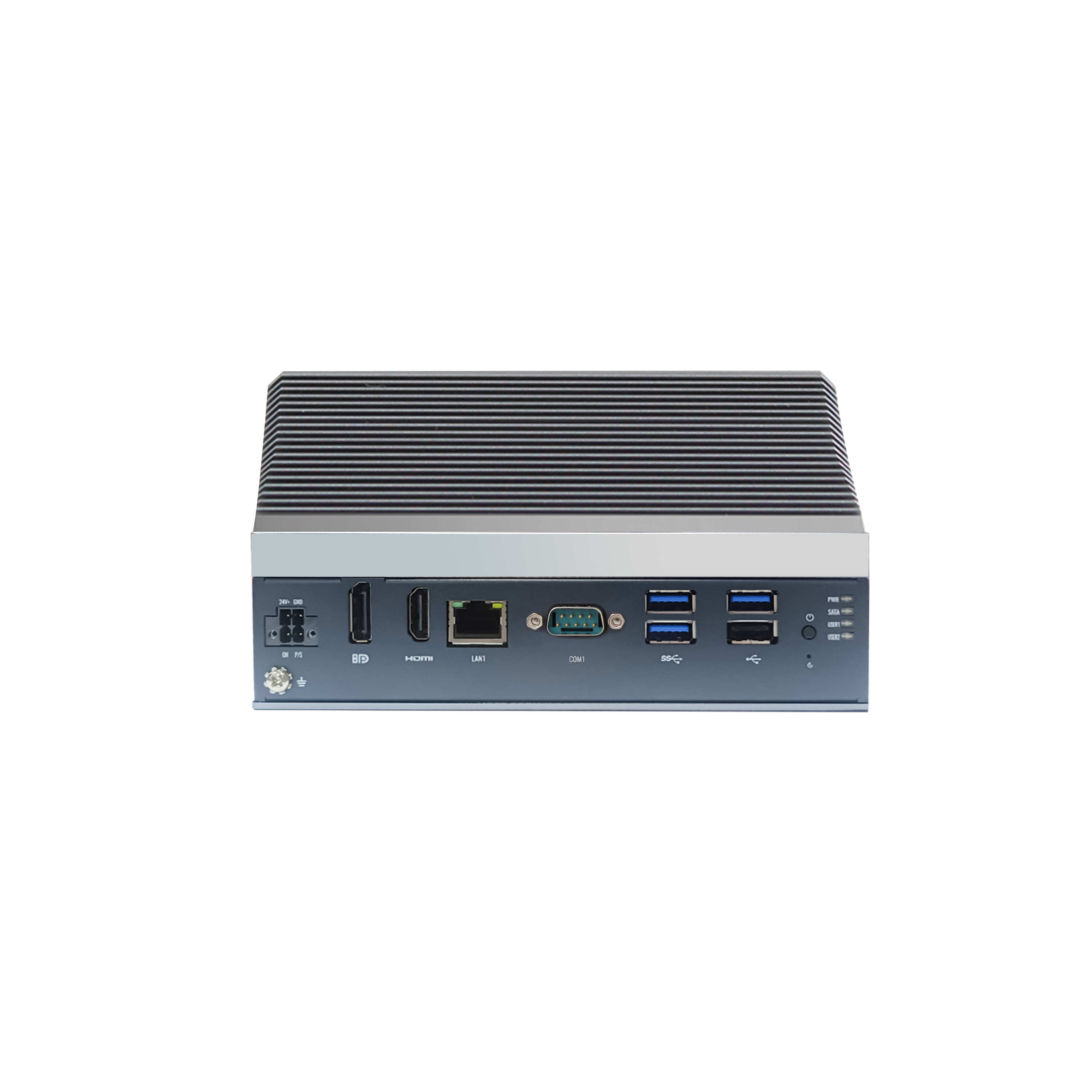

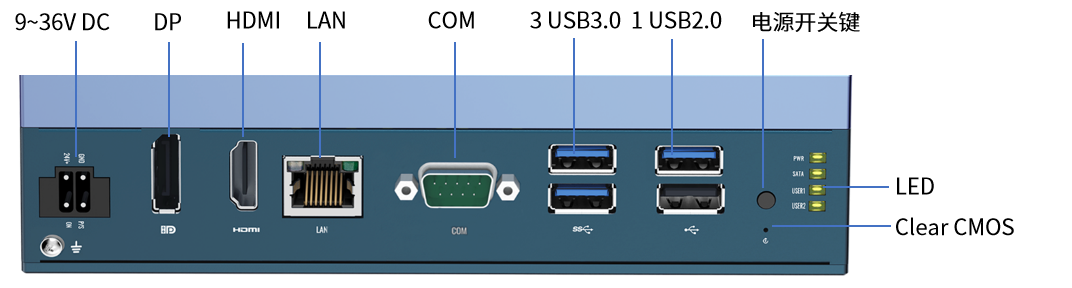

接口图 Interfaces





  • E225系列嵌入式工业计算机规格书
    大小:748KB
    点击下载
