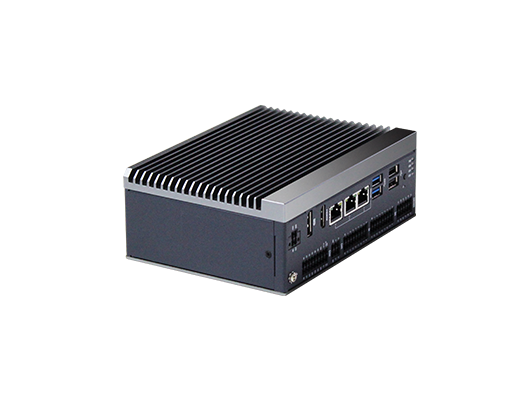

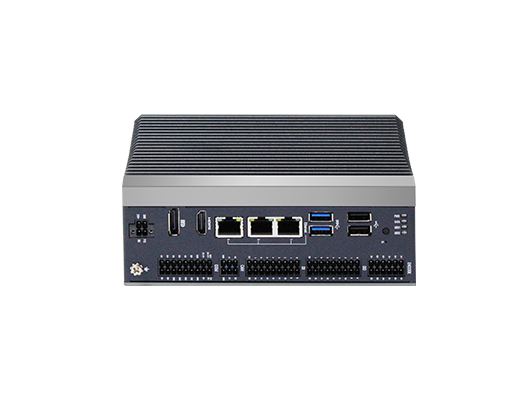

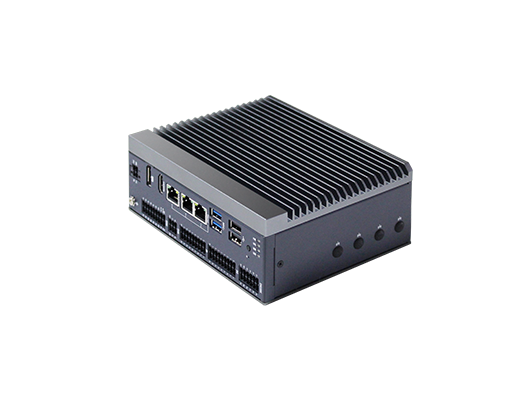

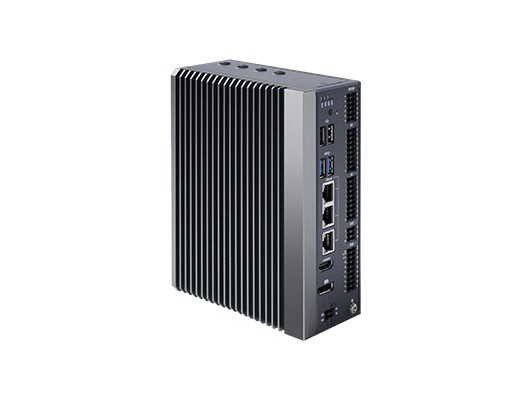

E220系列
• Intel® Alder Lake-N N50/ N97/ N200/ i3-N305
• 1 DP, 1 HDMI
• 3 LAN (2 x Intel i210, 1 x Realtek RTL8111H)
• 1 RS-232, 1 RS-232/422/485, 4 RS-485
• 2 USB 2.0, 2 USB 3.0
• 16 DI, 16 DO, 2 CAN, 2 编码器
• 支持 4G/5G, Wi-Fi 扩展
• Win 10/11 和 Linux 多版本系统

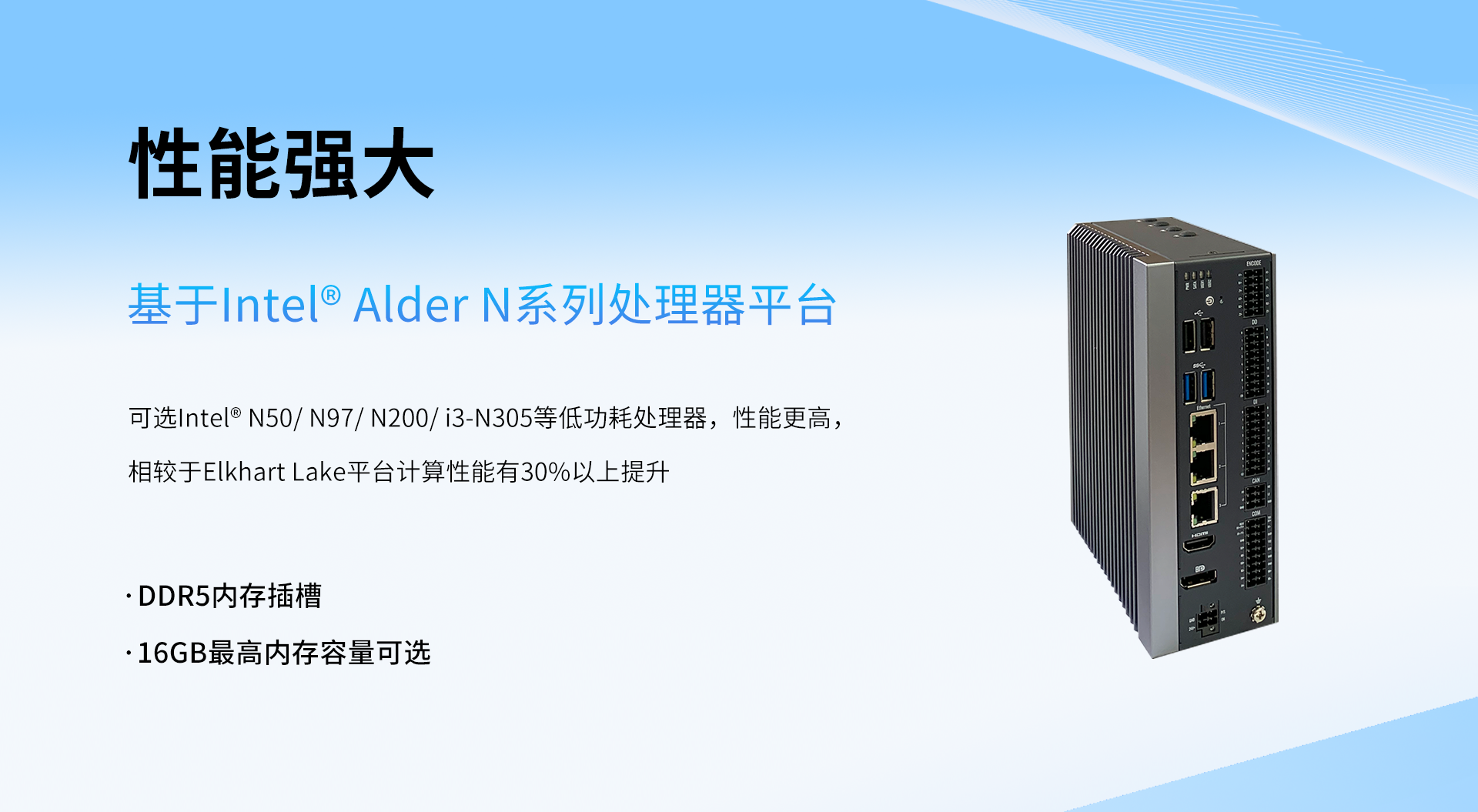

  • Intel Alder Lake-N N50/ N97/ N200/ i3-N305
  • DDR5-4800,最高16GB
  • 1 x HDMI, 1 x DP
  • 3(2 x Intel i210, 1 x Realtek RTL8111H)
  • 2 x USB 3.0, 2 x USB 2.0, 1 x RS-232/422/485, 1 x RS-232, 4 x RS-485, 2 x CAN, 16 x DI, 16 x DO, 2 x Encode
  • Windows 10/11, centos 8, ubuntu 20.04/22.04
  • 产品详情
  • 规格
  • 应用
  • 下载






规格 Specifications


Specs

Item

E220 Series

Processor System

CPU

Intel® Alder Lake-N  Series N50 / N97 / N200 / i3-N305

TDP15W Max
BIOS

AMI 128Mbit SPI Flash

Memory

Technology

Single channel DDR5 4800MT/s SO-DIMM

Max. Capacity

16 GB

Graphics

Controller

Intel Gen12 UHD Graphics Engines (SoC integrated)

Features

DX12, Open GL 4.6, Vulkan 1.2

External IO

DP1 x DP1.4, up to 4096 x 2304@60Hz
HDMI1 x HDMI 2.0b, up to 4K x 2K @60Hz
Ethernet2 x Intel i210 GbE LAN, 1 x Realtek RTL8111H GbE LAN
COM

COM1: RS-232/422/485, COM2: RS-232, COM3~6: RS-485

USB

2 x USB2.0, 2 x USB3.0

DIO16 x DI(NPN or PNP, 10K), 16 x DO(NPN, 10K)
CAN2 x CANBus 2.0 A/B
Encoder2 x Encode

Power DC Jack

Phoenix 4pin

Expansion
M.2 E-Key1 x M.2 2230 Support Wi-Fi
M.2 B-Key1 x M.2 3052 Support 4G/5G
M.2 M-Key1 x M.2 2280 Sata3.0
Internal USB2.01 x Internal USB2.0 (Pinout), 1 x Internal USB2.0 Type-A
SIM1 x Nano SIM
LEDLED LightsPower status, HDD R/W,USER1,USER2
Power

Supply Voltage

DC 9-36V  ±10%

Max. Consumption60W
Power ManagementAT/ATX

Others

Watch Dog

Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

TPM

TPM 2.0(optional)

Environment

Operating Temperature

0 ~ 60 °C(32~140°F)

Storage Temperature

-40°C ~ 85°C(-40~185°F)

Relative Humidity (Operating)

95% @ 40 °C (non-condensing)

Relative Humidity(Storage)

95% @ 60 °C (non-condensing)

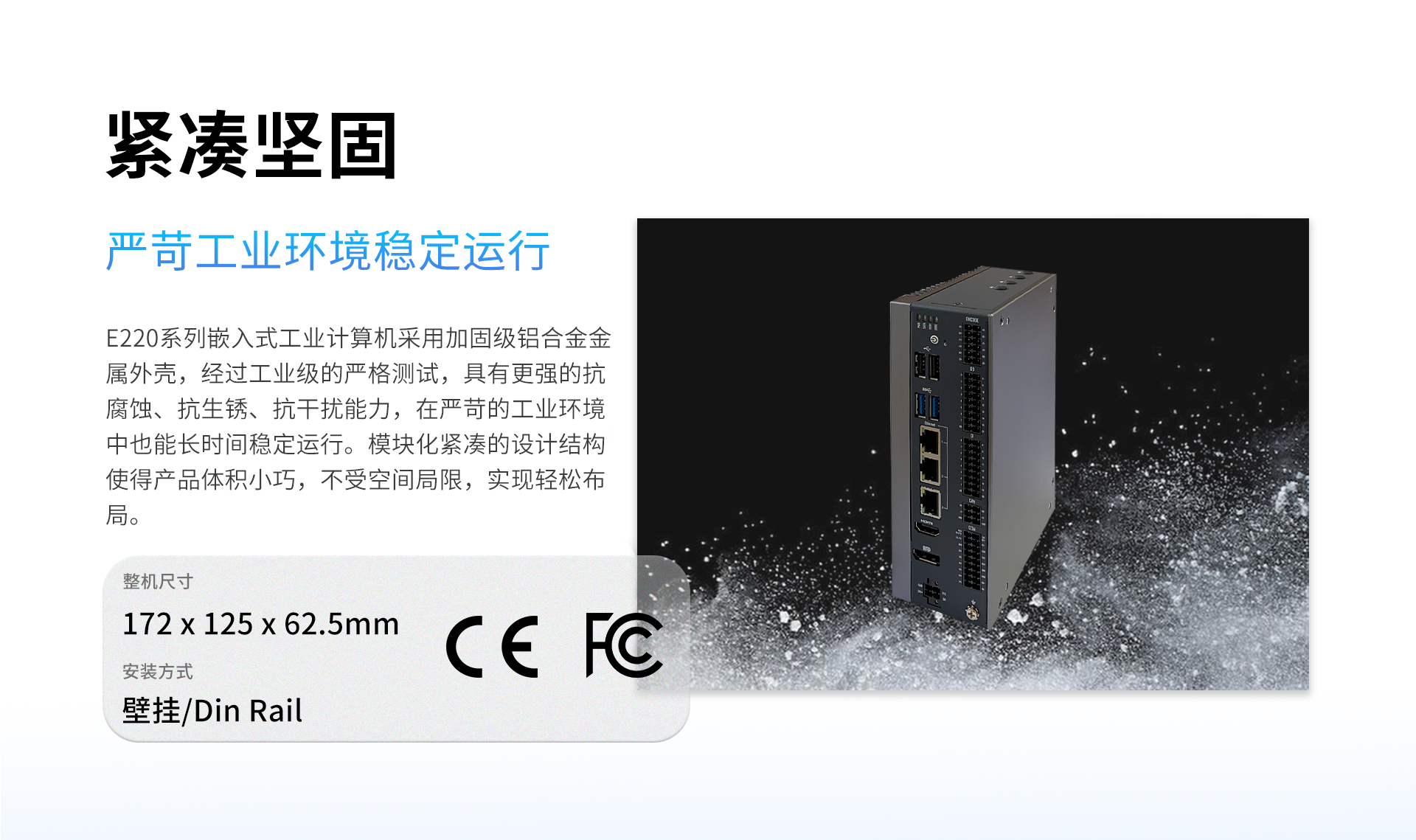

Physical CharacteristicsDimensions172 x 125 x 62.5mm(Lx Wx H)
InstallationWall-mounting/ Back-mounting/ Din Rail
CertificationEMCCE, FCC
OS SupportOS SupportWindows 10/11, centos 8, ubuntu 20.04/22.04






尺寸图 Dimensions

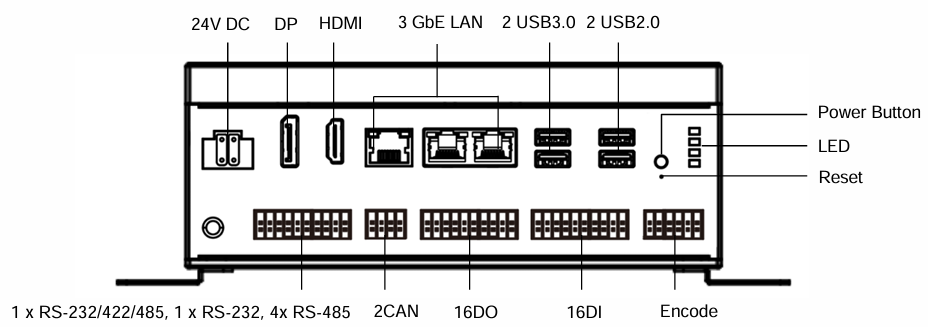

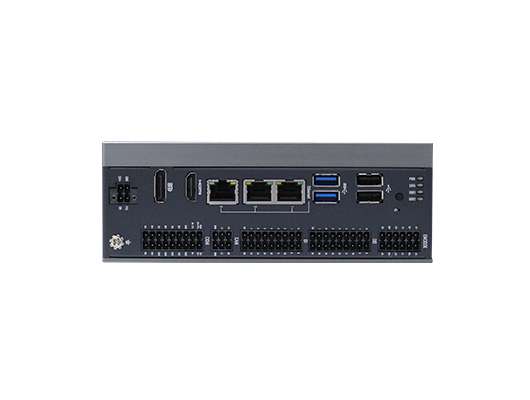

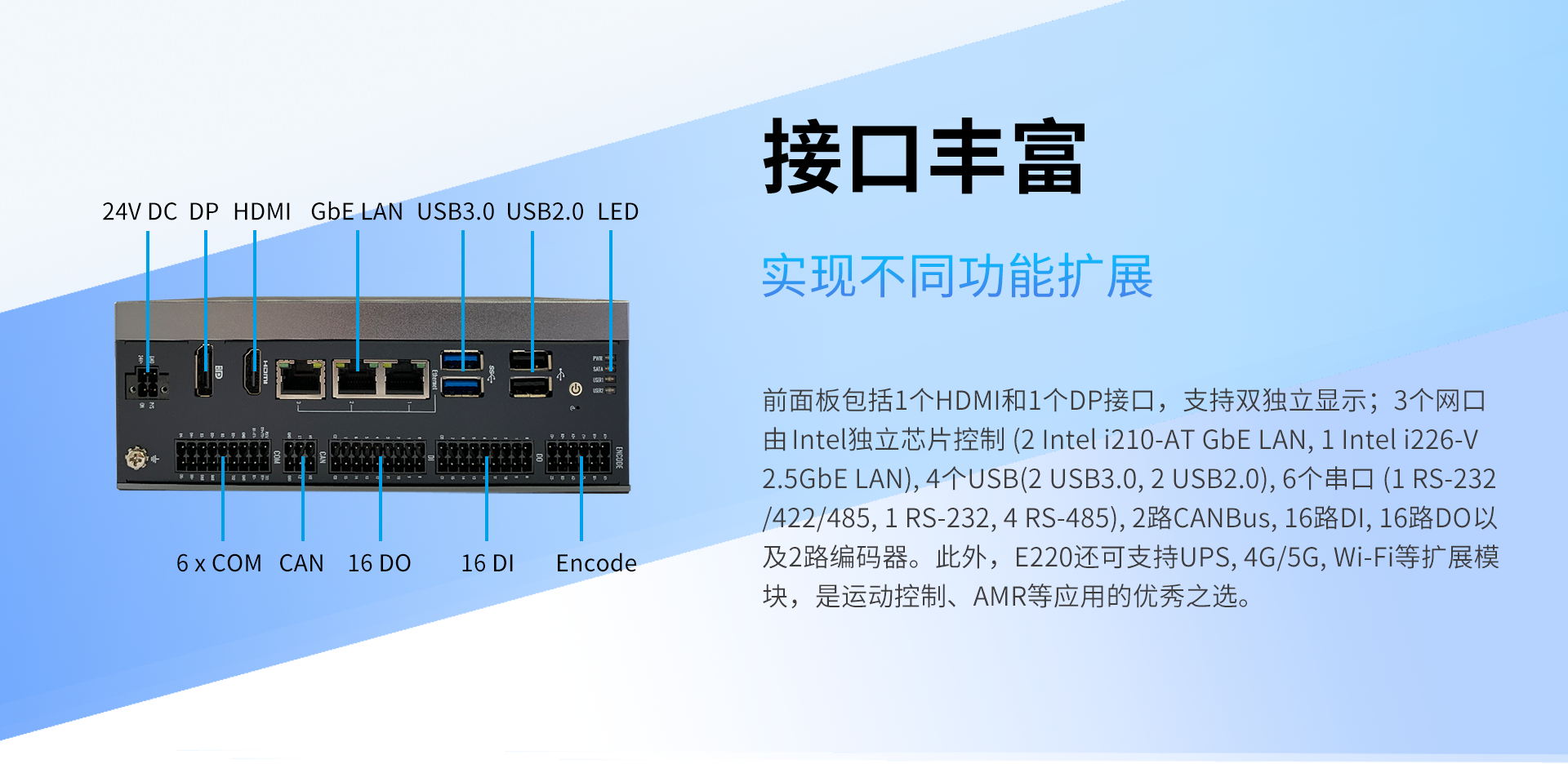

接口图 Interfaces






  • E220系列嵌入式工业计算机规格书
    大小:754KB
    点击下载
