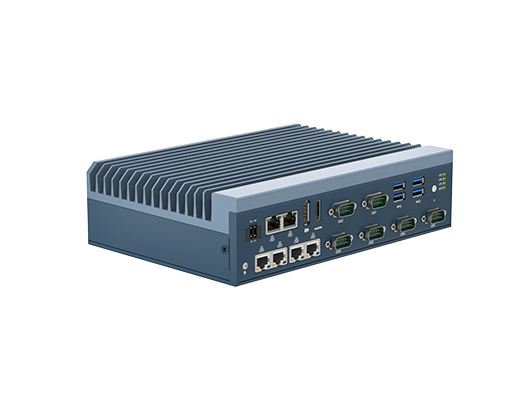

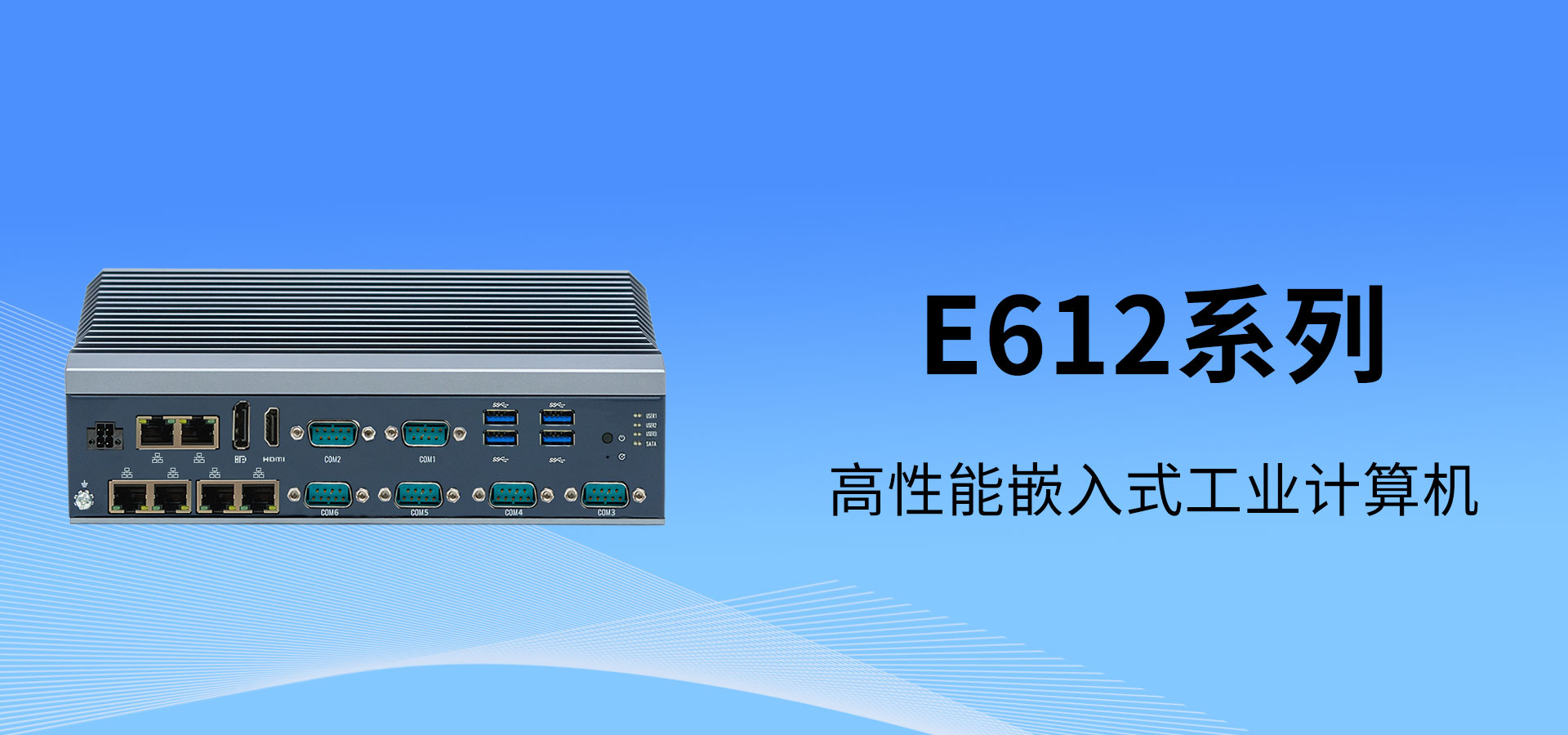

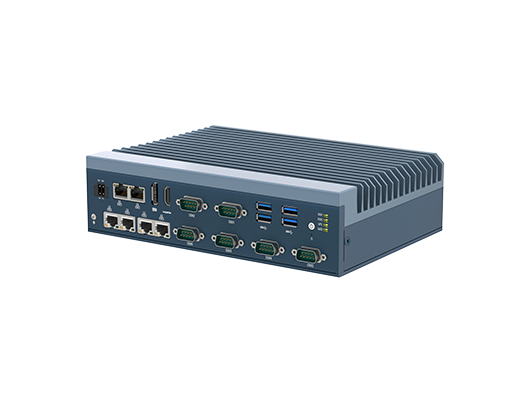

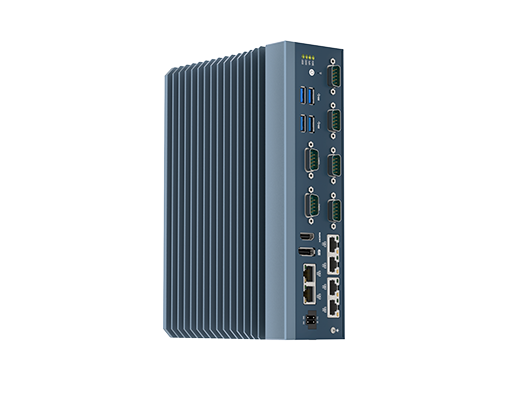

E612系列
• Intel® 第11代Tiger Lake U UP3平台Core 处理器
• 1 DP, 1 HDMI
• 6 LAN(4 x Intel i210 支持 PoE, 2 x Intel i226)
• 1 RS-232/422/485, 2 RS-232, 3 RS-232/485
• 4 USB 3.0
• Windows 10/11, centos 8, ubuntu 20.04/22.04
  • Intel第11代Tiger Lake U UP3平台Core 处理器
  • 2 x DDR4 SO-DIMM(Max.64GB)
  • 1 x HDMI, 1 x DP
  • 4 x Intel i210 (支持PoE), 2 x Intel i226
  • 4 x USB 3.0, 2 x RS-232, 3 x RS-232/485, 1 x RS-232/422/485
  • Windows 10/11, centos 8, ubuntu 20.04/22.04
  • 产品详情
  • 规格
  • 应用
  • 下载





规格 Specifications


Specs

Item

E612

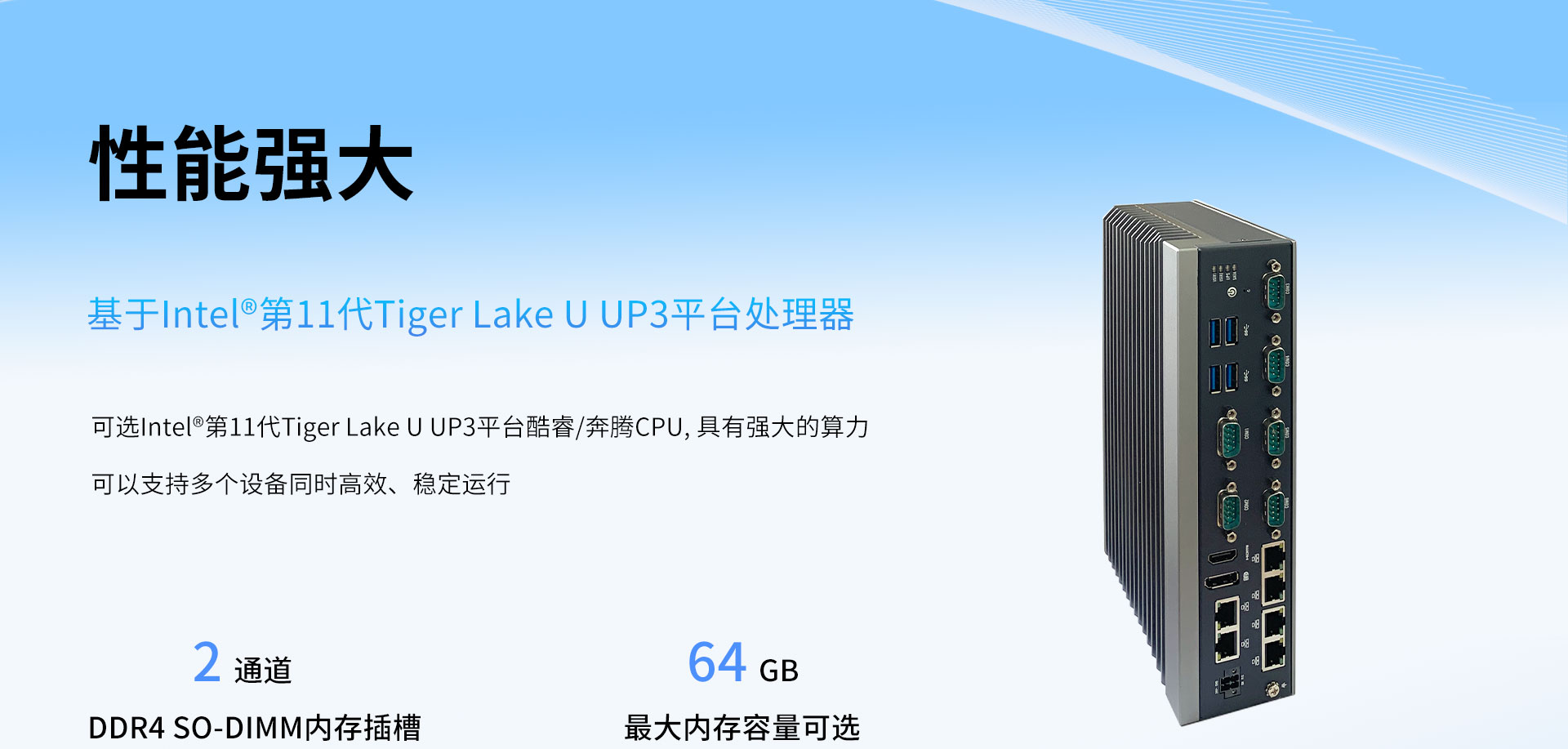

Processor System

CPU

Intel Tiger Lake-U UP3(i7-1165G7/i5-1135G7/i3-1115G4/6305E)

TDP

28W MAX

BIOS

AMI 128Mbit SPI Flash

Memory

Technology

2 x DDR4 3200MT/s SO-DIMM

Capacity

Max. 64GB

Graphics
Controller
Intel® Iris® Xe graphics, up to 96 graphics execution units(EU)
Graphic Features5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0 AVC

External IO

DP

1 x DP 1.4a up to 4096 x 2304 x 36 bpp @60 Hz or 5120 x 3200 x 24 bpp @60Hz

HDMI

1 x HDMI 2.0b up to 4096 x 2304 x 24 bpp @60 Hz

Ethernet

6 x Intel i226-V

Serial Ports

2 x RS-232, 3 x RS-232/485, 1 x RS-232/422/485

USB

4xUSB3.0

LED

USER1,USER2,UPS,SATA

Reset

1

Expansion

M.2 E-Key

1 x M.2 E-Key 2230 supports WiFi

M.2 B-Key1 x M.2 B-Key 3052 supports 4G/5G

Storage

M.2

1 x M.2 M-Key 2280 support SSD (PCIe x4)

SATA3.0

1

SIM

1 x Nano SIM

Power RequirementSupply voltage24V DC IN
Power managementAT/ATX
Max. consumption
60W
Test environmentIntel Core i7-1165GRE DDR4 32GB X2

OS

Operation system

Windows 10 64Bit, Linux

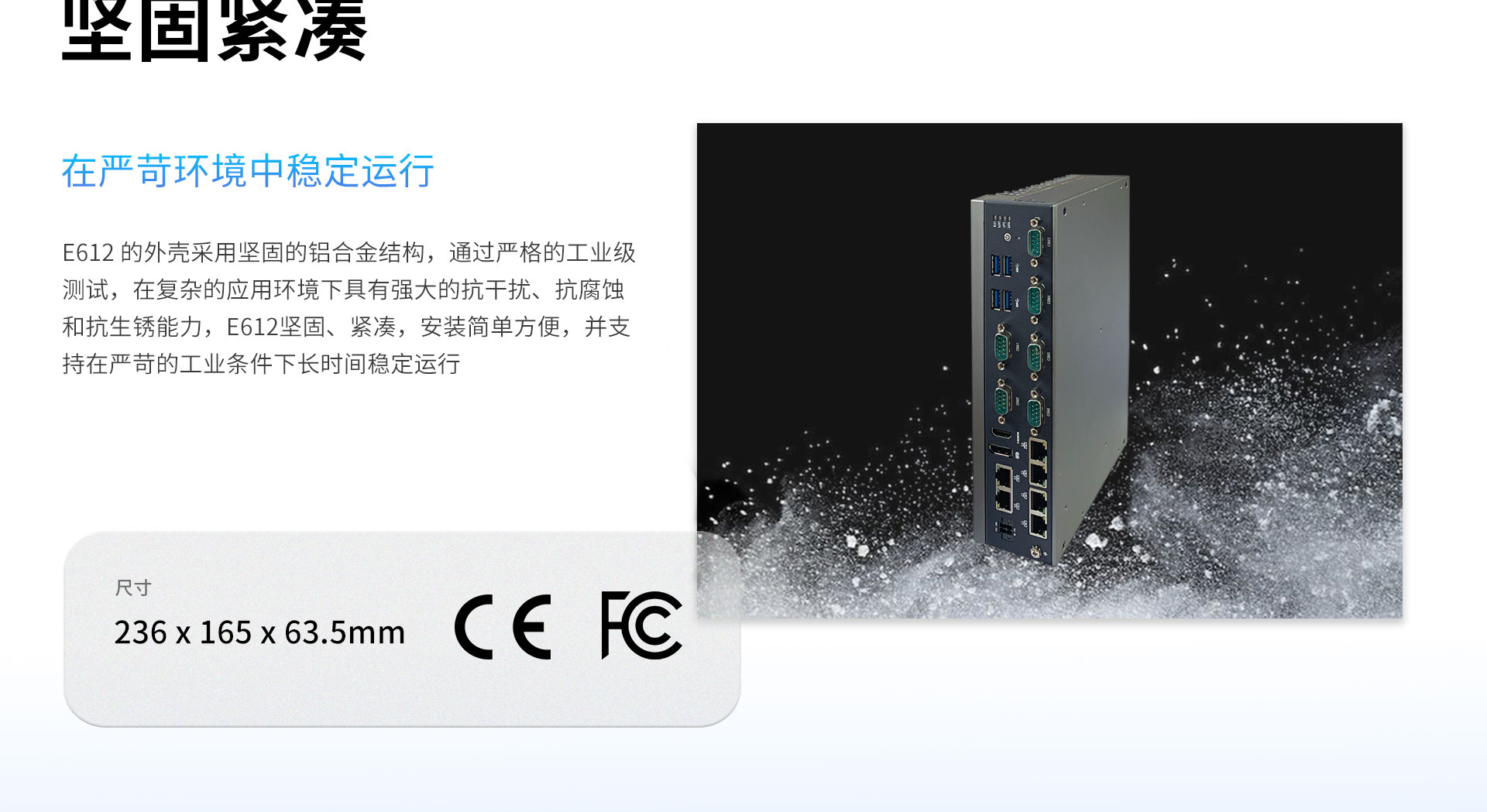

Physical Characteristics

Construction

Aluminum alloy

Mounting

Wall Mounting

Dimensions

236x165x63.5 mm(LxWxH)

Others
Watchdog65536 level, 0~65535 sec
TPMTPM 2.0

Environment

Operating Temperature

0°C~50°C

Storage Temperature

-40°C~85°C

Relative Humidity

Operating95%@40°C(Non-Condensing)

Non-operating 95%@60℃(Non-Condensing

EMC

CE, FCC




尺寸图 Dimensions

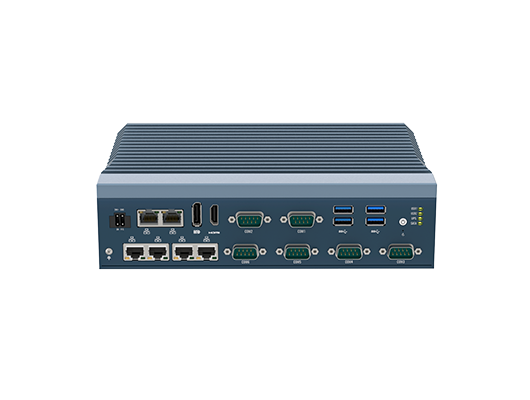

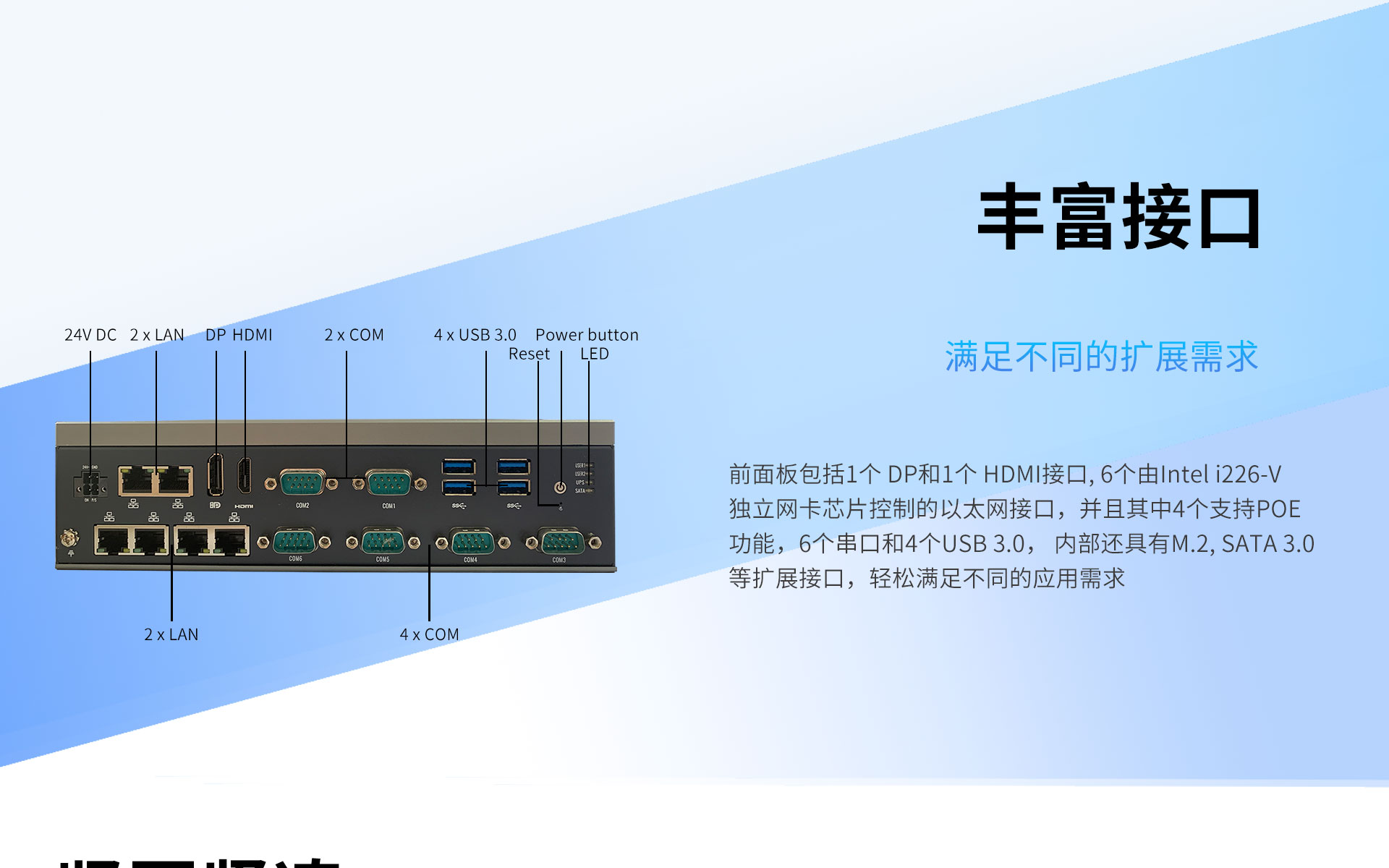

接口图 Interfaces
