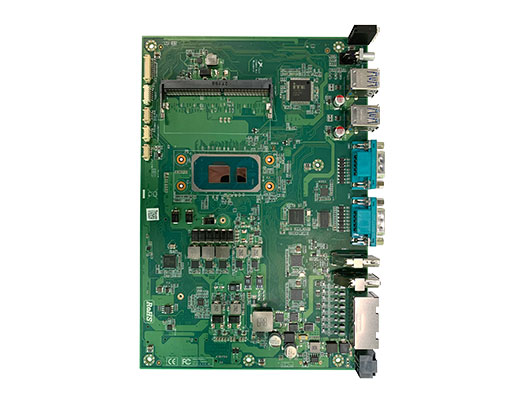

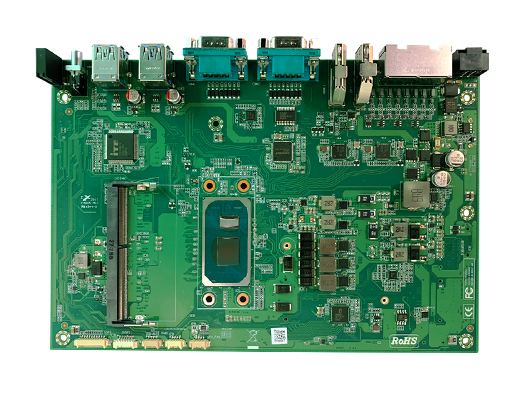

规格 Specifications
Item | Sub-Item | Description |
Processor System | CPU | Intel Tiger Lake U UP3(i7-1165G7/i5-1135G7/i3-1115G4/6305E) |
TDP | 28W MAX | |
BIOS | AMI 128 Mbit SPI Flash | |
Memory | Technology | Dual channel DDR4 3200 |
Capacity | 64GB | |
| Socket | 2 x SO-DIMM | |
Graphics | Controller | Intel Gen9 Graphic Engine |
| Graphic features | 5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0
HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0

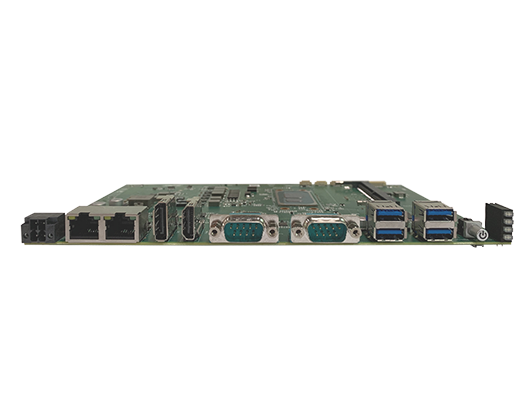

AVC | |
Display | DP | 1 x DP1.4a up tp 4096x2304x36bpp@60Hz,or 5120x3200x24bpp@60Hz |
HDMI | 1 x HDMI 2.0b up to 4096x2304x24bpp@60Hz | |
LCD1 | 1 eDP/LVDS up to 1920x1200 60Hz | |
External I/O | USB 3.0 | 4 |
DP | 1 | |
| HDMI | 1 | |
| LED | 4x LED(SATA, USER LED3, USER LED2,USER
LED1) | |
| Serial port | 1 x RS-232/422/485, 1 x RS-232 | |
| Ethernet | 2 x Intel i226-V | |
Internal Connectors | USB 2.0 | 2 |
LCD1 | 1 x LVDS/eDP | |
SATA 3.0 | 1 | |
| GPIO | 8 | |
| SIM | 1 x Nano SIM | |
| Audio | 1 X HDA | |
| eSPI Bus | 1 | |
| SMBus | 1 | |
| Invertor | 12V/5V/3.3V selectable | |
| CPU FAN | 1 x 4-Wire Smart Fan，12V@2A | |
| UPS Battery | 1 | |
| LED Connector | 1 | |
| Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 support Wifi |
| M.2 B-Key | 1 x M.2 B-Key 3052 support 4G/5G | |
| M.2 M-Key | 1 x M.2 B/M-Key 2280 support SSD(PCIe x4) | |
| Board to Board 1 | 1eSPI Bus / 1I2C / 4TTL (TX/RX/CTS/RTS/GND) / 4
PCIe x 1 / 1 USB2.0 / Power | |
| Board Feature | Watchdog Timer | 65536 lever, 0~65535 sec |
| TPM | TPM 2.0 | |
OS | OS | Windows 10 /Linux |
Power Requirement | Supply Voltage | DC 24V±5% |
| Power Management | AT/ATX | |
| Max. Consumption | 60W | |
| Test Environment | Intel Core i7-1165GRE DDR4 32GB X2 | |
Environment | Temperature | Operating 0 ~ 60 °C (32 ~ 140 °F) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing |

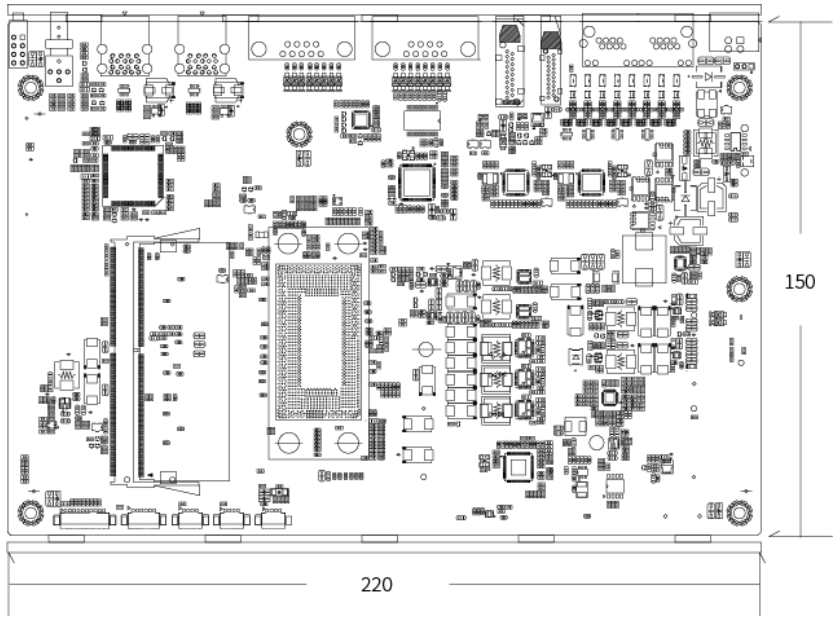

尺寸图 Dimensions

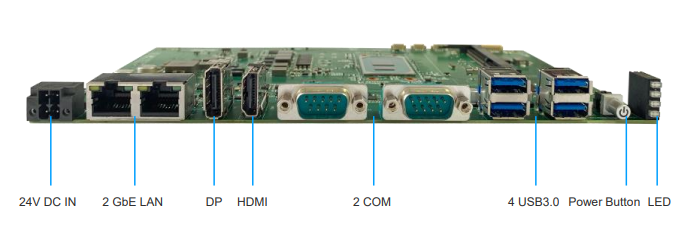

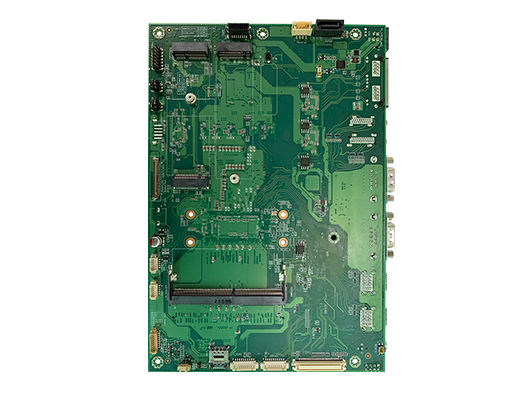

接口图 Interfaces
