规格 Specifications
Specs | Item | E610 |
Processor System | CPU | Intel Tiger Lake-U UP3(i7-1165G7/i5-1135G7/i3-1115G4/6305E) |
TDP | 28W MAX | |
BIOS | AMI 128Mbit SPI Flash | |
Memory | Technology | 2 x DDR4 3200MT/s SO-DIMM |
Capacity | Max. 64GB | |
| Graphics | Controller | Intel® Iris® Xe graphics, up to 96 graphics execution units(EU) |
| Graphic Features | 5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0 AVC | |
External IO | DP | 1 x DP 1.4a up to 4096 x 2304 x 36 bpp @60 Hz or 5120 x 3200 x 24 bpp @60Hz |
HDMI | 1 x HDMI 2.0b up to 4096 x 2304 x 24 bpp @60 Hz | |
Ethernet | 4 x Intel i226-V | |
Serial Ports | 1 x RS-232/422/485, 1 x RS-232, 4 x RS-485 | |
USB | 4 x USB3.0 | |
| DIO | 32 DI, 32 DO | |
| CAN | 2 x CANBus 2.0 A/B | |
LED | USER1,USER2,UPS,SATA | |
Reset | 1 | |
Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 supports WiFi |
| M.2 B-Key | 1 x M.2 B-Key 3052 supports 4G/5G | |
| Mini PCIe | 1 | |
Storage | M.2 | 1 x M.2 M-Key 2280 support SSD (PCIe x4) |
SATA3.0 | 1 | |
SIM | 1 x Nano SIM | |
| Power Requirement | Supply voltage | 24V DC IN |
| Power management | AT/ATX | |
| Max. consumption | 60W | |
| Test environment | Intel Core i7-1165GRE DDR4 32GB X2 | |
OS | Operation system | Windows 10 64Bit, Linux |
Physical Characteristics | Construction | Aluminum alloy |
Mounting | Wall Mounting | |
Dimensions | 236x165x63.5 mm(LxWxH) | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM 2.0 | |
Environment | Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~85°C | |
Relative Humidity | Operating95%@40°C(Non-Condensing) Non-operating 95%@60℃（Non-Condensing） | |
EMC | CE, FCC |

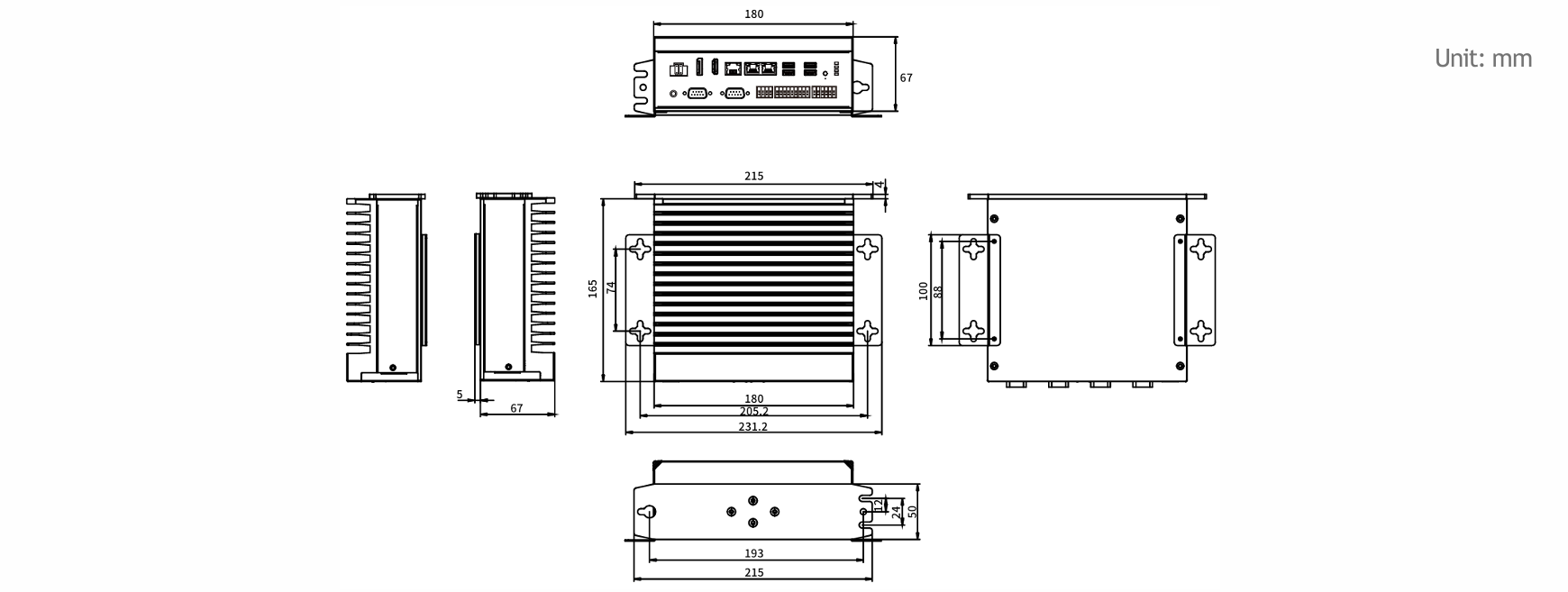

尺寸图 Dimensions

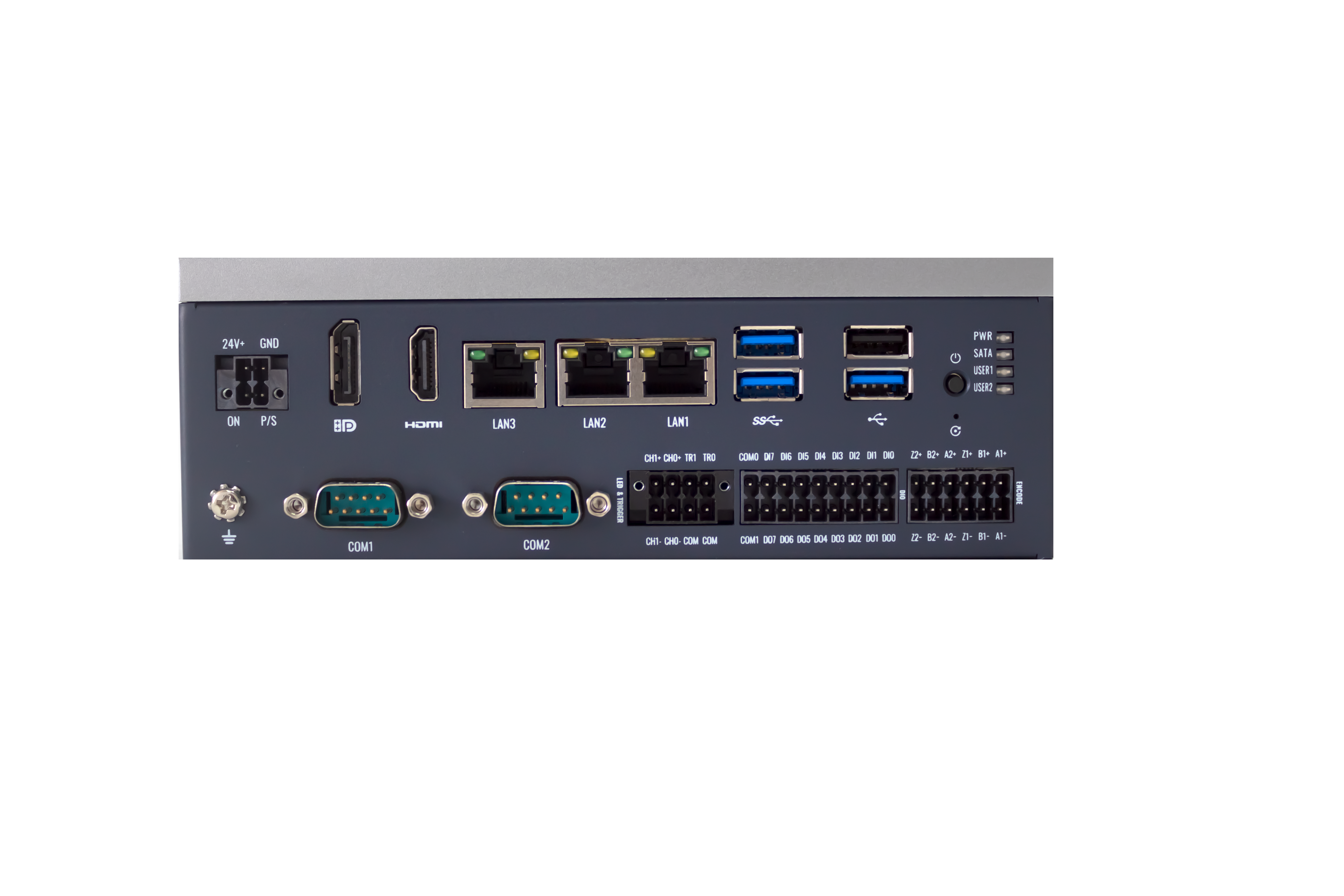

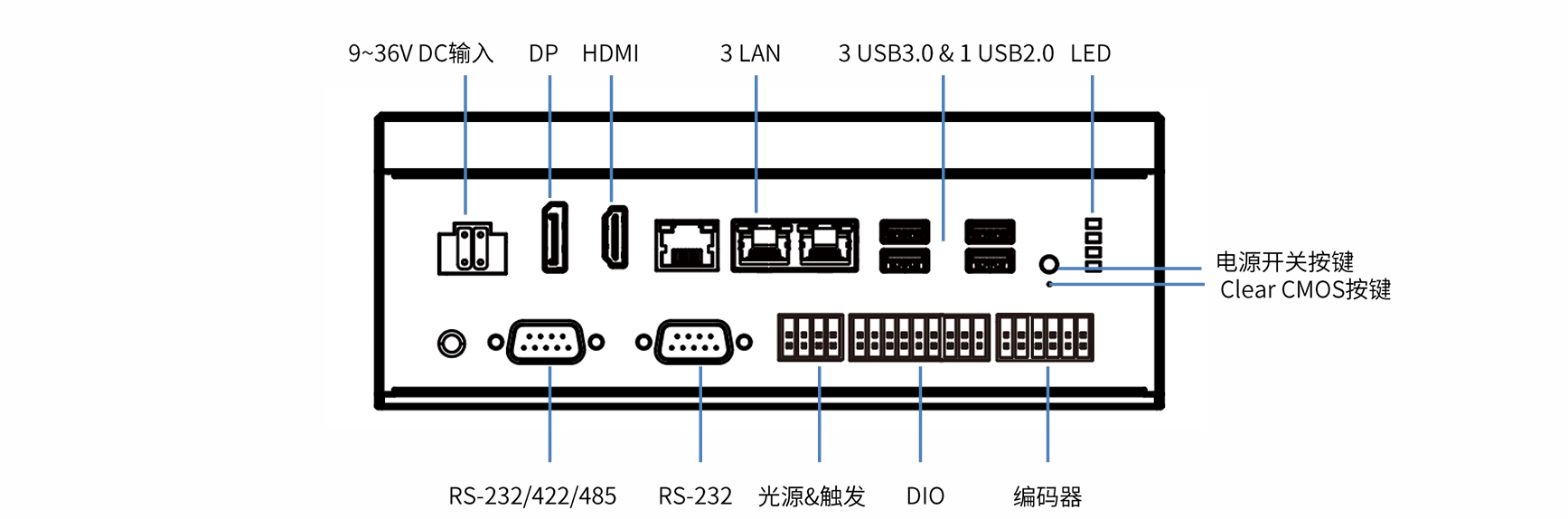

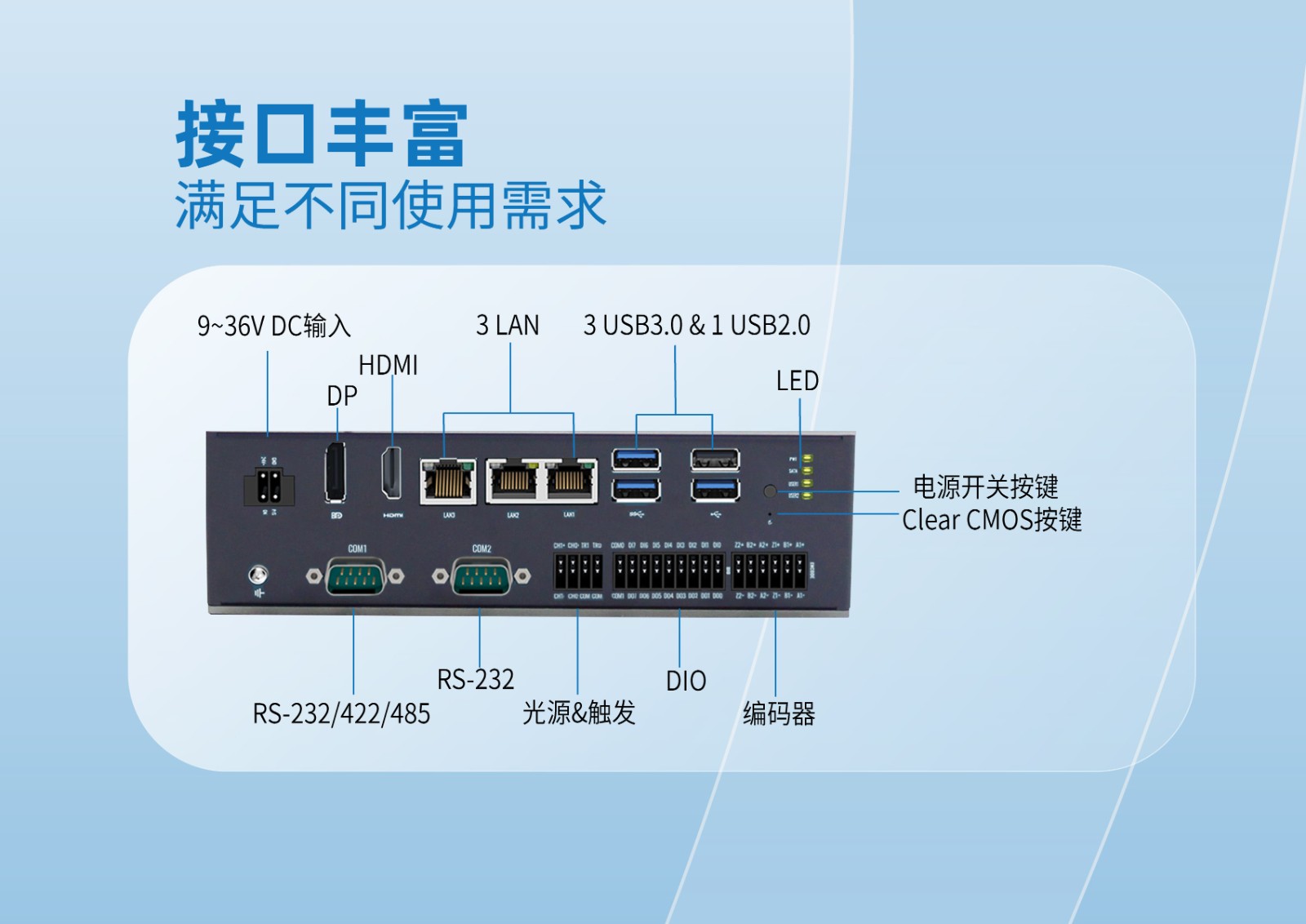

接口图 Interfaces
